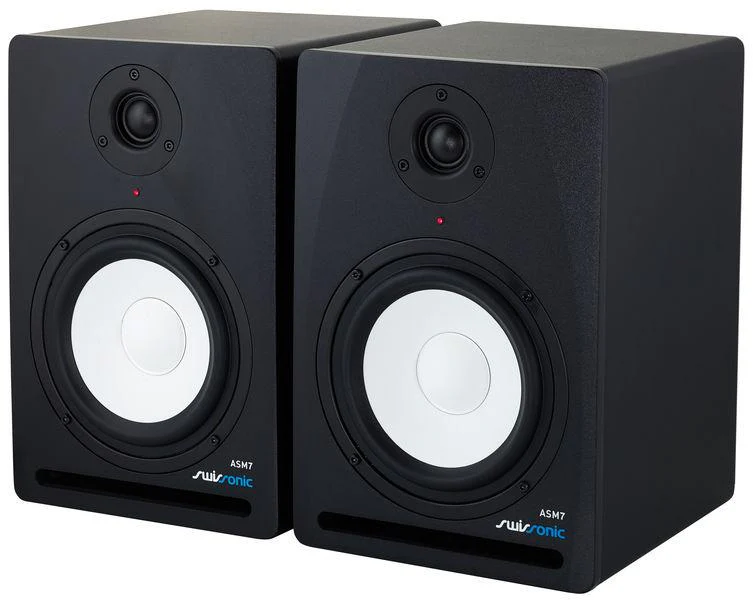

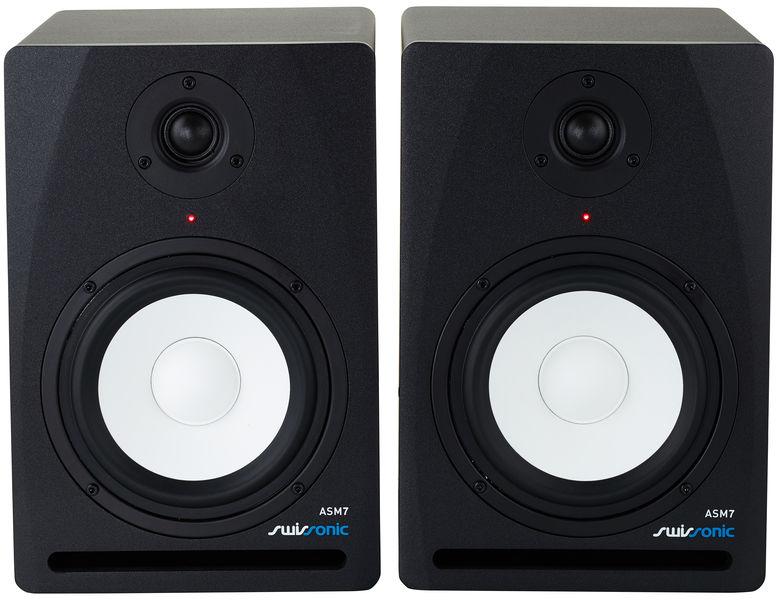

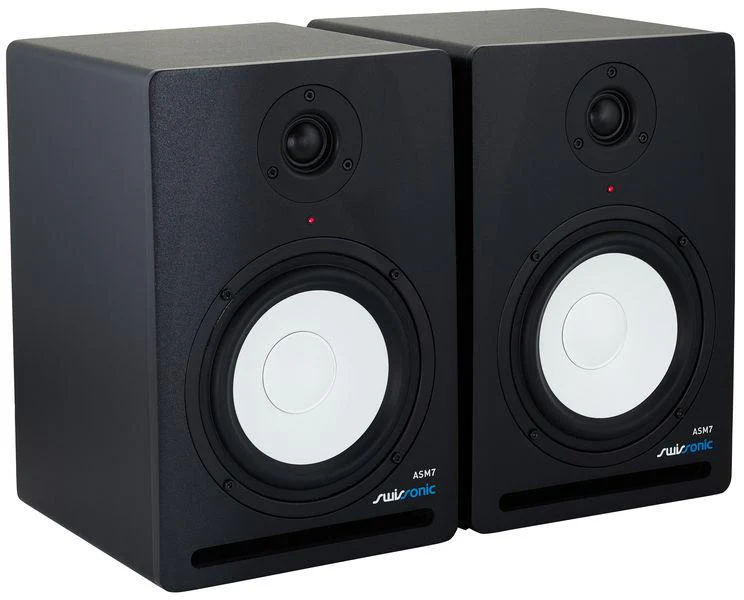

Swissonic ASM7
Active Studio Monitors
- 2-Way system with class A/B AB amplifiers
- Power: 80 W Bi-amplified (60 + 20 W)

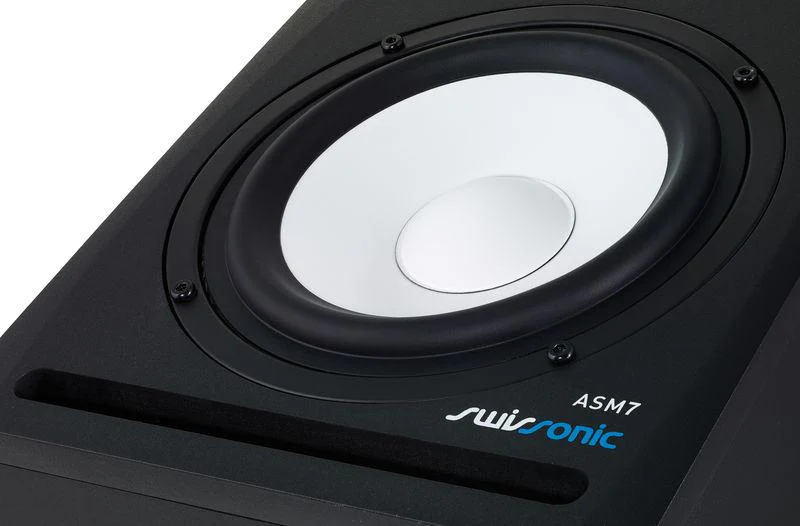

- Woofer: 6.5" (165 mm)

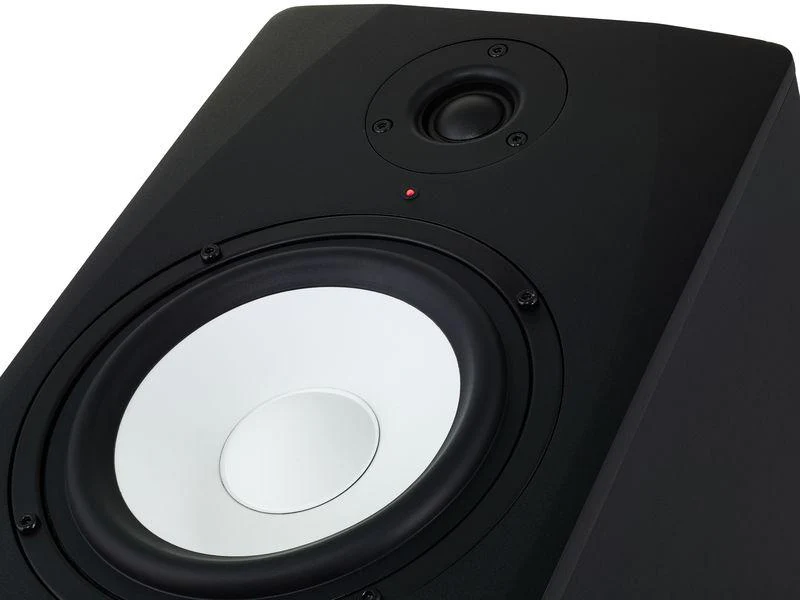

- Natural silk tweeter: 1" (25 mm)
- Frequency range: 45 - 20,000 Hz
- Crossover frequency: 2700 Hz
- Noise ratio > 95 dB (type A-weighted)
- Input impedance: 20 kOhm balanced / 10 kOhm unbalanced

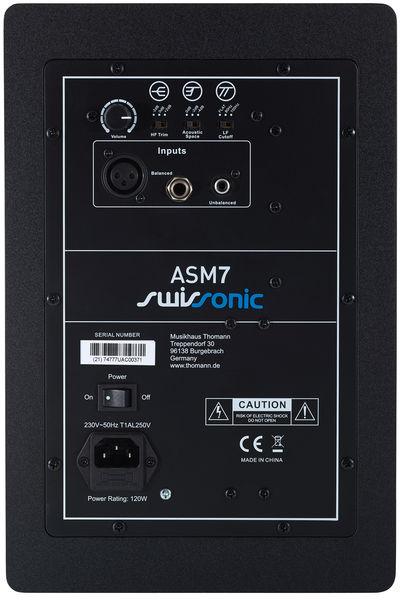

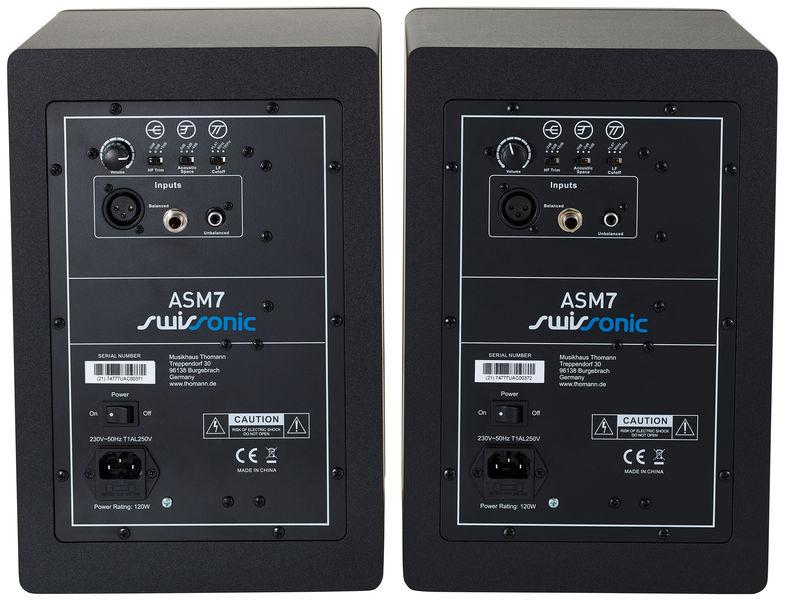

- Inputs: XLR balanced, 6.3 mm jack balanced, RCA connector unbalanced
- Status LED
- Standby function
- Housing made of MDF with vinyl laminate
- Dimensions (W x H x D): 213 x 321 x 230 mm
- Weight: 6.9 kg
- Price for pair

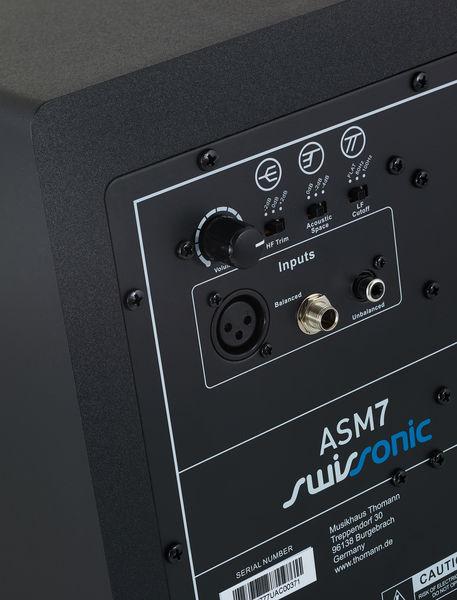

Adjustment options of the sound:
- HF trim: -2 dB, 0 dB, +2 dB
- Low cut: flat, 80 Hz and 100 Hz
- Acoustic space: 0 dB, -2 dB, -4 dB
Further information
| Speaker size | 1x 6,5" |
|---|---|
| Amplifier power per unit (RMS) | 60 W |
| Magnetic Shielding | No |
| Analogue XLR Input | Yes |
| Analogue Input (Jack) | Yes |
| Analogue Input (Mini Jack) | No |
| Analogue Input (RCA) | Yes |
| Digital input | No |
| Manual frequency correction | Yes |
$9,887.70
Original: $32,959.00
-70%Swissonic ASM7—
$32,959.00
$9,887.70Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Active Studio Monitors
- 2-Way system with class A/B AB amplifiers
- Power: 80 W Bi-amplified (60 + 20 W)
- Woofer: 6.5" (165 mm)
- Natural silk tweeter: 1" (25 mm)
- Frequency range: 45 - 20,000 Hz
- Crossover frequency: 2700 Hz
- Noise ratio > 95 dB (type A-weighted)
- Input impedance: 20 kOhm balanced / 10 kOhm unbalanced
- Inputs: XLR balanced, 6.3 mm jack balanced, RCA connector unbalanced
- Status LED
- Standby function
- Housing made of MDF with vinyl laminate
- Dimensions (W x H x D): 213 x 321 x 230 mm
- Weight: 6.9 kg
- Price for pair
Adjustment options of the sound:
- HF trim: -2 dB, 0 dB, +2 dB
- Low cut: flat, 80 Hz and 100 Hz
- Acoustic space: 0 dB, -2 dB, -4 dB
Further information
| Speaker size | 1x 6,5" |
|---|---|
| Amplifier power per unit (RMS) | 60 W |
| Magnetic Shielding | No |
| Analogue XLR Input | Yes |
| Analogue Input (Jack) | Yes |
| Analogue Input (Mini Jack) | No |
| Analogue Input (RCA) | Yes |
| Digital input | No |
| Manual frequency correction | Yes |
