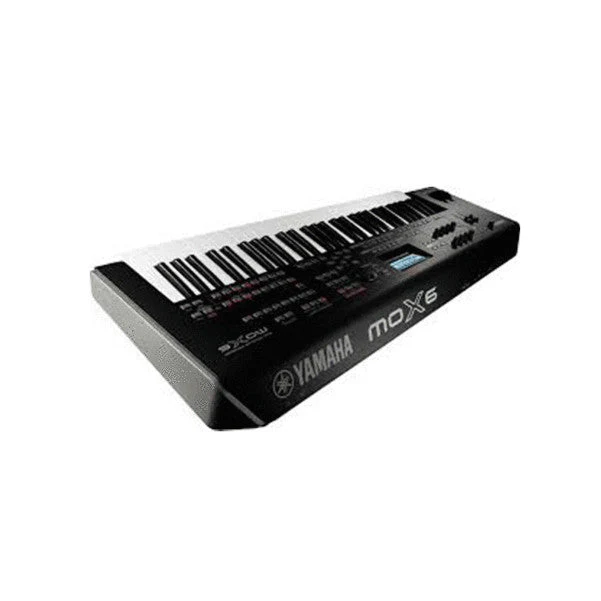

The powerful Yamaha MOX6 synth workstation serves up serious music firepower in an affordable, lightweight package. Armed with the entire sound set from Yamaha's flagship Motif XS, MOX6 gives you Yamaha's expressive synth-weighted 61-key keyboard, a potent MIDI controller with extensive DAW and VST control, a multichannel USB audio interface with comprehensive computer connectivity, fast and capable onboard sequencing, a plethora of arpeggiators, boatloads of awesome-sounding effects, and a muscular software bundle. If you need a complete composer's toolkit and a superb performance machine, you'll find the Yamaha MOX6 downright inspirational.

Yamaha MOX6 Features:

• An amazing workstation with a massive soundset and computer connectivity
• More than 256 Performances to spark your musical inspiration
• Expressive synth-weighted 61-key keyboard
• Virtual Circuitry Modeling (VCM) effects
• 6,720 arpeggiator patterns and 4-part interactive arpeggio engine
• Comprehensive sequencer (including step recording)
• Built-in 4-in/2-out USB Audio/MIDI interface
• Bundled with YC-3B Organ Emulator soft synth, Prologue analog synth, and Cubase AI
• Advanced Integration with Mac/PC

Yamaha MOX6 Specifications:

MOX6 61-Key Semi-Weighted Music Production Synthesizer Workstation

• Dimensions (WxHxD): 1,030 mm x 125 mm x 358 mm (40 1/2" x 5" x 14")
• Weight: 7.0 kg (15.4 lb.)

Control Interface:

• Keyboard
• Number of keys: 61
• Type: Semi-weighted keyboard
• Initial Touch

Tone generator:

• Tone Generator: AWM2, with Expanded Articulation
• Maximum polyphony: 64 notes
• Multitimbral capacity: 16 parts (Internal), A/D input part
• Wave: 355MB (when converted to 16-bit linear format), 2,670 waveforms
• Voices: Preset - 1,024 Normal Voices + 64 Drum Kits, GM - 128 Normal Voices + 1 Drum Kit, User - 128 x 3 (selected and copied from Preset bank), Normal Voice + 32 Drum Kits
• Performance: User - 128 x 2 (up to 4 parts)
• Filter: 18 types
• Effects: Reverb x 9 types, Chorus x 22 types, Insertion (A, B) x 54 types x 3 parts, Vocoder x 1 (uses both Insertion Effect A and B blocks), Master Effect x 9 types, Master EQ (5 bands), Part EQ (3 bands, stereo)

Sequencer:

• Note capacity: Approximately 226,000 notes
• Note resolution: 480 ppq (parts per quarter note)
• Maximum polyphony: 124 notes
• Tempo (BPM): 5 – 300
• Song recording type: Real-time replace, real-time overdub (with the exception of the Pattern Chain), real-time punch in/out (Song only), Step (with the exception of the Pattern Chain)
• Song tracks: Pattern - 16 Phrase Tracks, Pattern Chain: Pattern Track, Tempo Track, Scene Track, Song - 16 sequence Tracks (Loop on/off can be set for each Track), Tempo Track, Scene Track
• Songs: 64 Songs, Mixing Voices - 16 Voices per Song and up to 256 Voices for all Patterns, Mixing Templates - 32 for all Songs and Patterns
• Patterns: 64 Patterns (x 16 sections), Measures - 256 maximum
• Phrases: User phrases - 256 per Pattern
• Arpeggio: Preset - 6,720 types, User - 256 types (MIDI Sync, MIDI transmit/receive channel, Velocity Limit, and Note Limit can be set)
• Scene Memory: 5 per Song
• Sequence formats: Original format, SMF format 0, 1 (Format 1 load only)

Others:

• Master User: 128 (Each master includes Master keyboard settings with 4 Zones, Assignable Knob/Slider settings, Program Change table)
• Sequence Software compatible with the Remote Control function: For Windows - Cubase 5.5, SONAR 8 / For Macintosh - Cubase 5.5, Logic 9, Digital Performer 6, 7 (Functions to be controlled differ depending on the software)
• Controllers: Pitch Bend wheel, Modulation wheel, Assignable Knob x 8, [DATA] dial x 1, Assignable Function buttons x 2
• Display: 240 x 64 dot, backlit LCD
• Connectors: OUTPUT [L/MONO]/[R] (standard phone jack), A/D INPUT [L]/[R] (standard phone jack), [PHONES] (standard stereo phone jack), [FOOT CONTROLLER], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], MIDI [IN]/[OUT]/[THRU], USB [TO HOST]/[TO DEVICE], DC IN
• Power Supply: 10W
