Sonodyne SRP 400 4.5-Inch Active Studio Monitor - Single
Sonodyne SRP 400 4.5-Inch Active Studio Monitor

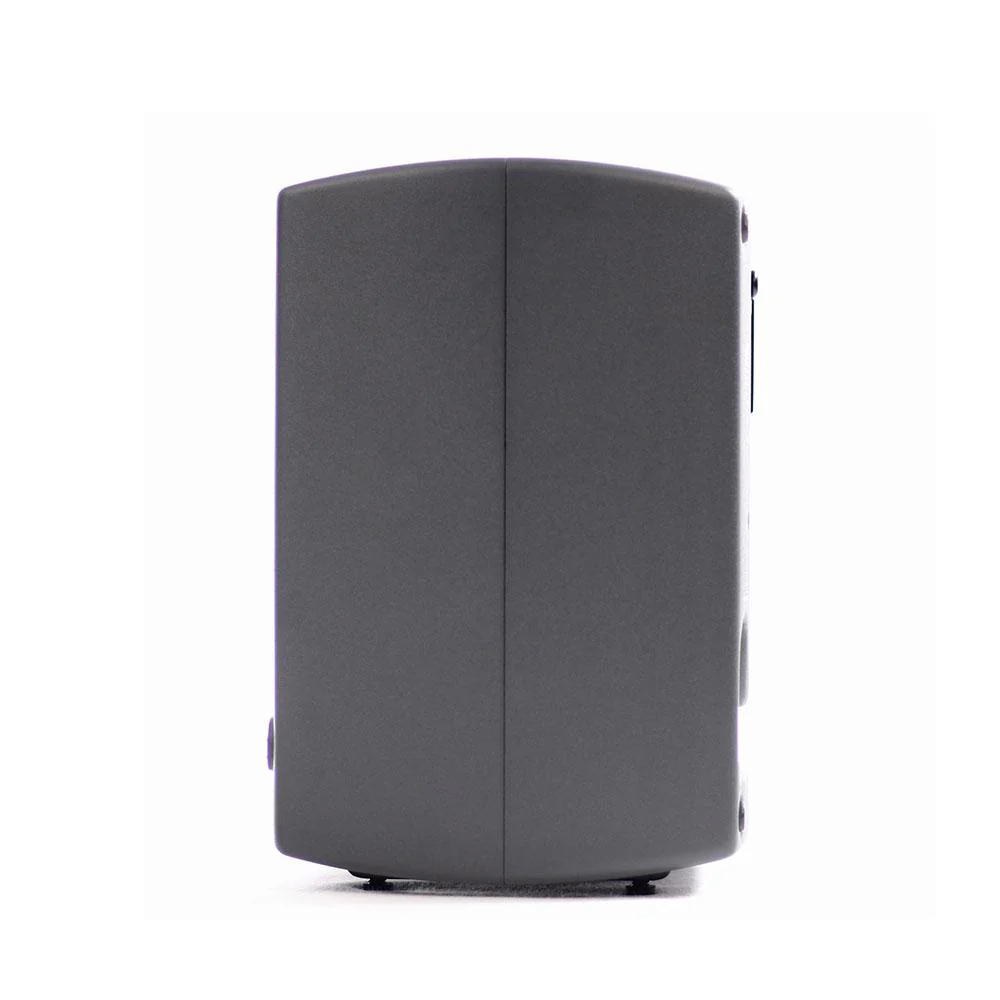

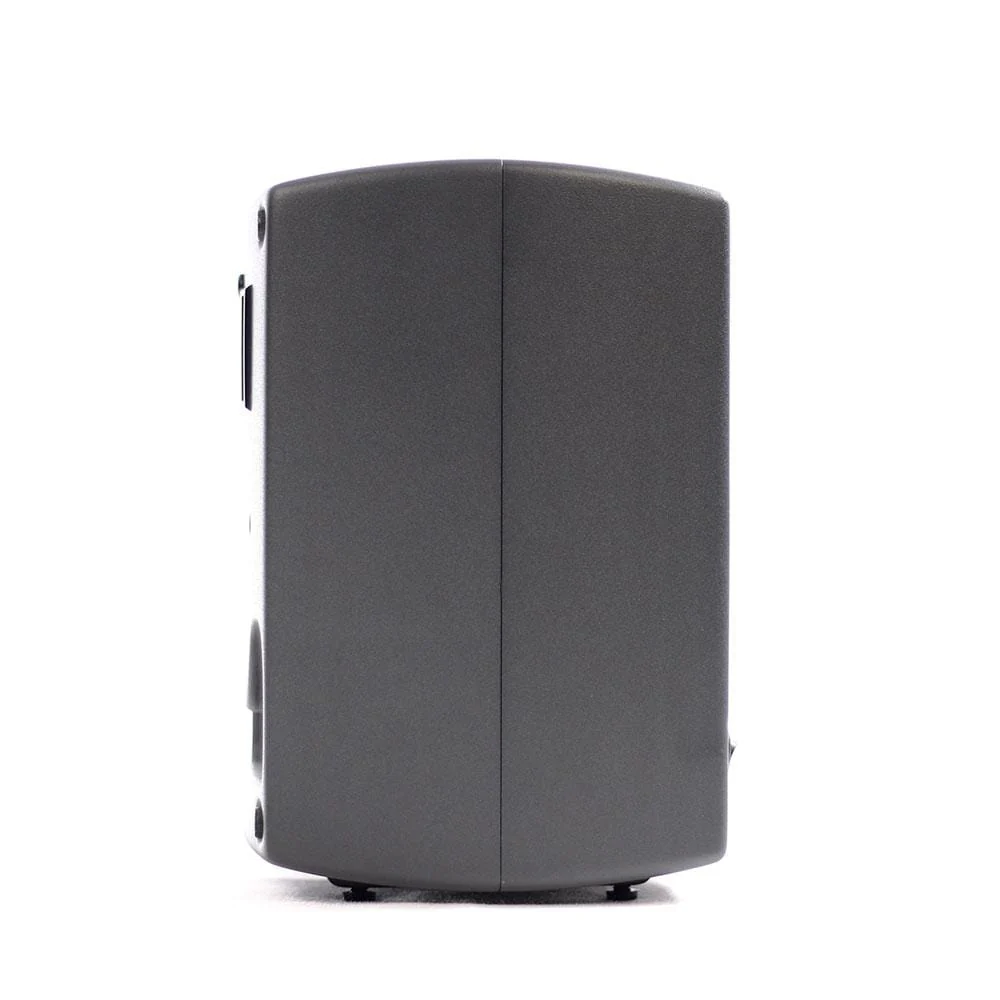

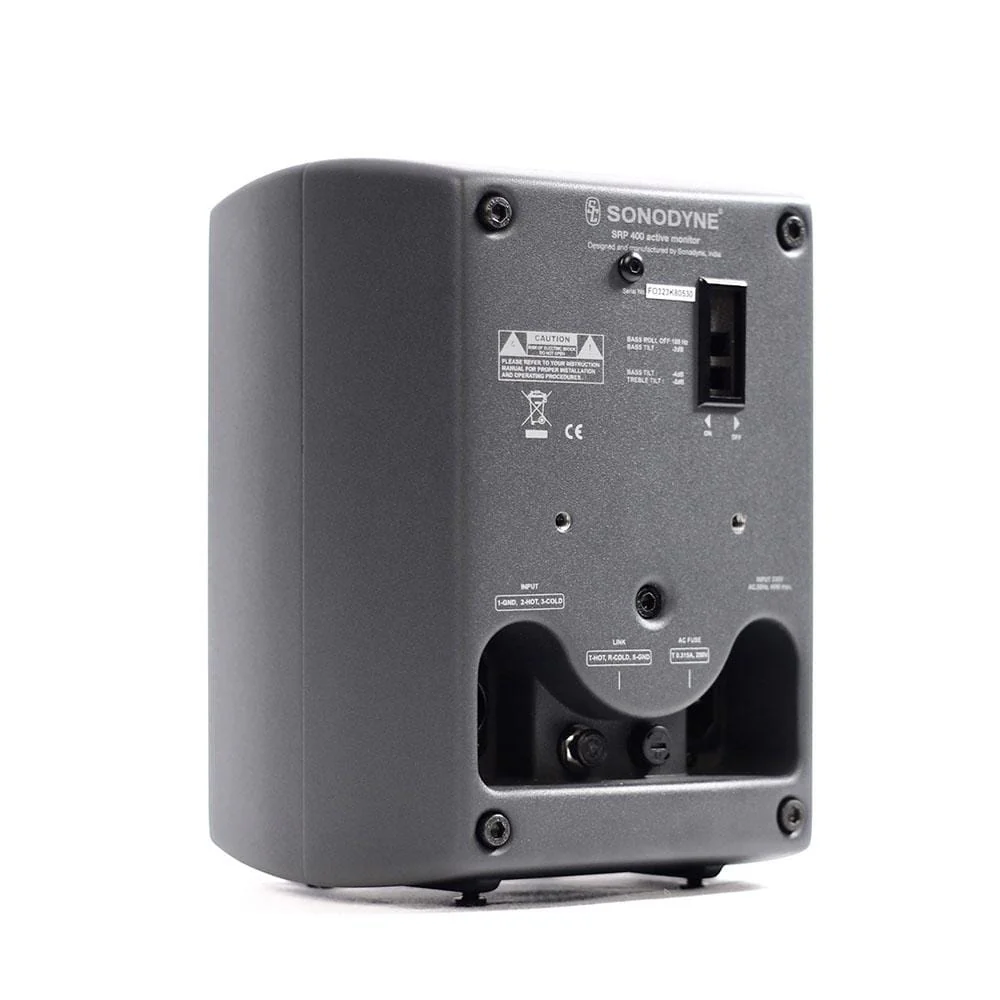

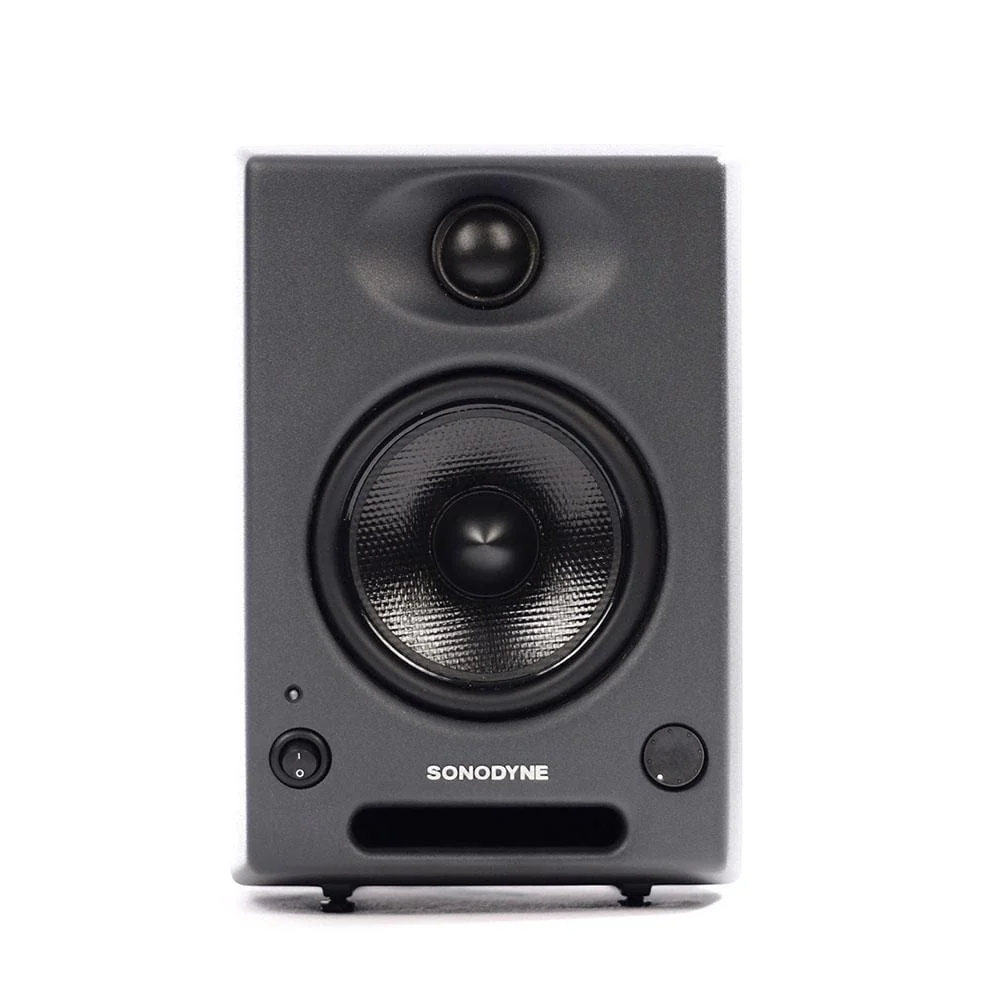

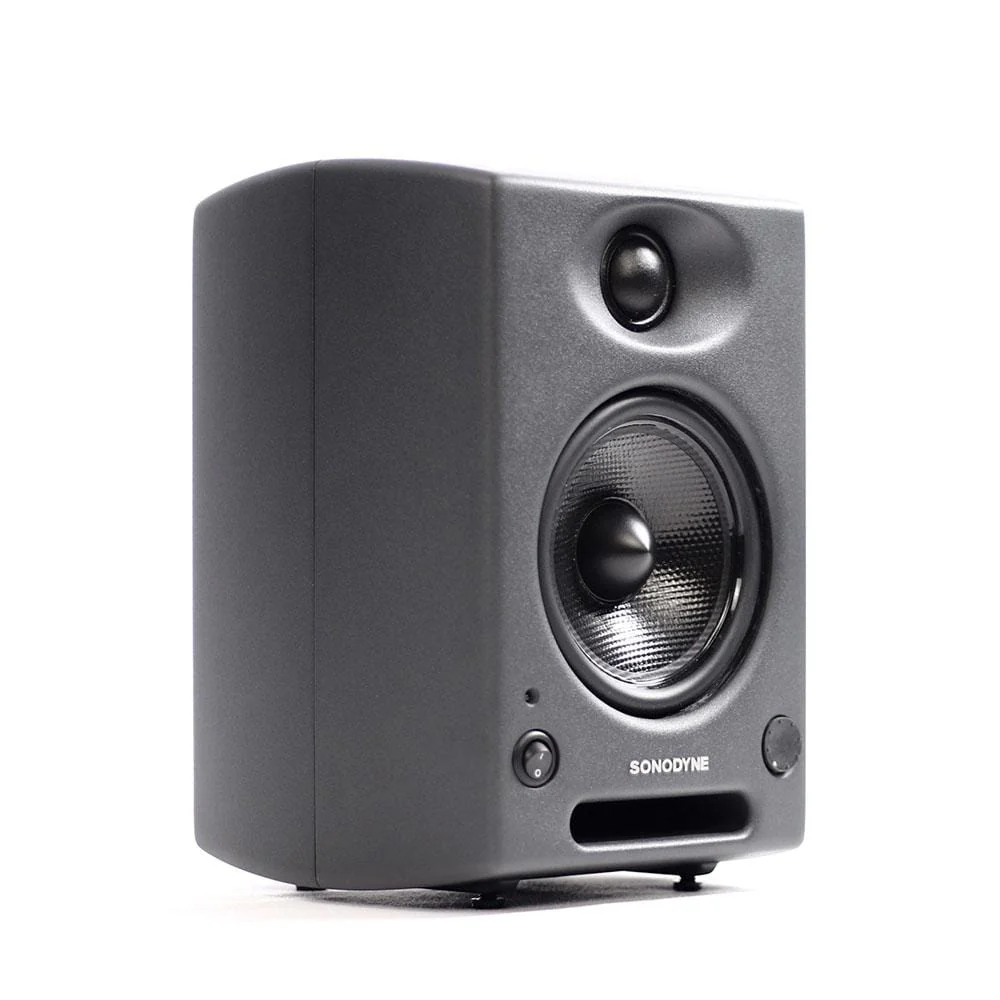

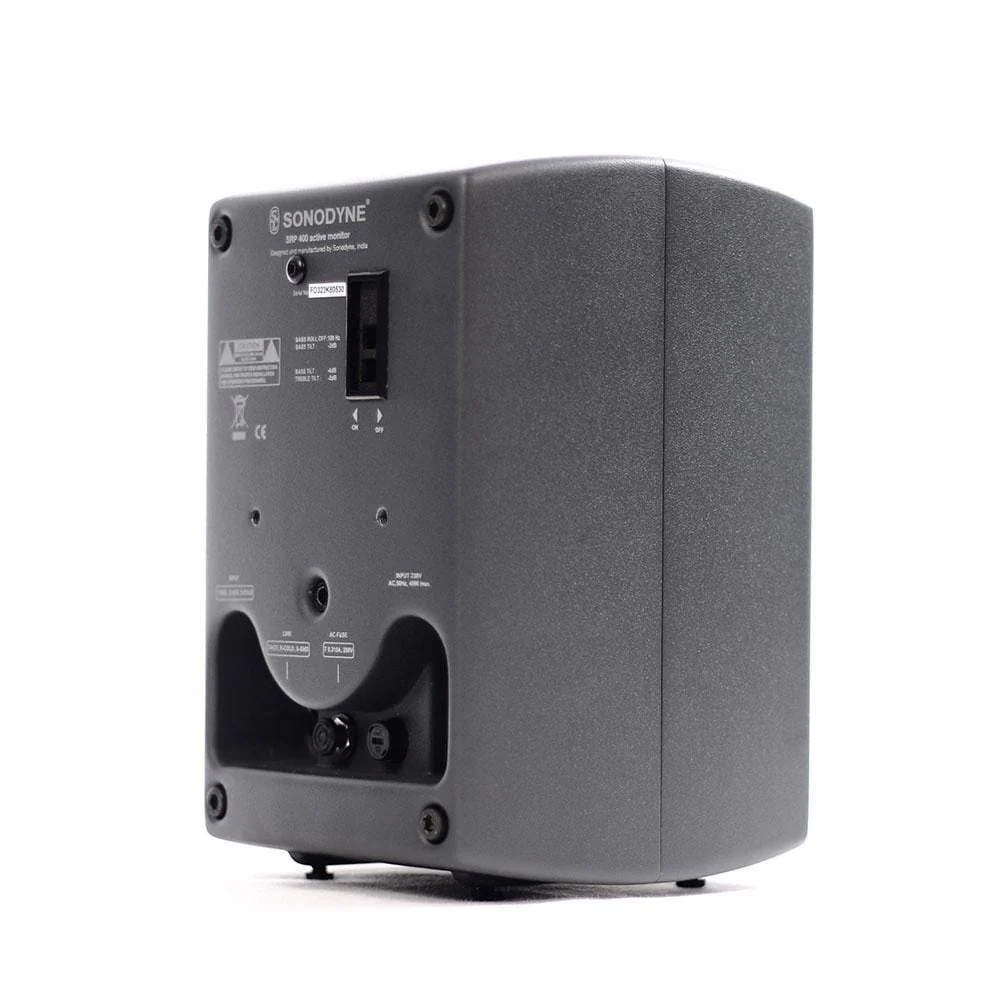

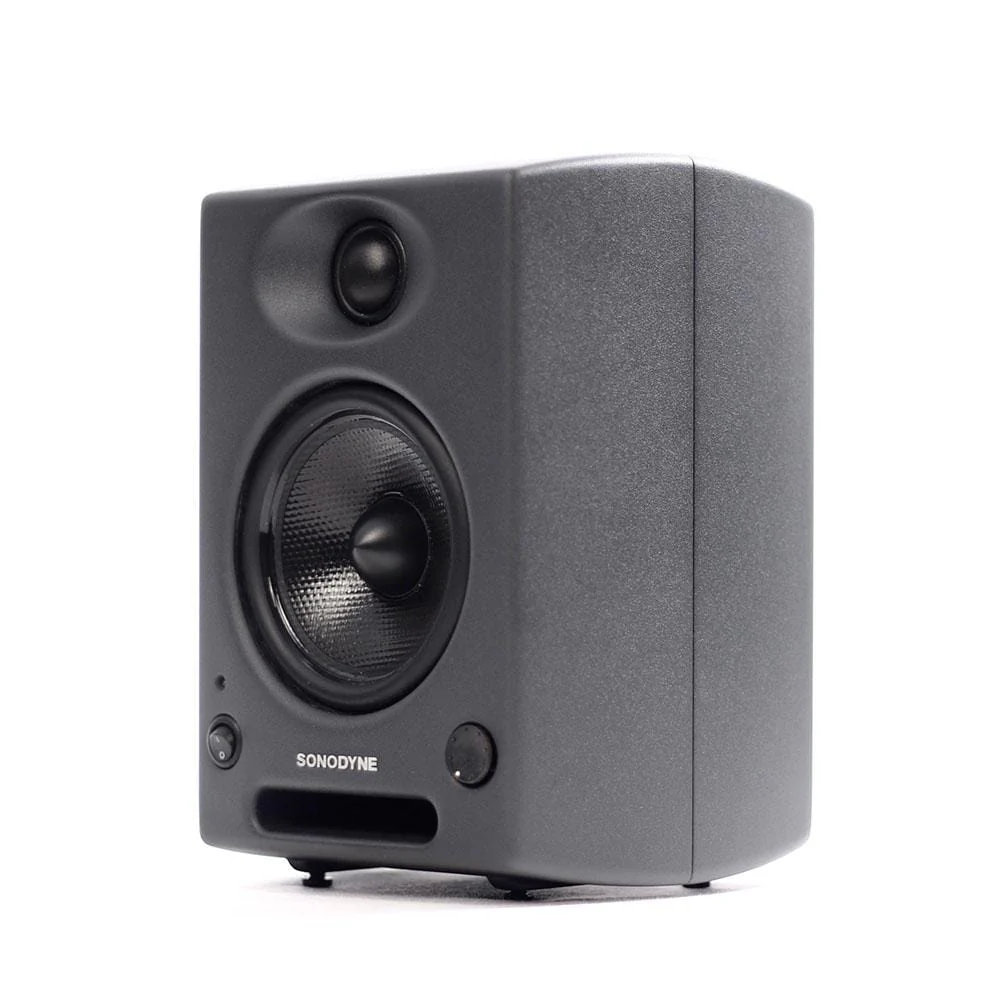

The SRP 400 is the most compact active reference monitor in the new SRP line. It is an excellent reference to understand how mixes translate to smaller speakers. The enclosure is pressure die cast aluminum that maximizes rigidity and lends it a unique form. The silk dome tweeter is nested in a custom waveguide to produce on and off axis linearity and a wide, detailed soundstage. The 4.5" CURV cone woofer produces impressive bass and transient response. A new 25 + 25 watt biamplifier drives the transducers optimally while providing adequate headroom and dynamics. The maximum SPL measures in at an impressive 100dB. Room compensation HF and LF tilts are available at the rear. On the front is a level control ranging from mute to +6dB with centre detent at 0dB. Tapped inserts at the rear and bottom allow for various mounting options. The SRP 400 accepts XLR and TRS balanced inputs and is available in the following durable powder coat finishes: rich black, charcoal grey or snow white.
• Rigid Aluminum die cast enclosure
• Class AB: Biamplifier
• 4.5" kevlar woofer
• 1" HF in custom waveguide
• High, Low Shelving EQs
Specifications:
DESCRIPTION: 2 way nearfield active monitor
ENCLOSURE: Pressure die-cast aluminum, vented, through front-firing aerodynamic port
TRANSDUCER COMPLEMENTS: HF: Magnetically shielded 26mm silk dome with custom waveguide
TRANSDUCER COMPLEMENTS: LF: Magnetically shielded 4.5" CURV cone woofer
AMPLIFIER POWER BEFORE CLIPPING: LF: 25 W, HF: 25 W
AMPLIFIER THD AT RATED POWER: < 0.1 %
MAX SPL @ 1M: 100 dB
FREQUENCY RESPONSE: 75 Hz ~ 22 kHz (+/- 2 dB)
USABLE FREQUENCY RANGE (-10 DB): 65 Hz ~ 25 kHz
CROSSOVER FREQUENCY: 3.0 kHz CMRR: > 65 dB
INPUTS: Fully balanced through XLR & TRS sockets
INPUT LEVEL FOR 90 DB SPL @ 1M: -2 dBU
CONTROLS – FRONT: Gain, Power
CONTROLS – REAR: Bass tilt, Treble tilt
INDICATOR: Power ON /OFF
GAIN CONTROL RANGE: -? to +6 dB, 0 dB at center position
BASS ROLL-OFF: 100 Hz, 6 dB/octave
SIGNAL TO NOISE RATIO (AT UNITY GAIN): > 90 dB, referred to full output
FINISH: Powder coated (grey/white/black)
COLOURS: Grey/ White/ Black
DIMENSIONS (HXWXD) MM: 160 x 232 x 155
POWER CONSUMPTION: 70 VA Max.
POWER REQUIREMENT: 230 VAC, ±10%, 50 Hz; 120 V optional
NET WEIGHT: 4.4 kg
WALL MOUNT BRACKET: SRP WB1
MOUNTING OPTIONS: 2 x M6 inserts on rear 4 x M6 inserts on base
