Sennheiser XSW 1-825 Wireless Dual Handheld Vocal System Overview :

2-channel wireless system for singers and presenters. Stable UHF band, built-in antennas and streamlined interface.

XS Wireless 1 DUAL is a 2-channel wireless system for singers and presenters. Designed with ease of use in mind, these analog UHF systems feature a sleek dual-channel receiver with built-in antennas and the streamlined interface from Sennheiser's popular XS Wireless 1 series.

Features :

• Excellent live sound featuring Sennheiser's renowned evolution microphone capsules
• Antenna-switching 2-channel diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

Frequency range

• A :548-572 MHz
• C: 766-790 MHz

EM-XSW 1 DUAL

• Dimensions approx. 320 x 126.5 x 42 mm
• Weight approx. 620 g
• Power supply 12 V DC nom. / 300 mA
• Output voltage (at peak deviation, 1 kHz AF) 1/4“ (6.3 mm) socket (unbalanced): +6 dBu
• Housing Rugged ABS housing
• Sensitivity < 3 μV at 52 dB(A) rms S/N (at peak deviation)
• Squelch Adjustable from 3 dBμV to 28 dBμV
• AF frequency response 50 to 16,000 Hz (–3 dB)
• Audio adjustment range 45 dB, adjustable in 5 dB steps
• Line / Mic level 20 dB, switchable
• Receiver Principle Double superheterodyne
• Diversity principle Antenna switching diversity via internal antennas

Specifications :

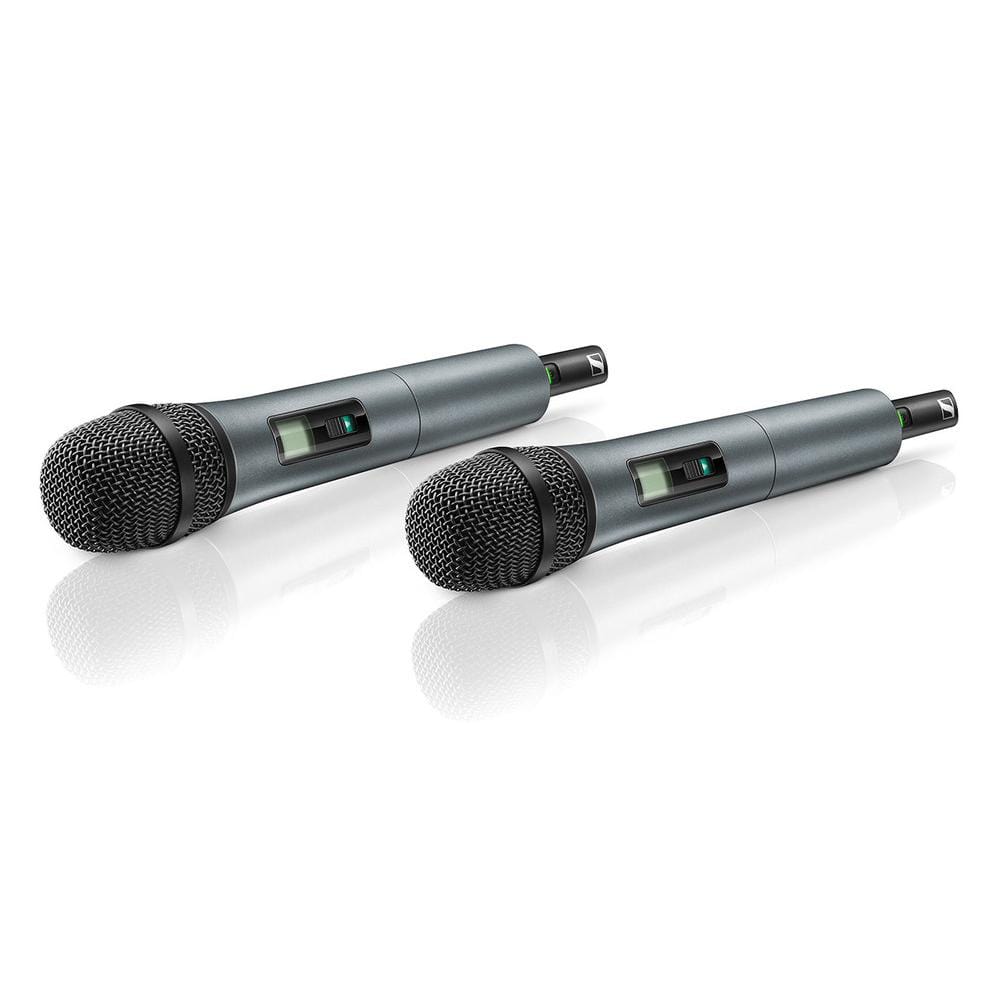

• Dimensions Approx. 260 x 50 mm
• Microphone Dynamic
• Weight Approx. 245 g
• Pick-up pattern Cardioid
• RF output power 10 mW
• Operating time Approx. 10 hrs
• Power supply 2 AA size batteries, 1.5 V
• Housing Rugged ABS housing
• Sensitivity 0 to -30 dB, adjustable in 10 dB steps
• Input sensitivity 1.5 mV / Pa
• AF frequency response 80-16,000 Hz

Made in Germany
