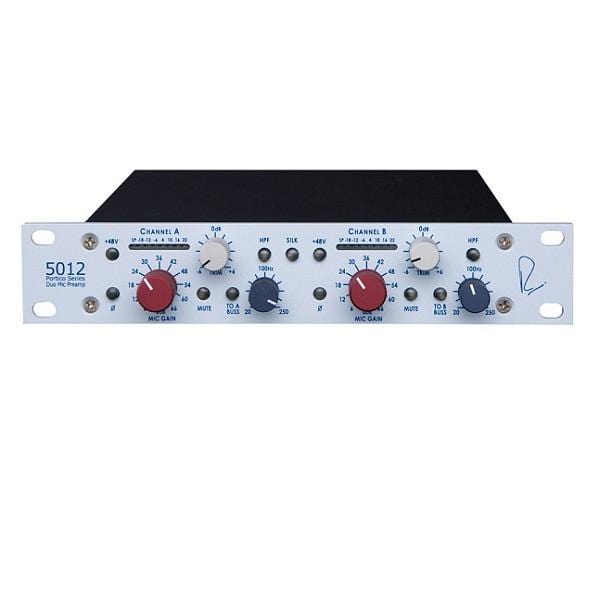

The Portico 5012 is a dual channel mic pre featuring Rupert Neve’s custom input and output transformer designs. In addition to individually selectable phase, mute, phantom power and a fully sweepable high pass filter, the 5012 incorporates a “Silk” circuit which yields the rich warmth and presence of his renowned classics.

Rupert Neve Designs Portico 5012-H Features:

• Silk
  Much could be written about this feature, suffice to say, that it gives a subtle option to enhance sound quality in the direction of vintage modules. The Silk button reduces negative feedback and adjusts the frequency spectrum to provide a very sweet and musical performance. We suggest you try it and make your own judgment.
• Level Meter
  -30 dBu to +22 dBu With reference to the output
• Mute
  Cuts of the output signal post metering and pre Buss Output. Be sure to mute the outputs before engaging phantom power.
• High Pass Filter
  The High pass filter is a valuable aid in any signal chain but particularly so in a microphone preamplifier. Signals between 20 and 250 Hz can be attenuated, leaving the range above this unaffected. This gets rid of building rumble, air handling motor hum etc.
• Phantom Power
  Provides 48V phantom power to microphones
• Buss Output
  The To Buss output is unbalanced and has a high impedance output. It is intended for use with the Portico Buss Amp/Monitoring modules. A TRS patch cord is used to connect the 5012 Buss output to one of these bussing modules. The Monitor connection is derived pre mute on the 5012 and will produce a signal at the output of the buss modules that is equal in level to that at the 5012 output. The Monitor output cannot be used for any other purpose.
• Polarity
  Flips the phase of an incoming source 180 degrees

Rupert Neve Designs Portico 5012-H Specifications:

• Frequency Response:
  Main Output, no load, –3 dB @ 2.5 Hz
  –3 dB @ 125 kHz

• Noise:
  Measured at Main Output, unweighted, 22Hz-22kHz, Terminated 40 Ohms, With gain at unity
  better than –102 dBu

• Maximum input:
  from 20 Hz to 20 kHz, +25 dBu.

• Maximum output:
  from 20 Hz to 20 kHz is +25 dBu. Total Harmonic Distortion and Noise: from <10 Hz to 80 kHz,
  @ 1kHz, +20 dBu output: Better than 0.002% @ 20Hz, +20 dBu out Better than 0.120%
  13
  @ 20kHz, +20 dBu out Better than 0.010%

• Total Harmonic Distortion and Noise:
  from <10 Hz to 80 kHz @ 1kHz, +20 dBu output: Better than 0.020% @ 20Hz, +20 dBu output Better than 0.140% @ 20kHz, +20 dBu output Better than 0.070%

• Size/Weight:
  Size 1.75”H (1U), 9.5”W, 8”D
  Weight 8lbs

Made in USA
