NTI Audio Mini SPL Measurement Condenser Microphone with Certificate
NTI Audio Mini SPL Measurement Condenser Microphone with Certificate:
Specifications:
Specifications:
- Microphone Type: 1/2”, omni-directional, pre-polarized condenser, free field transducer
- Sensitivity:
- balanced (20 ±2) mV/Pa
- unbalanced (10 ±1) mV/Pa
- @ 1 kHz, 20°C
- +0.05 dBSPL / °C
- Frequency Response: acc. to IEC61672, Class 2, tolerance curve is shown on typical calibration certificate
- Output: balanced
- Peak Acoustic Input: 130 dBSPL @ 1 kHz
- Noise: 32 dBSPL, A-weighted
- Load Conditions: 20 - 200 kOhm balanced, to achieve this always switch PHANTOM POWER off.
- Power Supply: 1x AA battery 1.5 V, battery lifetimetypical 300 hrs, no phantom power supply, phantom power resistant
- Dimensions: dia 22 mm, length 180 mm, dia 0.87”, length 7”
- Weight: 100 g ( 3.5 oz ) incl. battery
- Temperature: 0° to +45° C (32° to 113° F)
- Humidity: < 90 % R.H., non condensing
- Conforms to the Normative Standards:
- EMC-Directives: 89/336, 92/31, 93/68
- Harmonized Standards: EN 61326-1

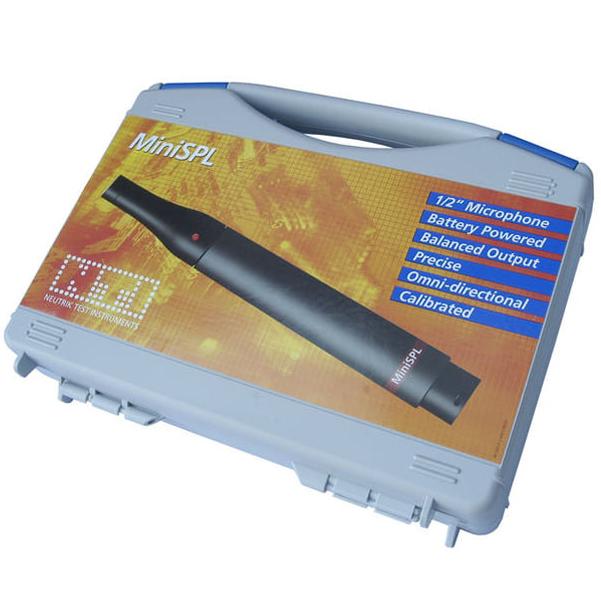

- Includes Micro-clamp and certificate, case
