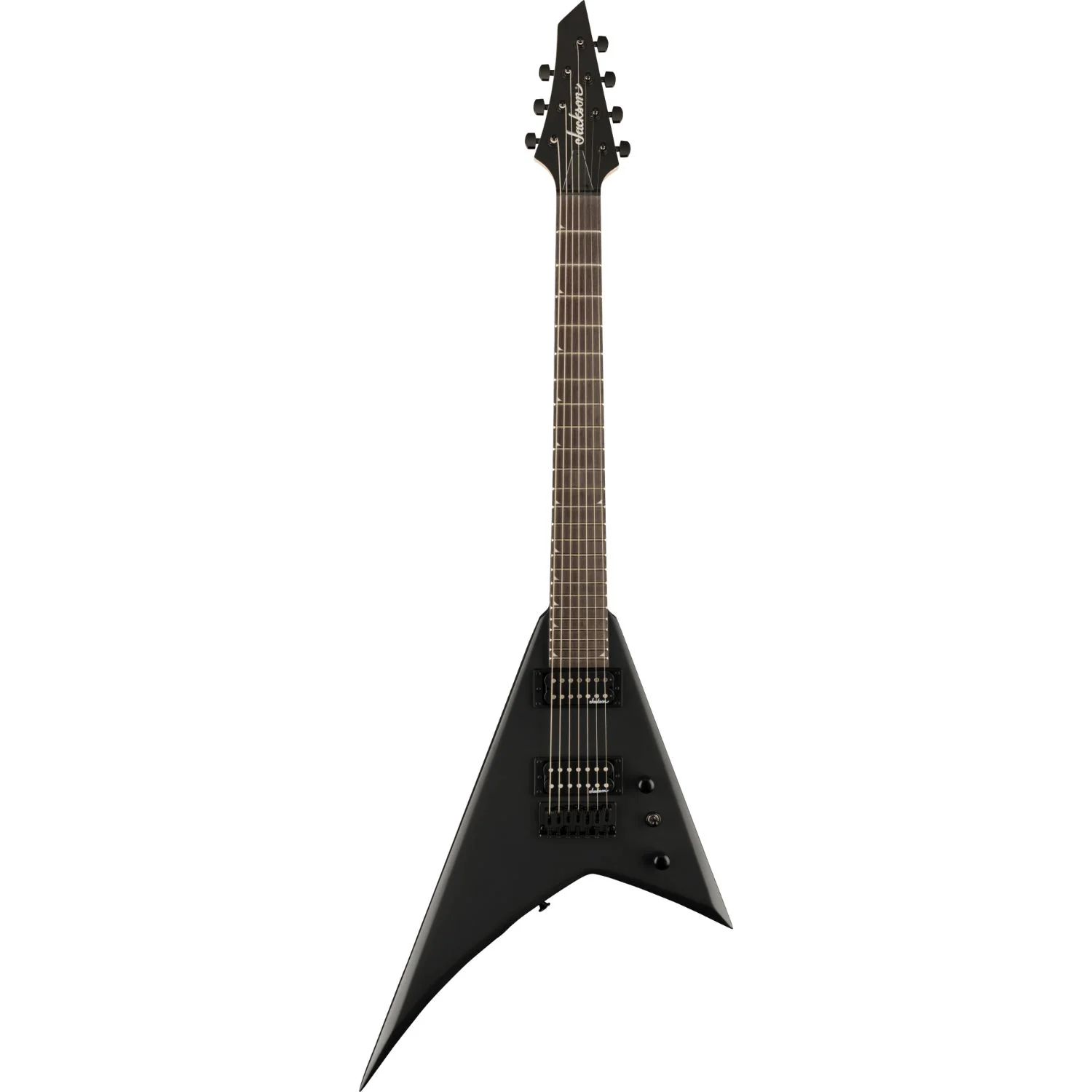

Jackson Rhoads JS22-7 RR 7 String Electric Guitar Overview:

Seven-string fans looking for a guitar that is as sleek and deadly as it is affordable will find everything they need with the JS Series Rhoads JS22-7 RR HT.

This beastly axe features a 26.5" scale length for better low-end articulation and string tension, a lightweight and resonant poplar body and a bolt-on maple neck with graphite reinforcement and scarf joint for rock-solid stability. Hosting 24 jumbo frets and piranha tooth inlays, the 12"-16" compound radius amaranth fingerboard creates the ideal playing surface for fat riffs and easy chording near the black plastic nut while gradually flattening in the upper registers for lightning-quick solos and wide bends without fear of fretting out.

Powered by Jackson high-output humbucking pickups, the JS22-7 RR HT is also equipped with a three-way toggle switch, single volume and tone controls, compensated string-through-body fixed Jackson HT7 bridge, sealed die-cast tuners and our 3x4 (3 over, 4 under) AT-1 headstock.

The JS22-7 RR HT is finished in a brooding Satin Black finish with all-black hardware.

Features:

• Poplar body

• Bolt-on maple neck with graphite reinforcement and scarf joint

• Amaranth fingerboard

• 12”-16” compound radius

• 26.5” scale length

• 24 jumbo frets and

• piranha tooth inlays

• three-way toggle switch

• Jackson high-output pickups

• single volume and tone controls



12" - 16" COMPOUND RADIUS
Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.

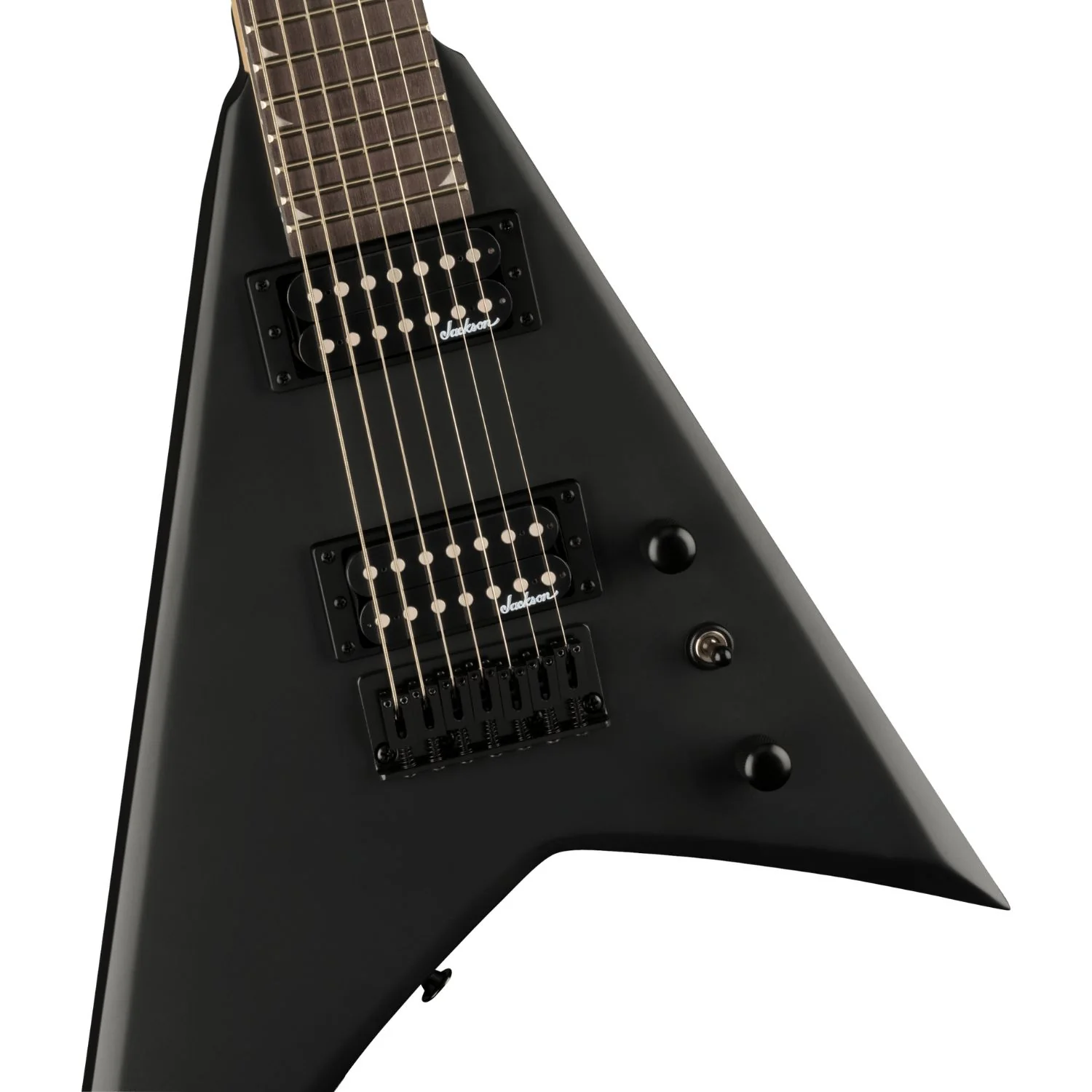

DUAL JACKSON HIGH-OUTPUT 7-STRING HUMBUCKING PICKUPS
These Jackson 7-string high-output humbucking pickups are painstakingly voiced for full, rich tone while providing maximum overdrive and sustain without muddiness.





Specifications:

Body

• Body: Poplar

• Body Finish: Satin

• Body Shape: Rhoads

• Body Material: Poplar

Neck

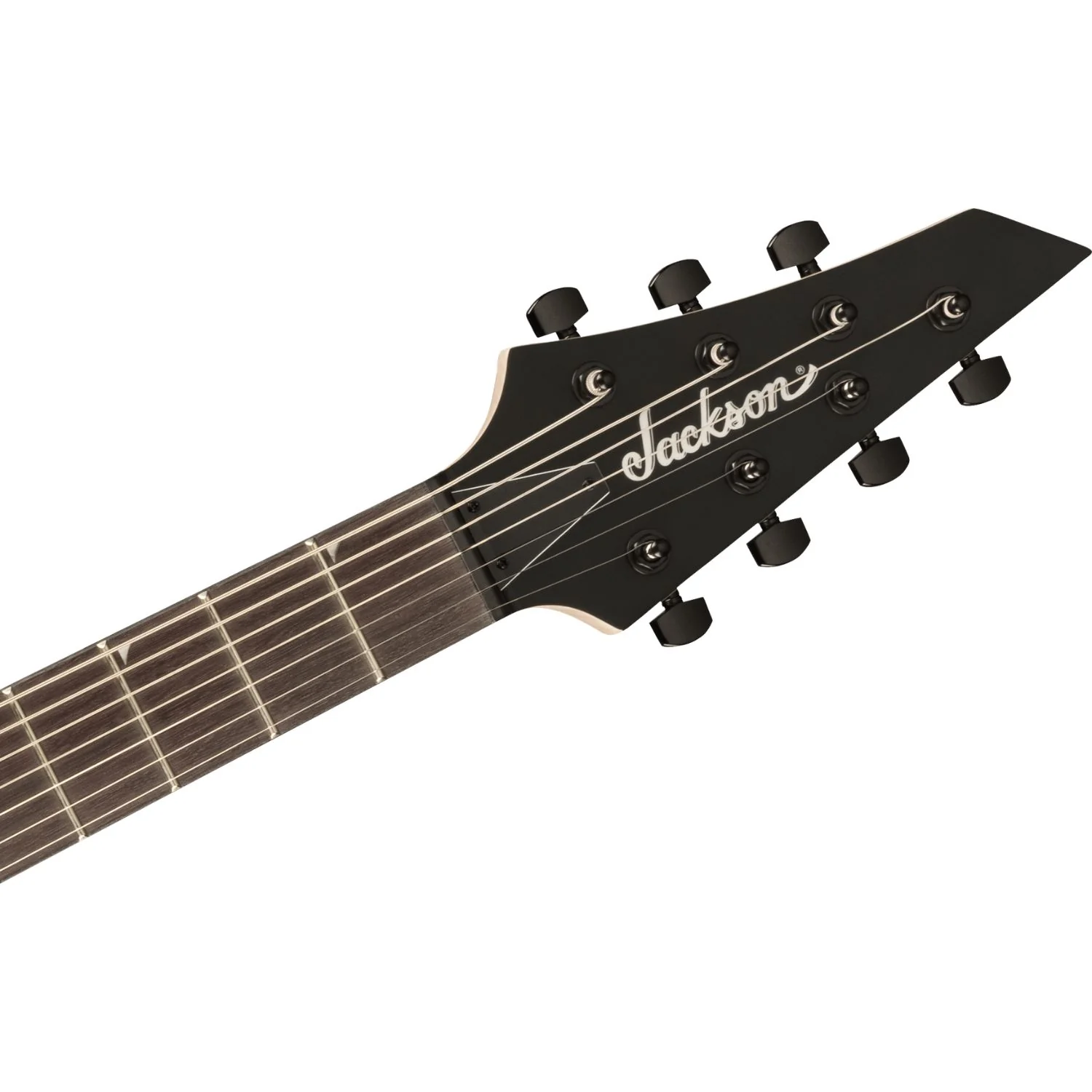

• Headstock: Jackson AT-1 3x4 (3 Over/4 Under)

• Neck Material: Maple

• Neck Finish: Satin

• Neck Construction: Bolt-On with Graphite Reinforcement and Scarf Joint

• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)

• Fingerboard Material: Amaranth

• Position Inlays: Pearloid Piranha Tooth

• Side Dots: White

• Number of Frets: 24

• Truss Rod: Dual-Action Head Adjust

• String Nut: Black Plastic

• Nut Width: 1.875" (47.6 mm)

• Nut Material: Black Plastic

Hardware

• Bridge: Jackson HT7 String-Through-Body Hardtail

• Pickup Covers: Black

• Control Knobs: Dome-Style

• Hardware Finish: Black

• Tuning Machines: Jackson Sealed Die-Cast

• Strings: Nickel Plated Steel (.009-.054 Gauges)

• Neck Plate: Jackson

• Strap ButtonsStandard

Electronics

• Bridge Pickup: Jackson High-Output 7-String Humbucking

• Neck Pickup: Jackson High-Output 7-String Humbucking

• Pickup Configuration: HH

• Controls: Volume, Tone

• Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• Dimensions: 5.00x23.10x51.00 IN

• Shipping Weight: 16.50 LB

• Fret Size: Jumbo

• Scale Length: 26.5" (673 mm)

• Shipping Length: 51.00 IN

• Shipping Height: 5.00 IN

• Shipping Width: 23.10 IN
