IK Multimedia iLoud Precision 5 5" Studio Monitor Speaker Overview:

\n

iLoud Precision overview
Truly class-defying audio performance beats monitors three times the price
Best-in-class frequency response with extended 36 Hz – 30 kHz range
Ultra-flat to ±1 dB across 45 Hz – 30 kHz spectrum
Unique linear phase response for unmatched clarity
Perfect time alignment that matches theoretical ideal speaker performance
Built in ARC calibration with included measurement microphone
Includes X-MONITOR software with 20+ iconic monitor emulations and extended voicing controls
Individually calibrated with ±0.5 dB unit-to-unit consistency
Developed and handcrafted in Italy

X-MONITOR
Introducing X-MONITOR, an advanced control application for iLoud Precision studio monitors, assisting with acoustic self-calibration and enabling extended acoustic and voicing adjustments. Think of X-MONITOR as your Mac/PC command post for all the superb audio processing features built into iLoud Precision.

X-MONITOR Overview
Facilitates ARC calibration with step-by-step instructions and visual feedback
Displays pre- and post-correction response curves for precise details on room acoustics
Expands Precision’s speaker emulation with over 20+ iconic studio monitor profiles
Lets you create and save your own custom frequency response curves
Offers full control of all back-panel parameters and settings via a single user interface
Manages the functionality and settings of the optional hardware remote
Provides diagnostics and firmware updates to ensure peak system performance

Specifications

\n

\n

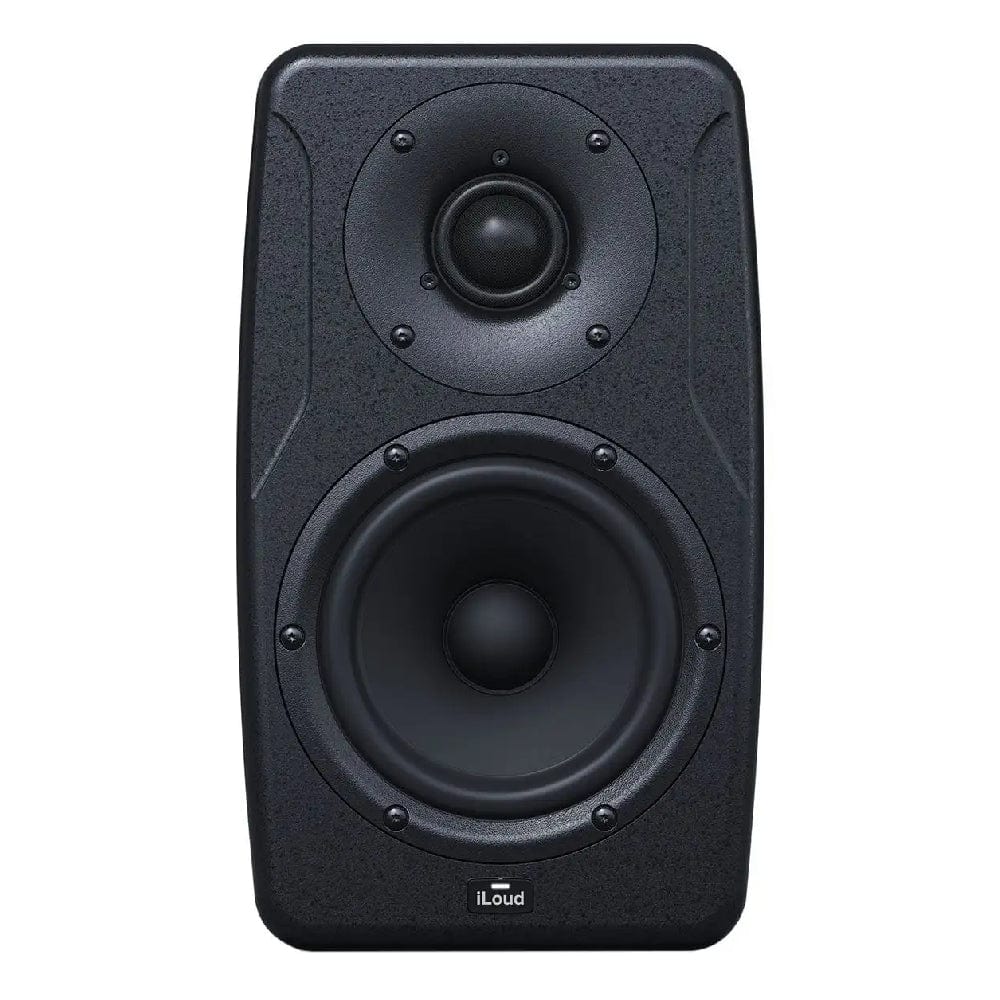

• 5" ultralight coated paper mid-woofer
• 1.5" high output, low distortion chambered textile dome tweeter
\n
• Audiophile, custom-designed Class-D power amplifiers
\n
• 135 W total RMS power
\n
• Max SPL, peak, pair, music, 1 m: 114.5 dBA
\n
• Complete DSP controlled system, 96 kHz sampling rate
\n
• 46 Hz to 30 kHz frequency response +/- 1 dB
\n
• 39 Hz low frequency extension @-4 dB
\n
• Phase response: Coherent, 0/+20° max from 150 Hz up
\n
• Phase rotation at 100Hz (with high pass filter off): 50° max
\n
• Directivity (Vertical - all voices): +/-50°
\n
• Directivity (Vertical - Wide Dispersion mode): +70°/-50°
\n
• Continuous, long term SPL free field, 1 m distance, one speaker, fullband pink noise: 98.5 dB(A)
\n
• Peak SPL free field, 1 m distance, one speaker, fullband pink noise: 104.5 dB(A)
\n
• Peak SPL, half space, 1 m distance, one speaker, fullband pink noise: 106.5 dB(A)
\n
• Maximum peak SPL, per pair, 1 m distance, music program: 114.5 dB(A)
\n
• Crossover frequency: 2.1 kHz
\n
• Crossover type: 8th order, linear phase
\n
• LF Power amp (short term): 110 W
\n
• HF Power amp (short term): 25 W
\n
• Power amps distortion at nominal power: 0.005%
\n
• Total latency or TOF: 2.5 ms
\n
• Adjustable additional delay: 0-10 ms
\n
• High pass filter: off, 35, 50, 65, 80 Hz
\n
• LF contour: from -10 to +6 dB
\n
• Desk contour: from -10 to 0 dB
\n
• Mid contour: from -4 to +4 dB
\n
• HF contour: from -6 to +6 dB
\n
• Sentitivity: -4 dBu / 88 dBSPL
\n
• Input gain trim: +/-5 dB
\n
• Unit to unit consistency: +/-0.5 dB
\n
• Operating temperature (non condensing): from 0 to 35 °C
\n
• Coherent time response across the audio spectrum
\n
• High performance vented design
\n
• Built-in ARC room calibration
\n
• X-MONITOR technology
\n
• Remote control for X-MONITOR voice selection and measurement process control
\n
• X-MONITOR macOS and Windows control software
\n
• Handcrafted in Italy
\n

\n

Dimension and weight

\n

\n
• (H x W x D): 296 mm/11.65" x 177 mm/6.96" x 223 mm/9.17"
• 6.1 kg/13.4 lbs.

Package includes

• 1 x iLoud Precision 5 monitor
• Power cord

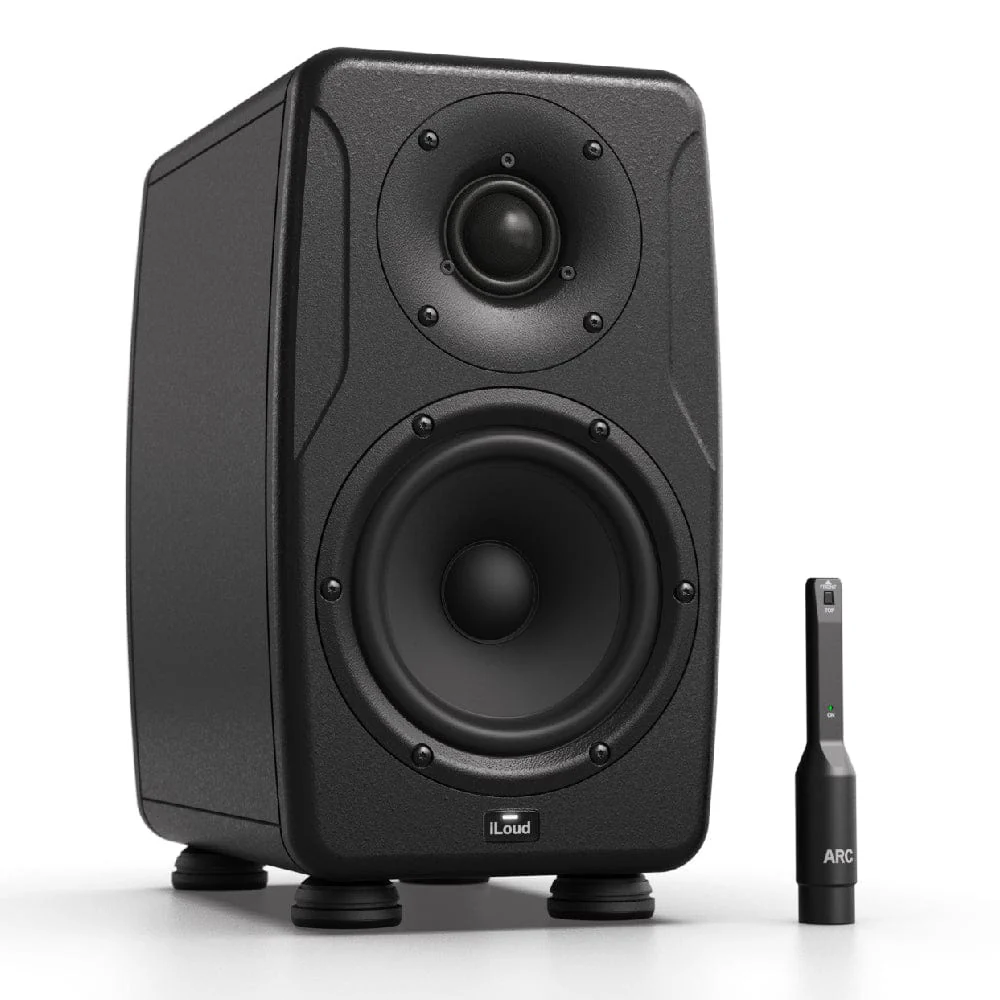

• ARC Microphone
• ARC Microphone clamp
• USB-B to USB-A 2.5 m/8.2 ft. cable
• 1 x kit of 4 iLoud Isolation Pods
