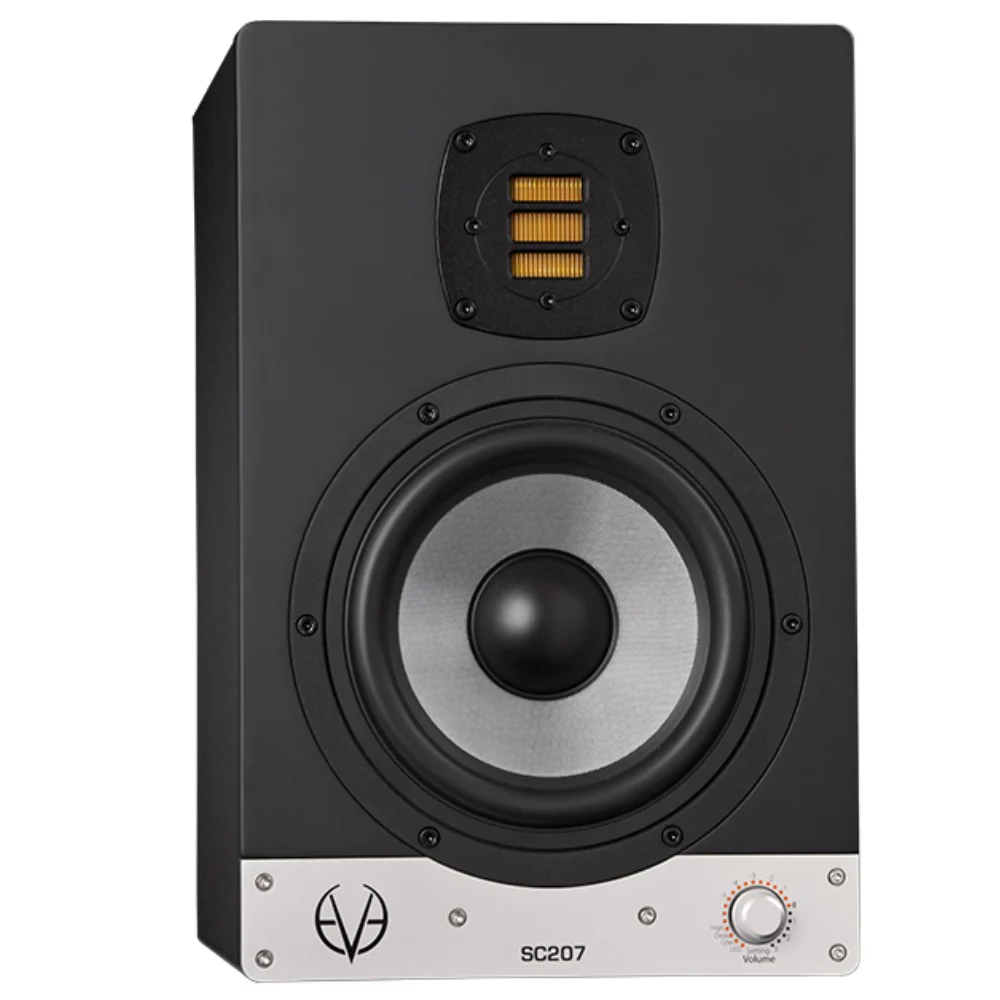

EVE Audio SC207 2-WAY 7" Professional Active Nearfield Studio Monitor Overview:

The nearfield monitor has great power efficiency that will let you clearly examine what's happening in your music. The modest and elegant size of the SC207, along with its quality precision, will make it great in your setup without overwhelming your working area.

Tech Talk

With the SC207, you will get an extended bass frequency response (down to 44 Hz), courtesy of our 6.5" SilverCone honeycomb structured woofer and driven by a sophisticated low distortion copper cap magnet system with our 1.5" voice coil. The result is a very tight and dynamic bass, along with the usual greater linear excursion.

A PWM amplifier, with protection-limiting and capable of delivering a short-term output power of 100W, guarantees that the SC207 will never run out of juice. And with a maximum output level of 106 dB (SPL @ 1m), you can be sure that there is plenty of power to make critical and precise judgements over your mixes.

The SC207 is also the first EVE model monitor that uses our proprietary AMT (Air Motion Transformer) RS2. That means it can deliver a higher output level that is due to a bigger magnet system inside.

As with every other EVE Audio speaker, you get both balanced XLR inputs and unbalanced RCA inputs for greater convenience.

The Air Motion Transformer
Understanding the Air Motion Transformer

The Air Motion Transformer (AMT) is a unique driver technology, distinct from other audio drivers. It utilizes a lightweight, hand-folded diaphragm that is thinly coated with aluminum. The current of the music signal flows through these conductive strands.

The diaphragm is placed in a powerful magnetic field leading to movement in the folds caused by the Lorentz force. Due to the opposing direction of the current the walls of each single fold work against each other. The air between the folds is squeezed in and out at a ratio of 1:4, compared to the 1:1 ratio of a regular dome tweeter.

This results in higher resolution and dynamics in the tweeter section, along with a very low distortion level, allowing superior sound quality with enhanced detail and clarity.

Specifications:

General

• Tweeter: AMT RS2

• Output power tweeter: 50 W

• Woofer: 6,5"

• Output power woofer: 100 W

• Protection limiter: Yes

• Weight: 8 kg (17.6 lb)


Settings

• Volume: - ∞ to + 6 dB

• High-shelf filter (-5 dB to +3 dB): > 3 kHz

• Desk filter cut (-5 dB to 0 dB): 160 Hz

• Desk filter boost (0 dB to +3 dB): 80 Hz

• Low-shelf filter (-5 dB to +3 dB): < 300 Hz

• Adjustable LED brightness: Yes

• Level-lock dip switch: Yes

• Filter-lock dip switch: Yes


Connectors (10k impedance)

• RCA in
  XLR in


Power consumption

• Standby: < 1 W

• Maximum: 120 VA

Dimensions:

• 215x330x280
  Width x Hight x Depth in mm

Frequency range

• 44 Hz - 21 kHz

• -3 dB at 1 m distance

Sound pressure level

• 106 dB

• Max. SPL per pair

Output power

• 150 W

• Output power per speaker

Woofer size

• 6,5"

• Diameter

Cross-over frequency

• 2800 Hz

• Cross-over between drivers
