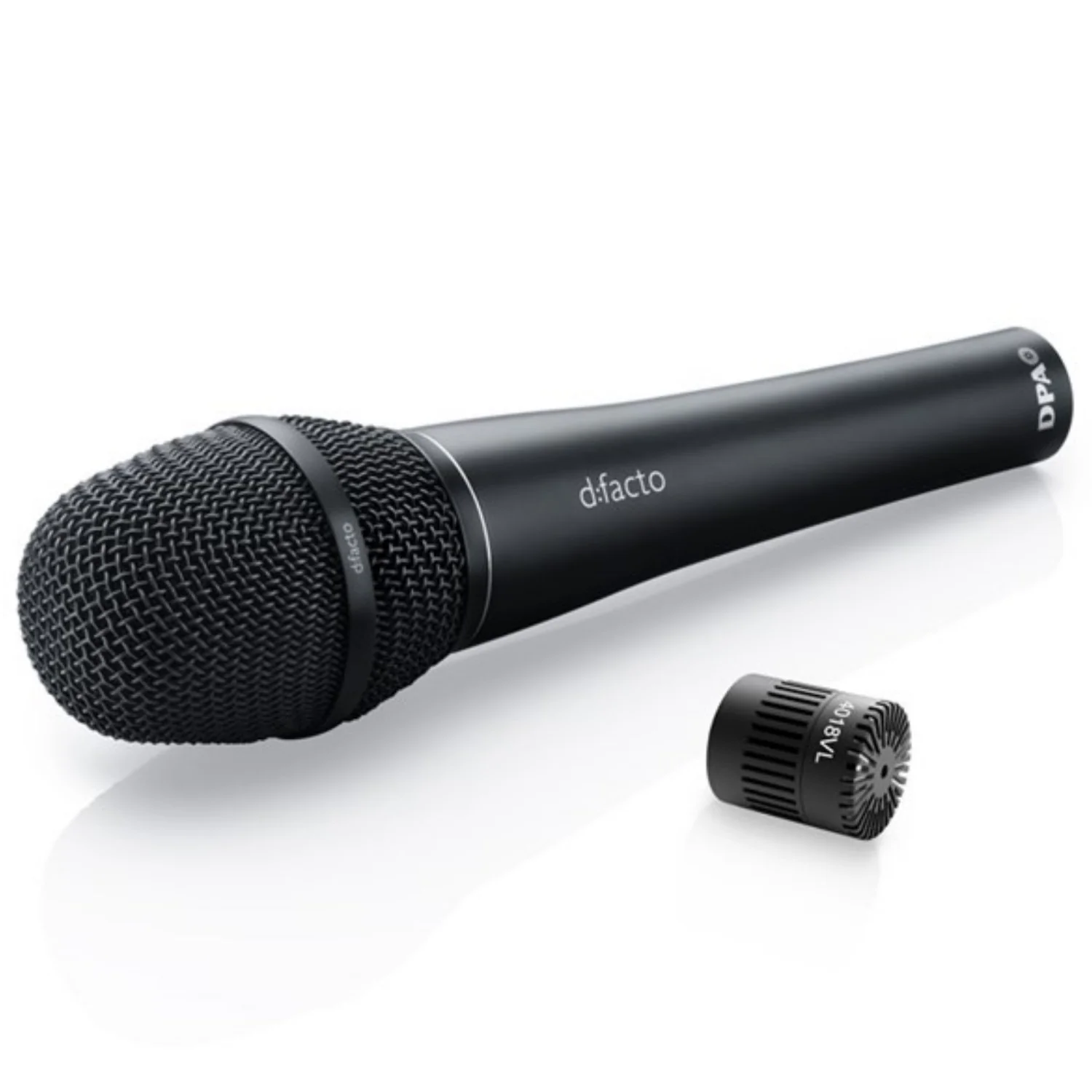

DPA d:facto 4018VL Linear Vocal Microphone Overview:

The d:facto series brings true studio sound to the live stage and broadcasting studio. This version is extremely linear, engineered specifically for audio engineers who prefer setting their own unique impression on the final sound. . The modular nature of the d:facto series allows you to switch the capsule as well as the adapter, making it the most flexible vocal microphone available on the market.

Features:

• Extraordinarily natural sound

• Perfectly uniform supercardioid directionality

• High separation

• Extreme SPL handling

• Low handling noise

• Sleek design

• Flexible adapter system fits most professional wireless systems

Engineered especially for vocal performances onstage, the d:facto holds a supercardioid capsule that is designed to reproduce every nuance of the human voice transparently, consistently and thrillingly.

Handheld condenser mic optimized for live performance
d:facto Vocal Microphones are the ultimate stage mics – no matter if the performance is taking place in a cozy club or the largest concert hall.

Like traditional supercardioid mics, the d:facto Series enjoys high side- and rear rejection with a minimum of 9 dB attenuation to the sides. Yet it is not bound by the less desirable aspects of the supercardioid like the uncontrolled and nonlinear rear lobes, which can create feedback from stage wedges, because there is a sudden high frequency peak at the backside of the mic.

The d:facto Series has a wider acceptance angle at the front of the mic than most supercardioids. The acceptance angle is identical to a first-order cardioid at ±60 degrees off-center, resulting in the same work field as a cardioid — just with extremely high and uniform side and rear damping.

Linear or with a high-end boost?
There are two versions available. The d:facto Linear Vocal Microphone (4018VL) is extremely linear. It was engineered specifically for audio engineers who prefer setting their own unique impression on the final sound. The d:facto Vocal Microphone (4018V) is linear but with a high-end boost (3 dB soft boost at 12 kHz). The 4018V is often chosen because it ‘cuts through’ on a broadcasting set, where the content typically ends up transmitted to built-in television speakers with limited audio quality. Both versions of the offer natural sound, high separation from nearby sound sources and SPL handling up to 160 dB.

Besides the linearity / boost, these mics are identical. Both feature an isolation-optimized supercardioid polar pattern. This directional characteristic offers the best of two worlds – from cardioid and supercardioid patterns. These handheld condenser mics can handle loud vocals with three-step pop-protection grid and best-in-class low handling noise. They also offer excellent sonic reproduction with all the detail and balanced linear phase and frequency response users have grown to trust from DPA Microphones.

Wired or wireless? - you choose
You can use the d:facto Vocal Microphone with a sleek, state-of-the-art d:facto Handle for a wired solution or choose to use a d:facto Capsule together with your favorite wireless system. If you decide to go wireless, you can just switch to an adapter for wireless at a quarter of the cost of a new microphone. As circumstances change, you can just switch your adapter, instead of incurring the cost of a completely new microphone. When you make the switch, you won't hear any loss or change in sound quality.

The d:facto Series of handheld condenser microphones works with leading wireless mic solutions, such as Sennheiser, Shure, Sony, Wisycom, Lectrosonics and Line6. DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

See all our d:facto Adapters for wireless and find an adapter that fits your wireless system.

Specifications:

• Directional pattern: Supercardioid

• Principle of operation: Pressure gradient

• Cartridge type: Pre-polarized condenser

• Frequency response: 20 Hz - 20 kHz

• Effective frequency range ±2 dB, at 12 cm (4.7 in): 40 Hz - 16 kHz

• Sensitivity, nominal, ±2 dB at 1 kHz:
  • 5 mV/Pa; -46 dB re. 1 V/Pa

  • 2 mV/Pa; -54 dB re. 1 V/Pa with Adapter for wireless

• Equivalent noise level, A-weighted: Typ. 19 dB(A) re. 20 µPa (max. 21 dB(A))

• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak

• Dynamic range: Typ. 120 dB

• Max. SPL, THD 10%: 160 dB SPL peak

• Rated output impedance: 100 Ω

• Minimum load impedance: 1

• Cable drive capability: 100 m (328 ft)

• Output balance principle: Impedance balancing with Active Drive

• Common mode rejection ratio (CMRR): > 50 dB at 1 kHz

• Power supply (for full performance): P48 (Phantom Power)

• Current consumption: Max 2.0 mA

• Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

• Weight: 309 g (10.9 oz)

• Microphone diameter: 52 mm (2.05 in)

• Capsule diameter: 19 mm (0.75 in)

• Microphone length: 205 mm (8.1 in)

• Maximum output voltage, RMS: 8 V

• Polarity: +V at pin 2 for positive sound pressure

• Temperature range: -40°C to 45°C (-40°F to 113°F)

• Relative humidity (RH): Up to 90%

• Colors: Matte black
