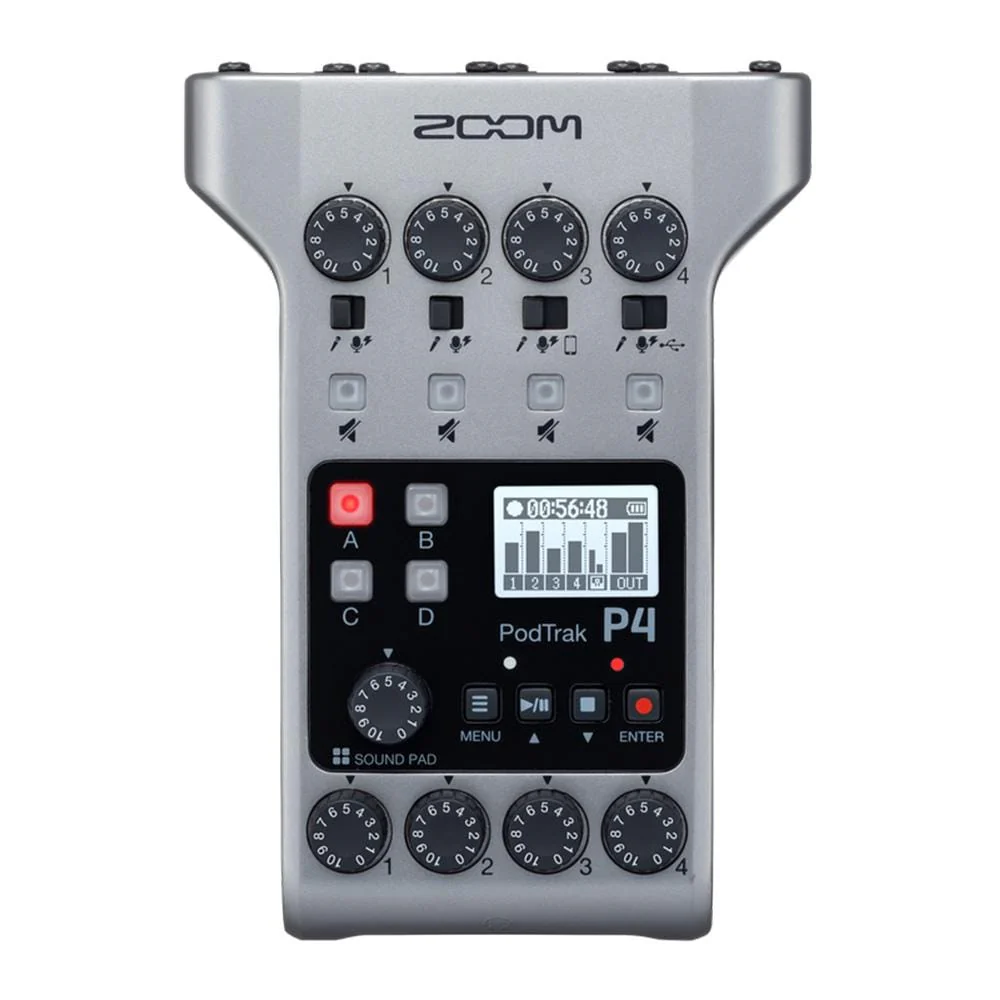

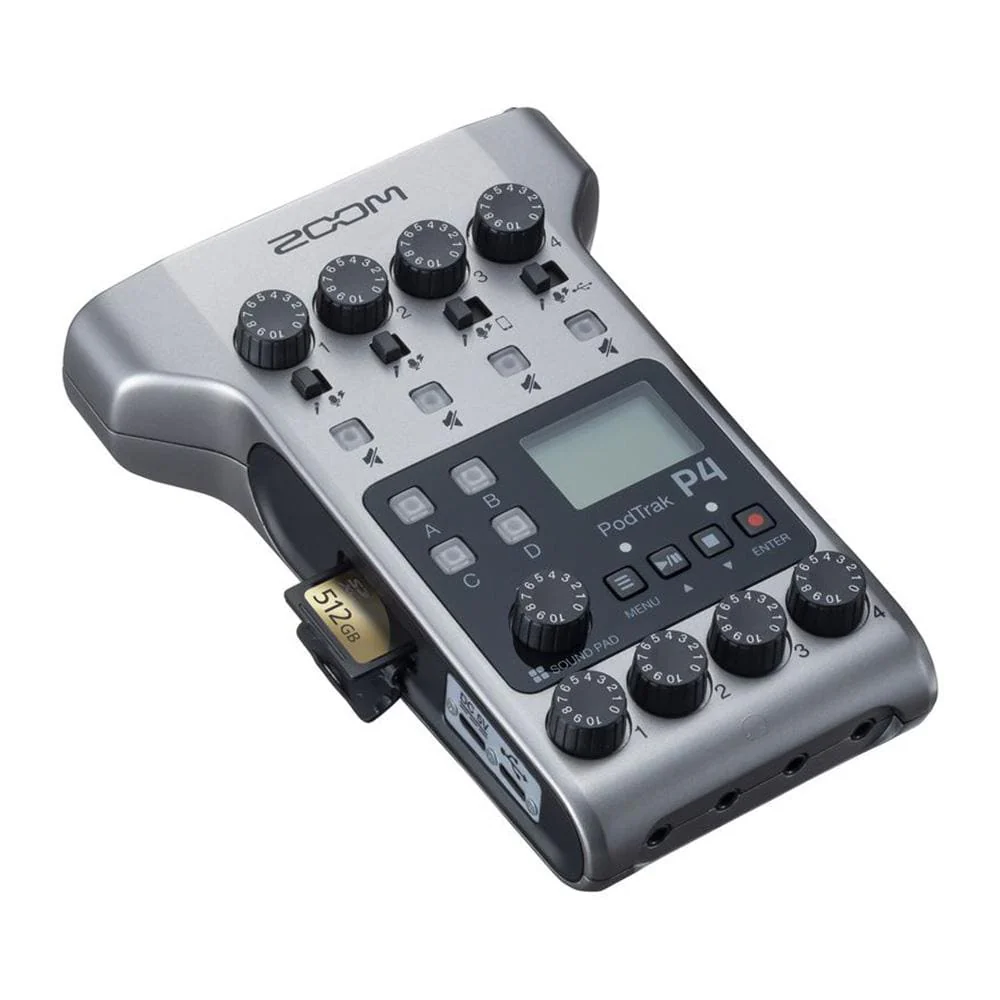

Zoom Podtrak P4 Podcast Recorder Overview:

Compact, affordable, and loaded with features, the PodTrak_™ P4 makes it easy to capture professional audio wherever you’re recording your podcasts

Features:

• Four mic inputs with XLR connectors

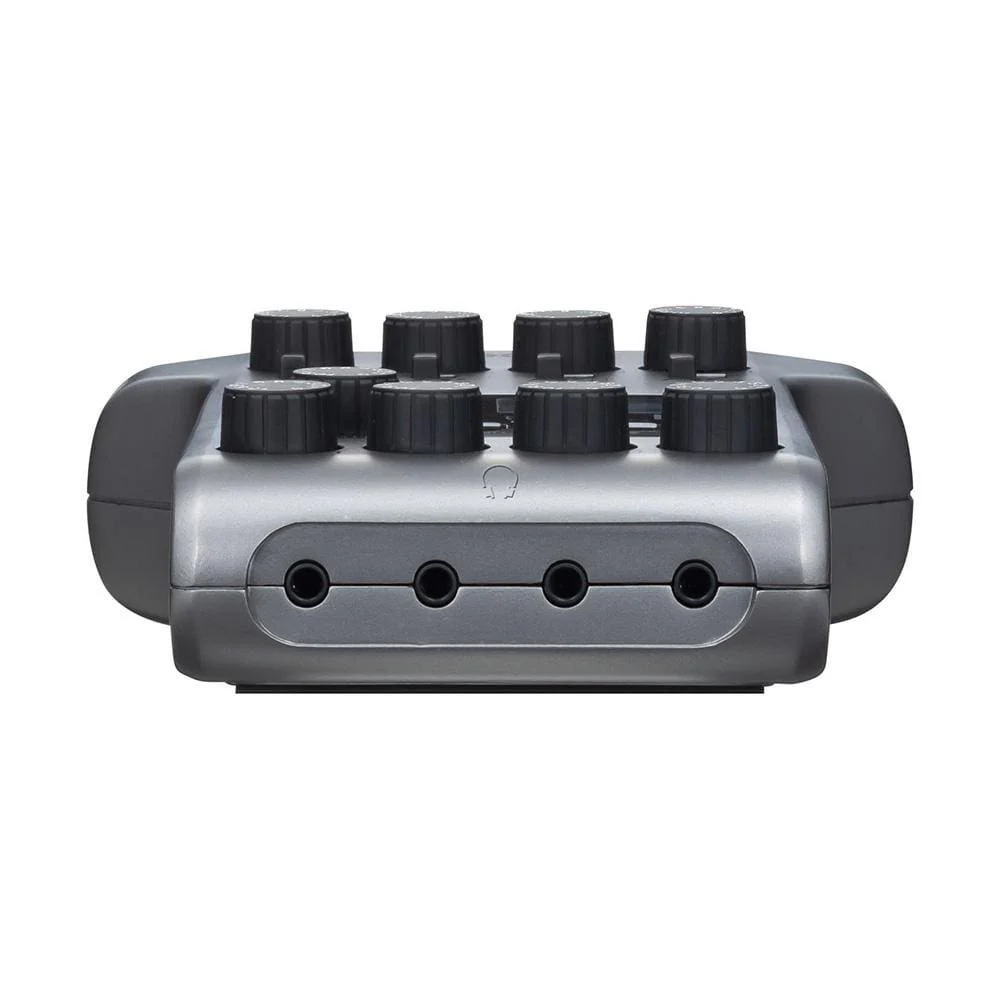

• Four headphone outputs with individual volume control
• Gain control knobs and mute buttons for each input
• Phantom power for all XLR inputs
• Automatically prevent feedback from call audio using the Mix-Minus function
• Easily connect your phone using the TRRS connection
• Trigger sound effects using four assignable Sound Pads with 11preset sounds
• All input sources can be recorded on separate tracks
• 16-bit /44.1kHz audio WAV
• Records directly to SD, SDHC and SDXC cards up to 512 GB
• 2-input, 2-output USB audio interface
• Class-compliant mode for iOS compatibility
• Up to four hours of use with just two AA batteries or a USB power supply

Specifications:

INPUTS & OUTPUTS

• NUMBER OF INPUT CHANNELS: 4 (mono/stereo)
• NUMBER OF OUTPUT CHANNELS: 1 (headphone x 4)

CONNECTORS

• MIC: XLR jacks (2: HOT)
• SMARTPHONE CONNECTION JACK: TRRS mini jack (4 contacts, TIP: L, RING1: R,RING2: GND, SLEEVE: MIC)
• USB:
• USB Type-C (audio interface and mass storage functions)
• Note: Use a USB cable that supports data transfer. USB bus power is supported.
• DC 5 V: USB Type-C (for power supply)
• HEADPHONES: 3.5 mm stereo mini

PHANTOM POWER

• PHANTOM POWER: +48 V

RECORDER

• RECORDER: Formats: WAV 44.1 kHz, 16-bit, mono/stereo
• Recording media:
• 4 GB−32 GB SDHC-compliant cards (Class 10 or higher);
• 64 GB−512 GB SDXC-compliant cards (Class 10 or higher)

AUDIO INTERFACE

• AUDIO INTERFACE: 44.1 kHz, 16-bit, 2-in/2-out

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

• WINDOWS:
• OS: Windows 10 Version 1703 or later (32bit, 64bit)
• CPU: Intel Core i3 or faster
• USB: USB 3.0 / 2.0
• MAC: OS：
• macOS 10.13 / 10.14 / 10.15
• CPU: Intel Core i3 or faster
• USB: USB 3.0/USB 2.0
• IPHONE / IPAD: OS： iOS 12 / 13
• Apple Lightning-to-USB Camera Adapter required.
• ANDROID: OS： Android OS 7 / 8 / 9 / 10

POWER

• POWER: 2 AA batteries (alkaline, NiMH or lithium)
• EST. CONTINUOUS OPERATION TIME USING BATTERIES: Recording 44.1 kHz/16-bit/4ch audio to SD card (when 48 V is OFF and headphone impedance is 63 Ω)

MISC.

• EXTERNAL DIMENSIONS: 112 mm (W) × 155 mm (D) × 47 mm (H)
• WEIGHT (UNIT ONLY): 290 g
