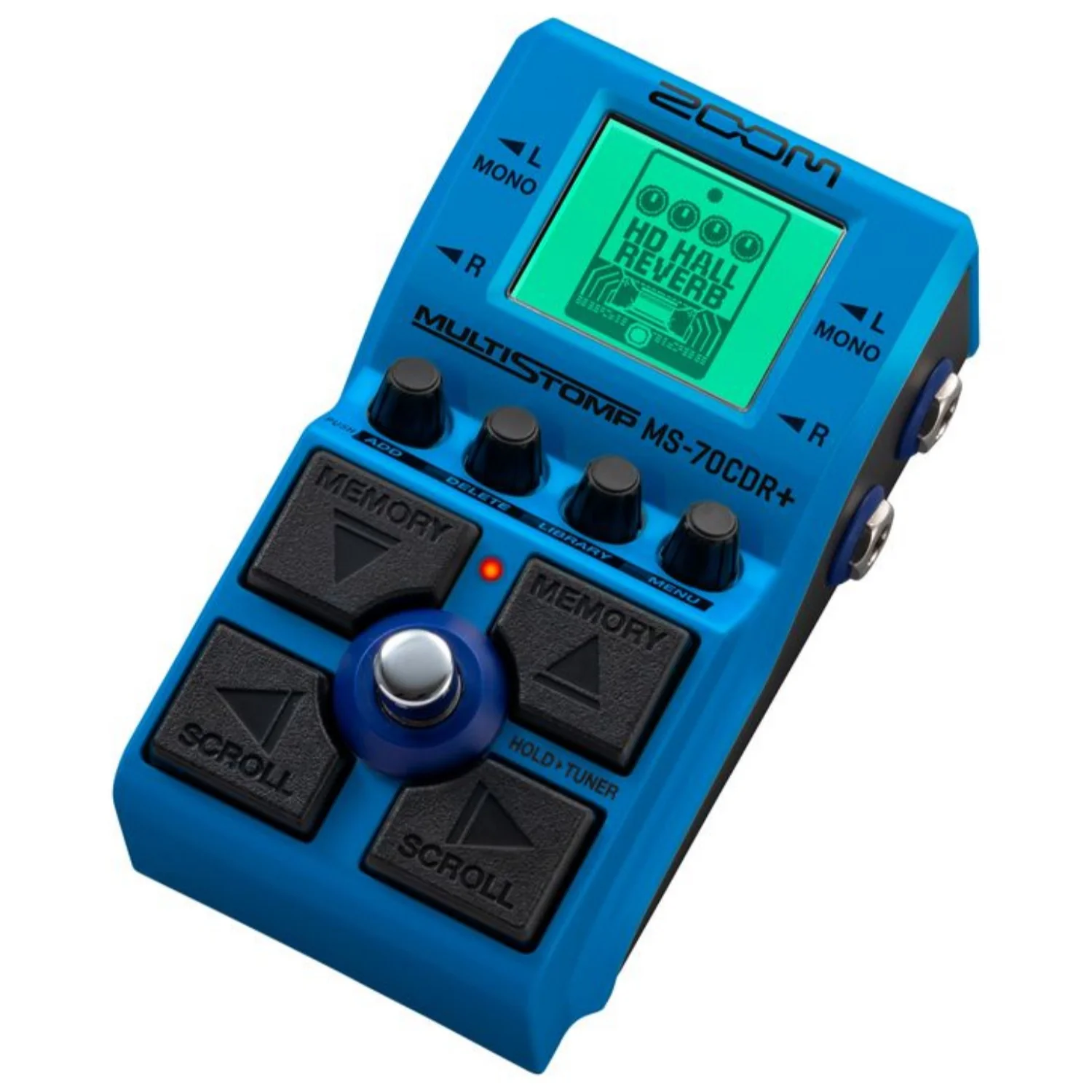

Zoom MS-70CDR+ Multi Stom Guitar Pedal Overview:

The Zoom MS-70CDR+:
Your New Modulation Station
The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

A Deep Dive into Chorus, Delays, Reverbs & More

• Chorus: 43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.
• Delays: Featuring 29 mono and stereo delays with delay times of up to 4 seconds. Choose from a variety of delays including tape echo, ping-pong, and multi-tap.
• Reverbs: 33 sophisticated studio-quality reverbs. From spring and plate reverbs to giant hall and arena reverbs.
• Dynamics / Filters: Round out your sound with 44 dynamic and filter effects, such as EQ’s, Compression, Noise Reduction, and Special Effects.
• Expanded Controls: The MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone.
• Define Your Sound: Use a singular effect or up to 6 effects simultaneously to create unique tones. Save your creations in one of the 100 patch slots, or use the 80 preset patches as inspiration to get you started.
• Next Generation Circuitry : Newly designed analog circuits provide more fidelity for improved sound quality. The flat phase response provides sharp attacks and clean low end.
• Everything's Better in Stereo.: The MS-70CDR+ has stereo input jacks that accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Its dual line-level output jacks enable you to record and perform with the MS-70CDR+’s stereo effects.
• Soundscapes Are Key: For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ provides high-quality effects that are perfect for adding atmosphere and character to your sound.

Enhanced Navigation

• Color Coded LCD Screen: The LCD backlight changes color to make it easier to distinguish each category of effects while scrolling.
• Control Knobs: Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.
• Cross Key Switches: The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.
• Sturdy Build: The MS-70CDR+ is built around a metal frame designed to withstand the rigors of live performances.
• Power Options: The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.
• Tune-Up: The onboard chromatic tuner uses the color backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.
• Handy Guitar Lab: With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS.

Features:

• 140+ guitar and bass effects, including modulation, chorus, delay, and reverb

• Use up to 6 effects at the same time

• 100 Patch slots with 80 presets

• Analog circuit with minimal sound deterioration

• Single stompbox design

• Stereo input and output supports effects like stereo chorus and delays

• 4x Cross Key switches (MEMORY / SCROLL) for easy operation by foot

• Improved UI for easier navigation and control

• Color coded LCD backlight for selected effect category

• Runs on 2 AA batteries or AC Adapter

Specifications:

• Maximum number of simultaneous effects: 6 effects

• User patch memories: 100

• Sampling frequency: 44.1 kHz

• A/D conversion: 24-bit 128× oversampling

• D/A conversion: 24-bit 128× oversampling

• Signal processing: 32-bit

• Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)

• Display: 160×128 dot-matrix LCD

• Inputs
  • L/R: Standard mono phone jacks

  • Rated input level: −20 dBu

  • Input impedance (line): 470 kΩ

• Outputs:
  • L/R: Standard mono phone jacks

  • Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)

• Input S/N: 122 dB

• Noise floor (residual noise)
  • L/R: –100 dBu

• Power:
  • AC adapter: 9V DC 500mA center negative (ZOOM AD-16)

  • 2 AA batteries: Alkaline, Lithium or Rechargeable NiMH batteries

  • • USB bus power is supported.

• Estimated operation times:
  • Alkaline batteries: About 7 hours (about 5 hours using stereo input)

  • NiMH batteries (1900 mAh): About 6.5 hours (about 5 hours using stereo input)

  • Lithium batteries: About 14 hours (about 10 hours using stereo input)

  • • These values are approximate. • Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

• USB:
  • Port: USB 2.0 Type-C

  • Supported cable type Type-C

  • Handy Guitar Lab USB 1.1 Full Speed

  • • Use a USB cable that supports data transfer.

• Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)

• Weight:
  • 368 g (excluding batteries)

  • 415 g (including batteries)
