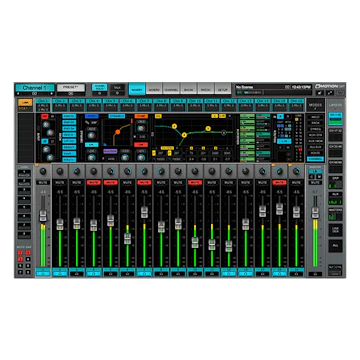

Bring pristine industry-acclaimed sound quality to any show venue or streaming event. With 32 stereo channels of unbeatable audio full Waves plugin integration and a customizable design to accommodate your personal workflow eMotion LV1 addresses any live sound challenge. Seamless integration with Waves’ 200+ plugins brings the award-winning signal processors used in studios around the world to live sound—for unlimited creative possibilities and precision control.

Pristine Sound Maximum Dynamics

LV1’s signature Waves Double-Precision 32-bit floating point mixing engine delivers supreme sound quality exceptional dynamic range and the headroom that’s vital for live sound—at sample rates from 44.1 to 96 kHz.

Mix with Creative Freedom

LV1 offers total integration with the same award-winning cutting-edge Waves plugins that power GRAMMY®-winning studio projects. Mix live as creatively as in the studio with 200+ optional plugins for all production styles—up to 8 plugins hosted directly on each LV1 channel.

Precision Problem-Solving

Handle live sound challenges easily with industry-leading tools for feedback elimination stage mic bleed control dynamic EQ multiple mic auto-mixing de-essing voice and bass gain riders and much more.

Waves eMo Channel Strips Plugins—Designed for the Stage

Waves eMo plugins for EQ filters and dynamics create the ideal channel strip—with transparent sound zero latency and a user interface designed specifically for the uncompromising needs of live performance.

Tactile Fader and Touch Control Options

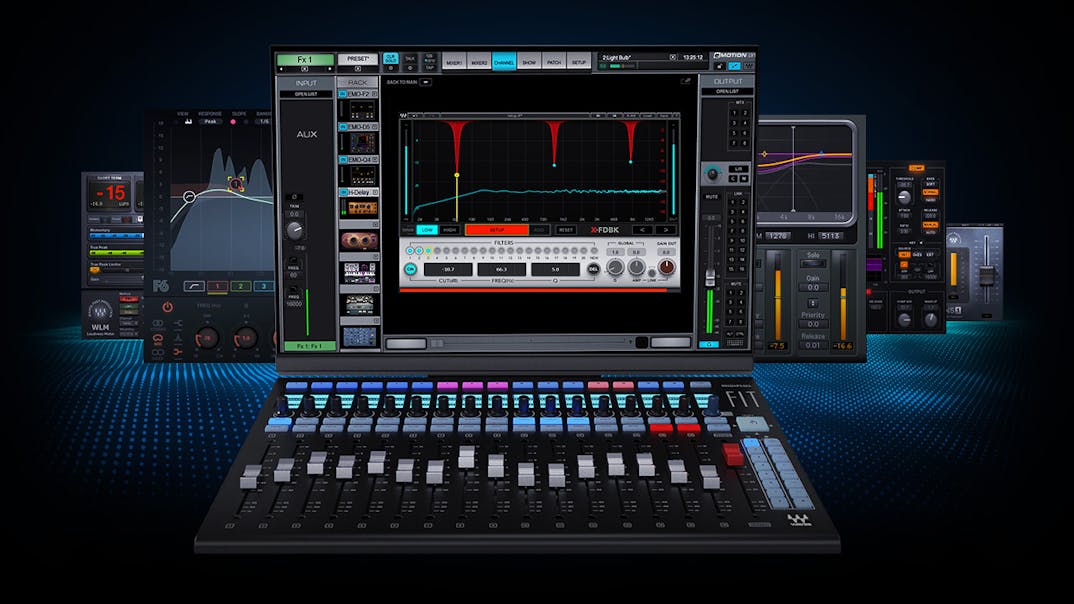

Mix with optimized multi-touch response and/or use up to two Waves FIT controllers for tactile control for a total of 32+2 motorized faders multi-function rotary controls layer switches assignable keys tap tempo auto-mapped plugin parameters and more.

Prepare for the Show Anytime Anywhere

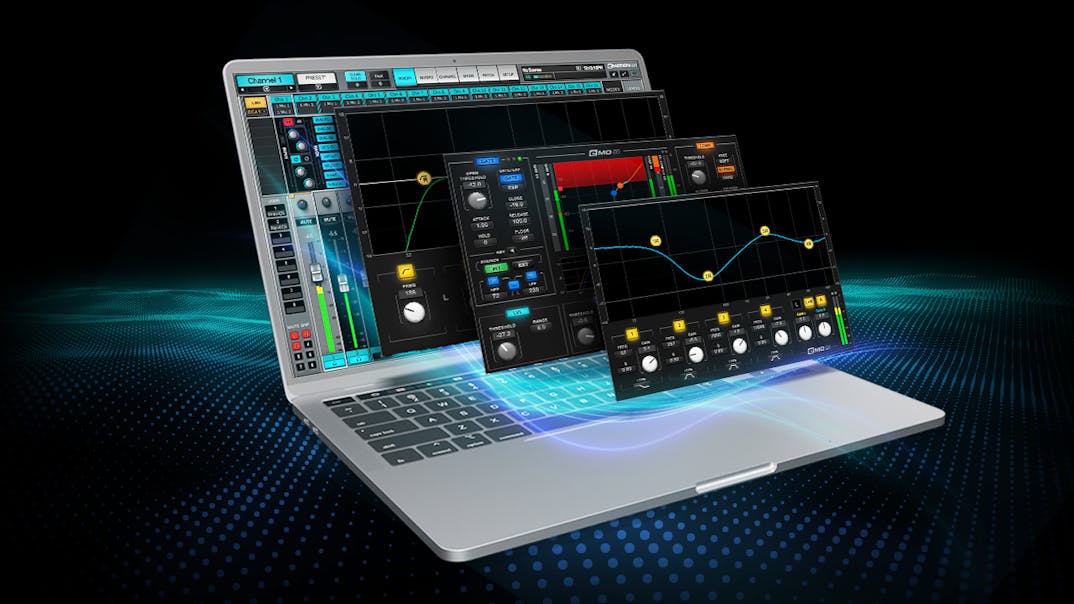

With a SoundGrid-compatible audio interface and server you can mix audio in your hotel room on a system that fits in a backpack—then expand the same system at the live venue with more I/O servers and interfaces. Or use the free eMotion LV1 Session Editor to configure your session’s parameters without audio using any laptop or desktop without need for an I/O or server.

Build a Super System

Connect multiple eMotion LV1 mixers to the same network switch and share any I/O devices—stageboxes DAWs computer drivers—as well as tracks synths etc. among multiple LV1 systems. No signal splitting required: LV1s can send your sources from the stage to multiple destinations simultaneously with separate gain control for each engineer.

Remote Control Apps and Personal Monitor Mixing

The eMotion LV1 mixer includes apps to control a variety of tasks remotely. MixMirror gives you full remote control over your mixer & plugin settings from an iPad by mirroring the LV1 screen. MyFOH offers independent iPad control of the mixer levels panning and sends from anywhere in the venue. MyMon provides up to 10 performers mobile control over their own monitor mixes.

Features:

• 32-bit double-precision audio engine for headroom and clarity
• 32 stereo/mono input channels 44 bus/return channels 8 matrixes
• Live-optimized Waves eMo plugins provide channel strip processing
• NEW: Control plugins remotely with the included MixMirror iPad app
• Personal monitor mixing with the included MyMon iOS/Android app
• Run eight SoundGrid-compatible plugins directly on each channel
• 16 monitor auxes 8 FX auxes 8 audio groups L/R/C/Mono
• 16 DCA faders 8 mute groups 16 user-assignable shortcut keys
• Remote control with the included MyFOH iOS/Android app
• Create custom layers for super-quick personalized workflow
• Supports 44.1 to 96 kHz sample rates
• Share/interconnect up to 16 stageboxes expansion slots DAWs
• DCA spill allows populating layers with DCA-linked channels
• Compatible with industry-standard controllers including Waves FIT
• Smooth integration with Dugan Speech automixer plugin
• Windows and Mac 64 bit-compatible
• Share the same stagebox between multiple LV1s at FOH and monitors
• Practically unlimited processing power using multiple servers
• Free eMotion LV1 Session Editor for offline pre-show prep

Requirements:

Platform	CPU	RAM	Disk	Notes	Additional Requirement	Audio Card	Ports	Internet Required	32 Bit Support	64 Bit Support	Plugins
mac	Intel or Silicon Architecture Intel MacBook Air is not supported	8	0		720p to 4k Auto scaling is enabled by default. Recommended resolution with scaling disabled: 1280x768 / 1360x768			0	0	0
windows	Intel i3 or higher	8	0		720p to 4k Auto scaling is enabled by default. Recommended resolution with scaling disabled: 1280x768 / 1360x768			0	0	0
