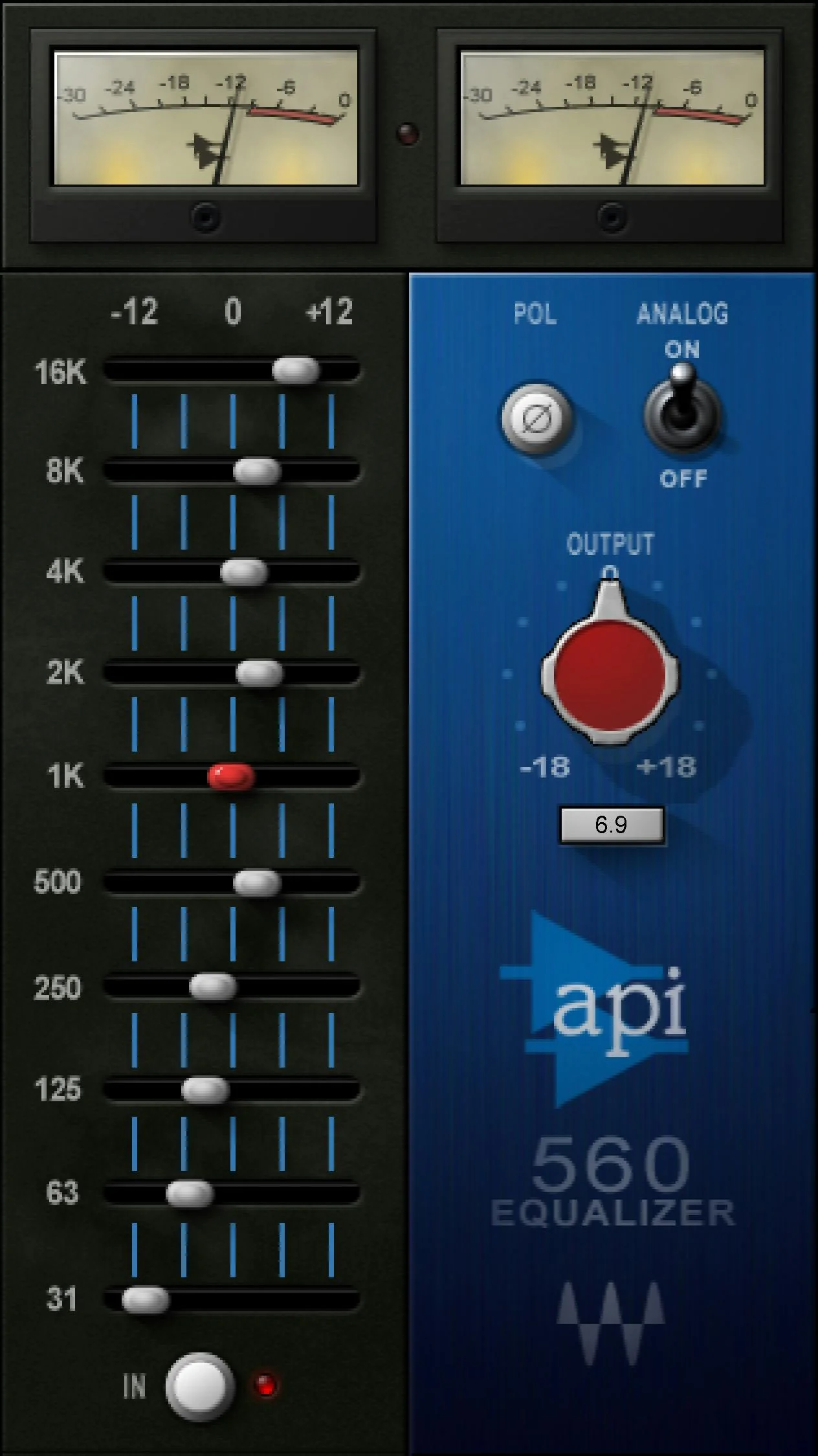

API 560’s proportional-Q filter topology is known for its smooth forgiving sound. For mic overheads pianos guitars and other complex sound sources that need clear transparent well-defined tone-shaping the 560 makes EQing fast and easy. Created in association with API this high-end equalizer is all about using a traditional graphic interface to make broad equalization changes—all while sounding natural and musical.

Shape EQ with Clarity and Transparency

API 560 is a proportional Q-based equalizer that boosts and cuts equally with bandwidth that narrows at increased gains. These qualities are key to adding substance and clarity while minimizing coloration from phase shift.

Mix with Classy Natural EQ Curves

It took API’s skill and experience to design a graphic EQ whose crystalline natural sound would be as valuable in the studio as it was for EQing venues in live performance. Today the 560 remains a studio and live stalwart.

Contemporary Sound or Colorful Past

Waves found a new home for the 560 in the pristine digital world—but didn’t forget the past. When you want to return to the sound of 1967 use the Analog switch to introduce authentic harmonic distortion and hiss.

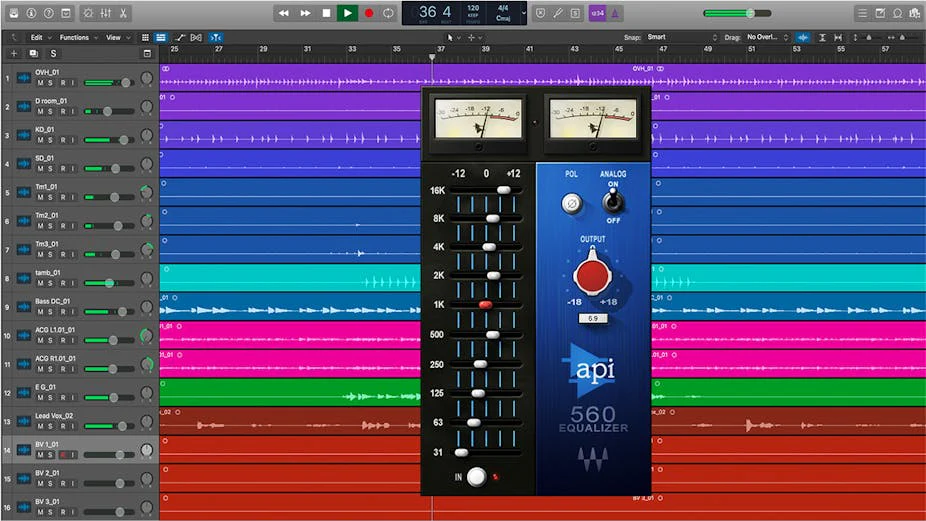

Mix Fast in Bold Moves with Graphic EQ

Accelerate your mixing—simply move sliders for the sound you want especially because the 560 is so forgiving. Go ahead push the highs and lows to extreme settings—the 560 won’t sound harsh or muddy but clear and full.

Features:

• Proportional Q narrows filter Q at extremes for a “forgiving” sound
• Additional resolution in the critical ±4 dB region

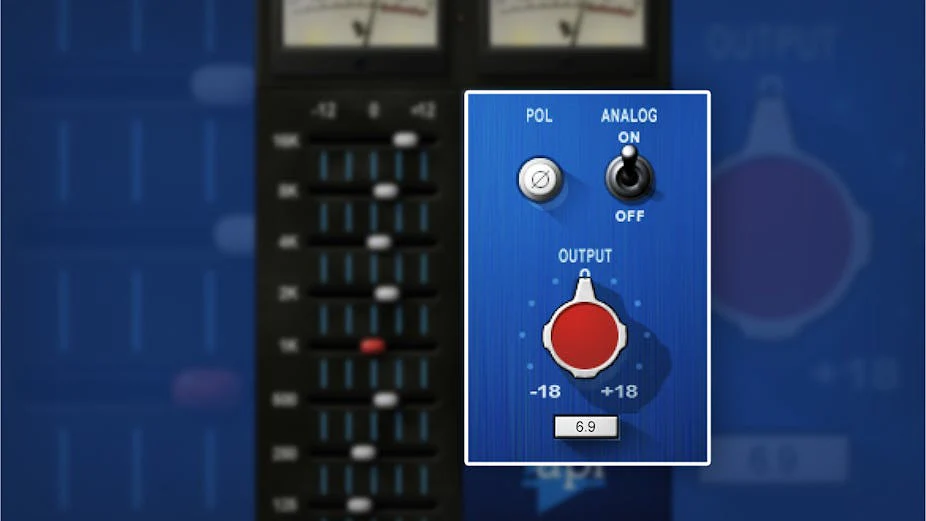

• Output section with phase switch and ±18 dB level control
• A true classic from 1967 with outstanding headroom
• Designed in close collaboration with and verified by API

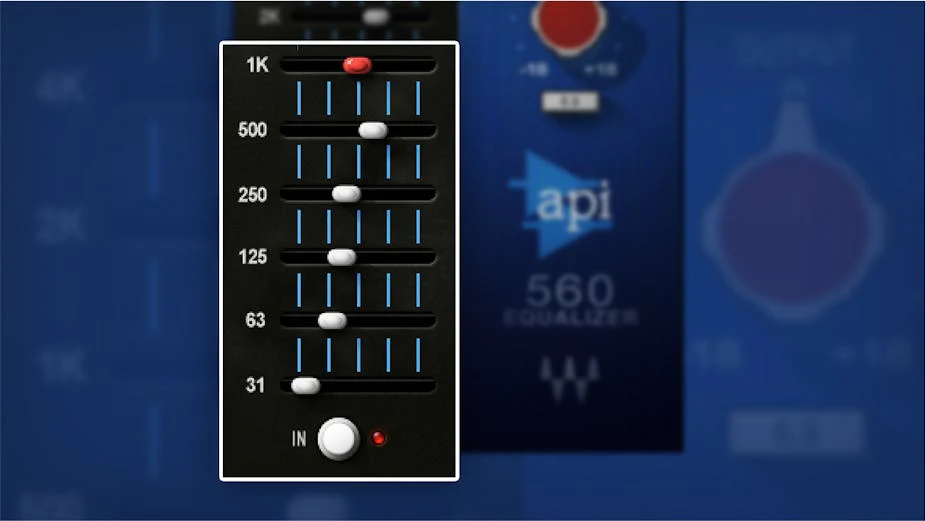

• 10 frequency bands from 31 Hz to 16 kHz spaced an octave apart
• Analog modeling switch for subtle harmonic distortion and hiss
• Analog circuit emulation is still available with EQ bypassed

Requirements:

Platform	CPU	RAM	Disk	Notes	Additional Requirement	Audio Card	Ports	Internet Required	32 Bit Support	64 Bit Support	Plugins
mac	Intel or Silicon Architecture	8	16		Minimum: 1024x768 Recommended: 1280x1024 / 1600x1024 USB displays are not supported as the primary display.			0	0	0
windows	X64 compatible Intel or AMD CPU	8	16		Minimum: 1024x768 Recommended: 1280x1024 / 1600x1024			0	0	0
