Vault C5 5" Powered Studio Monitors Pair
Vault is committed to learning, and offers an extra 5% discount for students. This discount is in addition to any prevailing discount coupon. If you are a school or college student, simply call our sales agent at 022-4203 5353, extension 1, to place your order and avail your extra 5% discount. (You will be required to email proof of your student status, such as your school or college ID card )
#Pair

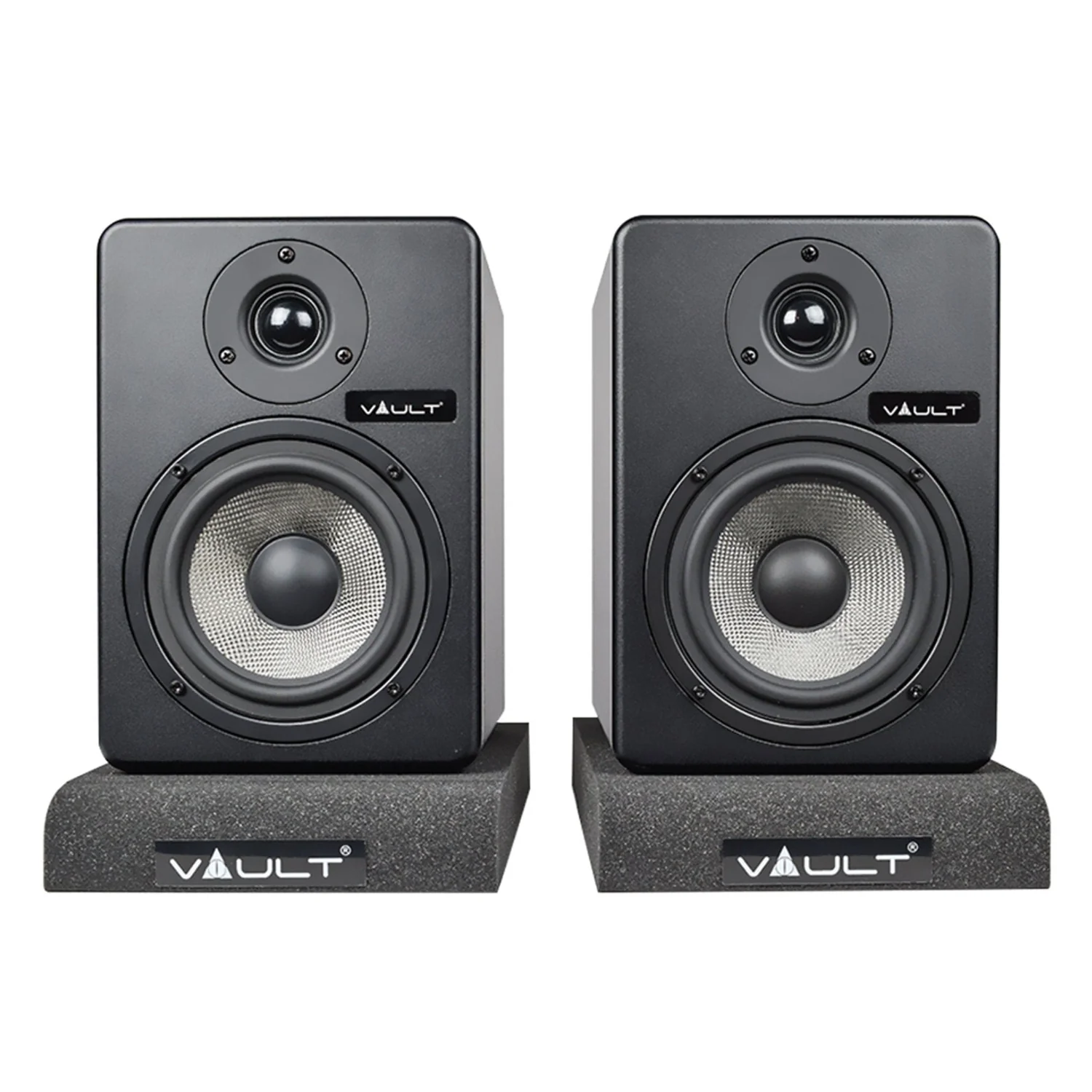

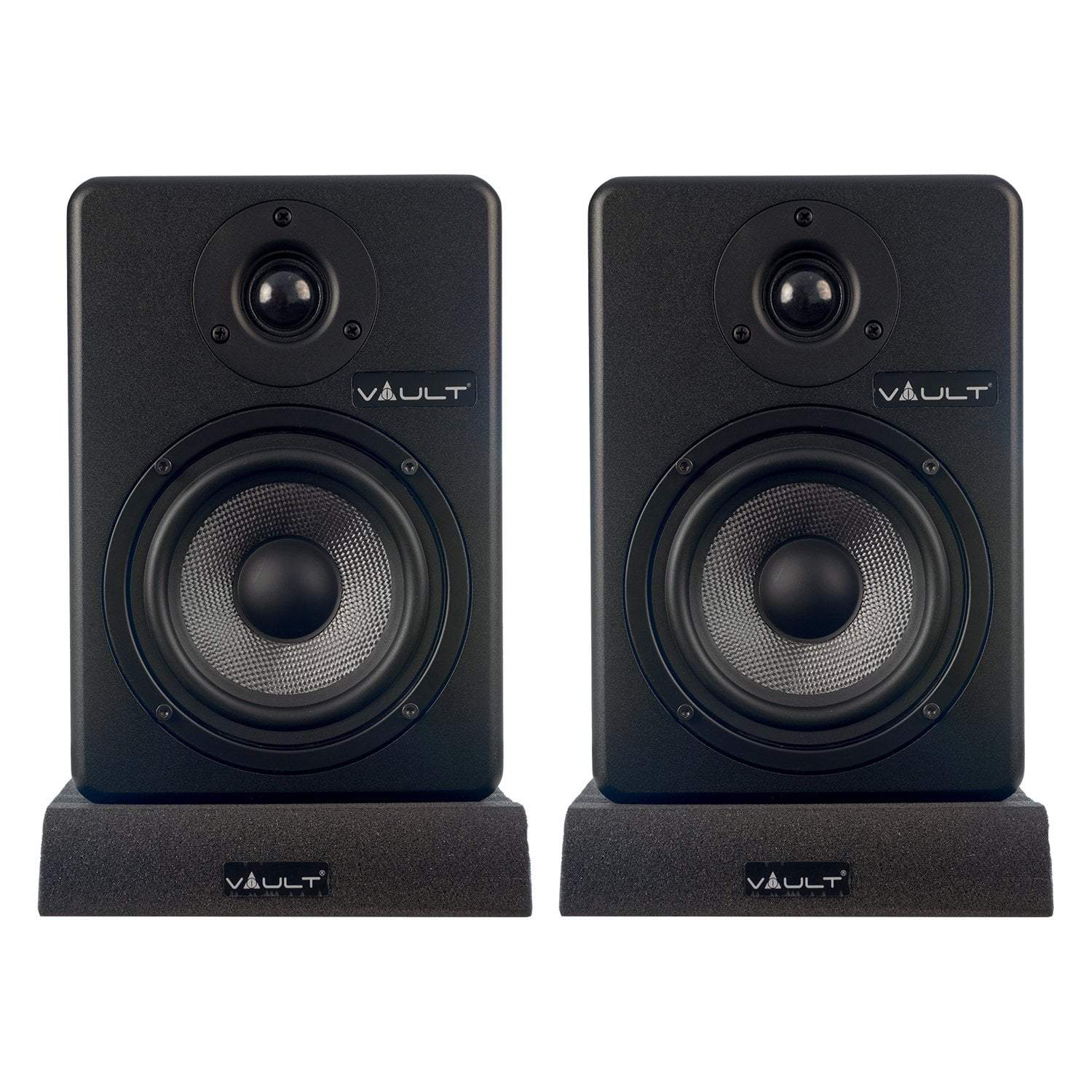

Vault C5 5-Inch Powered Studio Monitors with Isolation Pads- Pair
All Vault products come with 3 years standard warranty*
*Warranty is not applicable on cables and accessories.

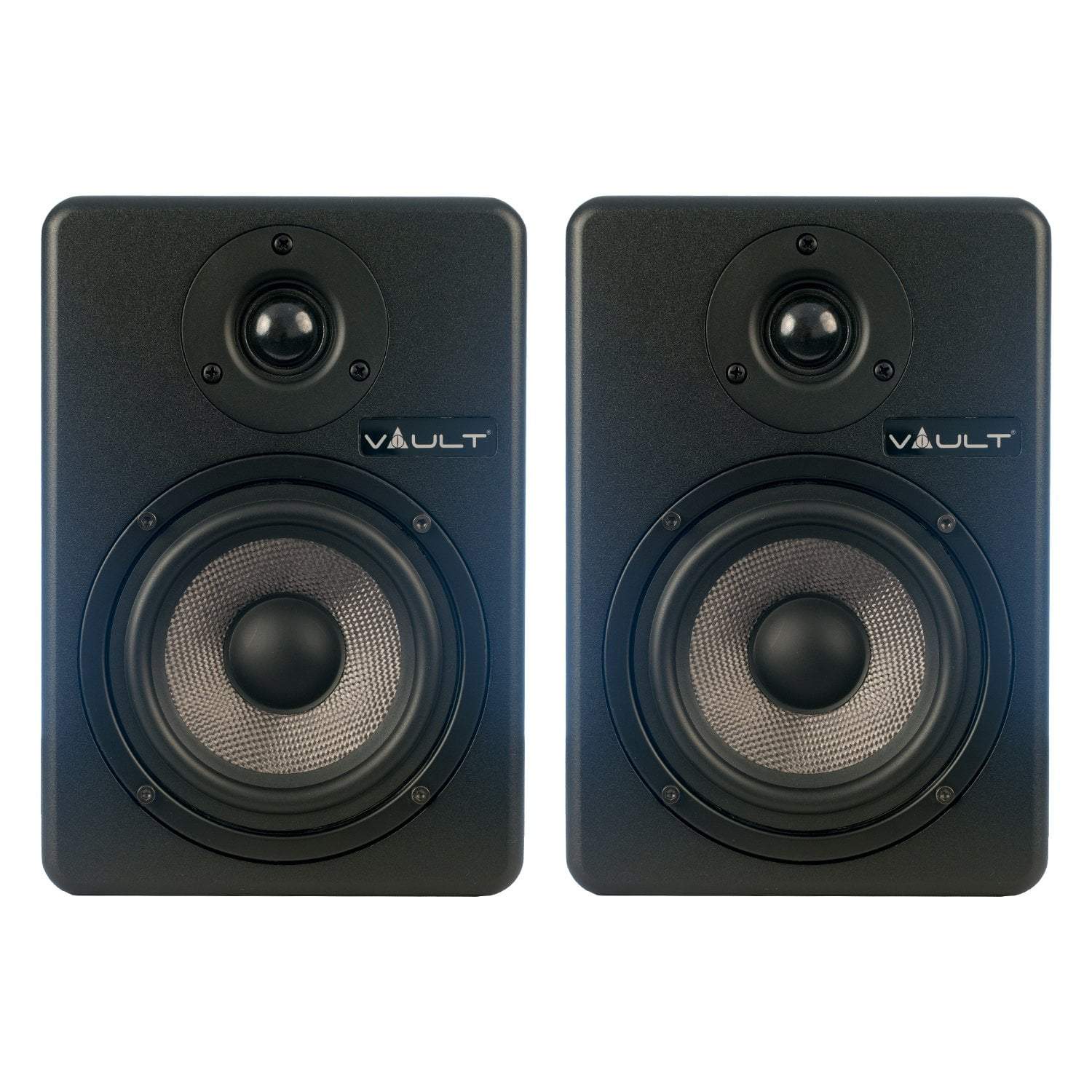

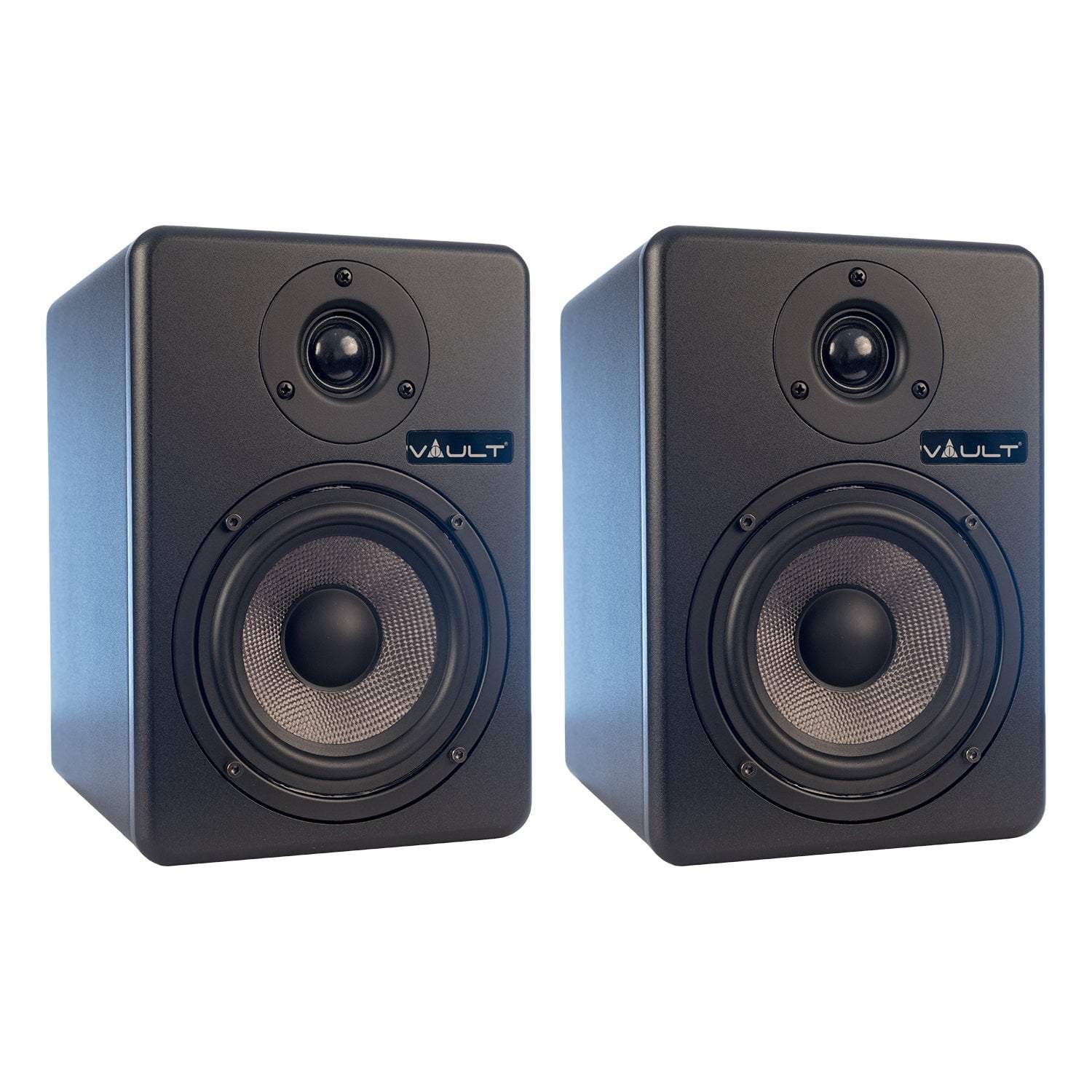

Vault C5 5 Inch Powered Studio Reference Monitor Speakers - Pair
The Vault Monitors are designed and tested by audio engineers to meet your needs in a studio monitoring environment. It is focused on the functional goal of delivering pure, original sound without any additional colouration regardless of the genre of music you listen to. Controls are at the back, so as to free the front from distracting lights, switches or control knobs. The woofers are tuned for accurate and solid lows and mids, while the silk dome tweeter is tuned for a clear but not harsh clarity on high hats, cymbals and other high frequency instruments.
Compare Vault C5 Powered Studio Monitors Spec for Spec vs. Other Bestsellers
| Model | Vault C5 | Mackie CR5BT 5" With Bluetooth | KRK Rokit 5 G3 |
| SP (PAIR) | ₹16,499.00 | ₹19,999.00 | n\n
₹25,999.00 |
| Manufacturer Warranty | 3 Years | 1 Year | 1 Year |
| Speaker Size | 5" | 5" | 5" |
| Tweeter Size | 1" | 0.75" | 1" |
| Frequency Range | 56 Hz - 22 kHz | 60 - 20,000 Hz | 45 - 35,000 Hz |
| Power Output RMS (Per speaker) | 40 Watts | 50 Watts | 50 Watts |
| Bass Reflex Port | Rear | Rear | Front |
| Input | XLR Input and 1/4" Jack | 6.3 mm jack, 3.5 mm mini-jack, Cinch | RCA, XLR and 6,3 mm jack |
| Magnetic Shielding | X | ✓ | ✓ |
| Manual Frequency Correction | ✓ | X | ✓ |
| Auto Standby Function | X | X | ✓ |
Kevlar driver
Vault C series monitors, Low-frequency drivers are made out of Kevlar which allows the speaker drivers to perform under pressure. Kevlar gives you that tight sound you seek in studio monitors.
Silk dome tweeter
The silk dome tweeters take care of reproducing high and upper-mid frequencies (treble) for the monitors, giving you crisp and clear high-frequency sound, making your music sound exceptionally good.
Acoustic room switch

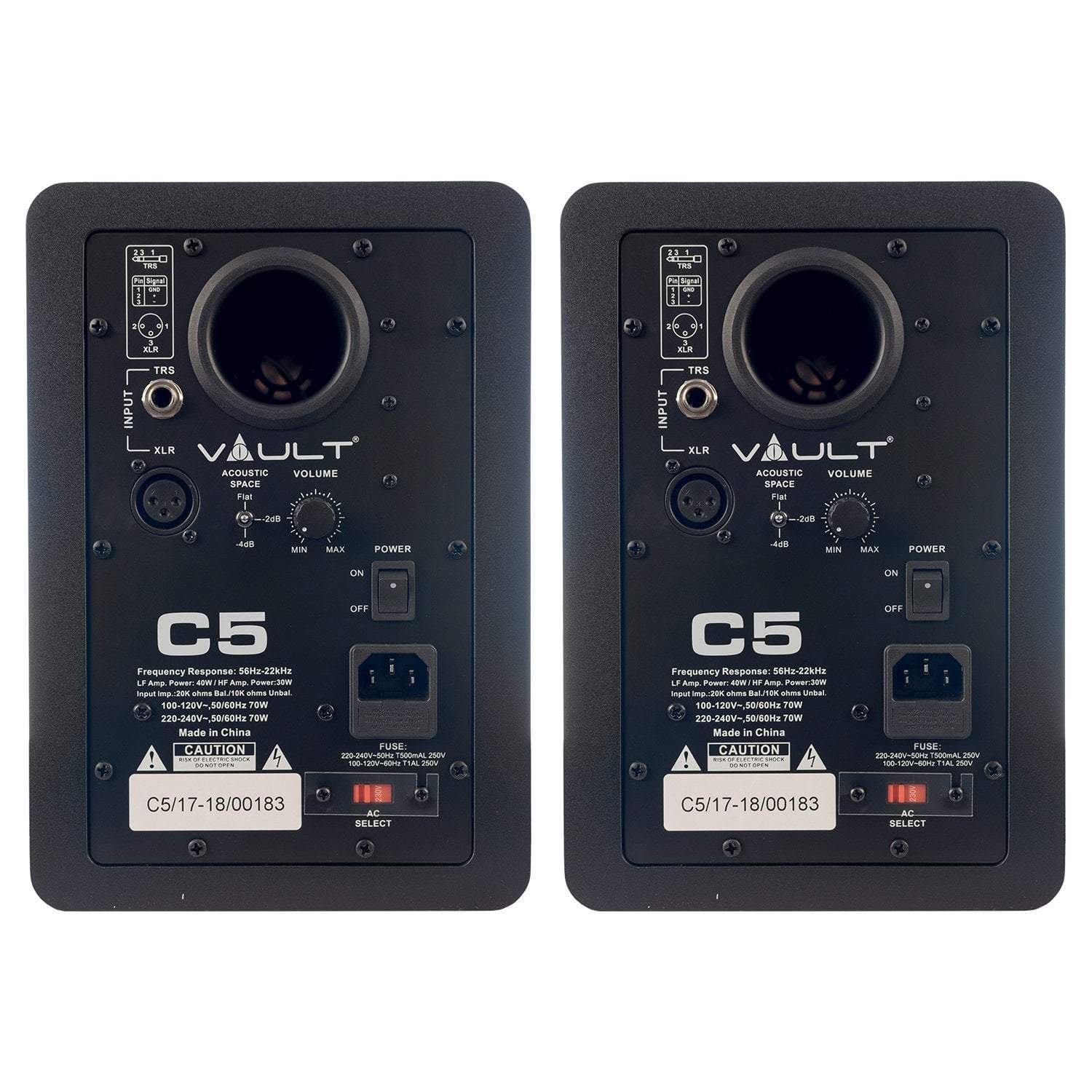

The rear panel houses an acoustic room switch which allows you to tune your speakers to your room. If your setup is in a smaller space and the sound gets boomy, flip the switch to -4db and enjoy good quality sound minus the extra room resonance.
Multiple Input connections
C series monitors allow you to connect either an XLR input source or a line level source, choose from either to connect it to various output devices.

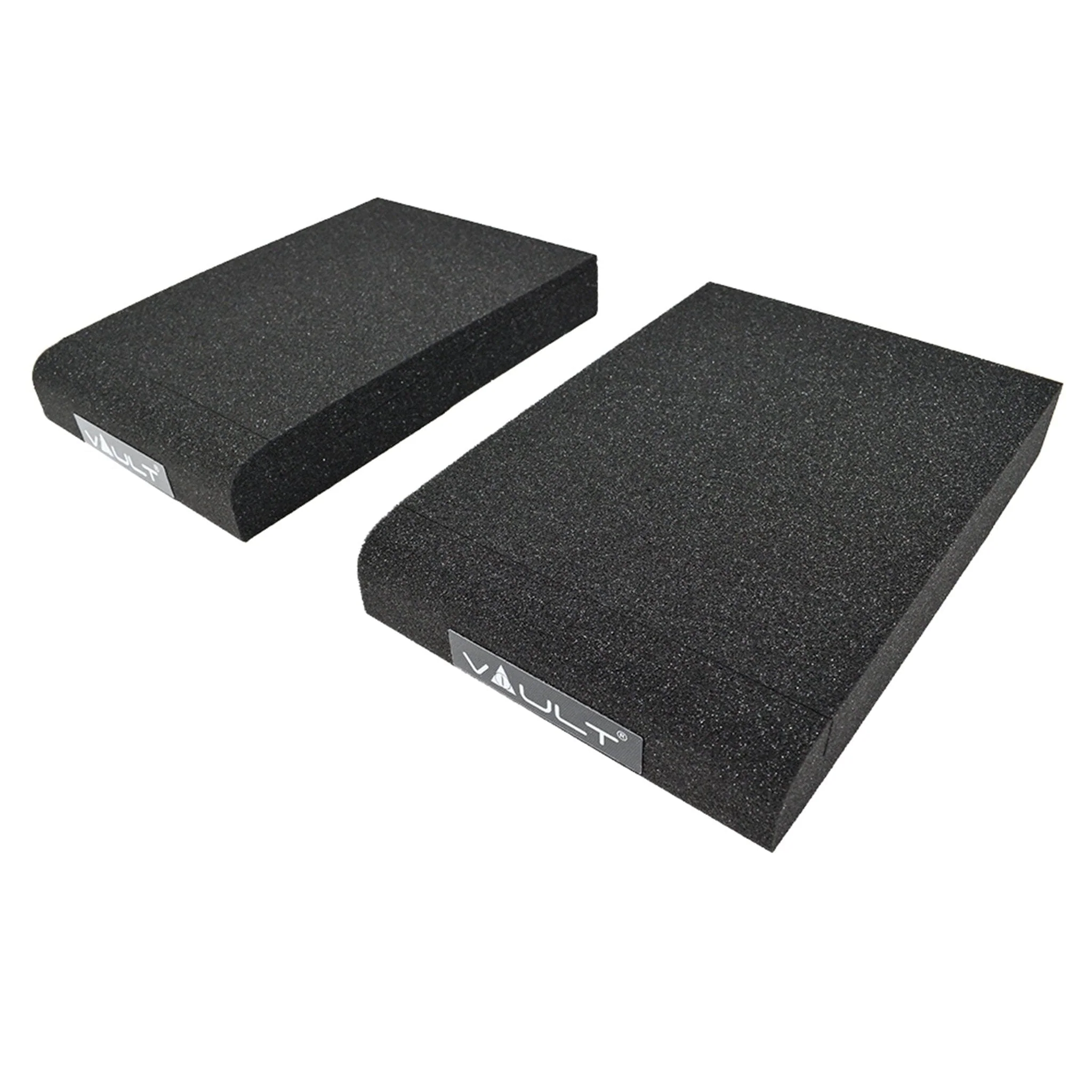

Free Acoustic Foam pads
Inside the box get a pair of acoustic foam pads to reduce vibrations produced by the speaker after kept on your desk. Place one monitor on each pad to enjoy clean music without any extra furniture vibrations.
Specifications:
- Power:70W
- Output power(woofer):40W
- Output power(tweeter):30W
- Maximum SPL@1m:100dB
- Response at(-3dB): 56Hz-22KHz
- Crossover Frequency:2.8KHz
- Number of Amplifiers: 2CH
- Input Sensitivity:85mV(90dBA)
- High-shelf filter(-5dB±3dB):20K Ohm
- Low-shelf filter(-5dB±3dB):10K Ohm
- Connectors:1xXLR/1xTRS
- Power requirements:115-230V~50- 60Hz
- Dimensions(WxDxH):176x200x250mm
- Weight: 5.5KG per speaker
In the box
- One pair of C5 Monitors
- Power cable
- Acoustic Foam pads for speaker isolation
- User manual
#BUNDLE

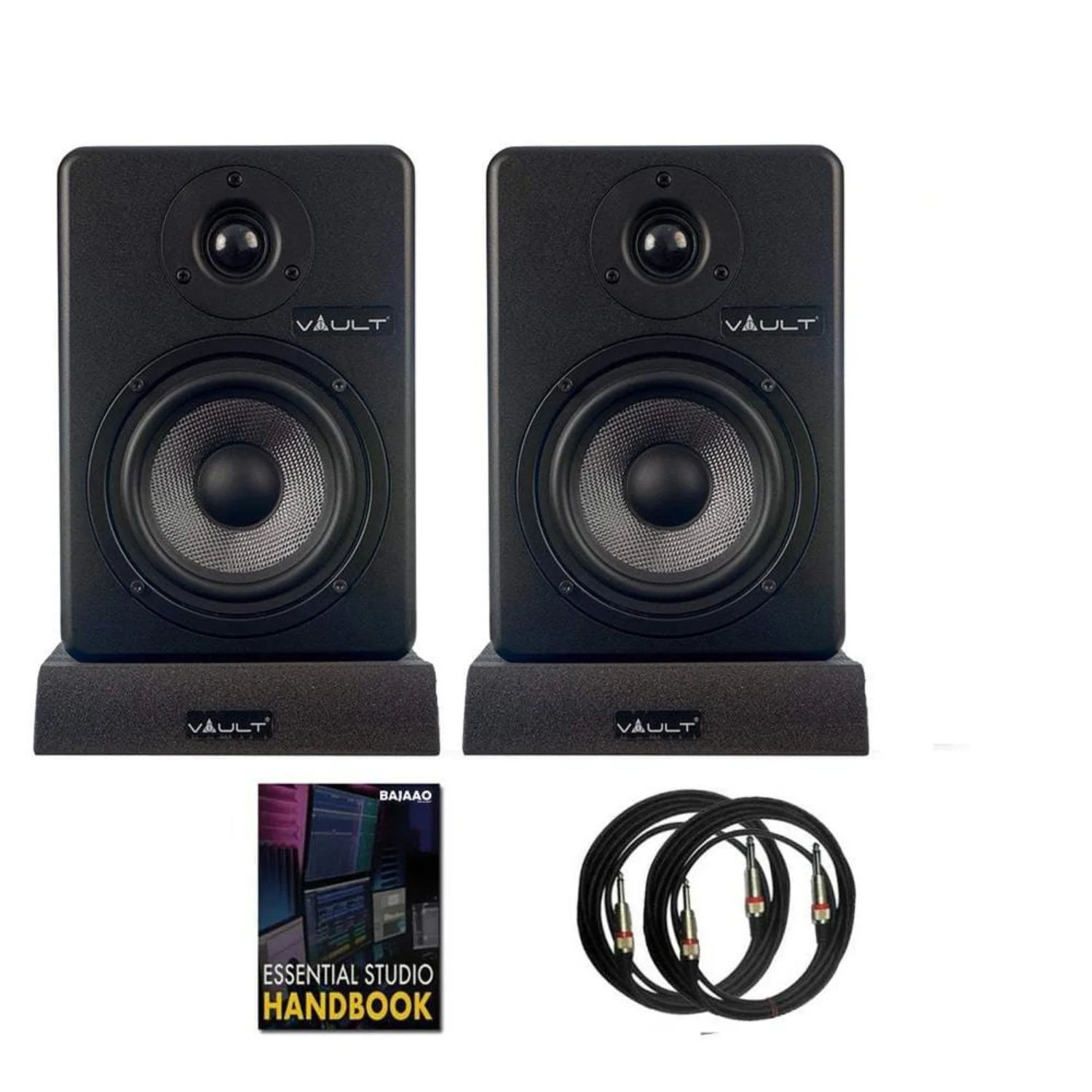

Vault C5 Powered Studio Monitors with Isolation Pads, Cables, and Ebook - Pair
All Vault products come with 3 years standard warranty*
*Warranty is not applicable on cables and accessories.
Vault C5 5 Inch Powered Studio Reference Monitor Speakers
The Bundle Includes all the essentials the user needs for optimal speaker performance, right out of the box.
It includes :
- Vault C5 Powered Studio Reference Monitor Speakers - Pair
- Monitor Isolation Pads- to eliminate vibrational hum off your desk surface, providing improved clarity and bass response (place speakers on pads)
- Bajaao Ebook guide for Studio Essentials
- Bajaao 3-meter, Standard 1/4 TRS cables, – to connect your speakers to audio interface or any audio output - Pair
- 3 Year Bajaao Manufacturer's Warranty Support
The Vault Monitors are designed and tested by audio engineers to meet your needs in a studio monitoring environment. It is focused on the functional goal of delivering pure, original sound without any additional colouration regardless of the genre of music you listen to. They are self-powered, directly accepting a line-level signal from a variety of sources. Vault Monitors deliver a wide-range frequency response and uses a unique crossover technology. It boasts a stable and balanced low-mid frequency response along with a defined mid and high-frequency range as well. For professional engineers at commercial studios to home studio owners, Vault Near-Field Monitors, set a whole new affordable standard in studio monitoring market.
Compare Vault C5 Powered Studio Monitors Spec for Spec vs. Other Bestsellers
| Model | Vault C5 | Mackie CR5BT 5" With Bluetooth | KRK Rokit 5 G3 |
| SP (PAIR) | ₹16,499.00 | ₹19,999.00 | ₹25,999.00 |
| Manufacturer Warranty | 3 Years | 1 Year | 1 Year |
| Speaker Size | 5" | 5" | 5" |
| Tweeter Size | 1" | 0.75" | 1" |
| Frequency Range | 56 Hz - 22 kHz | 60 - 20,000 Hz | 45 - 35,000 Hz |
| Power Output RMS (Per speaker) | 40 Watts | 50 Watts | 50 Watts |
| Bass Reflex Port | Rear | Rear | Front |
| Input | XLR Input and 1/4" Jack | 6.3 mm jack, 3.5 mm mini-jack, Cinch | RCA, XLR and 6,3 mm jack |
| Magnetic Shielding | X | ✓ | ✓ |
| Manual Frequency Correction | ✓ | X | ✓ |
| Auto Standby Function | X | X | ✓ |
Kevlar driver
Vault C series monitors, Low-frequency drivers are made out of Kevlar which allows the speaker drivers to perform under pressure. Kevlar gives you that tight sound you seek in studio monitors.
Silk dome tweeter
The silk dome tweeters take care of reproducing high and upper-mid frequencies (treble) for the monitors, giving you crisp and clear high-frequency sound, making your music sound exceptionally good.
Acoustic room switch
The rear panel houses an acoustic room switch which allows you to tune your speakers to your room. If your setup is in a smaller space and the sound gets boomy, flip the switch to -4db and enjoy good quality sound minus the extra room resonance.
Multiple Input connections
C series monitors allow you to connect either an XLR input source or a line level source, choose from either to connect it to various output devices.
Free Acoustic Foam pads
Inside the box get a pair of acoustic foam pads to reduce vibrations produced by the speaker after kept on your desk. Place one monitor on each pad to enjoy clean music without any extra furniture vibrations.
Specifications:
- Power:70W
- Output power(woofer):40W
- Output power(tweeter):30W
- Maximum SPL@1m:100dB
- Response at(-3dB): 56Hz-22KHz
- Crossover Frequency:2.8KHz
- Number of Amplifiers: 2CH
- Input Sensitivity:85mV(90dBA)
- High-shelf filter(-5dB±3dB):20K Ohm
- Low-shelf filter(-5dB±3dB):10K Ohm
- Connectors:1xXLR/1xTRS
- Power requirements:115-230V~50- 60Hz
- Dimensions(WxDxH):176x200x250mm
- Weight: 5.5KG per speaker
In the box
- One pair of C5 Monitors
- Power cable
- Acoustic Foam pads for speaker isolation
- User manual
The bundle includes the following components :

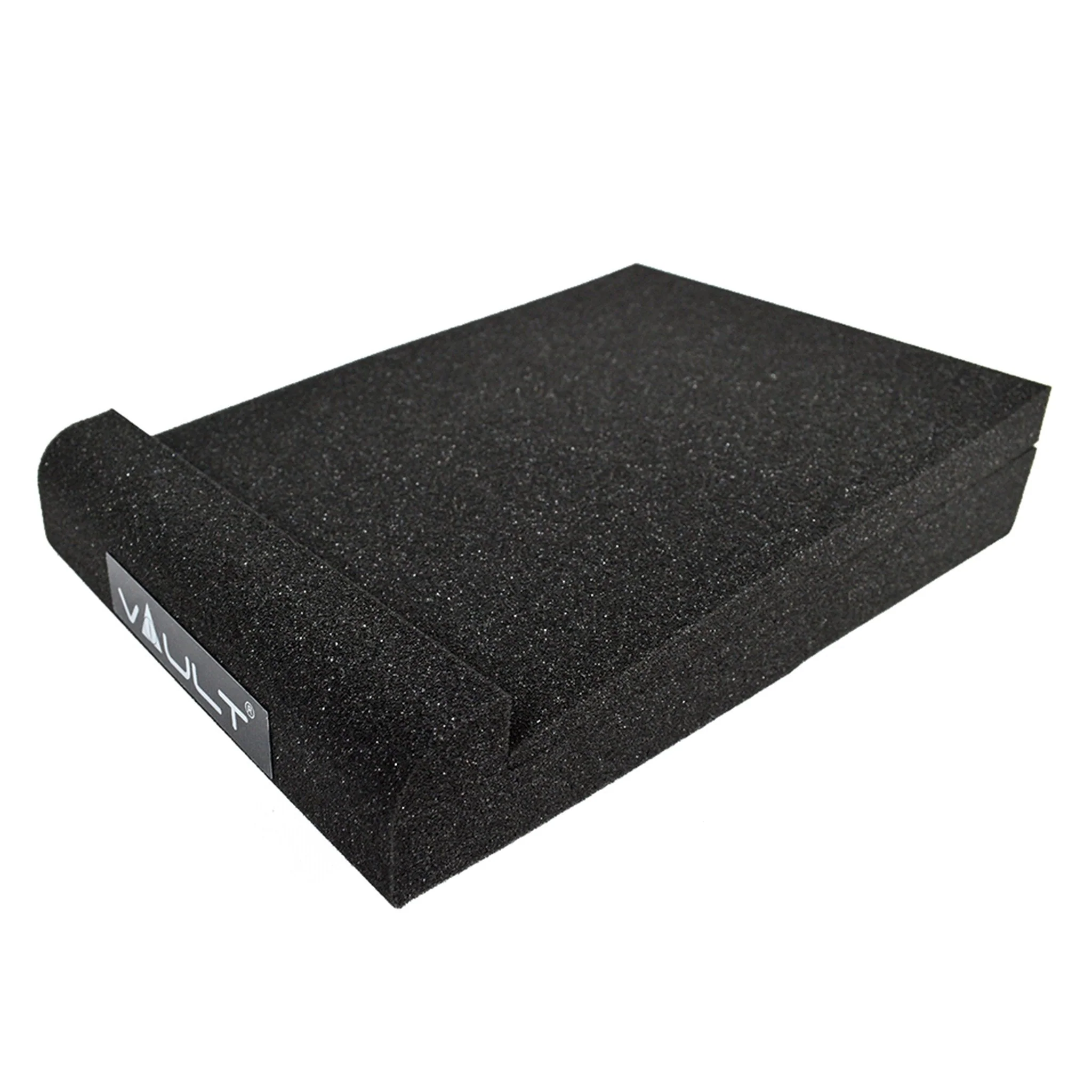

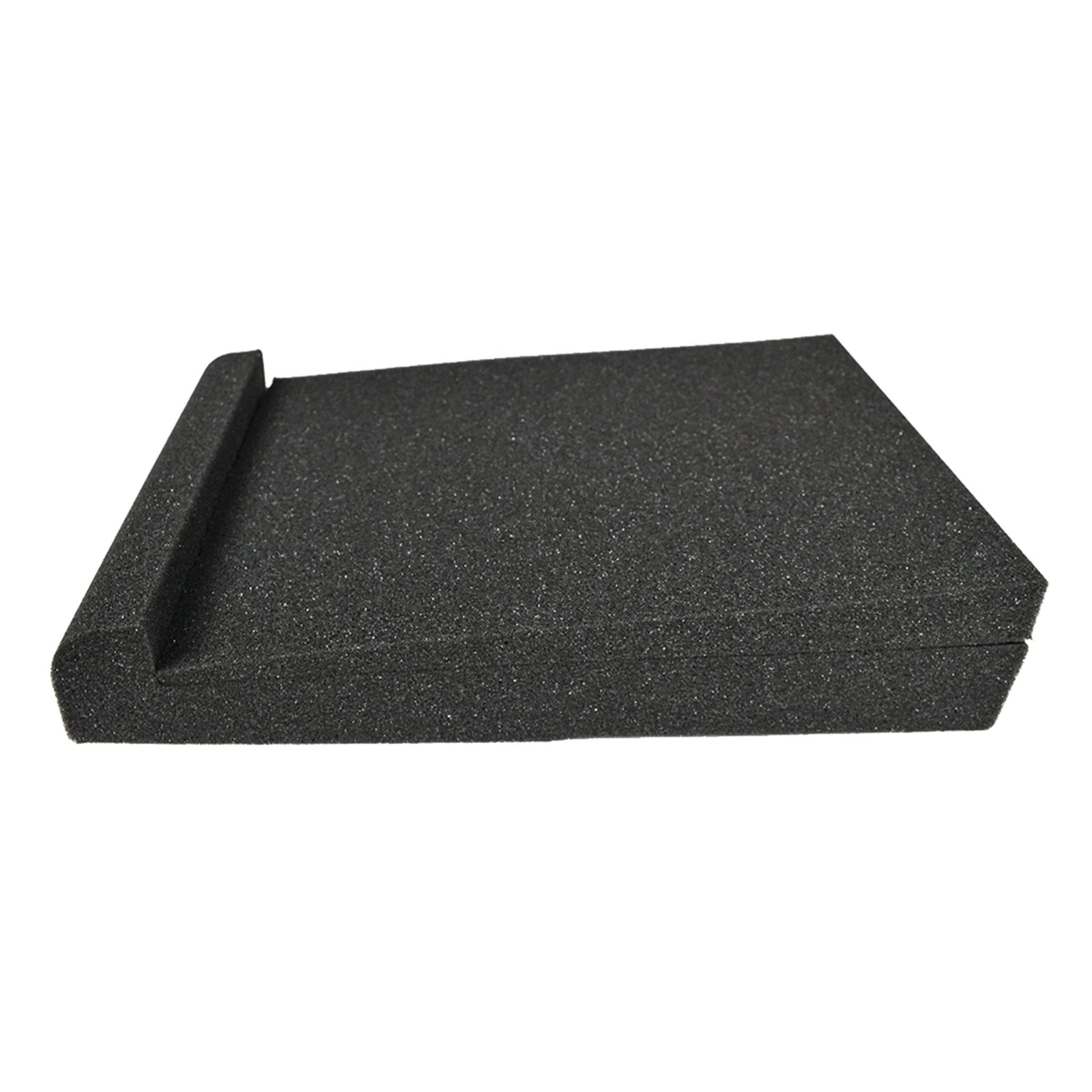

Acoustic Isolation pad for Monitor Speakers
The bundle includes an acoustic foam pad to minimize the vibrations and buzz while placed on any surface. This is a crucial element to stabilizing your studio or your initial set-up, once established the monitors remain intact throughout louder listening sessions.
3 Year Bajaao Warranty
The product is covered by a 3-Year Bajaao Manufacturer's Warranty Card ensuring safety & dedicated support to the user.
Bajaao E-book for Studio Essentials
The bundle includes an Ebook which will include basics of home/studio setup. Building a home recording studio takes months of planning, research, and
preparation. Getting started is far easier than you might imagine. All you need is a
few basic essentials.
Bajaao Standard 1/4 Jack TRS cables - 3 Meter - Pair
The Bajaao Standard Instrument Cable Straight to Straight uses Ultra High Clarity Plugs - the conductor is soldered directly to the tip with silver solder to maximize signal flow, a 99.9% pure copper low strand count conductor, 23 pF/ft low capacitance, and a 93% spiral shield for excellent RF rejection. This cable was designed for rugged stage use and to provide superior performance at a bargain price, with better sonic characteristics and performance than all instrument cables in its class.
#WithControl1

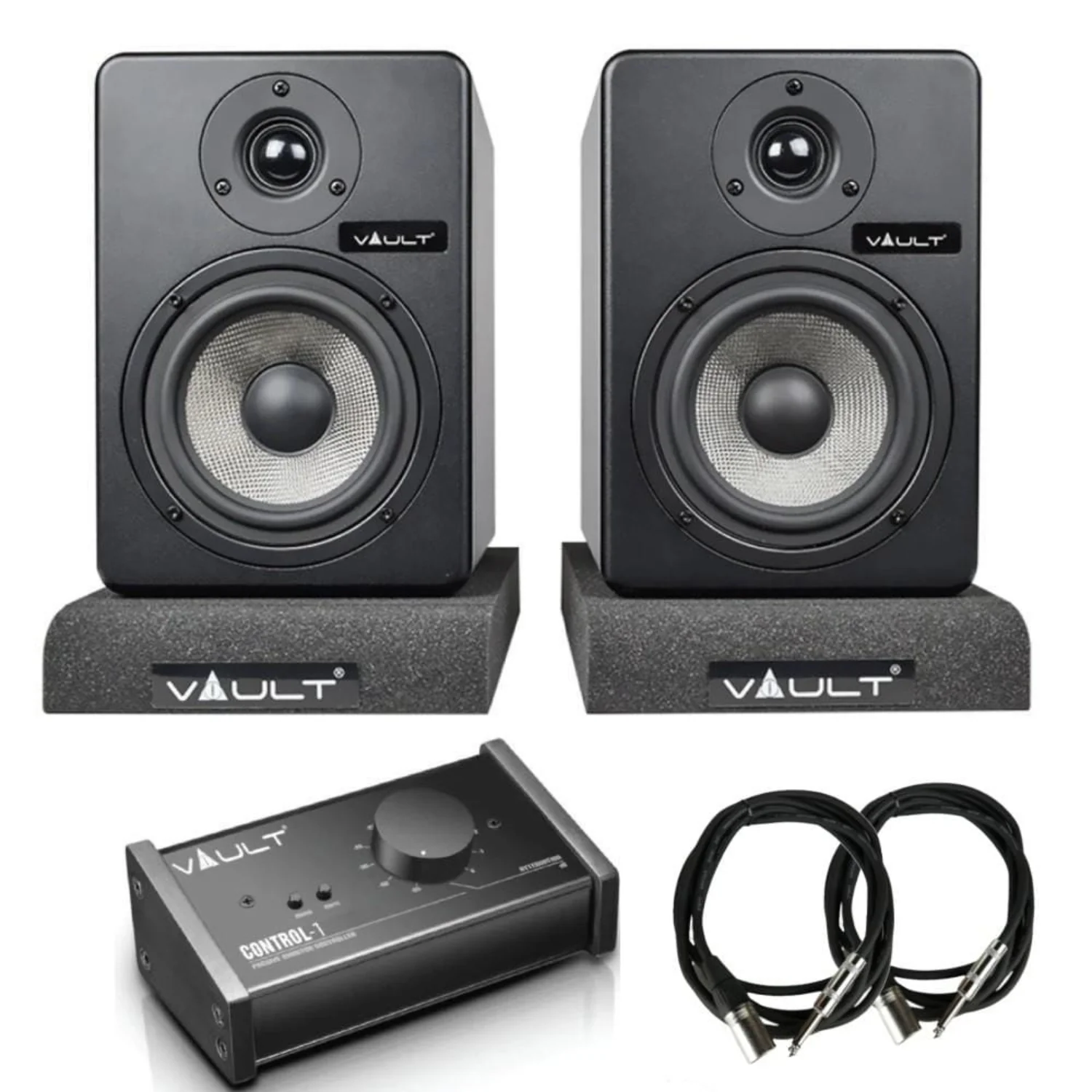

Vault C5 Powered Studio Monitors Pair With Control 1 Passive Studio Monitor Controller, Isolation Pads, & 2xSpeaker Cable
All Vault products come with 3 years standard warranty*
*Warranty is not applicable on cables and accessories.
Vault Powered Studio Monitors Speakers
The Vault Monitors are designed and tested by audio engineers to meet your needs in a studio monitoring environment. It is focused on the functional goal of delivering pure, original sound without any additional colouration regardless of the genre of music you listen to. They are self-powered, directly accepting a line-level signal from a variety of sources. Vault Monitors deliver a wide-range frequency response and use a unique crossover technology for a stable and balanced low-mid frequency response along with a defined mid and high-frequency range. For professional engineers at commercial studios to home studio owners, Vault Near-Field Monitors, set a whole new affordable standard in studio monitoring market.
Kevlar driver
Vault C series monitors, Low-frequency drivers are made out of Kevlar which allows the speaker drivers to perform under pressure. Kevlar gives you that tight sound you seek in studio monitors.
Silk dome tweeter
The silk dome tweeters take care of reproducing high and upper-mid frequencies (treble) for the monitors, giving you crisp and clear high-frequency sound, making your music sound exceptionally good.
Acoustic room switch
The rear panel houses an acoustic room switch which allows you to tune your speakers to your room. If your setup is in a smaller space and the sound gets boomy, flip the switch to -4db and enjoy good quality sound minus the extra room resonance.
Multiple Input connections
C series monitors allow you to connect either an XLR input source or a line level source, choose from either to connect it to various output devices.
Free Acoustic Foam pads
Inside the box get a pair of acoustic foam pads to reduce vibrations produced by the speaker after kept on your desk. Place one monitor on each pad to enjoy clean music without any extra furniture vibrations.
Specifications:
- Power:70W
- Output power(woofer):40W
- Output power(tweeter):30W
- Maximum SPL@1m:100dB
- Response at(-3dB): 56Hz-22KHz
- Crossover Frequency:2.8KHz
- Number of Amplifiers: 2CH
- Input Sensitivity:85mV(90dBA)
- High-shelf filter(-5dB±3dB):20K Ohm
- Low-shelf filter(-5dB±3dB):10K Ohm
- Connectors:1xXLR/1xTRS
- Power requirements:115-230V~50- 60Hz
- Dimensions(WxDxH):176x200x250mm
- Weight: 5.5KG per speaker

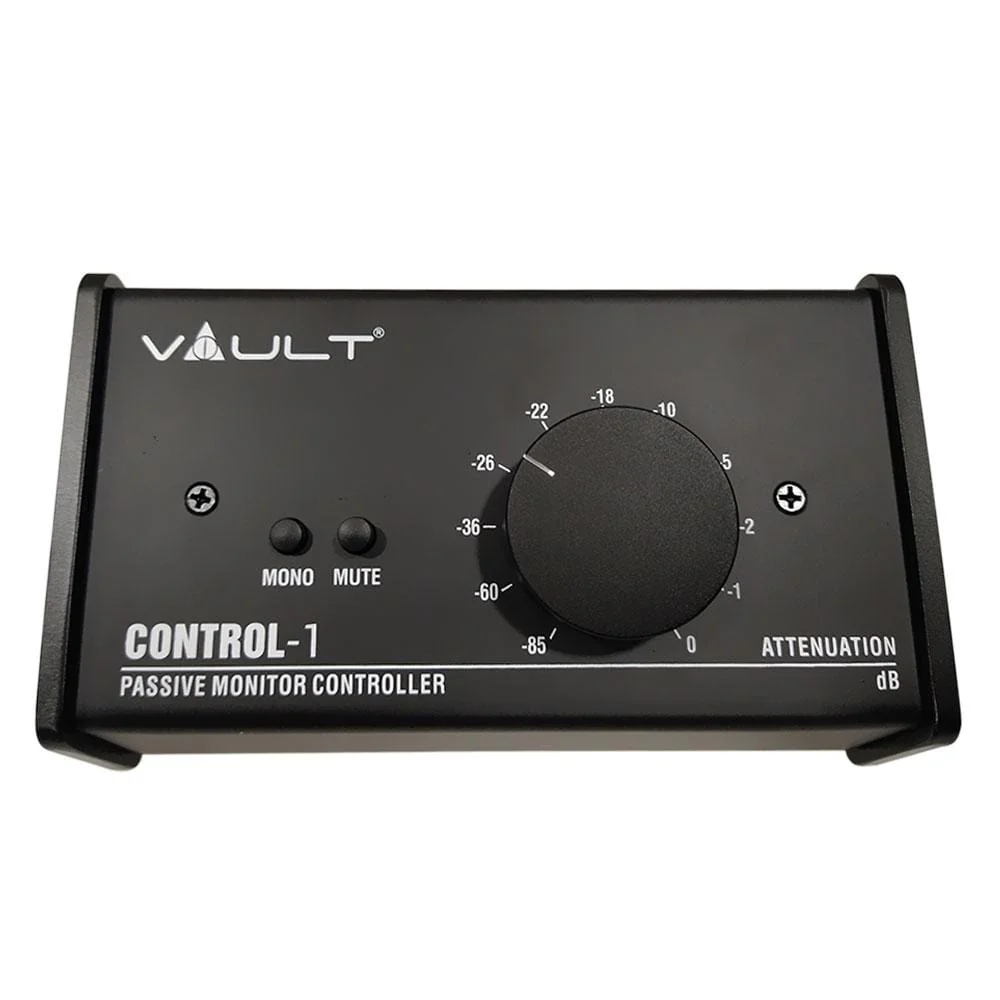

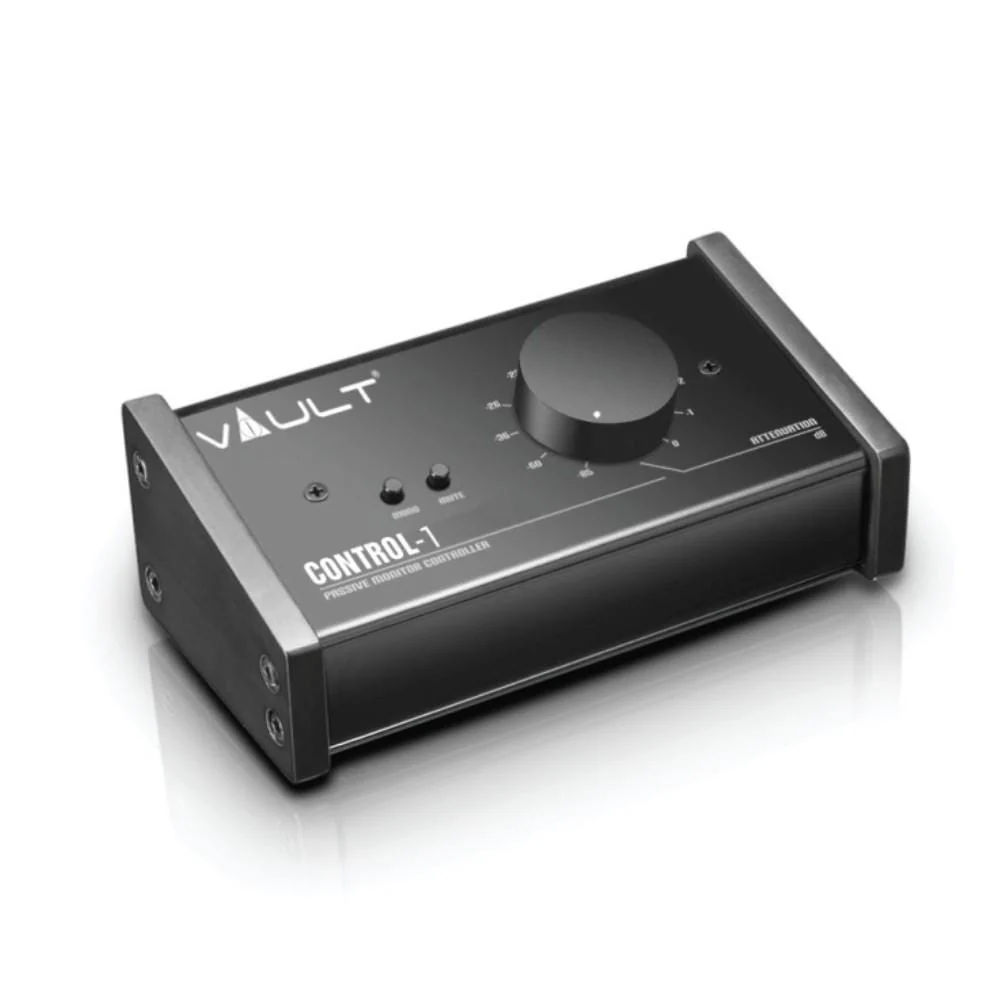

Vault Control 1 Passive Studio Monitor Controller Overview:
The Vault CONTROL-1 is a miniature console to control the level of your computer's audio to powered monitor speakers. Featuring all passive circuitry with an uncluttered signal path to avoid coloration the unit simply connects between your desktop computer, laptop or audio interface and loudspeakers.
Video Showing Unboxing for the Vault Control 1!
Combo sockets enable balanced input on XLR or 6.35 mm TRS connectors, the L/R stereo output is on
XLR connectors. The CONTROL-1 also provides unbalanced 3.5 mm stereo input and output to accomodate consumer equipment.
For additional convenience, the unit incorporates an output mute switch and a mono switch to sum the left and right stereo channels.
With sides of solid wood, a powder coated steel enclosure and non-slip rubber feet the CONTROL-1 is a highly useful tool in the studio and at home... and it’s an eyecatcher, too!
CONNECTING AN AUDIO INTERFACE
If your audio interface provides XLR or 6.35 mm TRS outputs use high quality shielded patch or microphone cables for balanced connection to the CONTROL-1 ’s L/R combo inputs.
NOTE: TO PREVENT POPS AND CRACKLING NOISES MAKE SURE YOUR MONITOR SPEAKERS ARE SWITCHED OFF BEFORE CONNECTING THE CONTROL-1.
•Connect the L/R outputs of your interface to the CONTROL-1 L/R inputs.
•Connect the CONTROL-1 L/R outputs to your monitors.
•Set your computer's audio output level to maximum and your software master volume to 0 dB.
•Set the C0NTR0L-1’s attenuation control fully counterclockwise.
•Switch on your monitors.
•Make sure the C0NTR0L-1's mute function is deactivated and bring up the volume by rotating the attenuation control clockwise.

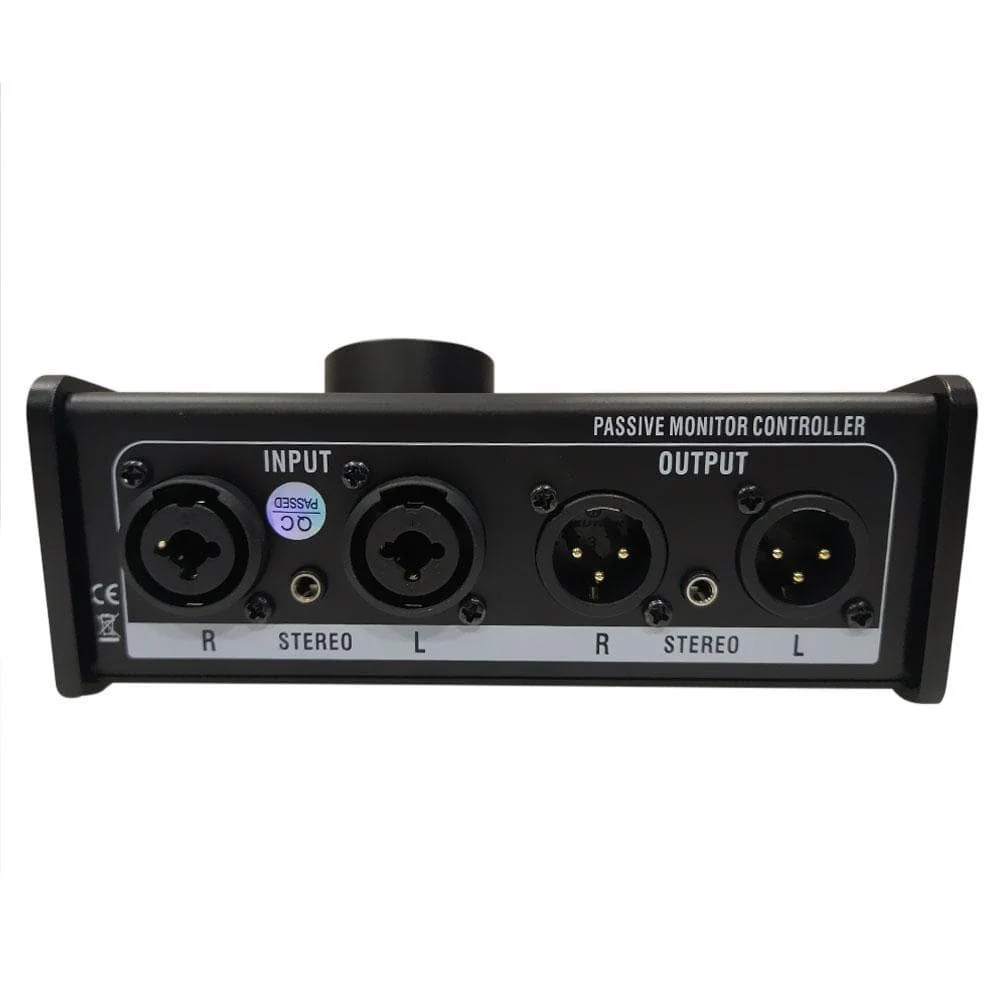

Stereo inputs:
L/R combo sockets for balanced XLR or 6.35 mm TRS input plus 3.5 mm TRS jack. To prevent ground loops do not use the combo sockets and 3.5 mm jack simultaneously.
Stereo outputs:
L/R XLR sockets plus 3.5 mm TRS jack. To prevent ground loops do not use the XLR sockets and 3.5 mm jack simultaneously.
Mono:
Pressing this switch feeds a mono sum of the left and right stereo channels to all outputs.
Pressing this switch mutes all outputs.
Attenuation:
This knob controls the output level to your monitor speakers.
Specifications:
- Product Type: monitor controller passive
- Type: Passive
- Number of Input: 2
- Number of Channels: 2
- Inpu Connections: XLR-TRS combo/3.5 mm stereo TRS
- Input Type: balanced / unbalanced
- Maximum Input Level: +20 dBu
- Input impedance: 10k balanced /5k unbalanced
- Number of Input: 2
- Output connections: XLR/m, 3.5 mm stereo TRS
- Output Type: Balanced / unbalanced
- Max Output: +20 dBu
- Output impedance: 600 ohms
- Frequency response: 10 Hz - 40 kHz +/-1dB
- THD: 0,001%
- Max. attenuation: 85 dB (attenuator) 112 db (attenuator + mute)
- Control: Attenuation, Mute, Mono
- Housing material: Sheet steel / genuine solid wood
- Housing Surface: powder-coated
- Dimensions: 164 mm x 85 mm x 62 mm
- Weight: 690 g
Bajaao TS to XLR Male Speaker Cable - 3 Meter - Pair
Made in China
