Telefunken Usa M60 FET Cardioid Condenser Microphone - Stereo Set
Telefunken Usa M60 FET Cardioid Condenser Microphone - Stereo Set Overview:
The M60 FET Cardioid Stereo Set comes with two identical M60 FET amplifiers paired with a matched set of TK60 cardioid polar pattern capsules.
The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz.
The M60 FET's sensitivity and clarity result in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
Circuit Design
Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.
Construction

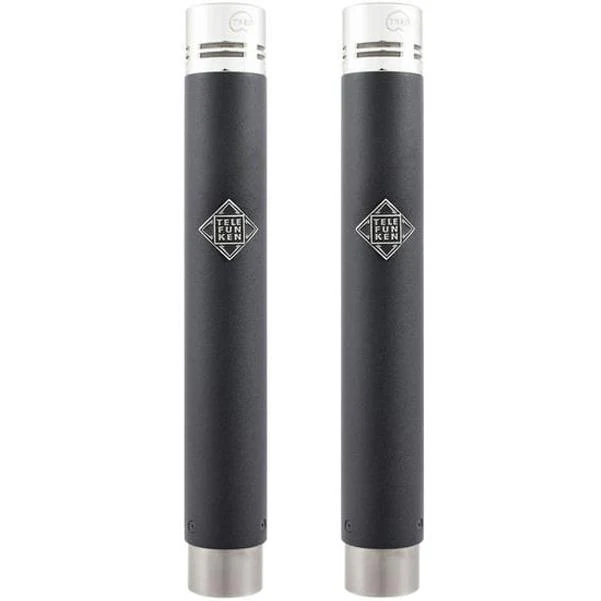

The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated enclosure with a fine gold mesh pattern.
Accessories

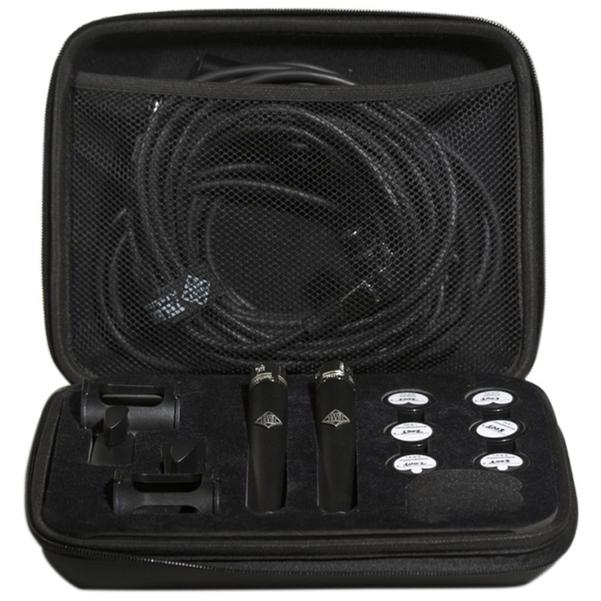

The M60 FET Cardioid Stereo Set ships complete with two SGMC-5R 5-meter XLR cables with right angle female connector, two M761 elastic shockmounts, and two foam windscreens, all packed in a FC62 dual microphone zipper carrying case.
Specifications:
The M60 FET Cardioid Stereo Set comes with two identical M60 FET amplifiers paired with a matched set of TK60 cardioid polar pattern capsules.
The TK60 features a 6-micron gold-sputtered membrane measuring 15mm in diameter, with a surprisingly full low end, and a quick and accurate transient response. The frequency response is flat from 150 Hz to 7 kHz, with a smooth, airy presence peak at 8 kHz.
The M60 FET's sensitivity and clarity result in an extremely detailed sonic image with definition and presence, perfectly suited for the complex character of stringed instruments and percussive sources.
Circuit Design
Utilizing a unique proprietary circuit topology, this re-interpretation of the classic FET mic amplifier produces an exceptional transient response and SPL handling capabilities. Carefully selected and tested components are hand-plugged into gold-plated circuit board traces to provide an ultra-clean true Class A discrete amplifier with a frequency response of +/- 2dB from 20 Hz to 50 kHz. The output is matched with a custom American-made transformer that offers an especially low self-noise and a typical THD+N of 0.015% or better, making it ideal for critical recording applications.
Construction
The M60 FET amplifier body is finished in a durable, lightly textured black powder coat adorned with the historic TELEFUNKEN diamond badge. The microphone’s XLR connector shell complements the look with a matte black nickel-plated finish engraved with the model and serial number. The TK6x capsules feature a bright nickel-plated enclosure with a fine gold mesh pattern.
Accessories
The M60 FET Cardioid Stereo Set ships complete with two SGMC-5R 5-meter XLR cables with right angle female connector, two M761 elastic shockmounts, and two foam windscreens, all packed in a FC62 dual microphone zipper carrying case.
Specifications:
- Type: Pressure Gradient Condenser
- Capsule: TK60 - 15 mm Edge Terminated Diaphragm
- Tube Type: Active FET Transistor (No Vacuum Tube)
- Transformer: Custom Wound TELEFUNKEN T61CT
- Polar Pattern: Cardioid
- Frequency Range: 20 Hz - 31.5 kHz, ± 2 dB (Amplifier)
- Sensitivity: 8.6 mV/PA, ± 1dB
- THD at 1kHZ at 1Pa (Amplifier): < 0.01%
- Output Impedance: 120 Ω
- Maximum SPL (for 1% THD): > 130 dB
- S/N Ratio: > 89 dBA
- Self Noise (Amplifier): ≤ 5 dBA
- Dimensions: 140 mm L x 21 mm Dia
- Weight: 110 g
- Current Draw: 2 mA
- Power Requirement: +48 VDC Phantom Power
- Cable: SGMC-5R - 5 Meter (16.9 ft) Cable, Right Angle Female 3 Pin XLR, 3 Pin Male XLR
- Shockmount: M 961 - Suspended Elastic Mount
- Flight Case: ZC62 for Stereo Set
Made in USA
