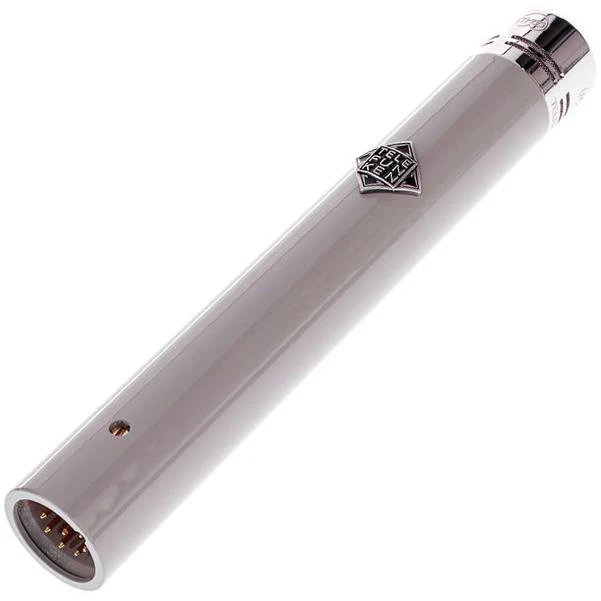

Telefunken ELA M 260 Compact Condenser Microphone
Telefunken ELA M 260 Compact Condenser Microphone Overview:
The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity.
Sonic Characteristic
In use, the ELA M 260 has plenty of tone with excellent detail and clarity. It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar all shine through the ELA M 260. Also, despite its size, it has also served well on vocal applications. Its unique tonal character is very well suited for a myriad of applications, both traditional and not.
Accessories
All ELA M 260 system packages are supplied with a set of three interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hyper-cardioid. With all three capsules the user can have the flexibility to record their source material in any way they wish. Each microphone also includes a M 960 power supply, M 801 25’ dual-shielded TX-7 tube microphone cable, M761 elastic shock mount, and wooden microphone box.
Specifications:
The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity.
Sonic Characteristic
In use, the ELA M 260 has plenty of tone with excellent detail and clarity. It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar all shine through the ELA M 260. Also, despite its size, it has also served well on vocal applications. Its unique tonal character is very well suited for a myriad of applications, both traditional and not.
Accessories
All ELA M 260 system packages are supplied with a set of three interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hyper-cardioid. With all three capsules the user can have the flexibility to record their source material in any way they wish. Each microphone also includes a M 960 power supply, M 801 25’ dual-shielded TX-7 tube microphone cable, M761 elastic shock mount, and wooden microphone box.
Specifications:
- Type: Pressure Gradient Condenser
- Capsule: TK60, TK61, TK62 - 15 mm Edge Terminated Diaphragm
- Tube Type: Raytheon JAN EF732 / 5840W (NOS)
- Transformer: Custom Wound TELEFUNKEN T60
- Polar Pattern: Cardioid, Omindirectional, and Hypercardioid (Interchangeable Capsules)
- Frequency Range: 20 Hz - 20 kHz, ± 3 dB
- Sensitivity: 16.5 mV/Pa ± 1 dB
- THD at 1kHZ at 1Pa (Amplifier): < 0.15%
- Output Impedance: 200 Ω
- Maximum SPL (for 1% THD): 135 dB
- S/N Ratio: 83 dBA
- Self Noise (Amplifier): 11 dBA
- Dimensions: 140 mm L x 21 mm Dia
- Weight: 116 g
- Current Draw from Mains: 55 mA
- Power Supply: M 960 - 7 Pin Female XLR Input, 3 Pin Male XLR Output
- Cable: M 860R - 25 ft Accusound TX-7 Cable, Right Angle 7 Pin Female XLR, 7 Pin Male XLR
- Wooden Box: WB60
- Flight Case:HC60 - Hard Shell Protective Case (not included), FC60S for Stereo Set, FC60T for Tri-Mono Set
Made in USA
$50,234.40
Original: $167,448.00
-70%Telefunken ELA M 260 Compact Condenser Microphone—
$167,448.00
$50,234.40Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Telefunken ELA M 260 Compact Condenser Microphone Overview:
The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity.
Sonic Characteristic
In use, the ELA M 260 has plenty of tone with excellent detail and clarity. It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar all shine through the ELA M 260. Also, despite its size, it has also served well on vocal applications. Its unique tonal character is very well suited for a myriad of applications, both traditional and not.
Accessories
All ELA M 260 system packages are supplied with a set of three interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hyper-cardioid. With all three capsules the user can have the flexibility to record their source material in any way they wish. Each microphone also includes a M 960 power supply, M 801 25’ dual-shielded TX-7 tube microphone cable, M761 elastic shock mount, and wooden microphone box.
Specifications:
The small diaphragm ELA M 260 is arguably one of the industry's finest acoustic and classical recording tube microphones, offering plenty of tone with excellent detail and clarity.
Sonic Characteristic
In use, the ELA M 260 has plenty of tone with excellent detail and clarity. It captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Violin, cello, upright bass, drum overheads, percussion, woodwinds, saxophones, strings, and especially acoustic guitar all shine through the ELA M 260. Also, despite its size, it has also served well on vocal applications. Its unique tonal character is very well suited for a myriad of applications, both traditional and not.
Accessories
All ELA M 260 system packages are supplied with a set of three interchangeable capsules: the TK60 cardioid, TK61 omni, and TK62 hyper-cardioid. With all three capsules the user can have the flexibility to record their source material in any way they wish. Each microphone also includes a M 960 power supply, M 801 25’ dual-shielded TX-7 tube microphone cable, M761 elastic shock mount, and wooden microphone box.
Specifications:
- Type: Pressure Gradient Condenser
- Capsule: TK60, TK61, TK62 - 15 mm Edge Terminated Diaphragm
- Tube Type: Raytheon JAN EF732 / 5840W (NOS)
- Transformer: Custom Wound TELEFUNKEN T60
- Polar Pattern: Cardioid, Omindirectional, and Hypercardioid (Interchangeable Capsules)
- Frequency Range: 20 Hz - 20 kHz, ± 3 dB
- Sensitivity: 16.5 mV/Pa ± 1 dB
- THD at 1kHZ at 1Pa (Amplifier): < 0.15%
- Output Impedance: 200 Ω
- Maximum SPL (for 1% THD): 135 dB
- S/N Ratio: 83 dBA
- Self Noise (Amplifier): 11 dBA
- Dimensions: 140 mm L x 21 mm Dia
- Weight: 116 g
- Current Draw from Mains: 55 mA
- Power Supply: M 960 - 7 Pin Female XLR Input, 3 Pin Male XLR Output
- Cable: M 860R - 25 ft Accusound TX-7 Cable, Right Angle 7 Pin Female XLR, 7 Pin Male XLR
- Wooden Box: WB60
- Flight Case:HC60 - Hard Shell Protective Case (not included), FC60S for Stereo Set, FC60T for Tri-Mono Set
Made in USA
