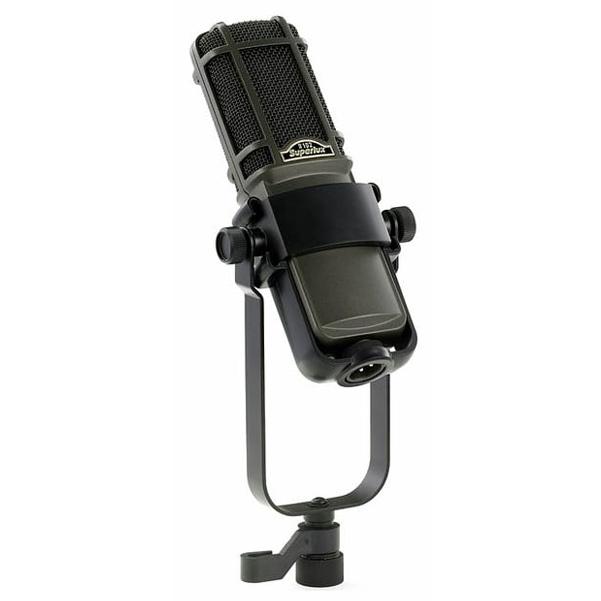

Superlux R102 Ribbon Condenser Microphone Overview:

The R102 Series aluminum band microphones are designed for broadcast TV recordings. They not only have the high sensitivity and smooth frequency response of condenser microphones, but also have a faster speed response (ie transient response) than condenser microphones.

Features:

• Classical standard aluminum microphone sound
• Frequency response is flat and broad
• High sensitivity, large dynamic, low distortion, low noise
• Stable performance, not affected by ambient temperature and humidity
• "8" Ortho directional front and back acoustic performance the same
• Low impedance output
• Tone modular design
• + 48VDC active power supply

Specifications:

• Type: Ribbon microphones
• Principle: Active electromagnetic pressure gradient transducer
• Diaphragm element: 2.5 micron aluminum
• Magnet: a high energy product NdFeB
• Directivity: 8-shaped
• Frequency response: 25 ~ 15,000 Hz
• Sensitivity (open-circuit voltage 000 ): -39dBV / Pa (11.2mV) ± 3dB, 1Pa = 94dB SPL
• Output Impedance: 250Ω ± 20% at 1000Hz
• Rated Load Impedance: > 1,000Ω
• Equivalent Noise Level: <2dB
• Max Sound Level: > 140dB ( THD ≦ 0.5% at 1000Hz)
• SNR: 73dB
• Dynamic Range: 106dB
• Power Supply: 48VDC ± 4V, 1.5mA Phantom Power
• Environmental Requirements: Microphone Operating Temperature Range -10 ° C ~ 50 ° C (14 ° F ~ 122 ° F) , Relative humidity 0 ~ 95%
• Connector: 3 pin male XLR
• Body: metal structure, black surface coating
• Size: 60.0mm x 185mm x 33mm (2.36in x 7.28in x 1.30in)
• Net weight: 500 g
