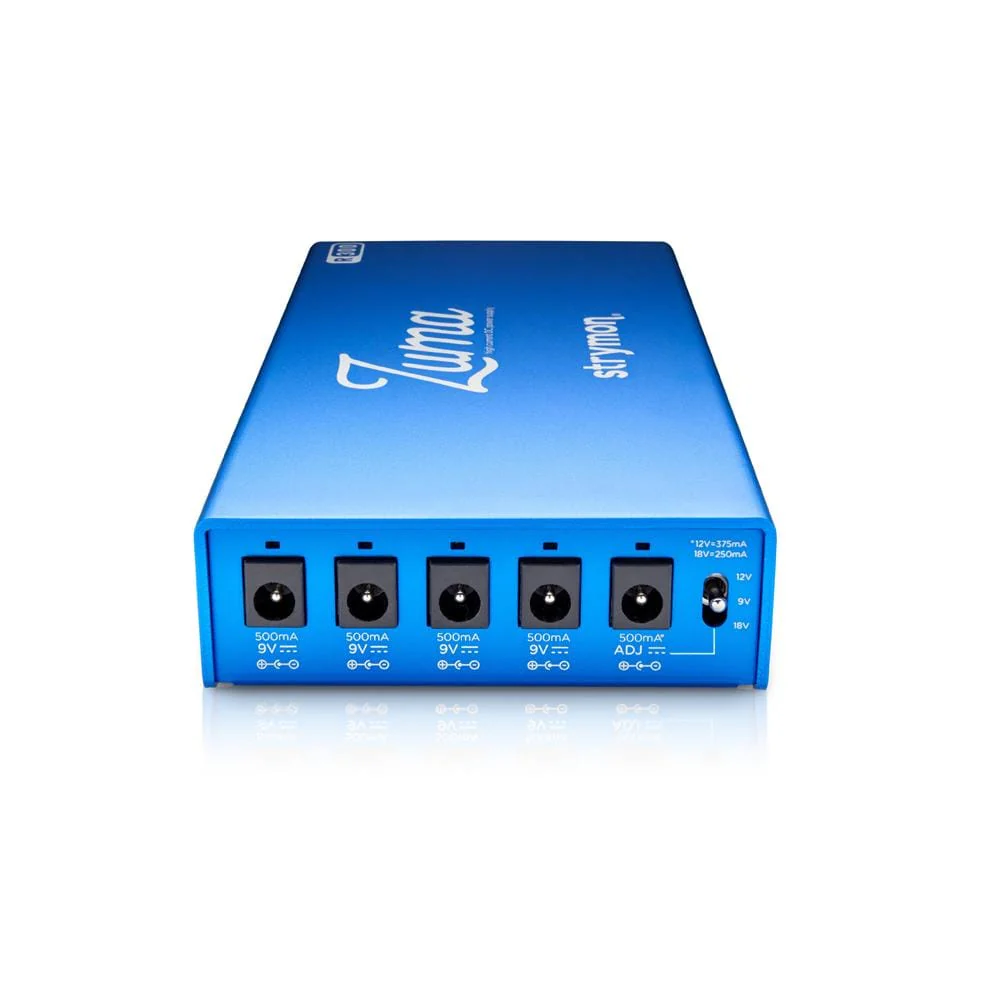

Strymon Zuma R300 DC Pedal Power Supply Overview:

Zuma R300 is a flexible, low-profile, high output power supply that provides ultra-clean, isolated power for
up to five effect pedals. It can be used on its own, or as the first supply in a larger Strymon power system with additional outputs

Features:
INS & OUTS

• Five (5) high current, fully isolated outputs with center-negative polarity
• Four (4) dedicated 9V DC outputs (500mA)
• One (1) selectable output offers 9V (500mA), 12V (375mA), or 18V (250mA) DC options
• 500mA per 9V DC output powers nearly any pedal
• Five (5) pedal cables included (5.5mm x 2.1mm barrel connectors, straight to right angle, 18” length)
• Detachable IEC power cable included
• 24V Out jack allows connection to additional Strymon Ojai expansion units (sold separately)

TECHNOLOGY

• Five (5) individual custom transformers (one per channel) deliver clean, consistent power
• Worldwide power compatibility ensures no-hassle international touring
• Energy efficient, compact design

CONSTRUCTION

• Lightweight and rugged anodized midnight blue aluminum chassis
• Ultra low profile design fits under nearly any pedalboard
• Designed and built in the USA

Specifications:

• Dimensions : 7.25” x 3.5” x 1.18” (184mm x 88mm x 30mm)
• Weight : 0.9 lbs. (400g)
• Input : 100-240V AC 50/60Hz
• 9V DC Outputs : Four (4) 9V DC, 500mA, center-negative
• Adjustable Output : One (1) Selectable 9V DC (500mA), 12V DC (375mA), or 18V DC (250mA),center-negative

What’s In the Box?

• Zuma R300 high-current DC power supply
• One (1) IEC cable (region-specific)
• Five (5) 2.1mm x 5.5mm pedal cables (18” long, straight to right angle connectors)
• Two (2) #4 (3/8”) wide pan head screws for mounting Zuma R300 to your pedalboard
• Quick Start Guide
• Drill Template
• Strymon sticker

Made in USA
