SPL Active 2 Way Analog Crossover Overview:

It is difficult to optimally integrate bass loudspeakers or subwoofers.
At present, there are almost only digital crossovers for this purpose.
But who wants to convert back to digital in an analog high-end playback chain?
Our Crossover sets the crossovers anew.

Crossing over

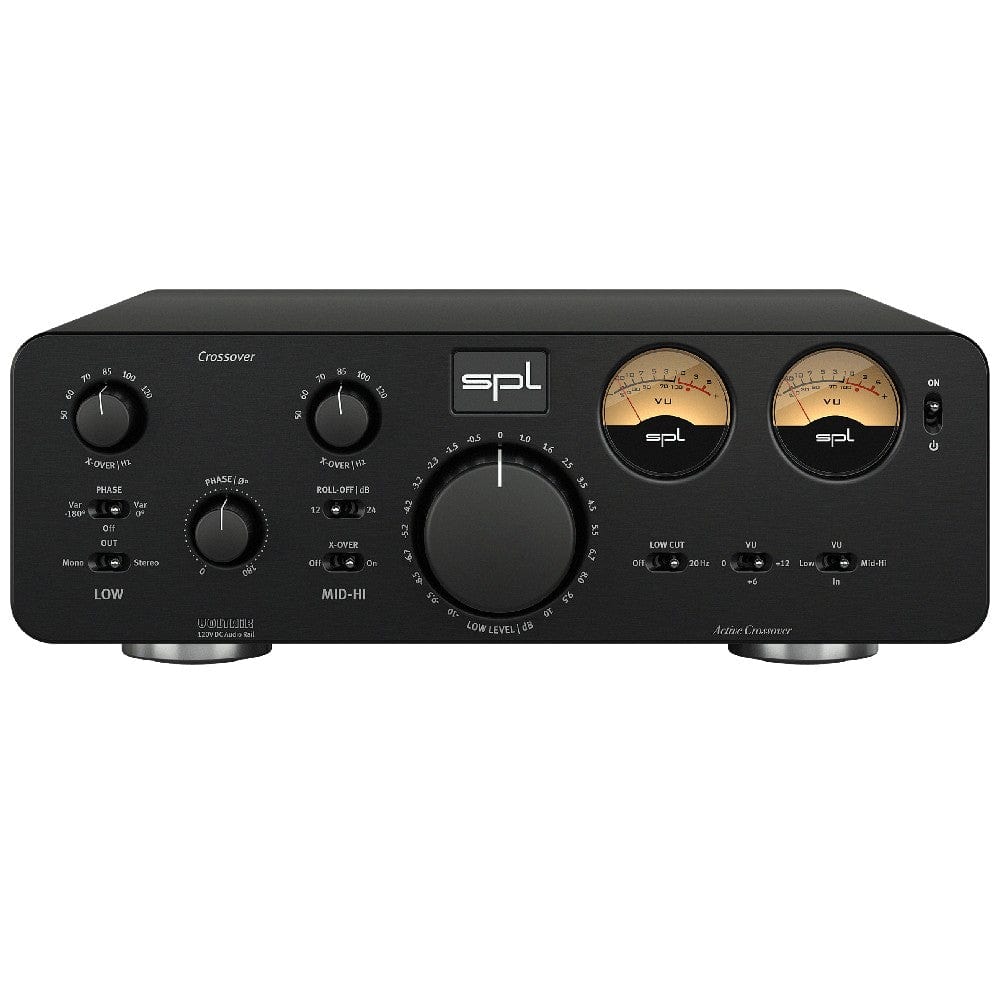

The crossover is divided into two sections: The Low section for the bass loudspeaker or subwoofer (mono or stereo) and the Mid-Hi section for the top/main speakers.

The crossover frequencies for Low and Mid-Hi can be set individually from 50 Hz to 120 Hz in 6 positions.

The Low filter has a slope of 24 dB per octave. The slope of the MID-HI filter can be switched from 12 dB to 24 dB.

In Phase
Audio signals should come from the top speakers and bass loudspeakers or subwoofers in phase.
The crossover offers variable phase control for this purpose.

Use the toggle switch to activate the phase control (phase 0° or phase -180°) and use the control to establish simultaneousness.

If the phase control is not required, it can be switched off and thus disappears completely from the signal path.

One or two?
If you want to connect two bass loudspeakers or subwoofers (one for L and one for R), this switch should be set to stereo.

If you only use one bass loudspeaker or subwoofer, switch to mono. The crossover creates a mono signal of the Low frequencies and outputs it to both Low outputs (L + R).

On or off?
If you prefer to run the top/main speakers full-range, you can switch off the MID-Hi filter.

Get rid off it
With the Low Cut filter all frequencies below 20 Hz can be filtered out.

This way, the power amplifier does not have to amplify inaudible low frequencies and the loudspeaker is relieved.

As long as you're having fun
The playback volume of the bass loudspeaker or subwoofer can be varied from -10 dB to +10 dB.

In addition to the purely corrective adjustment of the speaker system, you can add more bass into recordings that lack low end.

“Happiness is when the bass kicks in.”

Good ol' times
Two mechanical VU meters visualize the input levels for the left and right audio channel.

With the VU switch you can optimize the display for different signal levels.

Source of joy

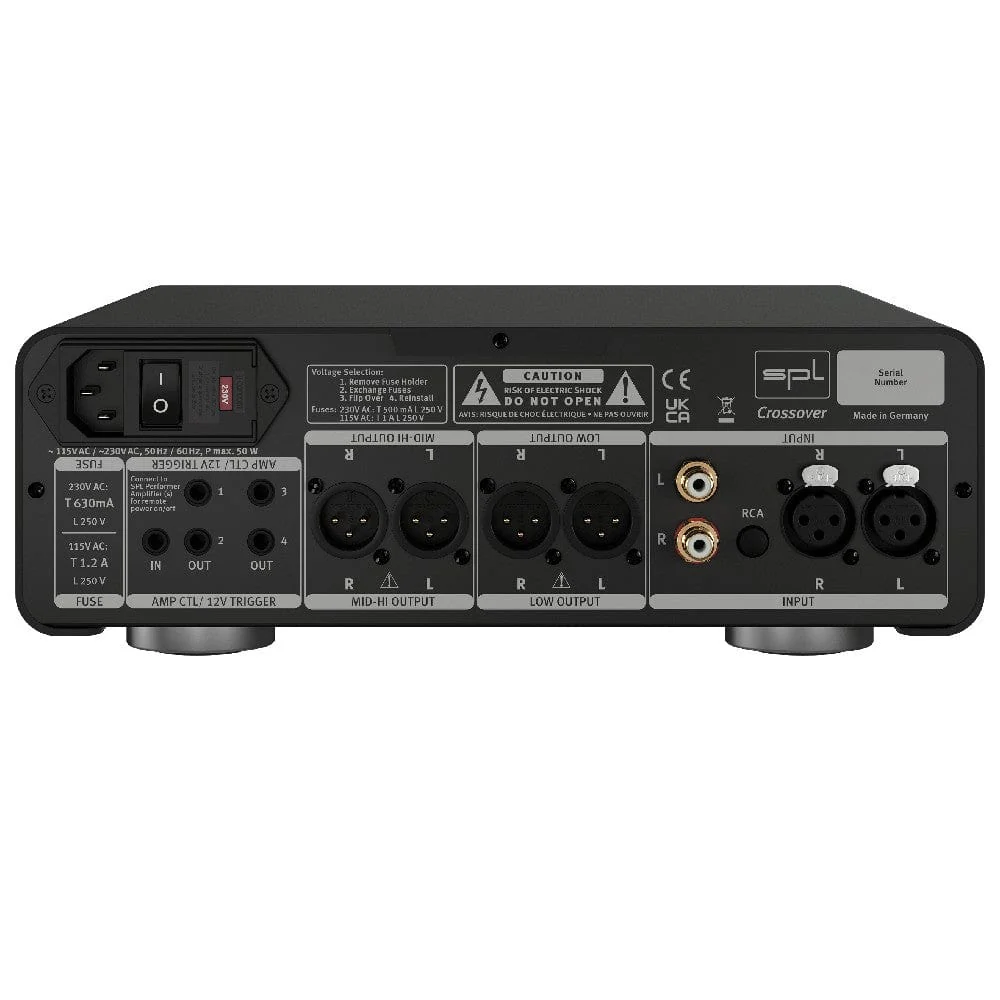

The Crossover offers both balanced inputs with XLR sockets and standard inputs with gold-plated RCA sockets.

Low & Mid-Hi
On the output side, the power amplifiers or active loudspeakers as well as bass loudspeakers or subwoofers are connected to the Low & Mid-Hi output sockets by means of balanced XLRs.

This means that even long cable runs to e.g. mono power amps placed next to the speaker are possible without the risk of interference.

Everything under control – AMP CTL
The standby mode for up to four devices with 12V trigger input can be switched on and off via AMP CTL, together with the Crossover (AMP CTL Out). This is especially useful for connecting power amplifiers. But also the standby mode of the Crossover itself can be switched on and off by a preamplifier, such as the Director Mk2 or the Phonitor x, via AMP CTL (AMP CTL In).

Sounds good
With all devices of the Professional Fidelity series we develop not only according to plan, but also by ear. Many important components are installed on the circuit boards using Through-hole technology. This way we can ensure that we can use the best sounding components.

Specifications:

Analog Inputs & Output: XLR (balanced) and RCA

• Maximum input & output gain: 32.5 dB
• Input impedance (RCA): 20 kΩ
• Input impedance (XLR): 20 kΩ
• Output impedance: 75 Ω
• Common mode rejection (XLR): -82 dBu
• Frequency range (-3 dB): 4 Hz – 300 kHz
• Crosstalk (1 kHz): -70 dBu
• THD (0 dBu, 1 kHz, MID-Hi filter on): 0.0008 %
• THD (0 dBu, 30 Hz, LOW filter on): 0.0014 %
• Noise (A-weighted, MID-HI output): -106 dBu
• Noise (A-weighted, LOW output): -104,9 dBu
• Dynamic range (MID-HI output): 138 dB
• Dynamic range (LOW output): 136.9 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

• Operating voltage for analog audio: +/- 60 V
• Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

• Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
• Fuse for 230 V: T 500 mA
• Fuse for 115 V: T 1 A
• Power consumption: max. 50 VA
• Stand-by power consumption: < 0,3 W

Dimensions & Weight

• W x H x D (width x height incl. feet x depth):
• 278 x 100 x 300 mm
• 11 x 4 x 11.81 inch
• Unit weight
• 5, kg
• 11,02 lbs
• Shipping weight (incl. packaging)
• 5.95 kg
• 13.12 lbs

Made in Germany
