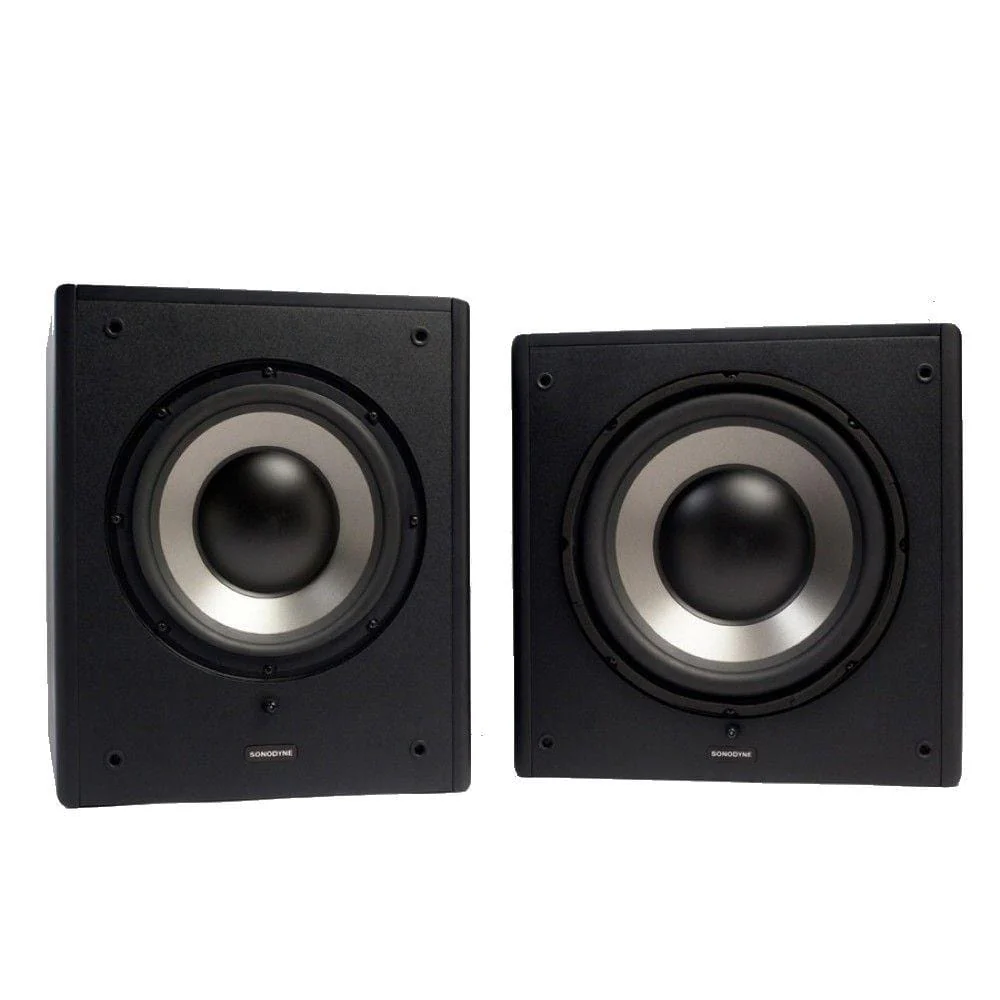

Sonodyne SLF 210 V2 10" Active Subwoofer Overview:

The SLF 210 V2 and SLF 312 add some exciting new features to the proven workhorse subwoofer, the SLF 210, including

• 2.1 channel bass management
• Discrete phase control from 0 ~ 180 deg.
• Polarity switch
• Ground lift switch
• External (foot switch controlled) bass management
• The SLF 210 features a 10" subwoofer transducer powered by a Sonodyne Class D 200W amplifier

Features:

• 10" transducer powered by D class amp
• 2.1 channel bass management
• Discrete phase control from 0 ~ 180 deg.
• Polarity switch Ground lift switch
• External (foot switch controlled) bass management

Specifications:

• DESCRIPTION: Front firing powered subwoofer, vented
• FREQ. RESPONSE (-6 dB): 35 Hz ~ crossover frequency
• USEABLE FREQ. RESP (-10 dB): 30 Hz
• TRANSDUCER COMPLEMENTS: 1 x 10" high excursion subwoofer
• MAXIMUM SPL: 112 dB
• AMPLIFIER POWER: 200 W
• AMPLIFIER TYPE: Class D
• AMPLIFIER THD: 0.1% at rated power
• SIGNAL TO NOISE RATIO: 95 dB (A-Weighted)
• INPUT IMPEDANCE: 22 kOhm, balanced
• INPUT LEVEL FOR FULL POWER: +5 dBu (1.38V) level control at max.
• SWITCHES ON REAR PANEL:
• 1. Polarity
• 2. Limiter On/Off switch
• 3. Ground Lift switch
• REMOTE SWITCHING: 1/4" phone jack for connecting foot pedal switch
• CONTROLS
• 1. Crossover frequency 50Hz~150Hz
• 2. Phase, 0~180 degrees
• 3. Gain, -60 dB to +6 dB
• INPUT: Left, Right and LFE, Fully balanced, through XLR socket
• OUTPUT (LINE LEVEL): Left and Right, fixed 80 Hz bypass, Fully balanced, through XLR socket
• PROTECTIONS: Thermal, overload, short circuit, DC at output
• ENCLOSURE: 18 mm MDF
• FINISH: Black painted
• GRILL: Black grill cloth stretched over wooden frame
• POWER SOURCE: 230V AC, 50Hz, via fused IEC inlet/ 115v optional
• POWER CONSUMPTION: 240 VA max
• DIMENSIONS (HxWxD) mm: 422 x 349 x 446
• NET WEIGHT: 18.5 K

Made in India
