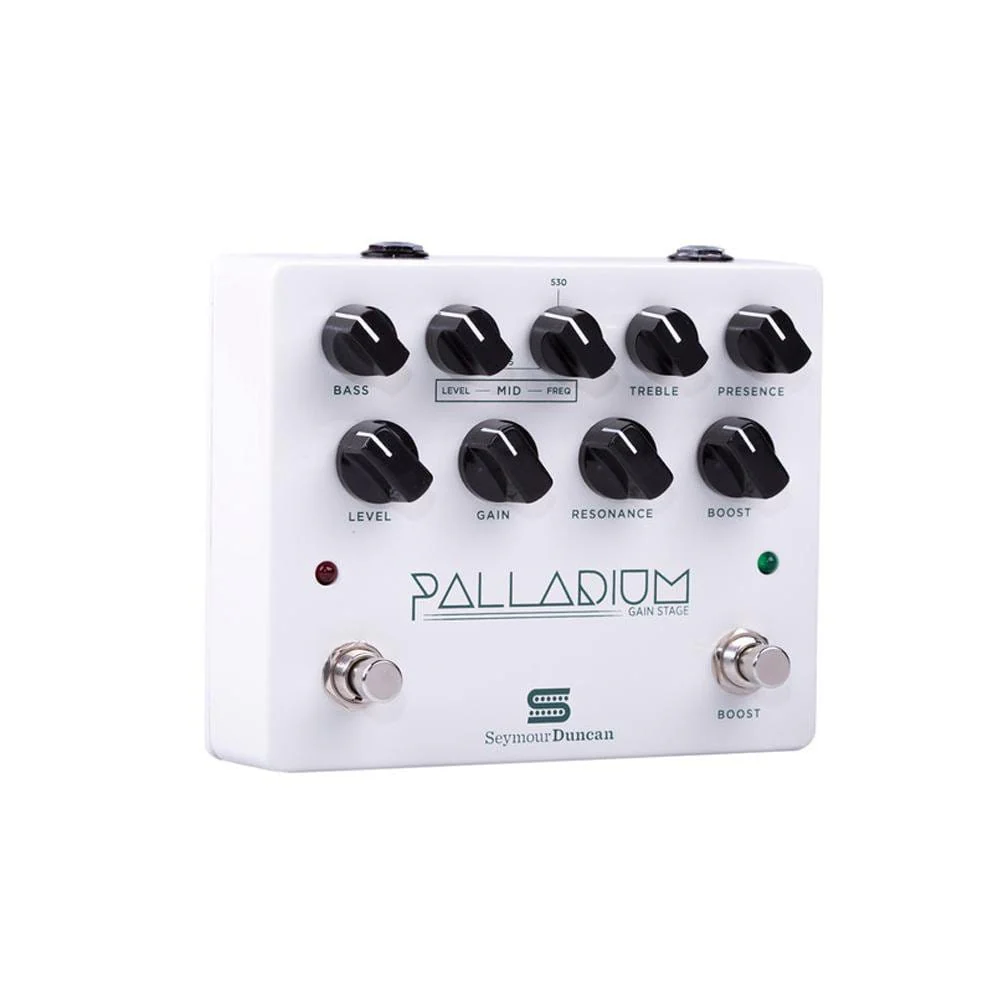

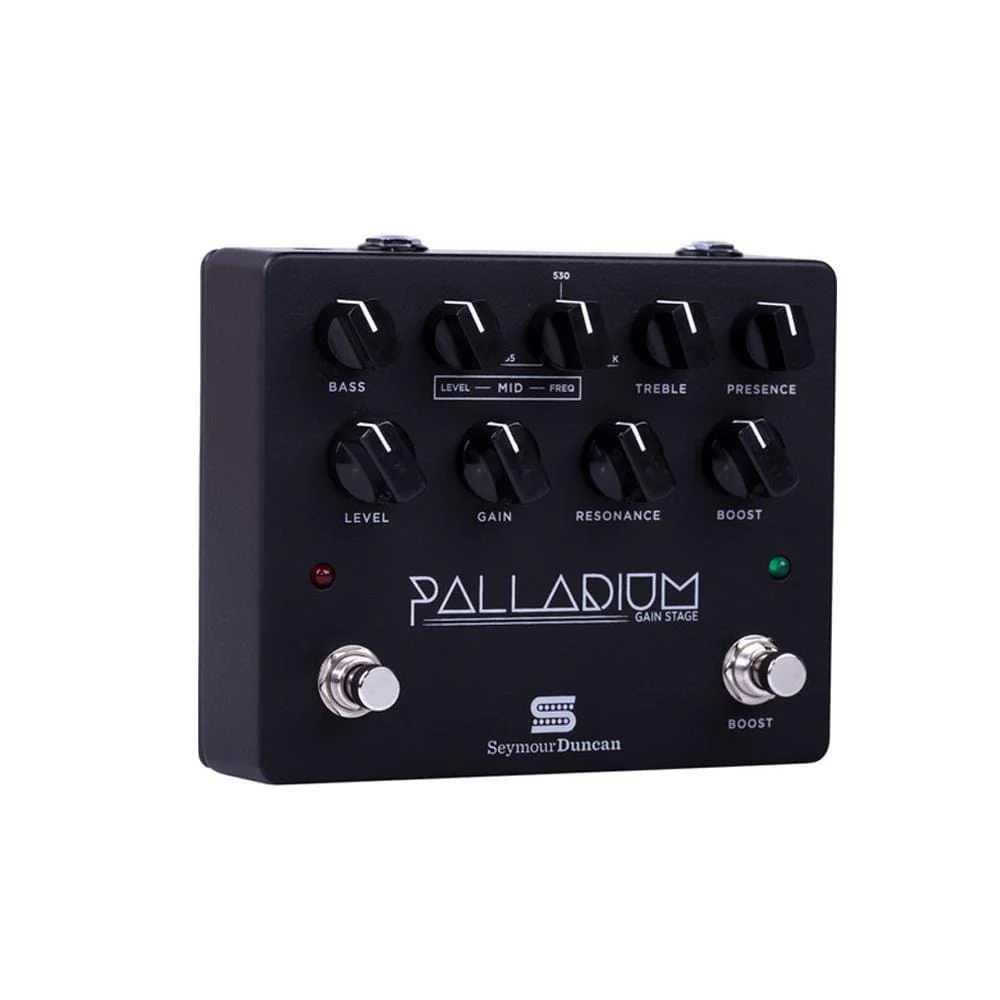

Seymour Duncan 11900-009B Palladium Gain Stage Guitar FX Effects Pedal Overview :

The Seymour Duncan Palladium Gain Stage is a high-quality effects pedal that accurately captures the feel and responsiveness of a high-gain tube amp. The pedal was designed with an innovative architecture that produces full-bodied depth and character to replicate your favorite high-gain amp tones. The pedal utilizes low-noise op amps and germanium clipping diodes, and features a true hard-wire bypass.

Palladium features three gain stages: a gain stage to control the overall saturation, a resonance control for low-frequency gain shaping and a boost control that adds overdrive to the beginning of the signal path. When combined, these three gain stage components offer a wide range of versatile tones with classic rock at lower settings to modern metal at higher gain settings. The pedal also offers a 3-band EQ with bass, treble, presence, and a sweepable midrange frequency.

Controls :

• Bass: Sets amount of bass boost or cut
• Mid Level: Sets amount of mid-frequency boost or cut
• Mid Freq: Sets location of center frequency of mid boost or cut
• Treble: Sets amount of treble boost or cut
• Presence: Sets amount of boost or cut above the treble frequency range
• Level: Sets the output signal level
• Gain: Sets the amount of gain at high frequencies from 42.5 to 71 dB
• Resonance: Sets the amount of gain at low frequencies from 41.5 to 66 dB
• Boost Knob: Sets the amount of additional gain provided by the Boost footswitch
• Boost Footswitch: Engages the Boost function
