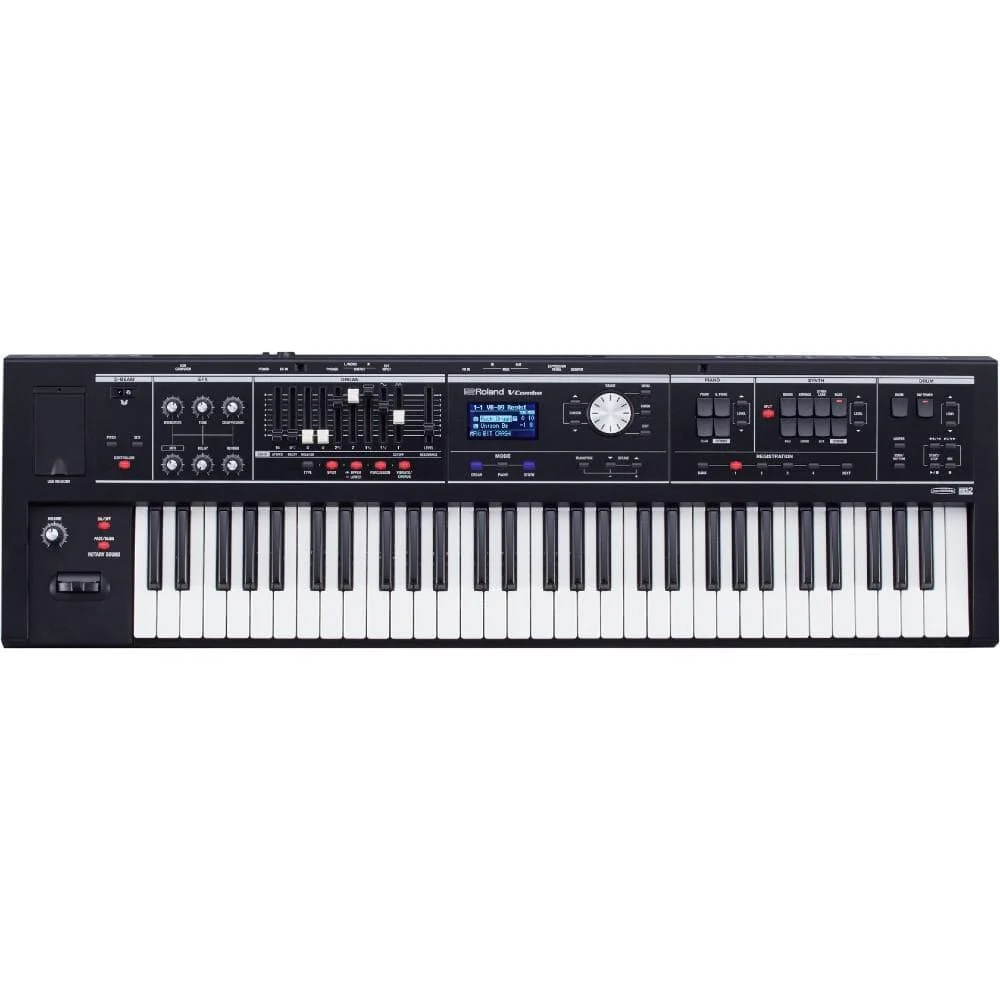

Roland V-Combo VR-09-B Live Performance Keyboard Overview :

Keyboard :

Keyboard - 61 keys (with velocity)

Keyboard Modes -

• Whole
• Dual (volume balance adjustable)
• Split (split point, volume balance adjustable)
• 2-manual/3-manual mode (when using sold separately MIDI keyboard)

Sound Generator Section :

Sound Generator -

• Virtual Tone Wheel Organ
• SuperNATURAL Synth
• PCM Synth
• *GM2 compatible sounds are included.

Maximum Polyphony - 128 voices

Parts -

• Organ (3 parts)
• Piano (2 parts)
• Synthesizer (2 parts)
• Drum (1 part)
• GM2 (16 parts)

Sounds - 245 sounds

Registrations -

• 100 (4 x 25 banks)
• Effects (7 systems always on / global control) -
• Overdrive
• Tone
• Compressor
• Multi-effects: 20 types
• Delay: 6 types
• Reverb: 6 types
• Rotary: 3 types

SMF/AUDIO FILE PLAYER SECTION :

Playable File Format -

• SMF File: Format 0, 1
• Audio File: WAV, AIFF, MP3

Recording Format -

• SMF File: Format 0
• Audio File: WAV (44.1 kHz, 16-bit linear, stereo)

Looper Section :

Record Time - 20 seconds (stereo)

Recording/Loadable File Format - Audio File: WAV (44.1 kHz, 16-bit linear, stereo)

Other :

Rhythm Patterns - 52

Controller -

• Virtual Tone Wheel organ: Harmonic bar x 10
• Synthesizer controller: Slider x 5
• D-BEAM controller
• Pitch bend/Modulation lever
• Effects knob x 6 (global control)

Display - Graphic LCD 128 x 64 dots

External Memory - USB Flash Memory

Connectors -

• Output (L/MONO, R) jacks: 1/4-inch phone type
• PHONES jack: Stereo 1/4-inch phone type
• EXT INPUT jack: Stereo miniature phone type
• DAMPER jack: TRS 1/4-inch phone type
• EXPRESSION PEDAL jack: TRS 1/4-inch phone type
• MIDI (IN, OUT) connectors
• PK IN connector: 8-pin DIN type
• USB COMPUTER port: USB Type B (supports USB MIDI)
• USB MEMORY port: USB Type A
• DC IN jack

Power Supply -

• AC adaptor
• Rechargeable Ni-MH battery (AA, HR6) x 8

Current Draw - 600 mA

Expected battery life under continuous use -

• Rechargeable Ni-MH battery: Approx. 5 hours (approx. 3 hours if USB flash drive is connected)

• These figures will vary depending on the specifications of the batteries and the actual conditions of use.

         * Carbon-zinc batteries and alkaline batteries cannot be used.

Accessories -

• Owner’s Manual
• Leaflet using the unit safely
• AC adaptor
• Power cord
• USB memory protector

Dimensions :

Width - 1,008 mm / 39-11/16 inches
Depth - 300 mm / 11-13/16 inches
Height - 106 mm / 4-3/16 inches
Weight (Excluding AC Adaptor) - 5.5 kg / 12 lbs 3 oz

Made in China
