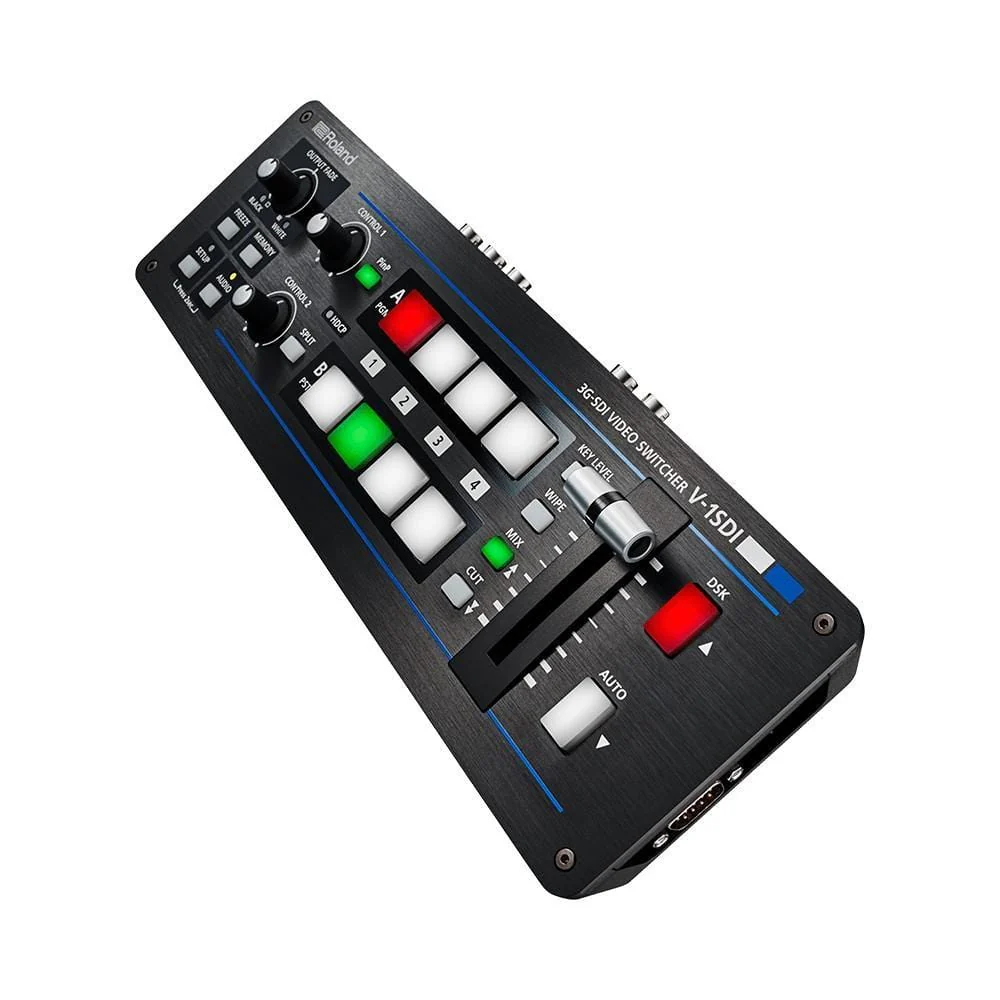

ROLAND V-1SDI 3G-SDI VIDEO SWITCHER

PROFESSIONAL SDI VIDEO SWITCHING THAT YOU CAN TAKE ANYWHERE.

V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.

With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.

MAIN FEATURES

• Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
• Easy to operate with hardware controls
• Compact size
• PSB-7U, provided AC adaptor or Battery operation
• Battery information
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI*1 inputs
• 2 x 3G-SDI and 1 x HDMI*1 output
• Input 4’s scaler now supports a wider range of video and VESA resolutions.*1 *2
• Quad input multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
• Capturing a still Image from Input Video on channel 4*3 [Ver.1.5]
• Full 14 channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
• Sending a still image to the V-1SDI by V-1SDI RCS*3 [Ver.1.5]
• *1 HDCP Compliant
• *2 Built-in EDID Emulator
• *3 The Still-image data is deleted once the power is turned off.

Specs

VIDEO

• Video Processing

• 4:2:2 (Y/Pb/Pr), 8-bit

Input Connectors

• SDI INPUT 1--3: BNC x 3
• * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• HDMI INPUT 3--4: Type A (19 pins) x 2
• * HDCP Supported
• * INPUT 3: SDI or HDMI selected.

Output Connectors

• SDI OUT PGM: BNC x 1

• SDI OUT PVW: BNC x 1
• * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
• HDMI OUT MULTI-VIEW: Type A (19 pins) x 1

• * HDCP Supported

Input Formats

• SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
• HDMI INPUT 3
• 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
• 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
• * The input interlaced video signal is converted to progressive video signal by internal processing.
• * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

HDMI INPUT 4

• 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
• VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
• WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
• FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
• UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
• * The refresh rate is the maximum value of each resolution.
• * Conforms to VESA DMT Version 1.0 Revision 11.
• * 1920 x 1200/60 Hz: Reduced blanking.
• * The input interlaced video signal is converted to progressive video signal by internal processing.
• * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

Output formats

• SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
• HDMI OUT MULTI-VIEW
• 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
• 1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
• 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
• * The video signal frame rate can be selected at the SETUP menu (59.94 or 50).

Video Effects

• Transition:CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)

• Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key

AUDIO

Audio Processing

• Sampling rate: 24 bits/48 kHz

Audio Formats

• SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
• HDMI: Linear PCM, 24 bits/48 kHz, 2ch

Input Connectors

• Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M

• HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
• Analog: AUDIO IN (RCA phono type)

• MIC (Stereo mini type, plug-in power supported)

Output Connectors

• Digital: SDI OUT PGM: BNC x 1 SMPTE 299M

• SDI OUT PVW: BNC x 1 SMPTE 299M
• HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
• Analog: AUDIO OUT (RCA phono type)

• PHONES (Stereo mini type)

Input Level

• AUDIO IN: -10 dBu (Maximum: +8 dBu)
• MIC: -41-- -13 dBu (Maximum: -1 dBu)

Input Impedance

• AUDIO IN: 15 k ohms

• MIC: 10 k ohms

Output Level

• AUDIO OUT: -10 dBu (Maximum: +8 dBu)

• PHONES: 92 mW + 92 mW (32 ohms)

Output Impedance

• AUDIO OUT: 1 k ohm

• PHONES: 10 ohms

Audio Effects

• EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect

OTHERS

Other Connectors

• USB: B Type (for remote control from PC)

• RS-232: DB-9 type

Other Functions

• MEMORY (8 types)

• FREEZE (input video captured)

• OUTPUT FADE (Audio, Video: WHITE or BLACK)

Power Supply

• AC Adaptor

Current Draw

• 2.1 A

Power Consumption

• 25 W

Operation Temperature

• +0 to +40 degrees Celsius

• +32 to +104 degrees Fahrenheit

Dimensions

• 313 (W) x 108 (D) x 59 (H) mm

• 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches

Weight (excluding AC adaptor)

• 1.2 kg

• 2 lbs 10-2/5 oz

Accessories

• Owner's manual

• AC adaptor

• Power cord

• Cord hook

Made in China
