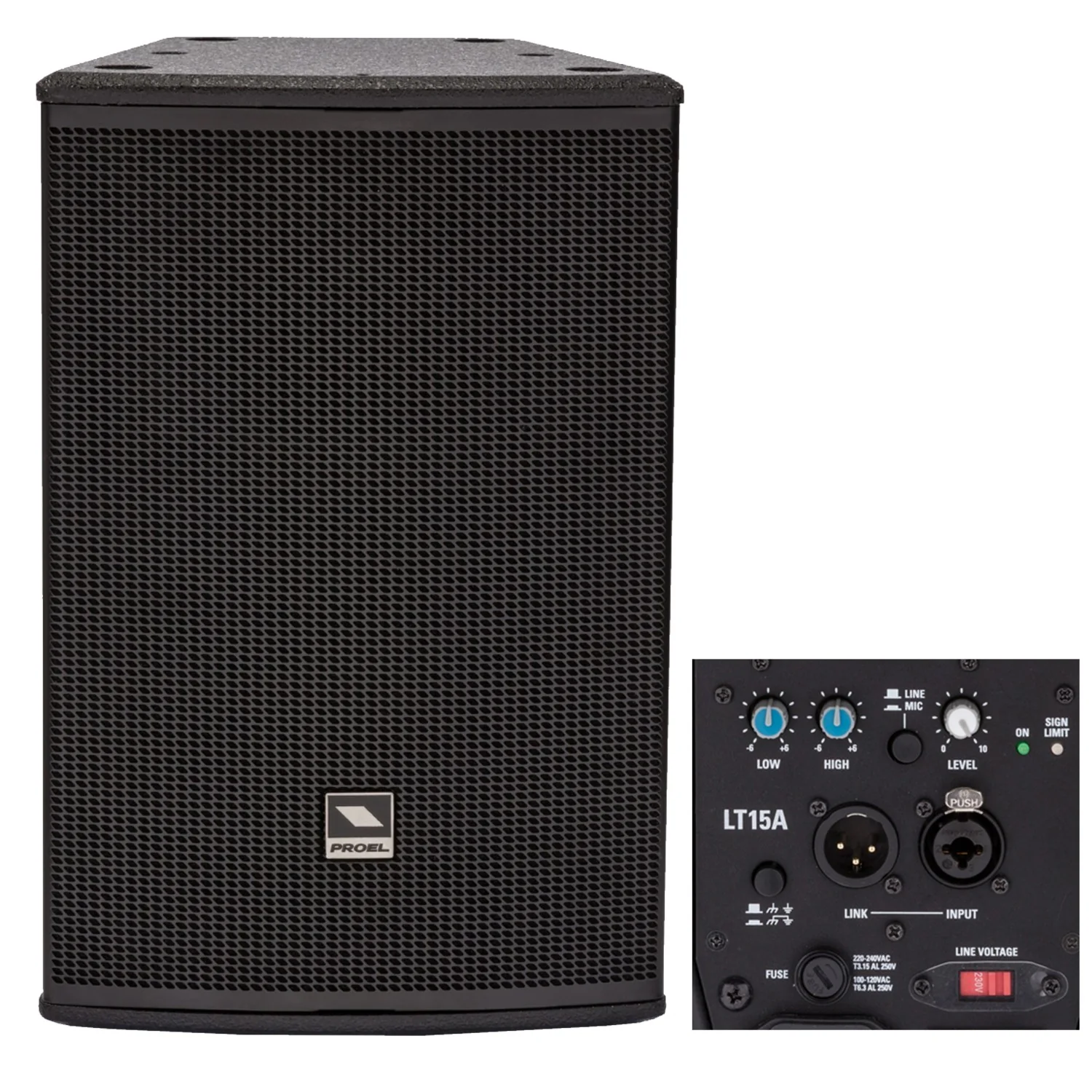

Proel LT15A 15" 600W Powered Active Speaker Overview:

Active 2-Way Loudspeaker System with Extremely Lightweight Power Modules Feature the Latest Technologies for Amplification.

• The LITE Series by PROEL is an extended range of active and passive speaker systems with plywood cabinets offering the renowned PROEL sound and a high-level performance in a reliable and affordable package.

• For the construction of the cabinets, we have used plywood, a very lightweight and durable material that makes moving and installing these speakers very quick and easy. Strong, anti-scratch paint and steel grilles with an internal foam layer provide proper protection for years of service. The dual-angle pole holder featured in 8”, 10”, 12”, and 15” models offers the possibility to obtain more uniform coverage of the audience.

• For the high-frequency reproduction of the LITE Series, we have designed wide-dispersion horns, able to provide constant coverage for large audiences and detailed response with low distortion. The high-excursion woofers, together with carefully tuned vented cabinets, offers an extended response with deep and tight basses.

• The LITE Series includes 6 active models ranging from 6.5” to dual 15” woofers, plus 1 satellite + subwoofer system. The extremely lightweight power modules used in the active models feature the latest technologies for amplification, such as Switch Mode Power Supply and CLASS D output stages, which provide a massive amount of power with reduced weight. The power modules are hosted in fully-sealed die-cast aluminum boxes that provide protection, perfect insulation of the cabinet from the outside, and extremely efficient cooling. Each module includes a sophisticated pre-amp section with up to 24 dB/Oct. phase-aligned crossover filters and active EQ filters for the system’s fine-tuning. The DUAL LIMITER circuit ensures an undistorted sound even at the loudest level and total loudspeaker protection.

• The LT loudspeaker systems can be combined with the SW subwoofers, available in 5 models and capable of providing the perfect low-frequency extension for each model of the series.

Features:

• 1” compression driver with 1.35” VC on a constant coverage 90° x 60° horn

• 15” woofer with 2.5” VC

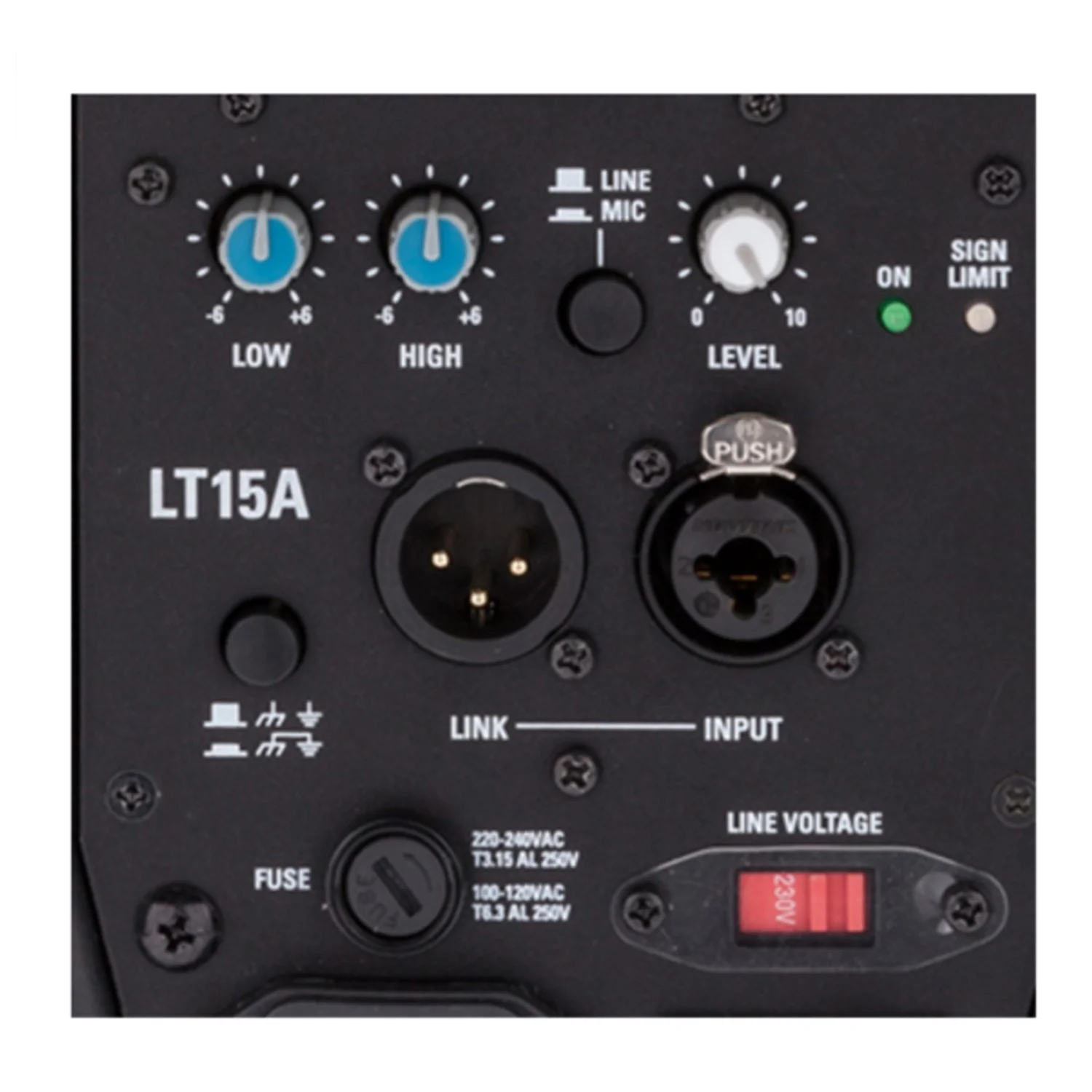

• LINE/MIC input

• Lightweight plywood cabinet

• 2 metal handles

• 4 x M10 flying points

• System type: 2-way vented enclosure

Specifications:

• Brand: Proel

• Model: LT15A

• Frequency Range: 45 Hz – 20 kHz

• High-Frequency Device: 1” compression driver with 1.35″ VC

• Low-Frequency Device: 15” woofer with 2.5″ VC

• Total Peak Power: 600 W

• HF Amplifier Continuous Power: 50 W Class AB

• LF Amplifier Continuous Power: 250 W Class D

• Maximum Peak SPL (1 W / 1 M): 126 dB

• Horizontal Coverage Angle: 90 Degree

• Vertical Coverage Angle: 60 Degree

• Woofer Size: 15 Inches

• Connector: IN: COMBO, LINK: XLR M

• Power Supply: SMPS

• Processing: Analog

• Dimensions: 448 x 670 x 410 mm

• Weight: 21 kg
