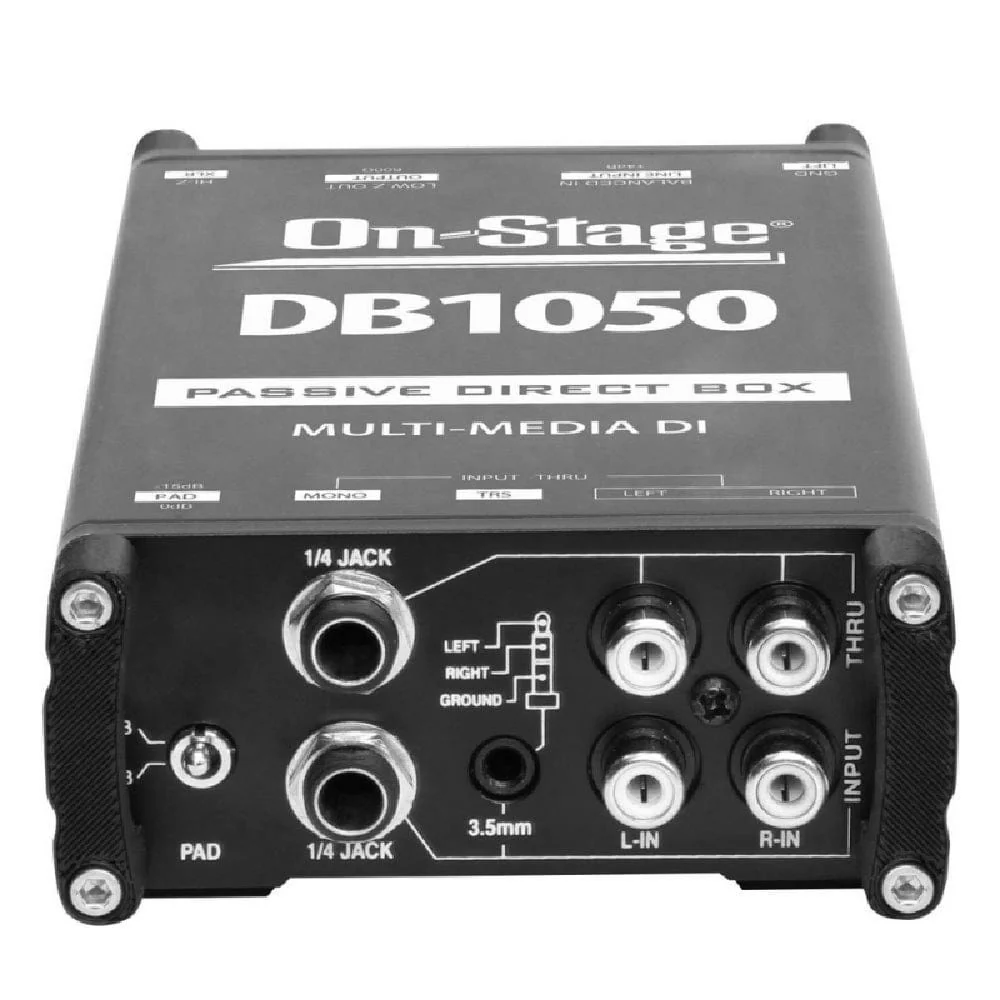

On-Stage DB1050 Passive Multimedia DI Box Overview:

DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power a -15 dB pad switch to prevent clipping a ground-lift switch to defeat ground-loop hum throughput connectors to pass unaltered signal to a stage amp a Hi-Z/XLR input selector and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Features

• Converts a line-level stereo input to a balanced low-impedance mono (XLR) output
• Output signal can be sent via a long cable to a mixer or PA system without frequency loss
• Passive circuit does not require a power supply or batteries
• High-quality transformer for low distortion and an isolated signal path

Specifications

• Application: Computers mp3 players keyboards projectors and DJ equipment

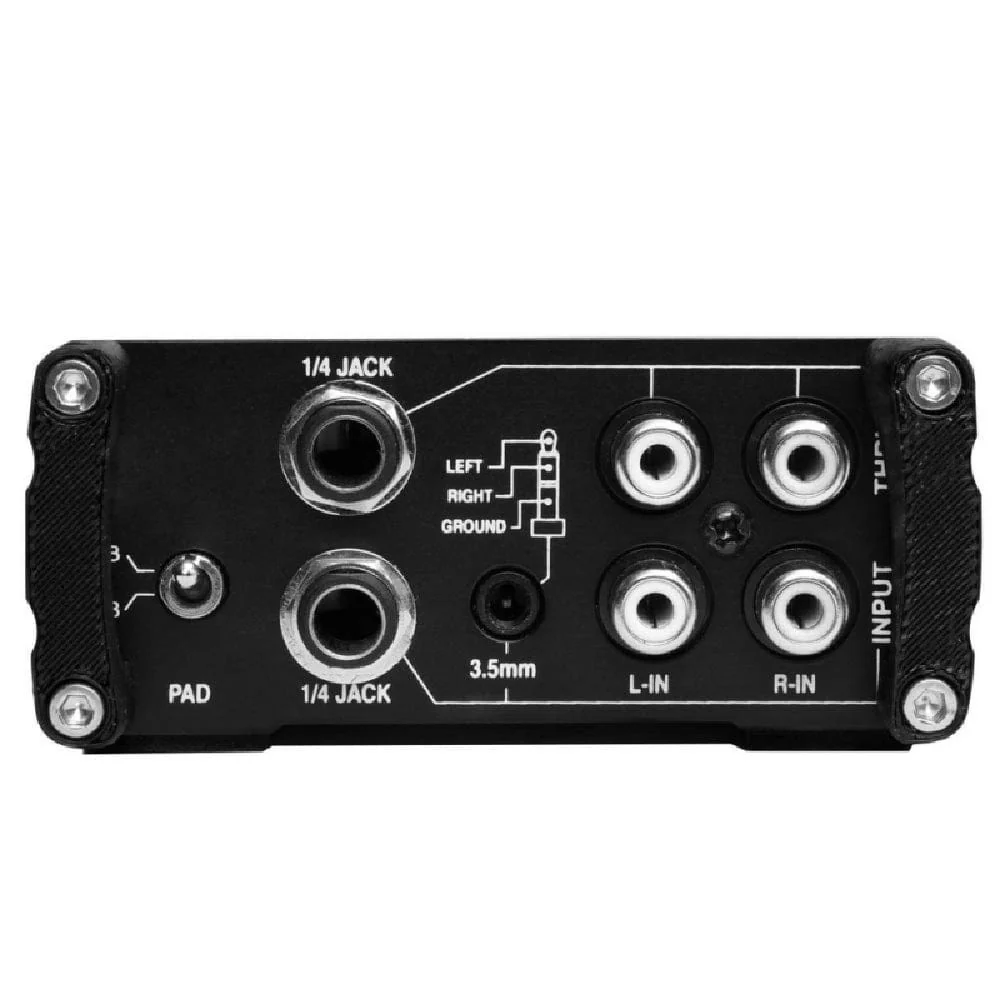

• Inputs: Stereo 1/4"\n 3.5mm\n stereo RCA\n and XLR
\n

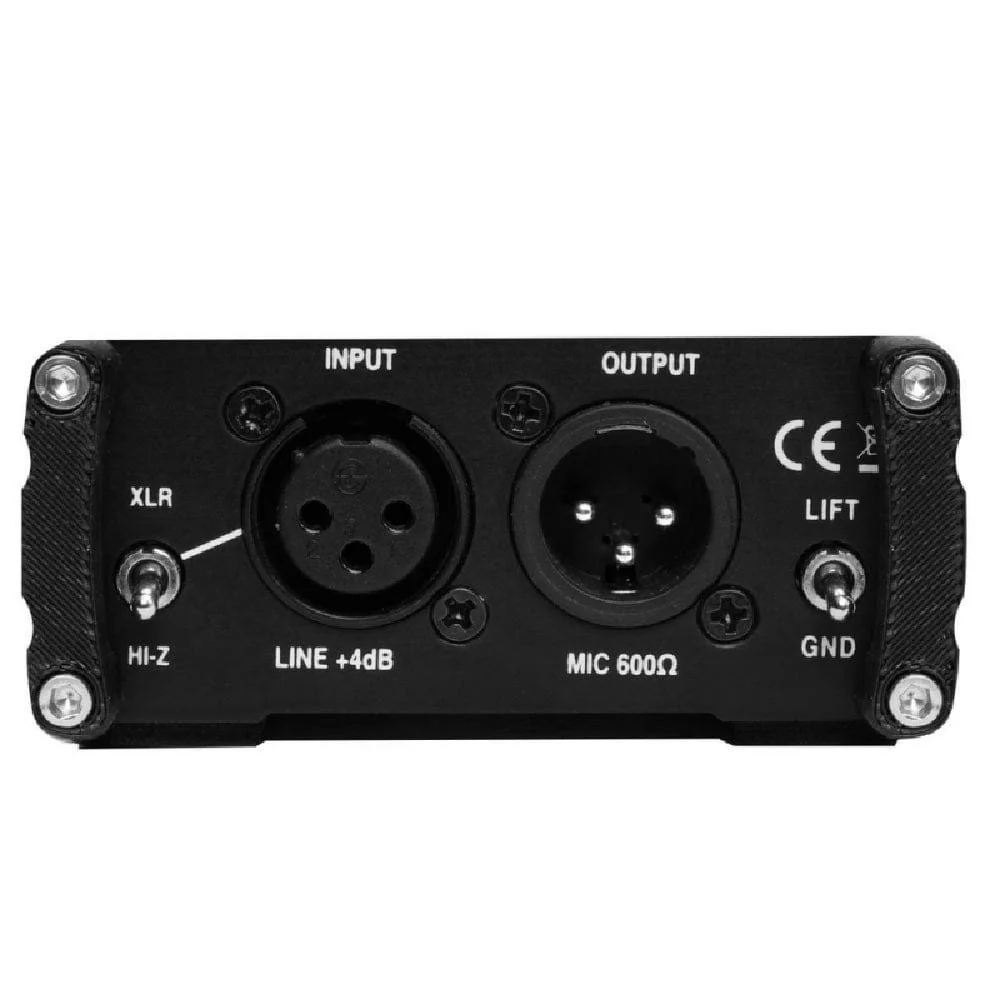

• Output: Mono XLR Low-Z out
\n
• Power: Passive/not required
\n
• Pad: 15dB
\n
• Ground lift: Yes
\n
• Input Resistance: 220K Ohms
\n
• Frequency Response: 10Hz - 40kHz
\n
• Construction: Metal w/ nylon bumpers
\n
• Dimensions: 6" x 3.5" x 1.5"
• Weight: 0.70 lbs.
