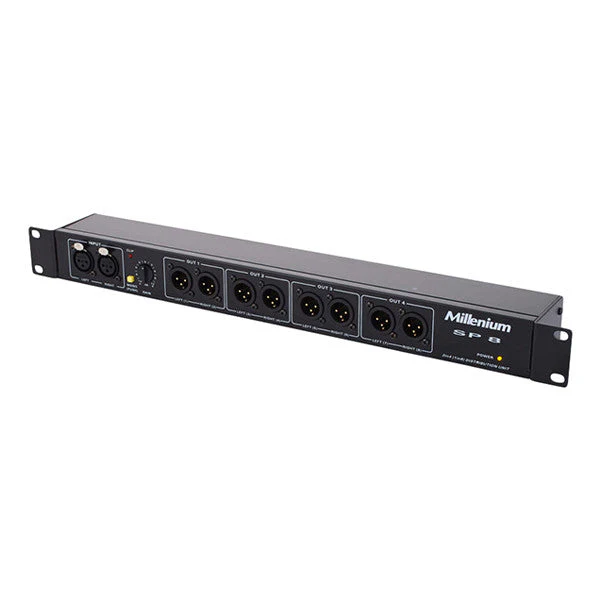

Millenium SP 8 Active splitter
The Millenium SP 8 Active Splitter allows for simple splitting of RF signals to multiple destinations. It features an XLR in-out and a built-in power supply (230V 50 Hz, 2.5VA). The total harmonic distortion is 0.05 percent. The disturbance-free voltage range is 102db. The frequency range is 20Hz to 20kHz. The dimensions of this splitter 482 x 44 x 65mm.
- XLR in-out
- Allows for 2 to 4 or 1 to 8 connections
- Built-in power supply (230V 50 Hz, 2.5VA)
- Input levels adjustable from -12db / + 12dB
- Input/Output: XLR
- Input levels adjustable: -12db / + 12dB
- Power Supply: 230V 50 Hz, 2.5VA
- Input/Output Level: +18 dBm maximum
- Input/Output Impedance: 20kOhm/200ohm
- Load Impedance: 200ohm minimum
- Frequency Range: 20Hz to 20kHz
- Total Harmonic Distortion (THD): 0.05%
- Disturbance Free Voltage Range: 102dB
- Dimensions: 482mm x 44mm x 65mm
Made in India
