Lexicon I-O 22 2x2 USB 2.0 Desktop Recording Studio Overview:

DAW Inspired.

Brilliantly designed, the I·O Desktop Recording Series is compatible with any DAW, including Pro Tools 10 through 12.

Featuring newly designed dbx® 60V high-voltage, ultra-low noise mic preamps on both channels, the I-O|22 is more than equipped to provide professional recordings that keep your music sounding its best. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range. Performance driven A/D – D/A converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

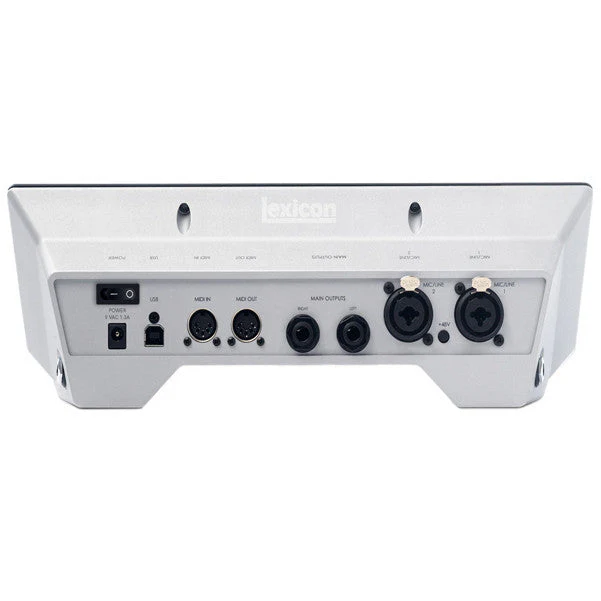

The I-O|22 can record two tracks at once and includes 2 combi-jack mic/line inputs with +48V phantom power, 2 TRS balanced line outputs, a hi-Z instrument input, a 1/4" high power headphone output, and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels and locking combi-jacks make sure that a connection is not lost in the middle of a performance.

The I-O|22 contains all the necessary tools to transform your computer into a professional 24-bit/96kHz digital recording studio.

Features:

\n
• USB 2.0 Desktop Recording Studio
\n
• 44.1kHz to 96kHz sample rates, 24-bit resolution
\n
• Pantheon II VST/AU reverb plug-in with 6 legendary Lexicon reverbs
\n
• dbx® 60V high-voltage, ultra-low noise microphone preamps
\n
• Superior sonic performance
\n
• 2 analog combi-jacks for mic/line inputs
\n
• 2 analog 1/4" TRS balanced outputs
• Zero latency monitoring
• Low latency ASIO drivers
• Streamlined monitor form factor puts all recording controls at your fingertips
• Separate level meters and gain control per channel
• 1 side panel 1/4" instrument input
\n
• 1 side panel headphone output with dedicated volume adjustment
\n
• MIDI in and out
\n

\n

Specifications:

\n

\n
• Microphone Inputs: Female XLR Pin 2 Hot
\n
• Input Impedance: 3kΩ balanced
\n
• Phantom Power: +48 Volts
\n
• Maximum gain: +58 dB
\n
• E.I.N. (at max gain): −125 dBu @ 58dB gain typical (150Ω source), −129 dBu @ 58dB gain typical A-weighted (150Ω source)
\n
• Maximum Input Level: +21 dBu at minimum gain
\n
• Frequency Response: +0/−1 dB, 20Hz - 20kHz
\n
• THD+N: <0.006%, 20Hz - 20kHz (mic input to main output) 0 dBu input level, <0.003%, 1kHz, +5 dBu input level
\n
• Line Inputs: 1/4” TRS balanced or unbalanced
\n
• Input Impedance: 20kΩ balanced, 13kΩ unbalanced
\n
• Maximum Input Level: +32 dBu
\n
• Frequency Response: +0/−1.5 dB, 20Hz - 20kHz (reference 1kHz)
\n
• THD+N: <0.004%, 20Hz - 20kHz (line input to main output) 0 dBu input level
\n
• Instrument Input: 1/4” TS unbalanced
\n
• Input Impedance: 1MΩ
\n
• Maximum Input Level: +13 dBu
\n
• Frequency Response: +0/−2 dB, 20Hz - 20kHz (instrument input to main output)
\n
• THD+N: <0.004%, 20Hz - 20kHz, 0 dBu input level
\n
• Line Outputs: 1/4” TRS balanced or unbalanced
\n
• Level: >+18 dBu maximum
\n
• Impedance: 32Ω Balanced, 16Ω Unbalanced
\n
• Headphone Output: 1/4” stereo jack 350mW per channel at 50Ω
\n
• MIDI Interface: 5 pin DIN connectors for MIDI in and MIDI out (5 volt signal)
\n
• Sample Rate: 44.1, 48, 88.2, or 96 kHz (determined by computer application)
\n
• Dynamic Range: A/D (24 Bit) 105 dB typical, A-weighted, 20Hz - 20kHz (44.1 kHz sample rate) , D/A (24 Bit) 107 dB typical, A-weighted, 20Hz - 20kHz, A/D/A (24 Bit) 102 dB typical, A-weighted, 20Hz - 20kHz
\n
• Dimensions: 12" W x 4" H x 3.75" D
• Weight: 2.35 lbs
