JZ Microphones Vintage 67 Condenser Microphone
JZ Microphones Vintage 67 Condenser Microphone Overview:
The heart of Vintage 67 microphone is Golden Drop 67 Capsule (GDC67) and equiped with innovative inner shock-mounting system and adjustable swivel mount, Vintage 67 microphone has perfect functionality and legendary U 67 feel at amazing price point and availability for a handcrafted and tested microphone.
Features:
The heart of Vintage 67 microphone is Golden Drop 67 Capsule (GDC67) and equiped with innovative inner shock-mounting system and adjustable swivel mount, Vintage 67 microphone has perfect functionality and legendary U 67 feel at amazing price point and availability for a handcrafted and tested microphone.
Features:
- Large diaphragm condenser microphone
- GDC67 capsule
- Class A discrete electronics
- Fixed cardioid polar pattern
- Contents:

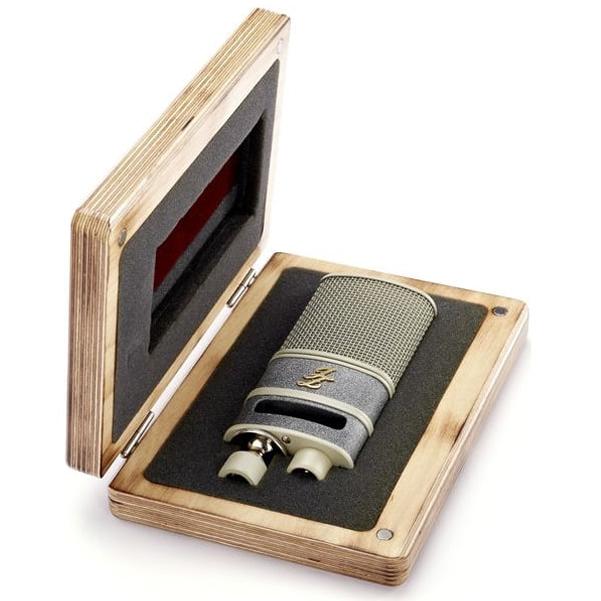

- 1 x Wooden case
- 1 x Vintage series microphone
- 1 x Owners Manual
- Transducer type: Electrostatic
- Operating principal: Pressure gradient
- Diaphragms active diameter: 25 mm
- Frequency range: 20 Hz to 20 kHz
- Polar pattern: Cardioid
- Output impedance: 50 ohms
- Rated load impedance: 1000 ohms
- Suggested load impedance: > 500 ohms
- Sensitivity at 1000 Hz into 1000 ohms load: 22 mV/Pa
- S/N Ratio CCIR 468-3 weighted: 76 dB
- S/N Ratio DIN/IEC 651 A-weighted: 87 db-A
- Equivalent noise level DIN/IEC A-weighted: 6 dB-A
- Maximum SPL for 0.5% THD at 1000 ohm load: 134 dB
- Dynamic range of the microphone preamplifier: 128 db
- Phantom powering voltage on pins 2 & 3 of XLR: +48 V (+/-4 V)
- Current consumption: < 2 mA
- Output connector: 3-pin XLR male, gold plated contacts
- Signal polarity: positive toward pressure on a diaphragm produces positive polarity voltage on XLR pin #2 relatively to pin #3
