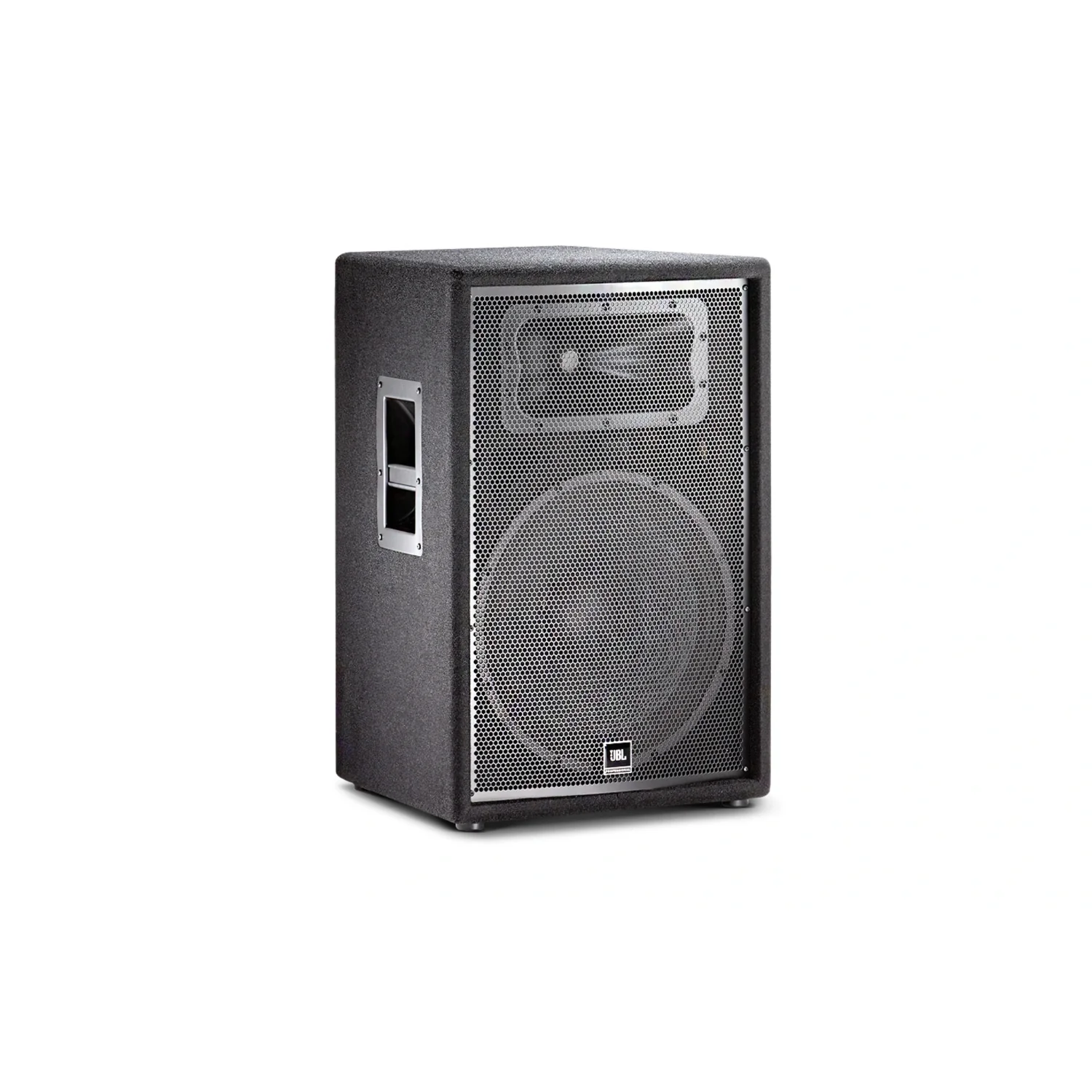

JBL JRX215 2-way Passive PA Speaker Overview:

This trapezoidal, 15" speaker system is at home in live sound, dance music and speech reinforcement. The JRX200 series delivers the performance and prestige JBL is known for at an affordable price point.

Features:
Greater efficiency and power handling
JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver
Improves high frequency performance as well as system reliability

Advanced network topology crossover design
Shapes frequency response and delivers "coherent summation" in the crossover region

High-voltage capacitors and inductors
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.

Progressive Transition high frequency waveguide
Provides superior coverage control, reduced distortion, and smoother frequency response

Rugged, acoustically superior enclosure
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

SonicGuard protection
SonicGuard protects the high frequency driver from excess power without interrupting the performance.

Durable design
Non-resonant, all-steel handles are used along with an attractive 18-gauge hexagon perforated steel grille to protect components from damage.

Dual-angle pole-mount socket
Allows the speaker to tilt 10° for more uniform audience coverage.

Specifications:
\n

• \n
• General Specifications:
• \n
• \n
• Power Rating: 250 W / 1000W
• \n
• Frequency Range (-10 dB): 41 Hz - 18 kHz
• \n
• Frequency Response (±3 dB): 59 Hz - 13 kHz
• \n
• Sensitivity (@1m): 99 dB SPL (1w/1m)
• \n
• Nominal Impedance: 8 ohms
• \n
• Recommended Amplifier Power: 250 W to 500 W into 8 ohms
• \n
• Maximum SPL: 129 dB
• \n
• Nominal Dispersion: 90º x 50º
• \n
• Crossover Frequency: 2.2 kHz
• \n
• High Frequency DriverJ: BL 2414H-C , 1" exit compression driver mounted on Progressive Transition Waveguide
• Low Frequency Driver: JBL M115-8A
• Input Connectors: Neutrik Speakon NL-4 (x1); .25in TS phone jack (x1); parallel
• Dimensions:
• Height: 27.5 in (699 mm)
• Width: 18.1 in (460 mm)
• Depth: 17 in (432 mm)
• Weight: 60.5 lbs (27.4 kg)
