JBL 24-Channel Monitor Management Tuning System
JBL 24-Channel Monitor Management Tuning System Overview:

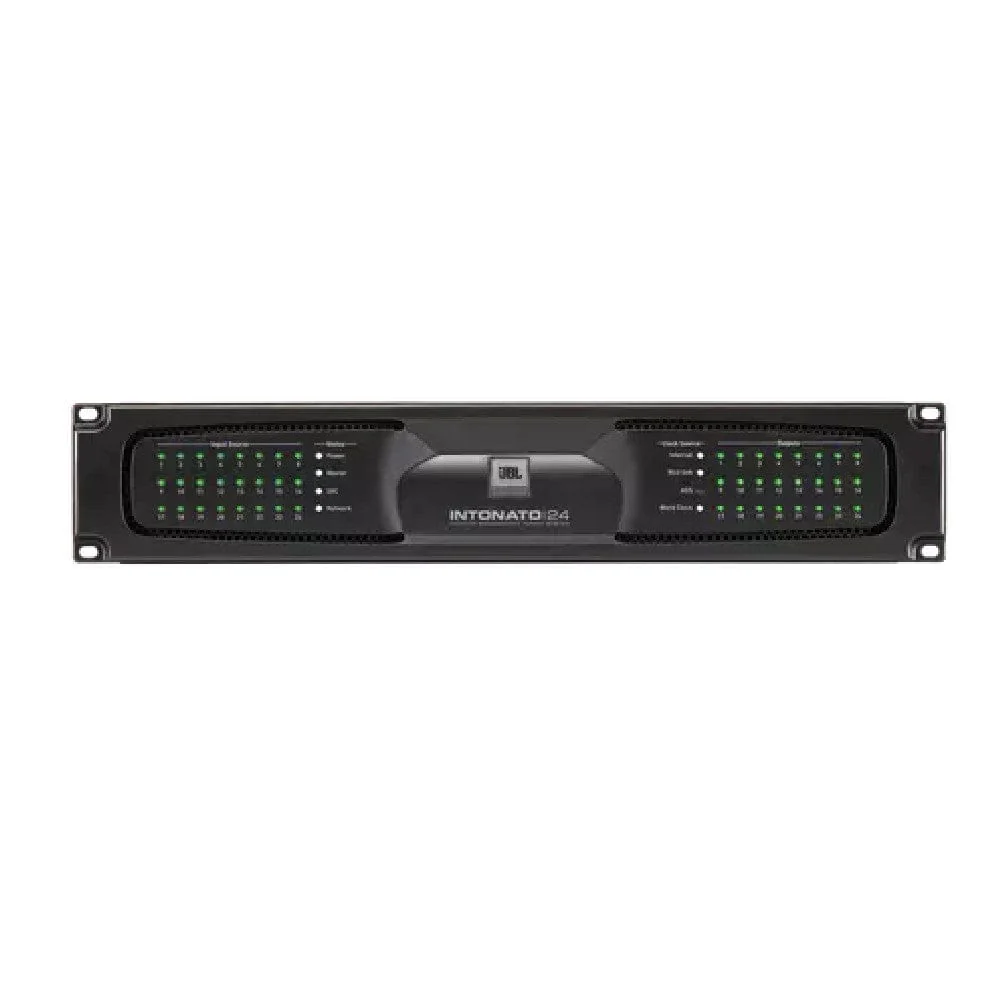

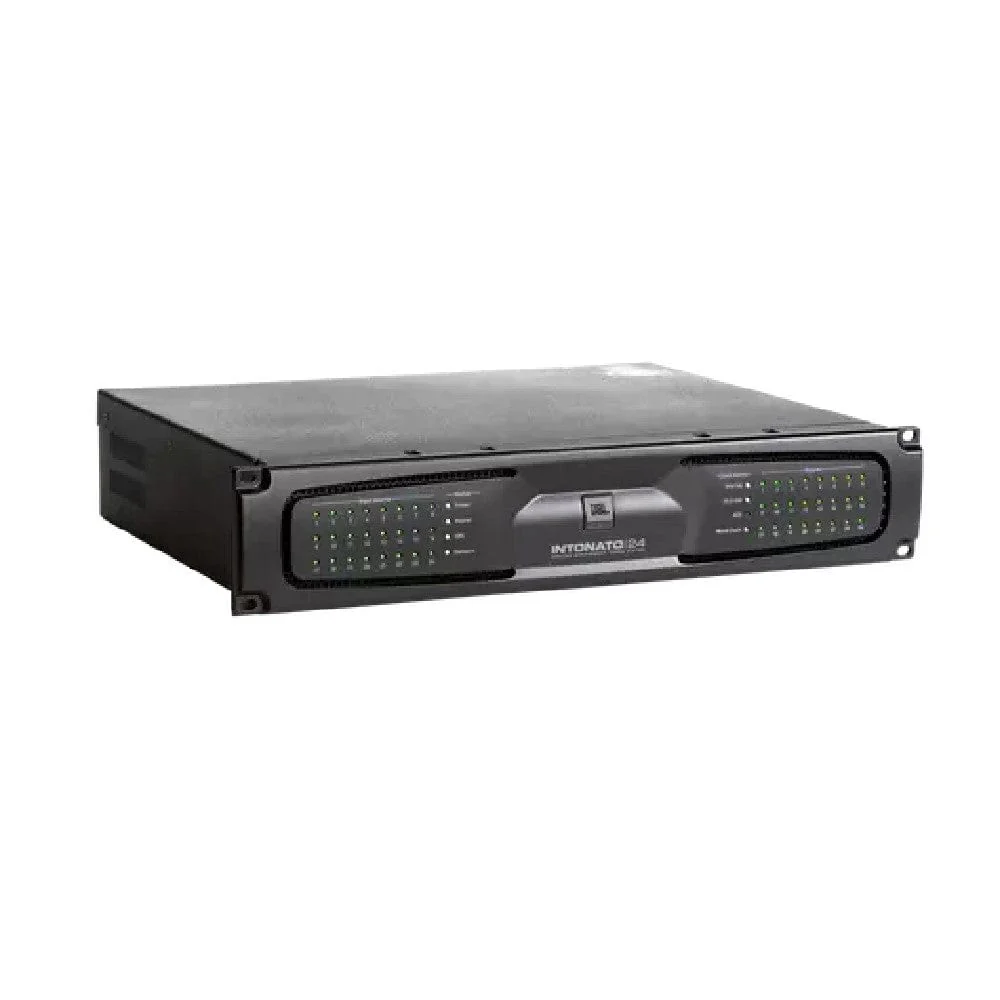

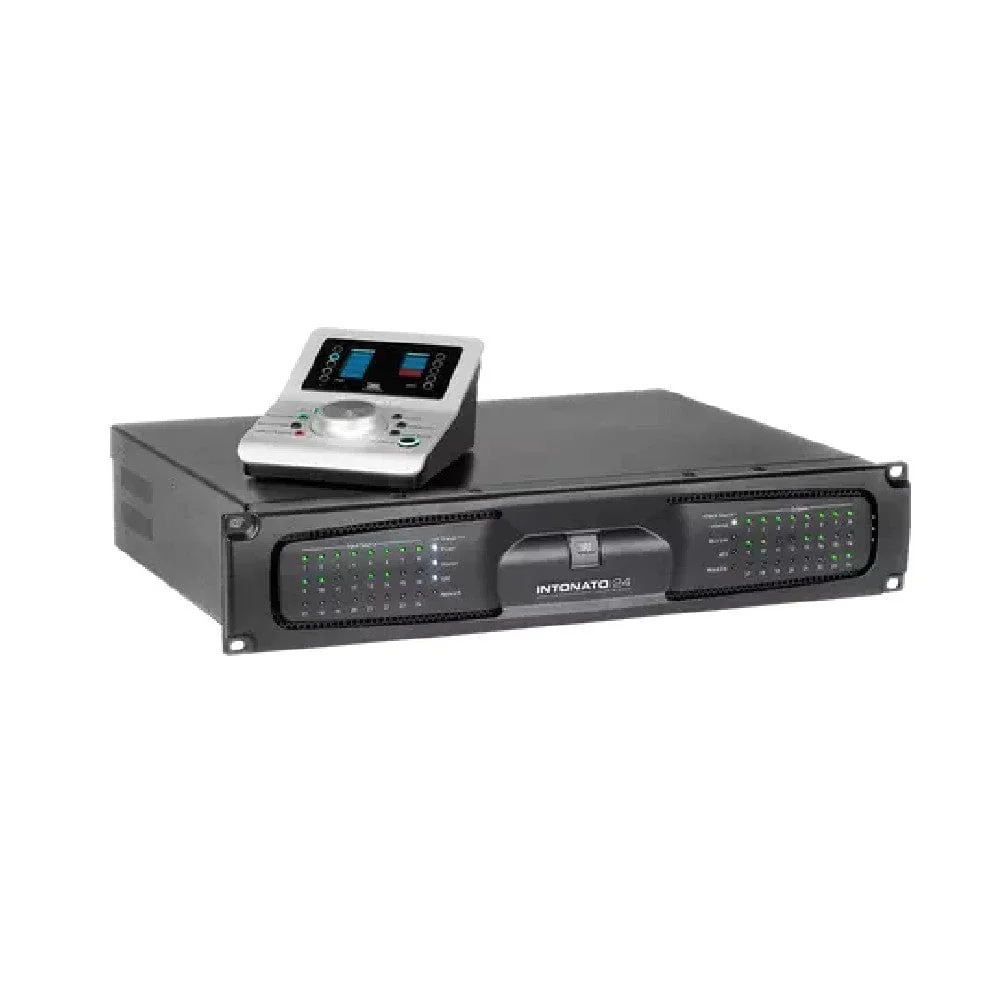

The JBL Intonato 24 Monitor Management Tuning System provides easy setup, automated calibration and comprehensive control of professional monitoring systems. Housed in a 2U rack-mount enclosure, Intonato 24 precisely calibrates and controls up to 24 speakers configured as stereo, surround or immersive audio systems. You can create and instantly recall customized routing of up to 24 analog, digital and networked audio sources. Included software and an optional Desktop Controller put the system’s powerful monitoring features at your fingertips. Intonato 24 delivers the benefits of a precisely calibrated system, and takes control room monitoring to the next level. Intonato, from the Latin verb Intonare meaning “tuned,” “matched,” “in tune,” describes a primary attribute of all speakers in the ideal control room monitoring environment. Compatible with all professional studio monitors.
Specifications:
- BLU LINK AUDIO Connectors: 2 x RJ45 connectors
- Maximum Cable Length: 100m/328ft on Category 5e or higher cable between devices
- Latency: 11/Fs [0.23ms@48k, 0.11ms@96k]
- Pass Through Latency: 4/Fs [0.08ms@48k, 0.04ms@96k]
- WORD CLOCK INPUT Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz Tolerance
- A/D Converter: 24-bit
- A/D Dynamic Range: 114 dB A-weighted
- D/A Converter: 24-bit
- D/A Dynamic Range: 115 dB A-weighted
- Internal Processing Word Length: 32-bit floating point
- Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz; 32-192 kHz, sample-rate convertors enabled.
- Dynamic Range: 114 dB A-weighted; 112 dB unweighted
- THD+Noise: 0.007% typical at +4 dBu, 1 kHz, 0 dB input gain
- Frequency Response: 20 Hz – 20 kHz, +0 /- 0.5 dB
- Latency: Analog IN to analog OUT (96 kHz)
- AES IN to analog OUT (96 kHz): 2.15 ms
- BLU link input to BLU link output (96 kHz): 0.04ms
- Included Speaker Tuning Presets: JBL 705i, 708i, M2
- User EQ: 8-band fully parametric EQ w/ selectable filter type
- Room EQ: 12-band fully parametric EQ
- Bass Management Crossover: Variable
- Speaker Output Delay: Up to 18 ms per output channel for speaker time-of-arrival offset)
- A/V Synchronization Delay: Up to 150 ms (globally applied to all output channels except aux outputs)
- Aux Out Delay: Up to 150 ms
- Master Volume Control: -120 dB to 0 dB
- Dim Control: User-adjustable, -120 dB to 0 dB
Dimensions:
- Height: 88.9 mm
- Depth: 349.25 mm
- Width: 482.6 mm
Powering Input
- Type: Universal switch-mode
- Operating Voltage: 100-240 VAC, 50/60 Hz
- Power Consumption: 85 Watts
Audio Output

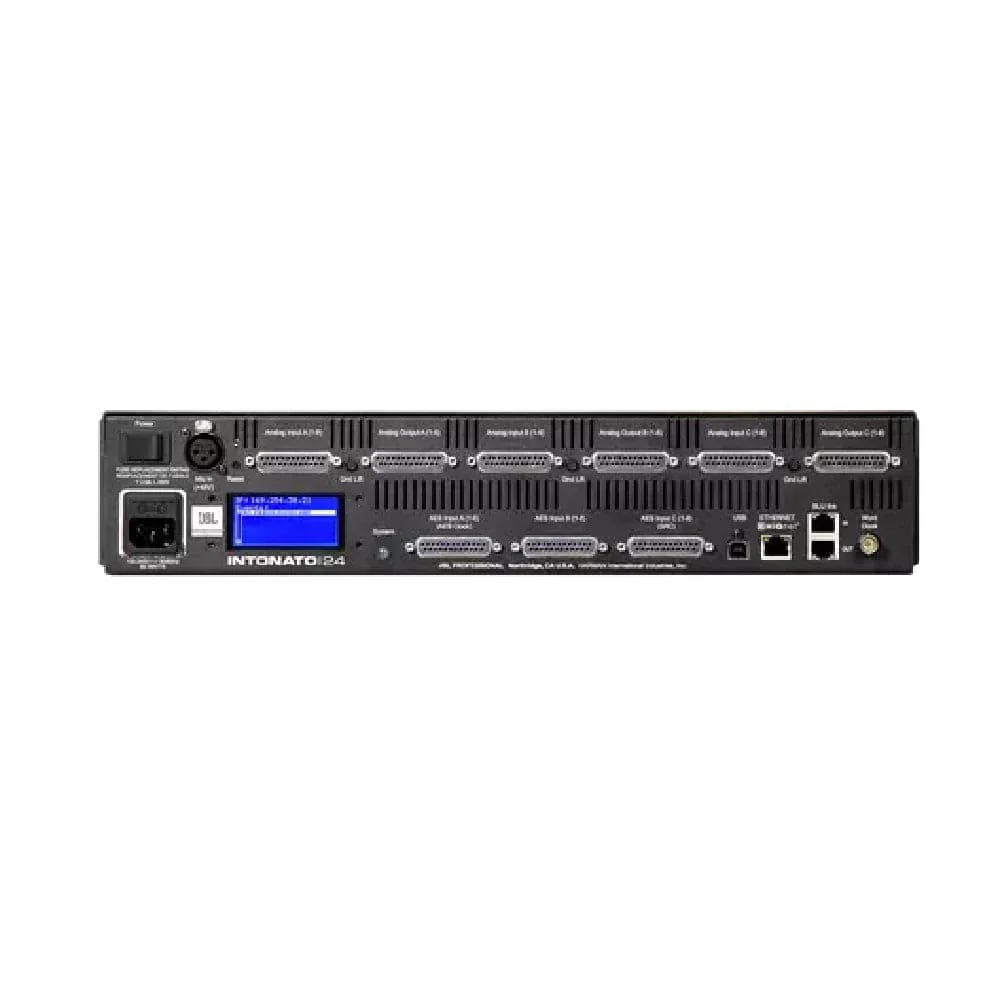

- Total Simultaneous Outputs: 24 analog outputs and 24 simultaneous BLU link outputs
- Connectors: 3 female 25- pin D-Sub connectors
- 24 Balanced ANALOG OUTPUTS: Female XLR
- Max Output Level: +24 dBu, balanced, ≤ .006% THD
Audio Input
- Total Simultaneous Inputs: 24 (selectable among the available 24 analog, 24 AES3, and 24 BLU link input channels)
- ANALOG INPUTS Connectors: 3 female 25- pin D-Sub connectors
- TypeE: lectronically balanced, RF filtered
- Impedance: > 48 kΩ balanced, > 24 kΩ unbalanced
- Input Sensitivity: Selectable in software per D-Sub connector
- Max Input Level: +28 dBu, ≤0.008% THD CMRR
- 24 AES3 DIGITAL INPUTS 8 Sample Rate Conversion: selectable in software 1 Calibration MIC / Talk back Mic INPUT
- With Phantom Power: +48 VDC
Made in China
