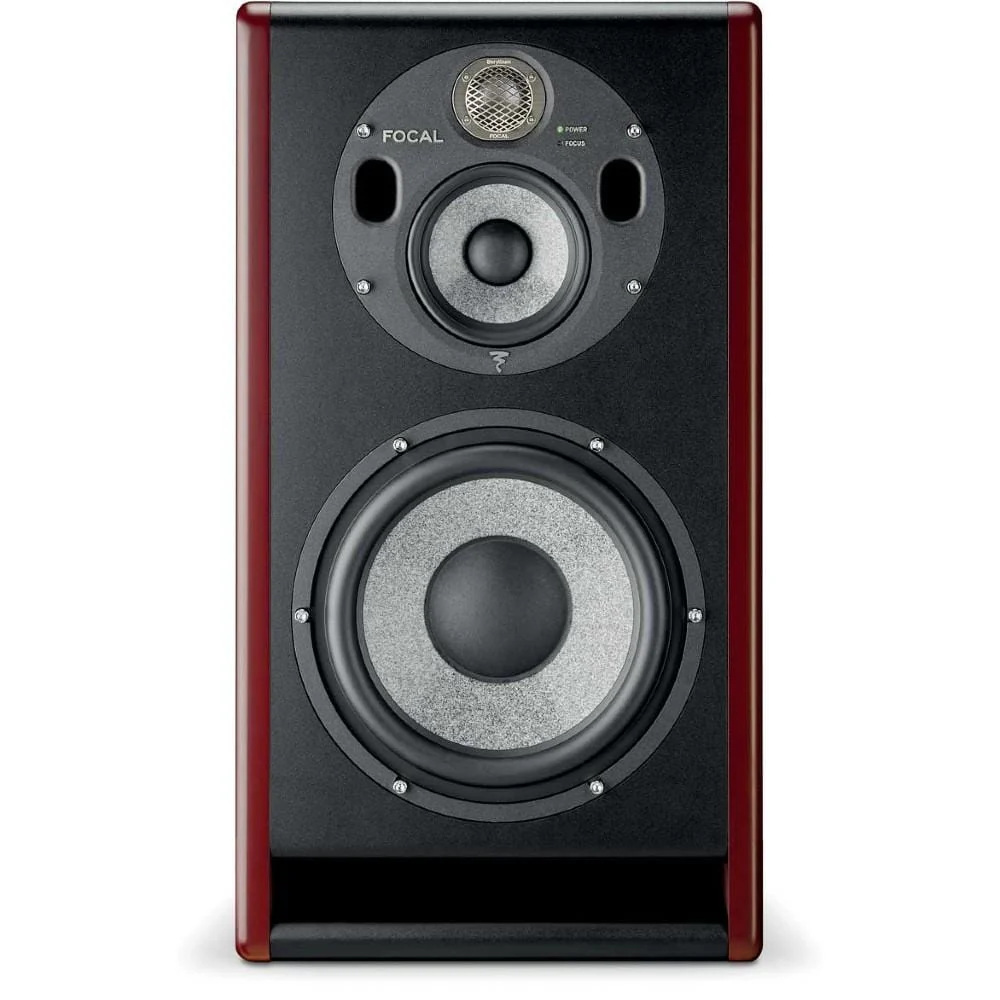

Focal Trio 11 Be Highly Versatile Monitors Speaker Overview:

THE LOUDSPEAKER DEDICATED TO NEARFIELD AND MIDFIELD

As well as new speaker drivers (a 5” midrange and a 10” subwoofer) with high efficiency and power handling, the Trio11 Be monitor enjoys all of Focal's very latest technologies when it comes to acoustics and electronics: TMD and NIC technologies; optimised vents that promote dynamic control and perfect bass definition; high excursion, enabling even more linearity of the subwoofer... 

Thanks to its class G amplification, Trio11 Be delivers a high SPL (118dB at 1m) and offers a great versatility of use and installation configurations in nearfield AND midfield applications. A key asset, always coming along with an extremely precise sound reproduction and stereo image.

With an extended bandwidth (30 Hz-40 kHz), this loudspeaker is also composed of a 3-way monitor and a 2-way monitor, just like Trio6 Be, which lets you check the mix transfer sound quality thanks to FOCUS mode.

Features:

• Remote FOCUS switchover (3-way monitor or 2-way monitor) via control pedal (not included) : control the transfer quality of mixes on compact systems quickly and simply
• Pure Beryllium inverted dome tweeter: very low directivity, linearity, dynamics
• ‘W’ composite sandwich cone on woofer and subwoofer: neutral sound, no distortion
• Rotating mid-treble plate: can be positioned horizontally or vertically
• Bass, mid-bass and treble settings on rear panel: optimum acoustical integration
• High SPL (118 dB @ 393/8'' - 1m)
• Optimised decoupling of the midrange speaker driver thanks to silent blocks
• Ultra-low distortion and noise

Specifications:

• Frequency response:
• 3-way mode 30Hz - 40kHz (+/- 3dB)
• 2-way mode (Focus) 90Hz - 20kHz (+/- 3dB)
• Maximum SPL:
• 3-way mode 118dB (peak @ 1m)
• 2-way mode (Focus) 105dB (peak @ 1m)
• Electronics
• Inputs
• Type/Impedance: Electronically balanced / 10KOhms
• Connectors: XLR
• Sensitivity: Adaptable, +4 dBu or -10 dBv
• Bass: 300W, class G
• Midrange: 150W, class G
• Treble: 100W, class AB
• Power supply
• Local supply: 230V (1.6A T fuse) - 115V (3.5A T fuse)
• Wiring: Connection Detachable IEC inlet power cord
• Indicators and controls

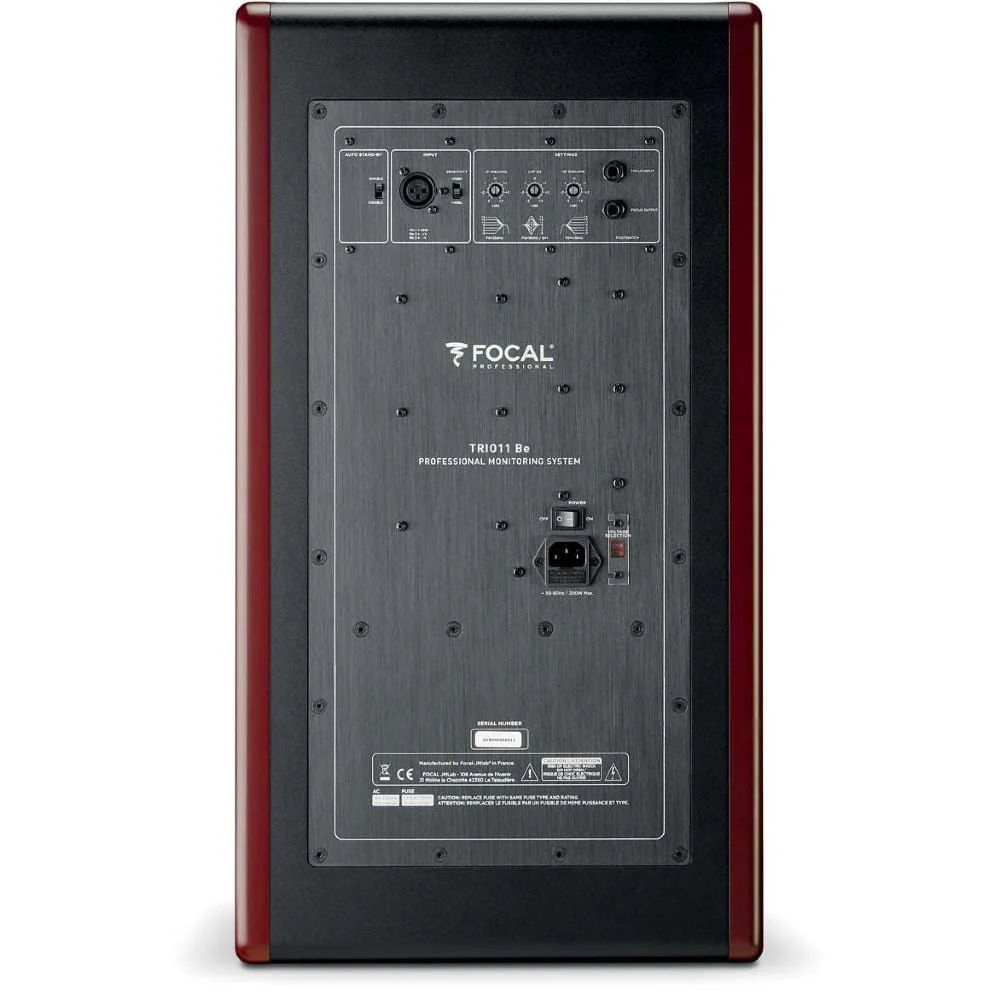

• Rear panel:
• Input sensitivity selector (+4dBu/-10dBV)
• Low frequency shelving (+/- 3dB from 35 to 250Hz)
• High frequency shelving (+/- 3dB from 4.5 to 40kHz)
• Low-mid EQ frequencies (+/- 3dB to 160Hz, Q factor = 1)
• FOCUS input / FOCUS output
• Auto standby: Auto standby switch on the back of the loudspeaker: enable / disable switch
• LED: Focus power on, clipping and default LED on front panel
• Transducers
• Subwoofer:
• 10W96701D
• Focal 913/16" (25cm) speaker driver with ‘W’ composite sandwich cone
• Medium:
• 5W04701
• Focal 51/8" (13cm) speaker driver with ‘W’ composite sandwich cone
• Tweeter:
• TB872
• Focal 1" pure Beryllium inverted dome tweeter
• Cabinet
• Construction: 13/16 and 13/16" (21mm and 30mm) panels with internal braces
• • Finish: Natural veneering side panels Dark red burr ash, black body
• • Dimensions with four rubber feet (HxDxW): 25" x 139/16" x 173/4" (635 x 345 x 450mm)
• Weight: 82.2lbs (37.3kg)
