Fender Squier Affinity Telecaster Thinline 6 String Electric Guitar Overview:

A superb gateway into the time-honored Fender family, the Squier Affinity Series Telecaster Thinline delivers legendary design and quintessential tone for today’s aspiring guitar hero. This Tele features several player-friendly refinements such as a thin and lightweight chambered body, a slim and comfortable “C”-shaped neck profile, a string-through-body bridge for optimal body resonance and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with dual Squier single-coil Tele pickups with 3-way switching for genre-defying sonic variety, this model is ready to accompany any player at any stage.

Features

• Thin and lightweight chambered body

• String-through-body bridge

• Slim and comfortable “C”-shaped neck profile

• Two Squier single-coil pickups

• Sealed die-cast tuning machines with split shafts

Highlights

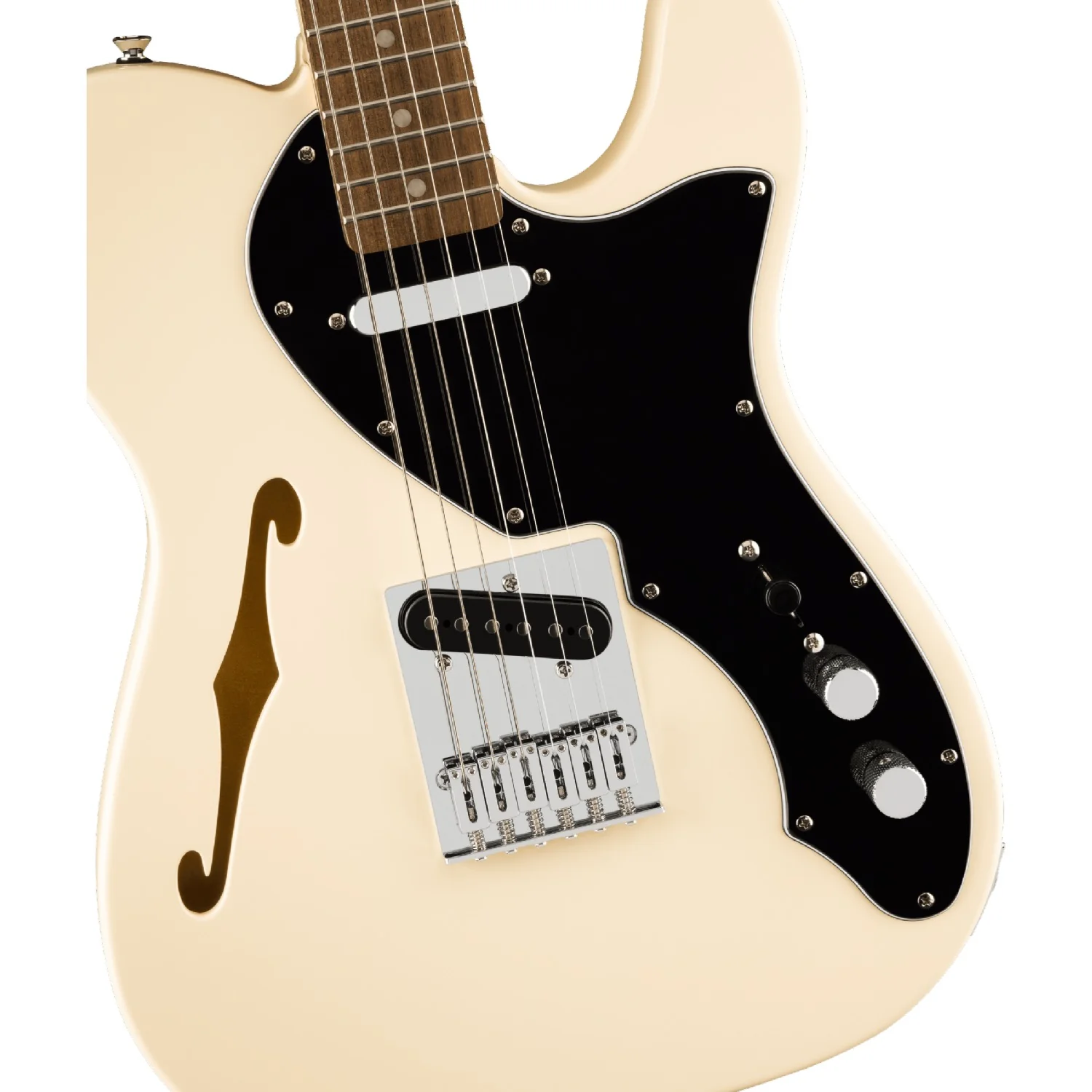

STRING-THROUGH-BODY TELECASTER BRIDGE
A string-through-body bridge improves resonance through the body and increases string tension for a rock-solid feel.







SQUIER SINGLE-COIL TELECASTER PICKUPS
Voiced in-house at Fender, these Squier single-coil pickups produce crisp, articulate tone for a wide variety of styles.

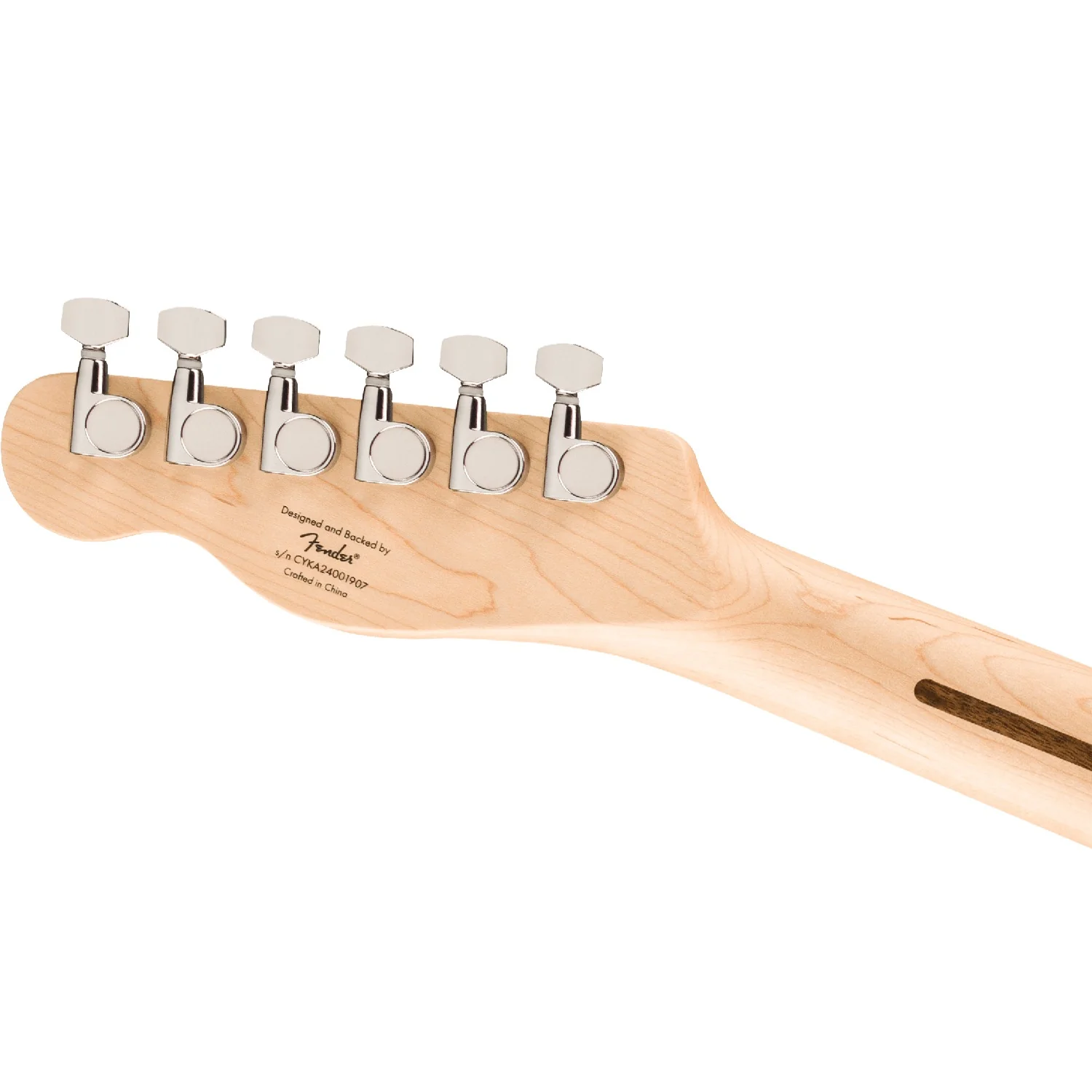

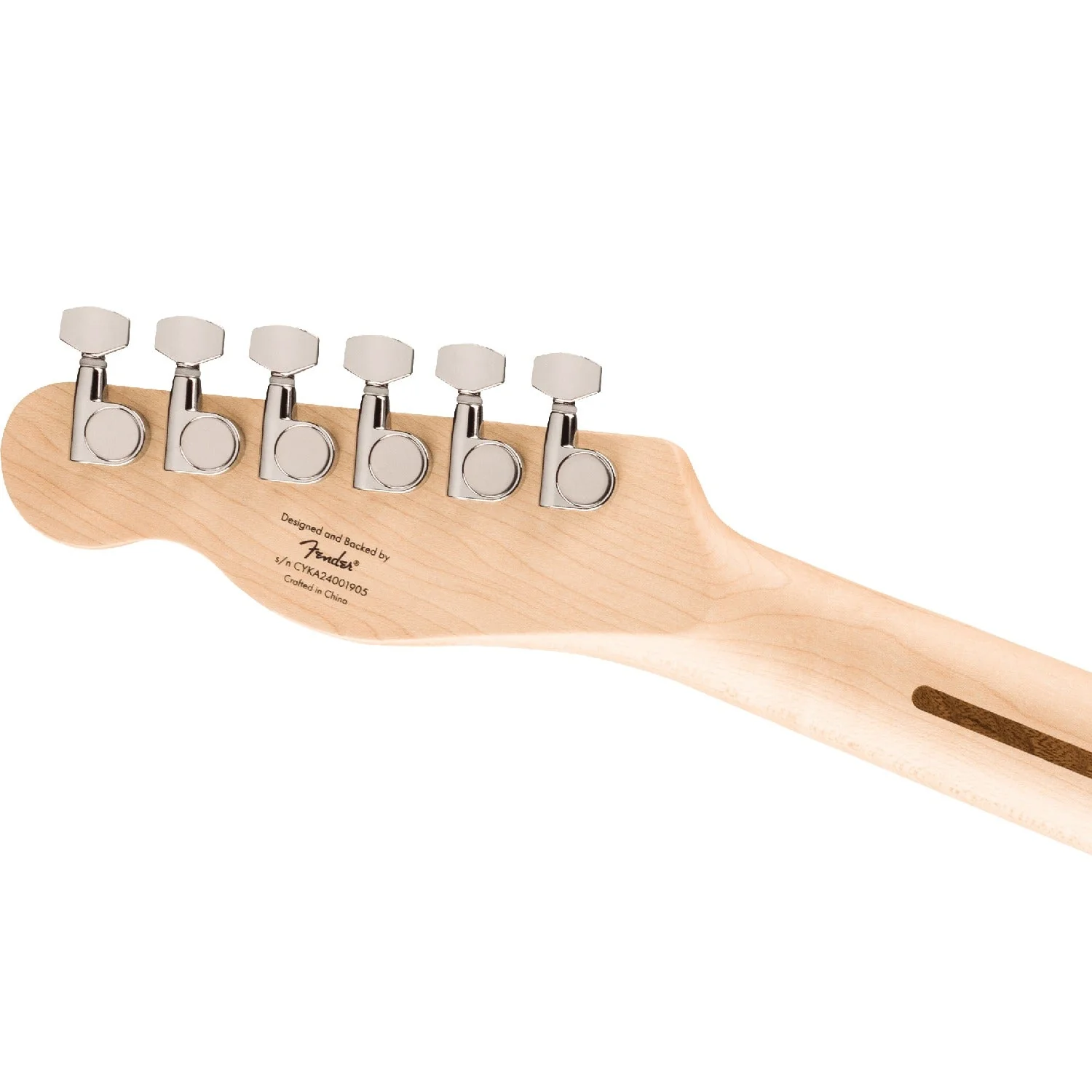

SEALED DIE-CAST TUNING MACHINES WITH SPLIT SHAFTS
Sealed die-cast tuning machines have a smooth action for accurate tuning, and the split shafts make changing strings a breeze.





Specifications:

Body

• Body: Poplar

• Body Finish: Gloss Polyurethane

• Body Shape: Telecaster

• Body Material: Poplar

Neck

• Neck Material: Maple

• Neck Finish: Satin Urethane with Gloss Urethane Headstock Face

• Neck Shape: "C" Shape

• Neck Construction: Bolt-On

• Fingerboard Radius: 9.5" (241 mm)

• Fingerboard Material: Maple

• Position Inlays: Black Dot

• Side Dots: Black

• Number of Frets: 21

• Truss Rod: Head Adjust

• String Nut: Synthetic Bone

• Nut Width: 1.65" (41.91mm)

• Nut Material: Synthetic Bone

Hardware

• Bridge: 6-Saddle String-Through-Body Tele® with Block Steel Saddles

• Pickguard: 3-Ply White

• Pickup Covers: Neck: Chrome; Bridge: Black

• Control Knobs: Knurled Flat-Top

• Switch Tip: Black

• Hardware Finish: Chrome

• Tuning Machines: Sealed Die-Cast with Split Shafts

• String Trees: Dual-Wing

• Strings: Nickel Plated Steel (.009-.042 Gauges)

• Neck Plate: 4-Bolt Squier

• Strap Buttons: Standard

Electronics

• Bridge Pickup: Ceramic Single-Coil

• Neck Pickup: Ceramic Single-Coil

• Pickup Configuration: SS

• Controls: Master Volume, Master Tone

• Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• Dimensions: 3.90x15.20x44.20 IN

• Shipping Weight: 10.80 LB

• Fret Size: Medium Jumbo

• Scale Length: 25.5” (648 mm)

• Shipping Length: 44.20 IN

• Shipping Height: 3.90 IN

• Shipping Width: 15.20 IN
