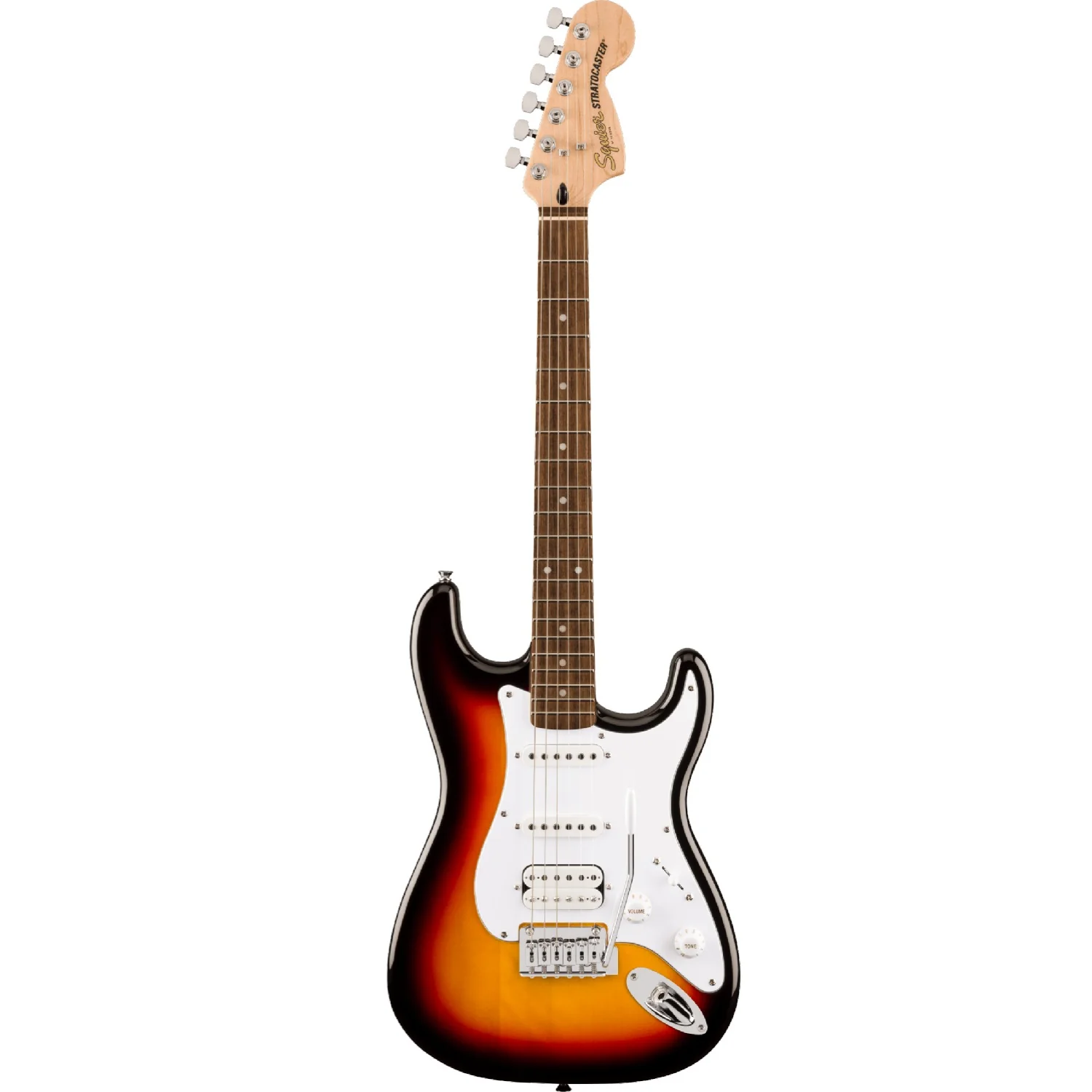

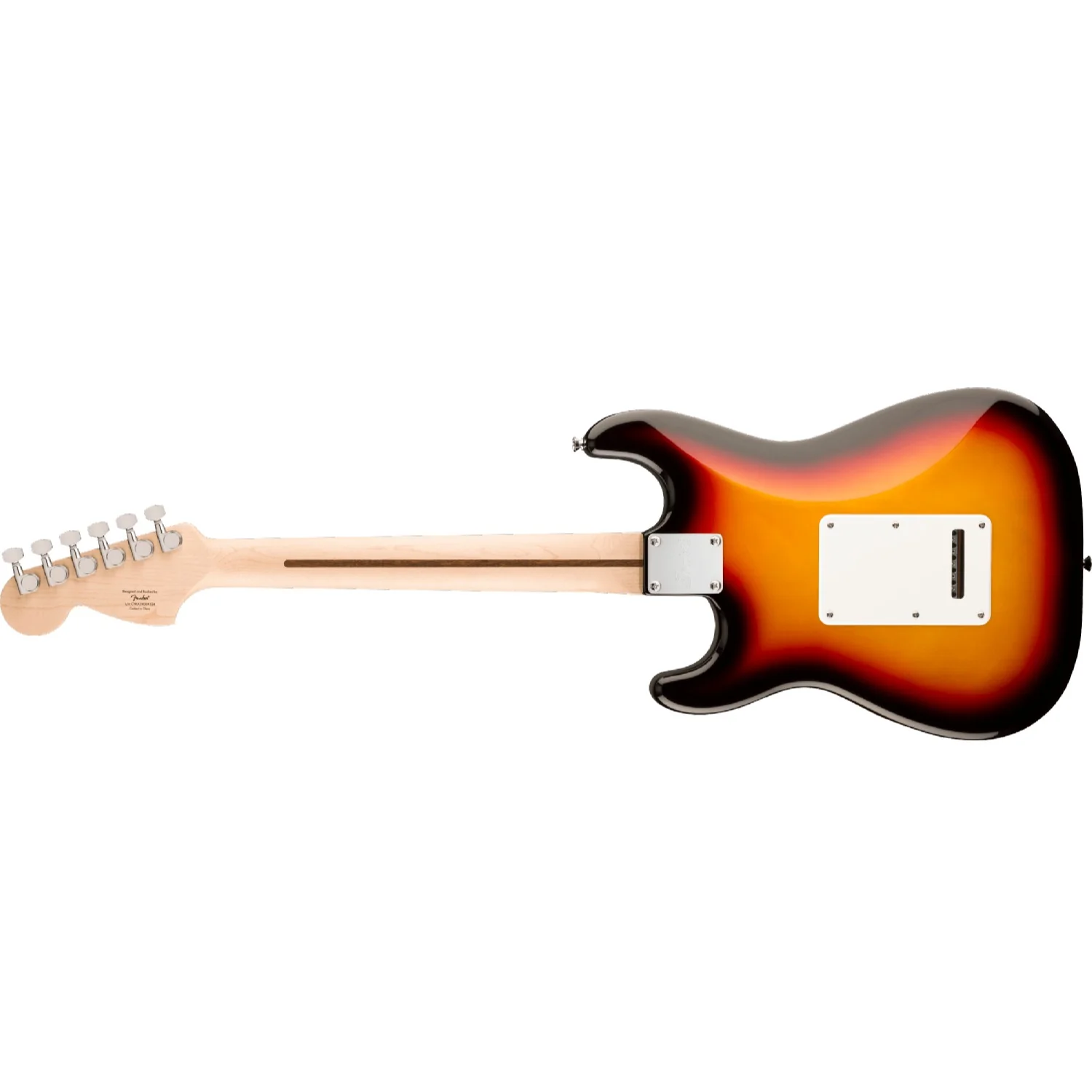

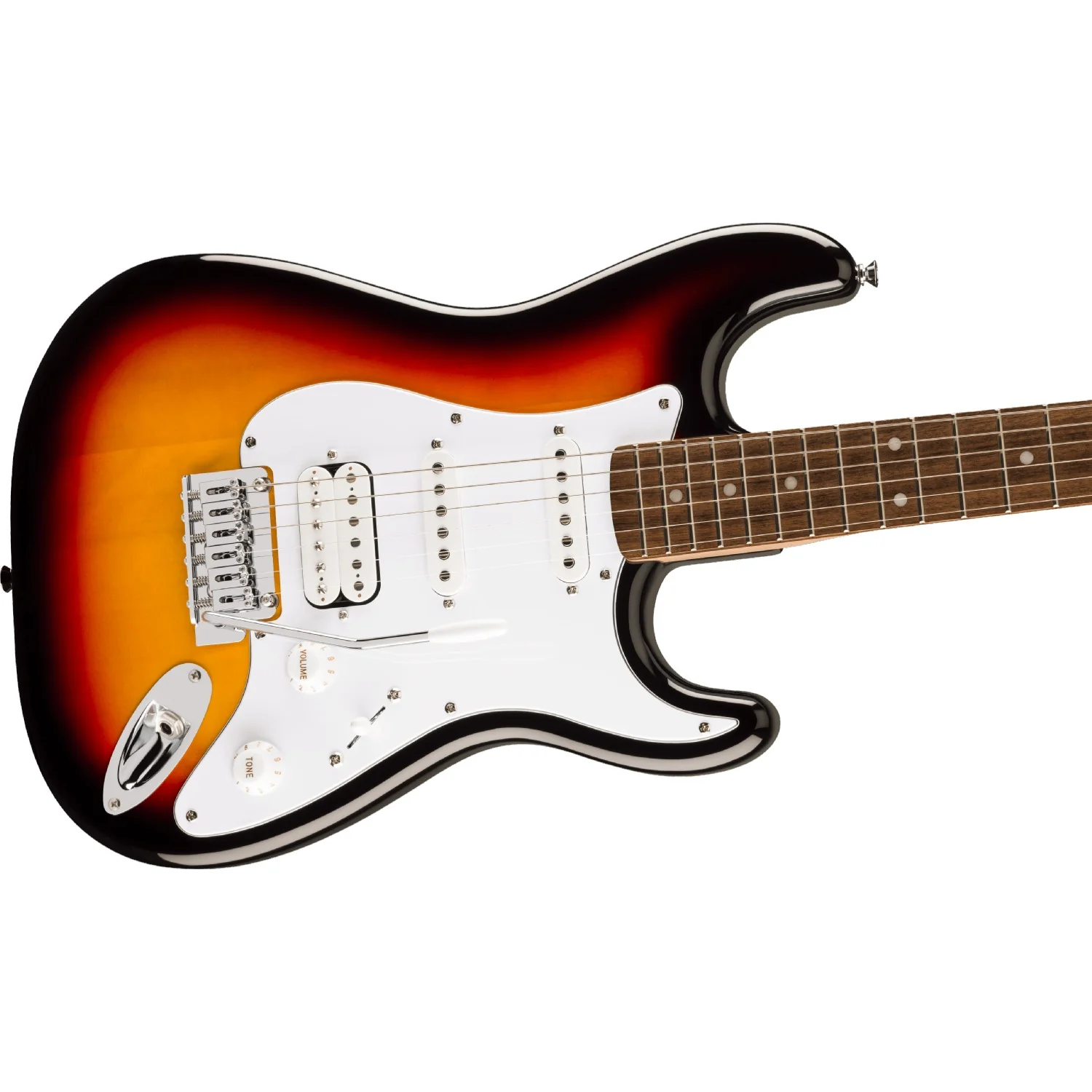

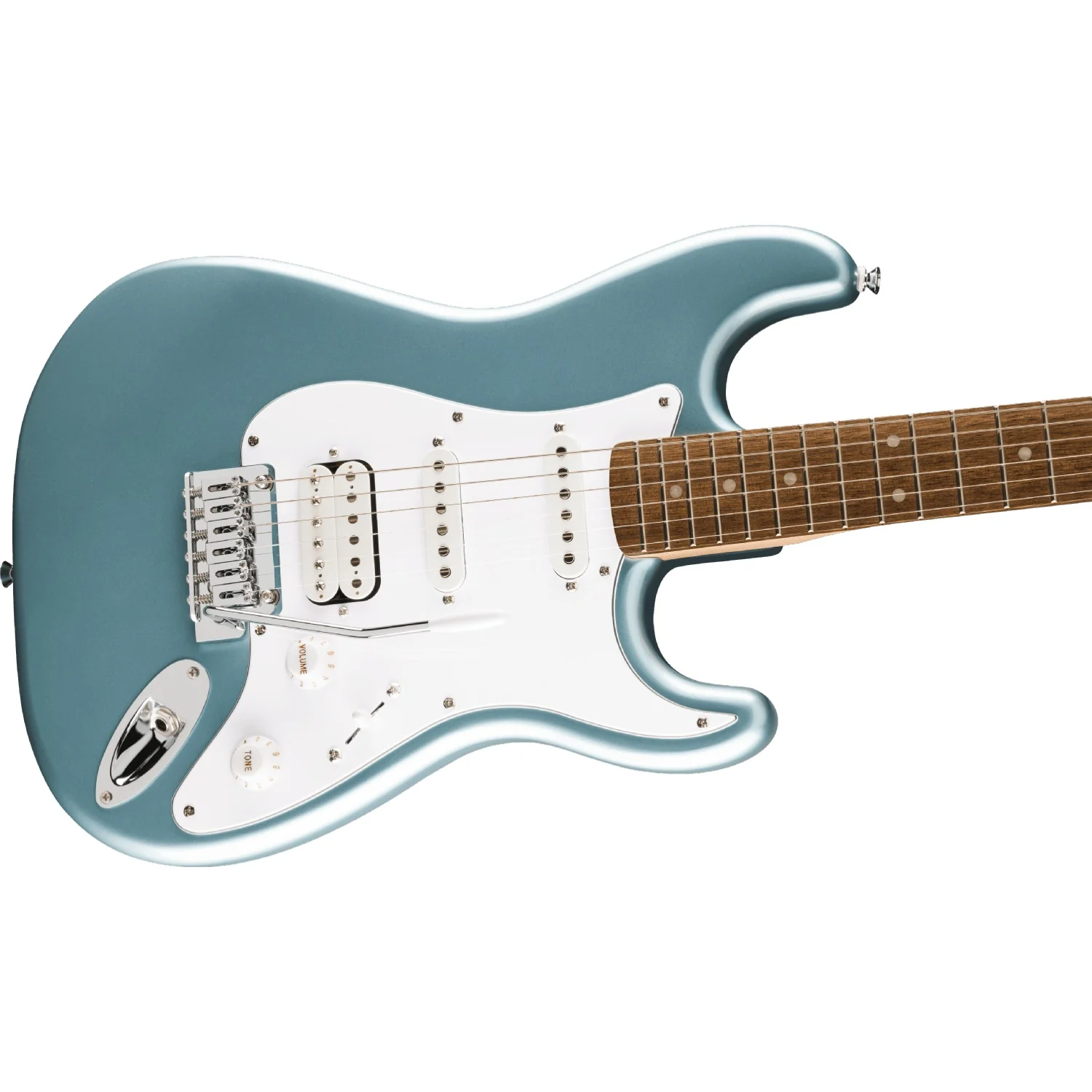

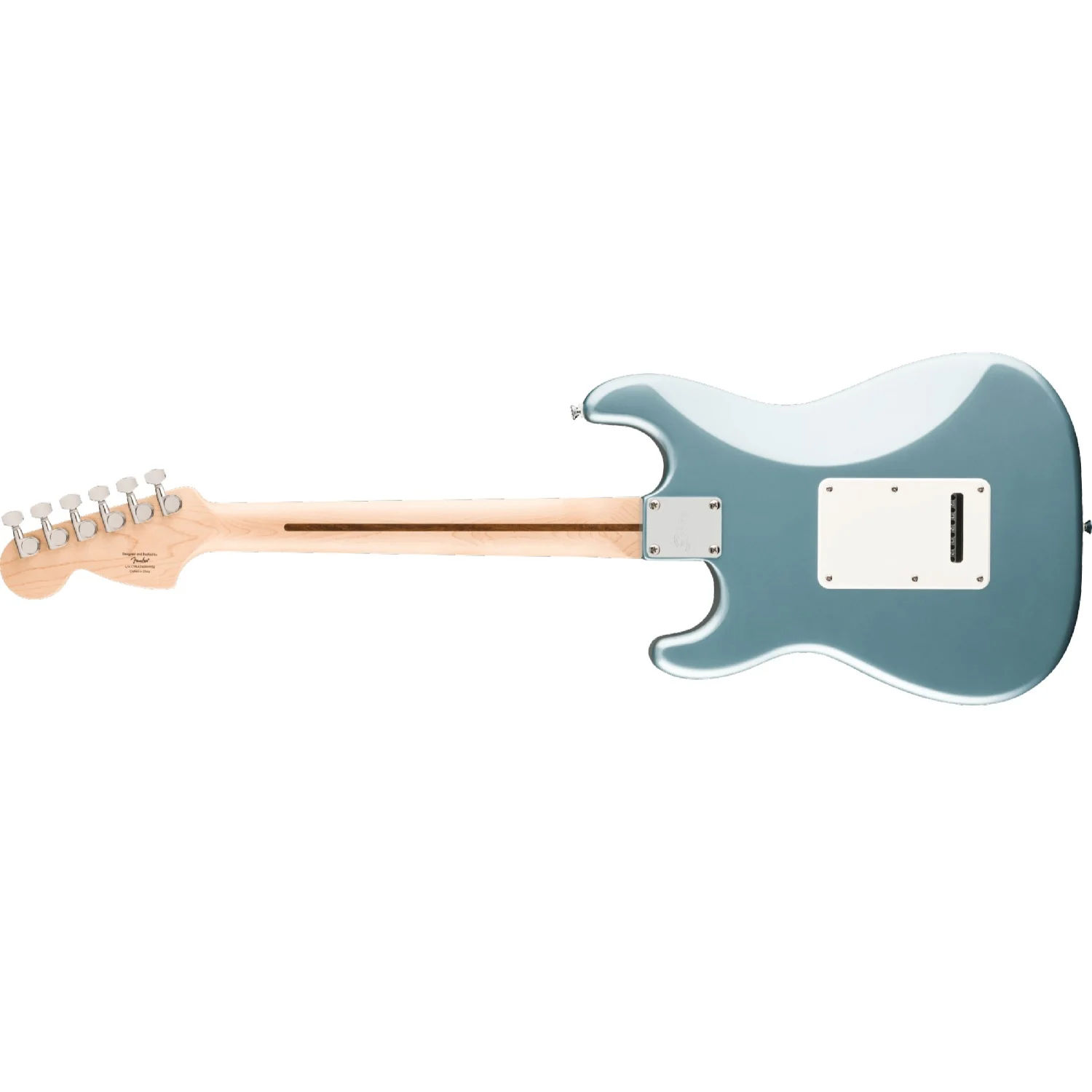

Fender Squier Affinity Junior Stratocaster 6 String Electric Guitar Overview:

A superb gateway into the time-honored Fender family, the Squier Affinity Series Stratocaster Junior HSS delivers legendary design and quintessential tone for today’s aspiring guitar hero. This reduced-size Strat features several player-friendly refinements such as a scaled-down lightweight body, a slim and comfortable “C”-shaped neck with a short 24“ scale length, a 2-point tremolo bridge for superior tremolo action and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with a Squier humbucking bridge pickup and single-coil neck and middle pickups for genre-defying sonic variety, this model is ready to accompany any player at any stage.

Features

• Reduced-size body and short 24“ scale length

• HSS pickup configuration

• 2-point tremolo bridge

• Slim and comfortable “C”-shaped neck profile

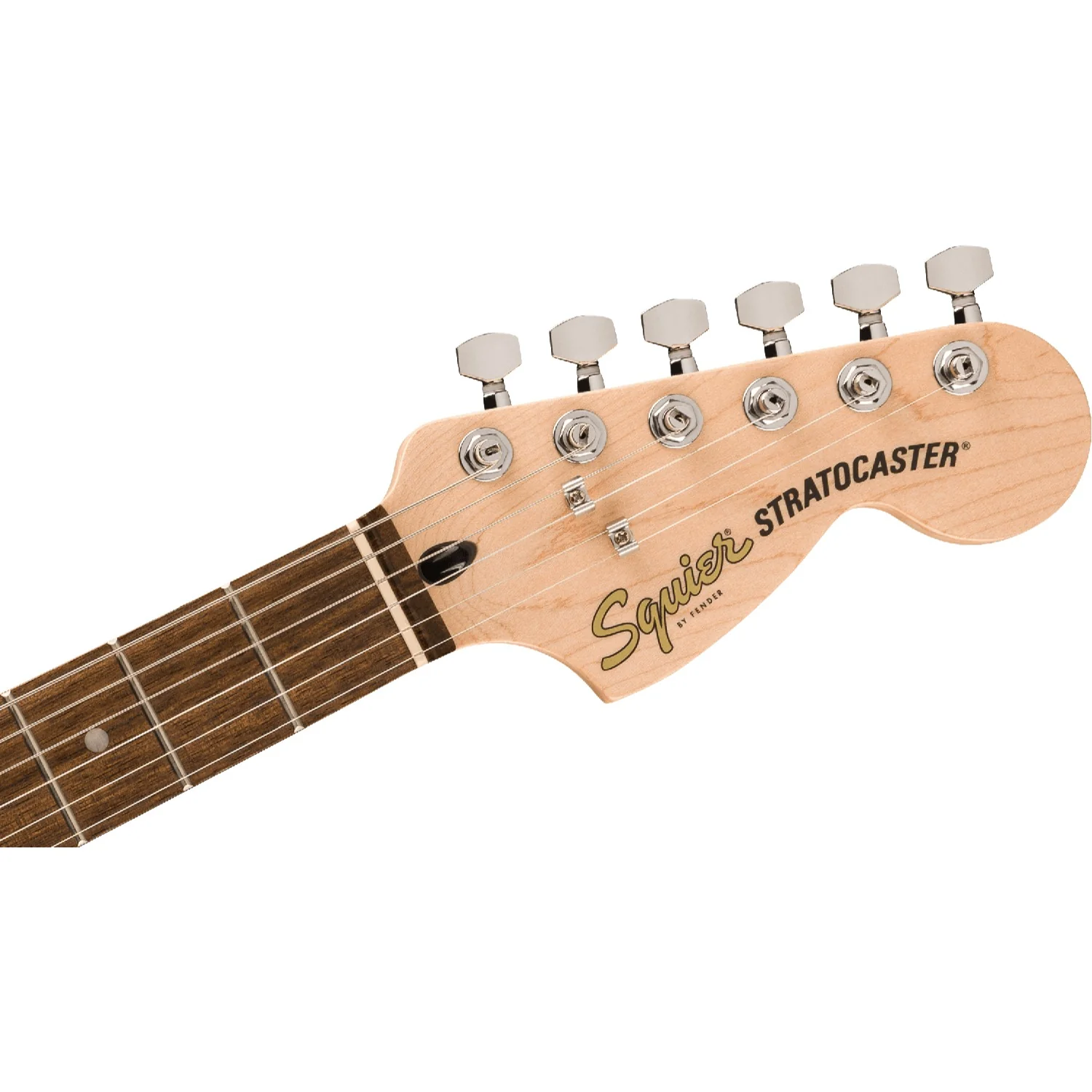

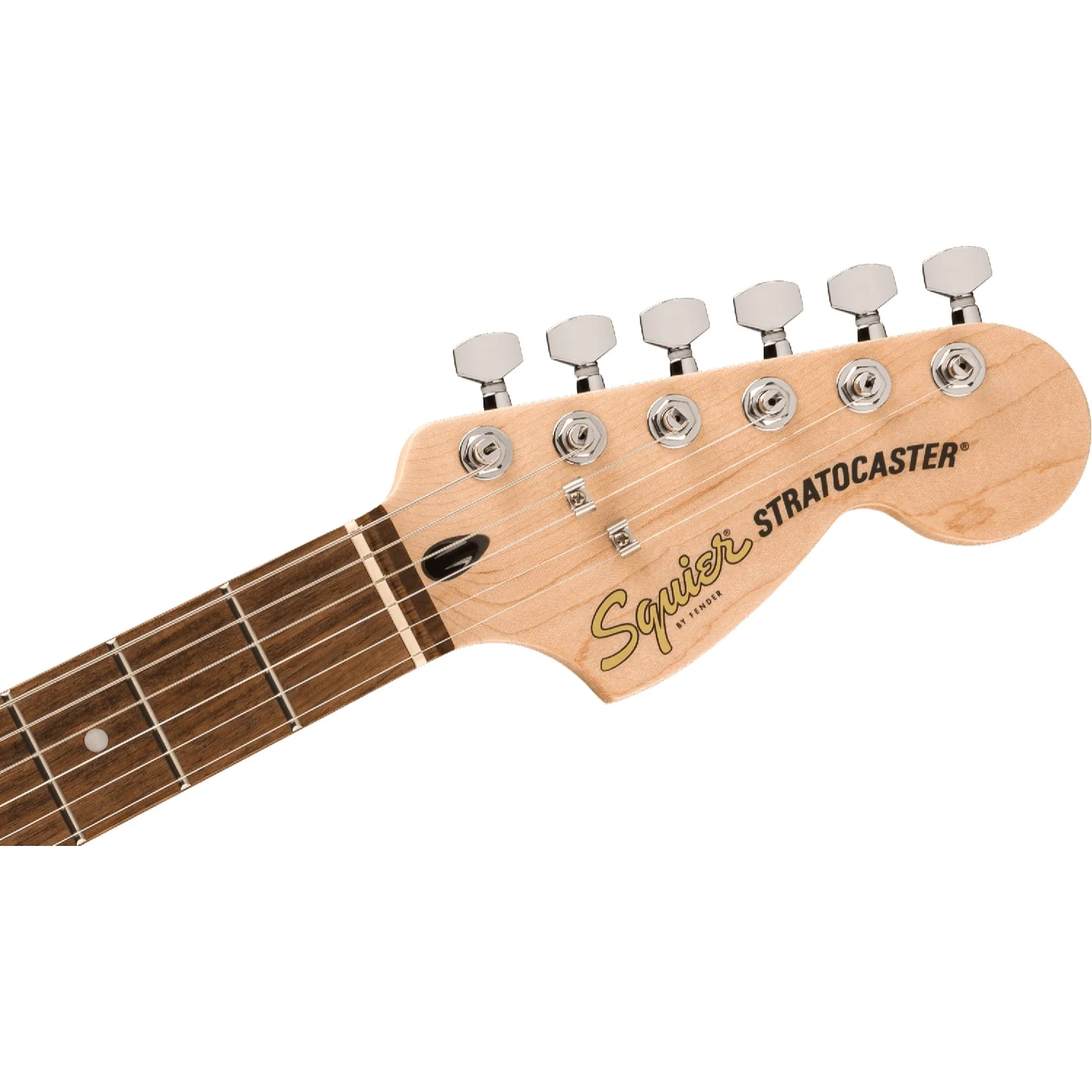

• Sealed die-cast tuning machines with split shafts

Highlights



REDUCED OVERALL SIZE
With a scaled-down body and short 24“ scale length, this Strat delivers iconic rock & roll style for smaller players and travelers alike.







2-POINT TREMOLO BRIDGE
This Stratocaster features a two-point tremolo bridge for smooth, superior tremolo action.

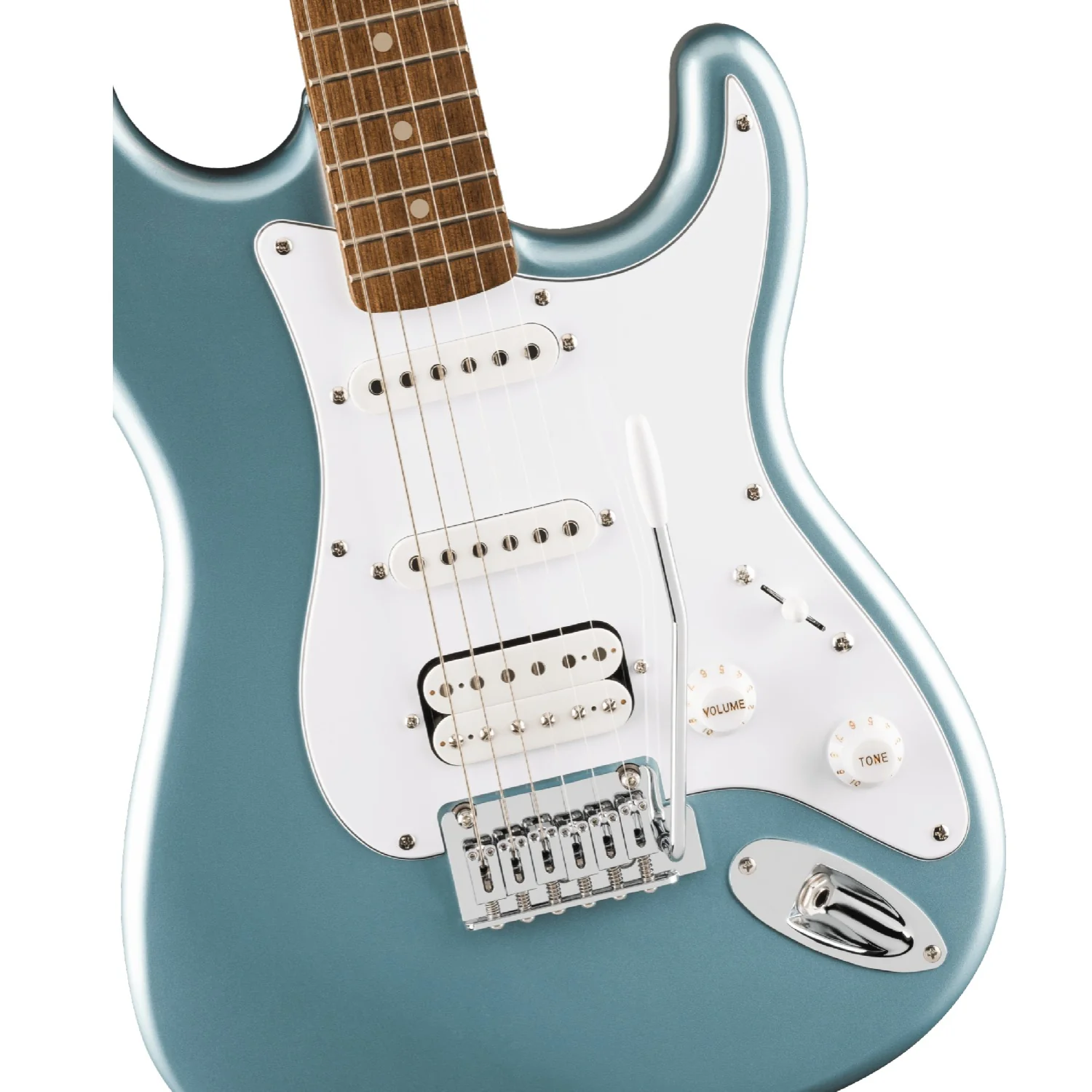

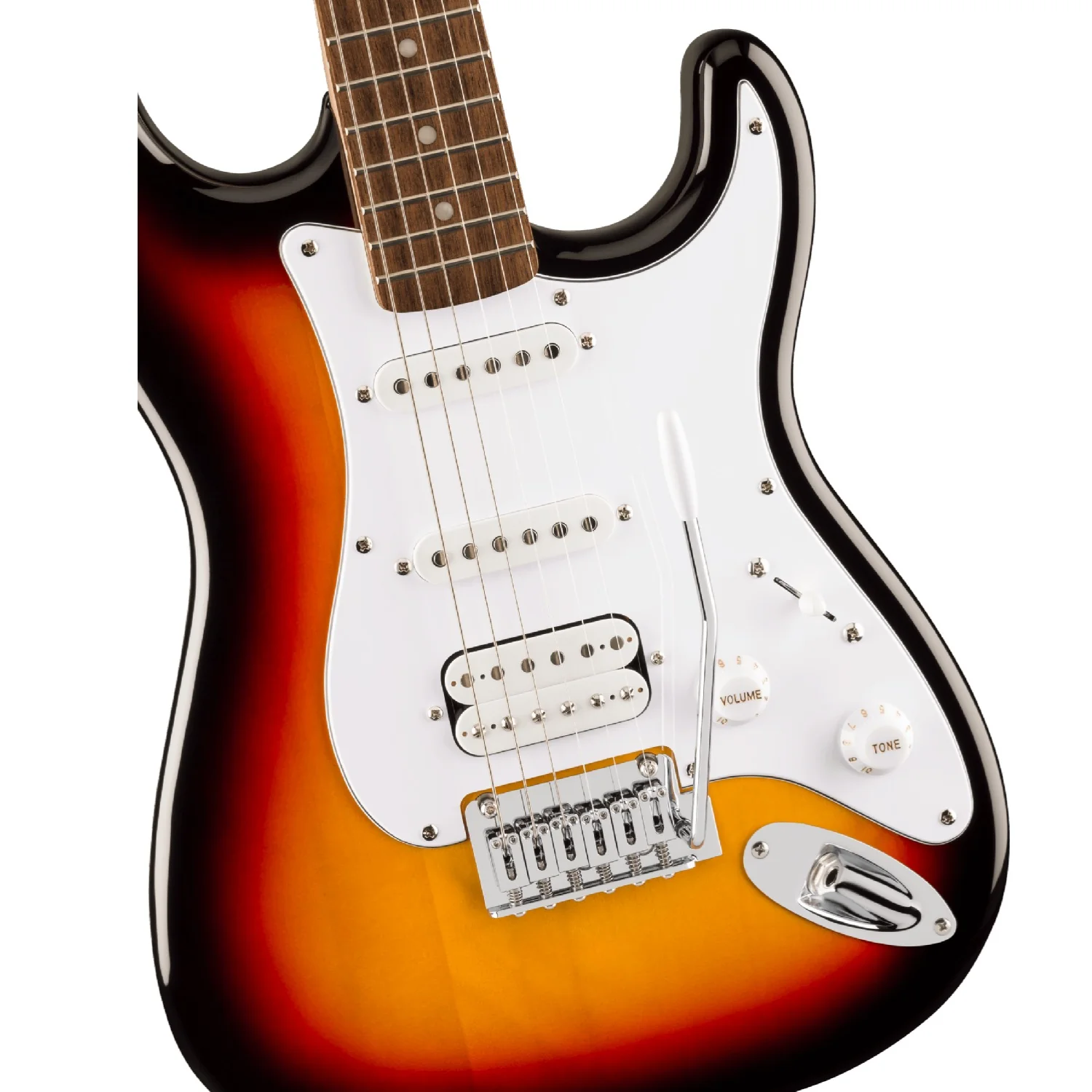

SQUIER SINGLE-COIL AND HUMBUCKING PICKUPS
Voiced in-house at Fender, the Squier single coil neck and middle pickups produce crisp, articulate tone, complimenting the fat, rich sound of the humbucking bridge pickup.



Specifications:

Body

• Body: Poplar

• Body Finish: Gloss Polyurethane

• Body Shape: Stratocaster

• Body Material: Poplar

Neck

• Neck Material: Maple

• Neck Finish: Satin Urethane with Gloss Urethane Headstock Face

• Neck Shape: "C" Shape

• Neck Construction: Bolt-On

• Fingerboard Radius: 9.5" (241 mm)

• Fingerboard Material: Indian Laurel

• Position Inlays: Pearloid Dot

• Side Dots: White

• Number of Frets: 20

• Truss Rod: Head Adjust

• Truss Rod Nut: 4 mm Hex

• String Nut: Synthetic Bone

• Nut Width: 1.650" (42 mm)

• Nut Material: Synthetic Bone

Hardware

• Bridge: 2-Point Synchronized Tremolo with Block Saddles

• Pickguard: 3-Ply White

• Pickup Covers: White

• Control Knobs: White Plastic

• Switch Tip: White

• Hardware Finish: Chrome

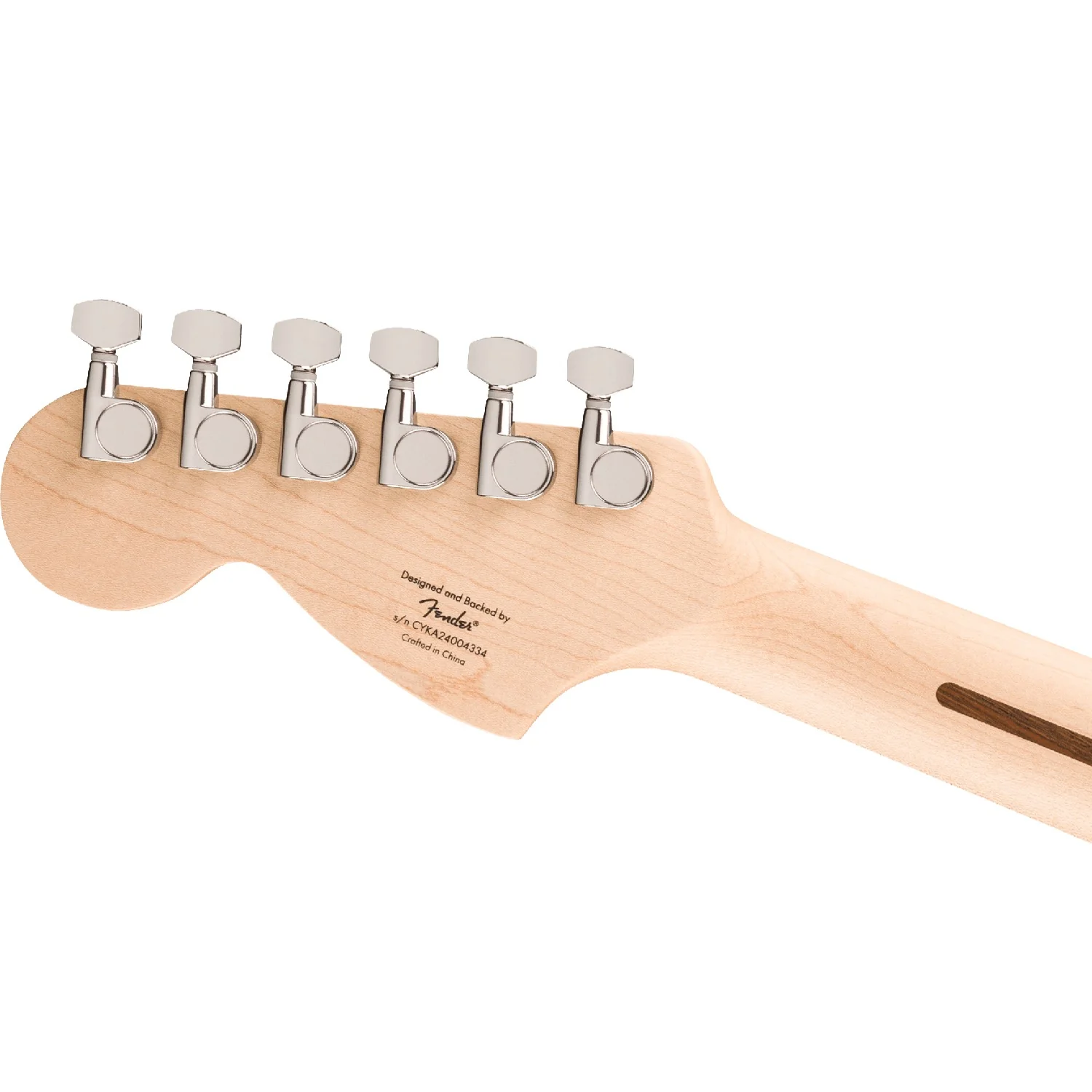

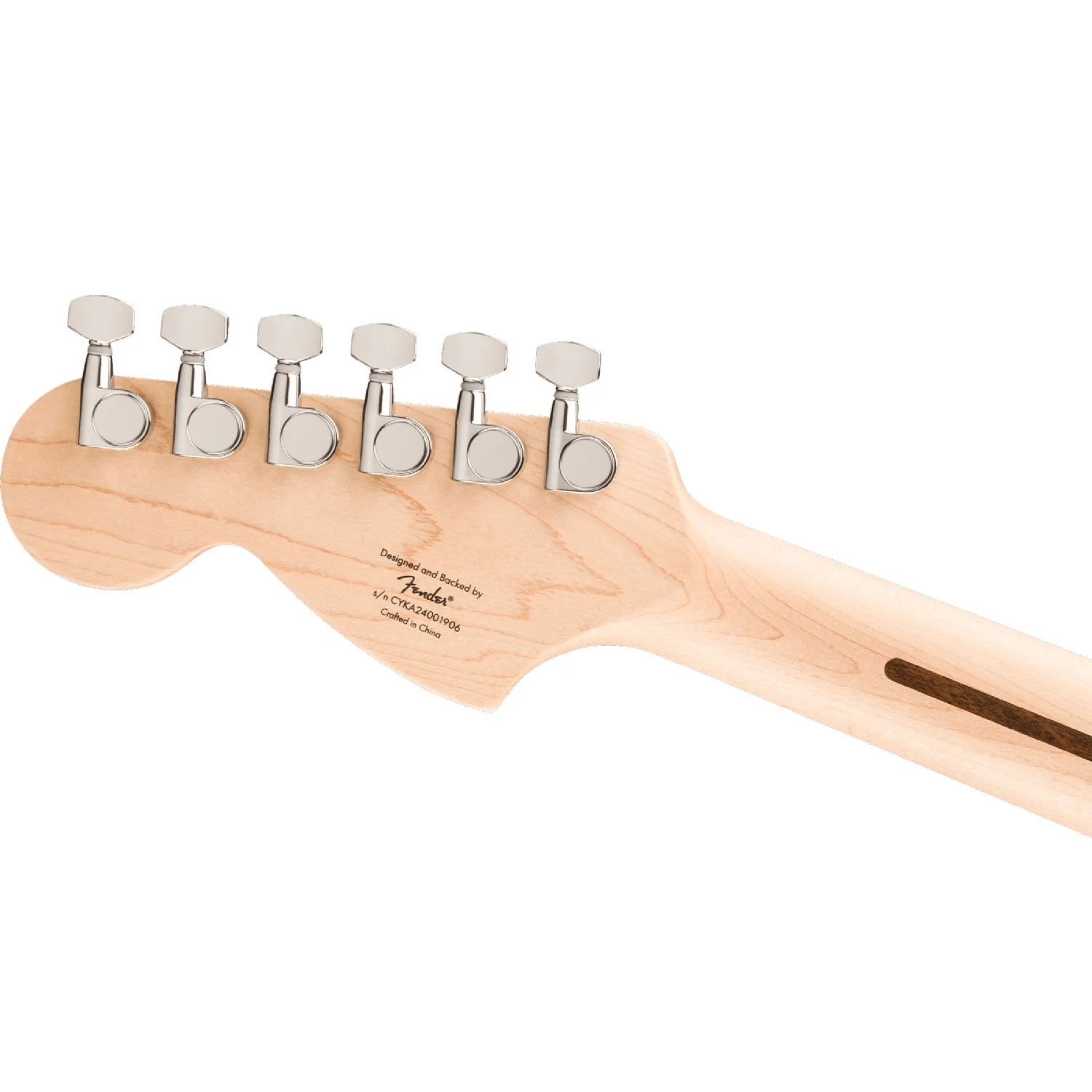

• Tuning Machines: Sealed Die-Cast with Split Shafts

• String Trees: Dual-Wing

• Strings: Nickel Plated Steel (.009-.042 Gauges)

• Tremolo Arm: Screw-In

• Neck Plate: 4-Bolt Squier

• Strap Buttons: Standard

Electronics

• Bridge Pickup: Ceramic Humbucker

• Middle Pickup: Ceramic Single-Coil

• Neck Pickup: Ceramic Single-Coil

• Pickup Configuration: HSS

• Controls: Master Volume, Master Tone

• Switching: 5-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Middle Pickup, Position 3. Middle Pickup, Position 4. Middle and Neck Pickup, Position 5. Neck Pickup

Measurements

• Dimensions: 4.00x15.20x43.90 IN

• Shipping Weight: 9.50 LB

• Fret Size: Medium Jumbo

• Scale Length: 24" (610 mm)

• Shipping Length: 43.90 IN

• Shipping Height: 4.00 IN

• Shipping Width: 15.20 IN
