Fender Squier Affinity Jaguar 6 String Electric Guitar Overview:

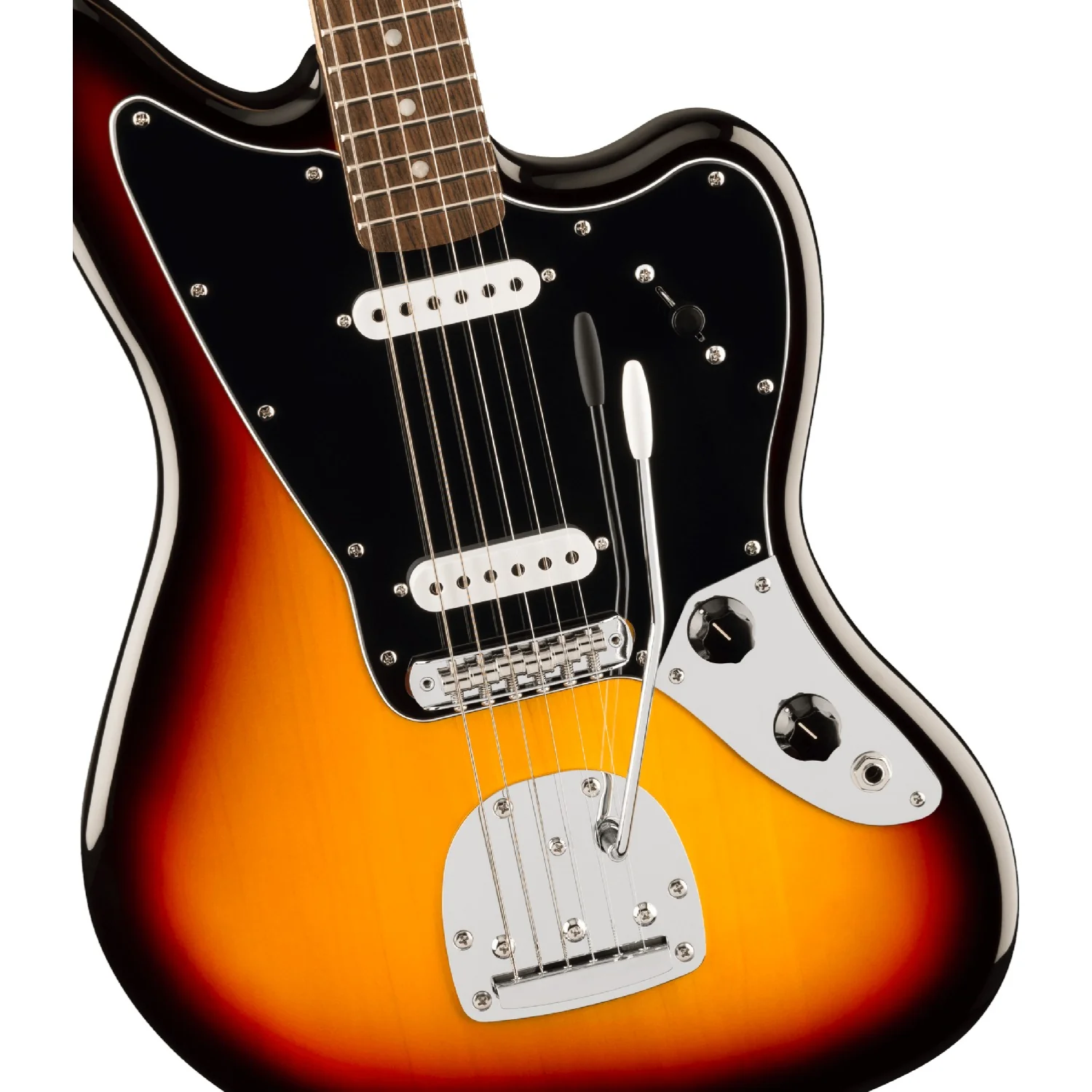

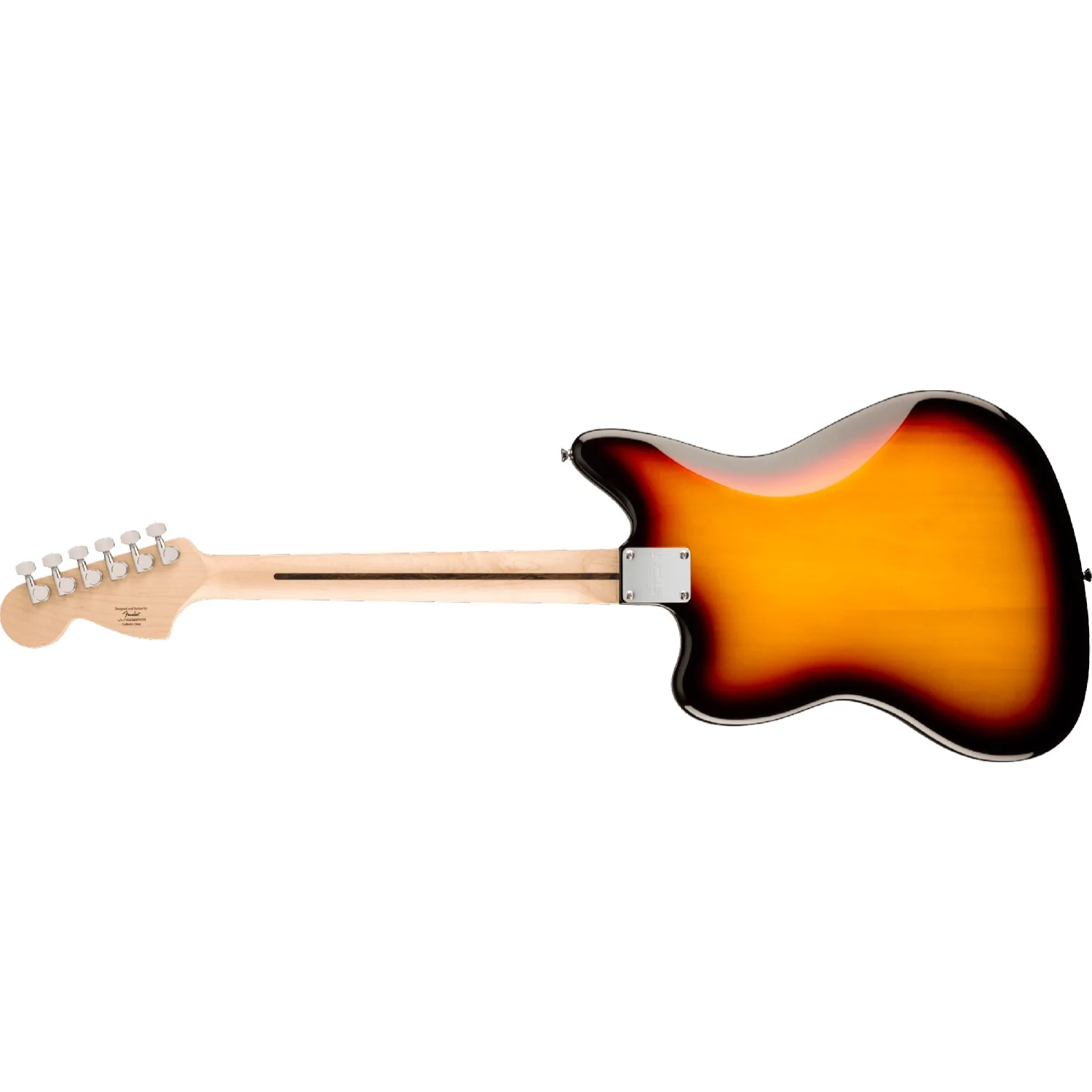

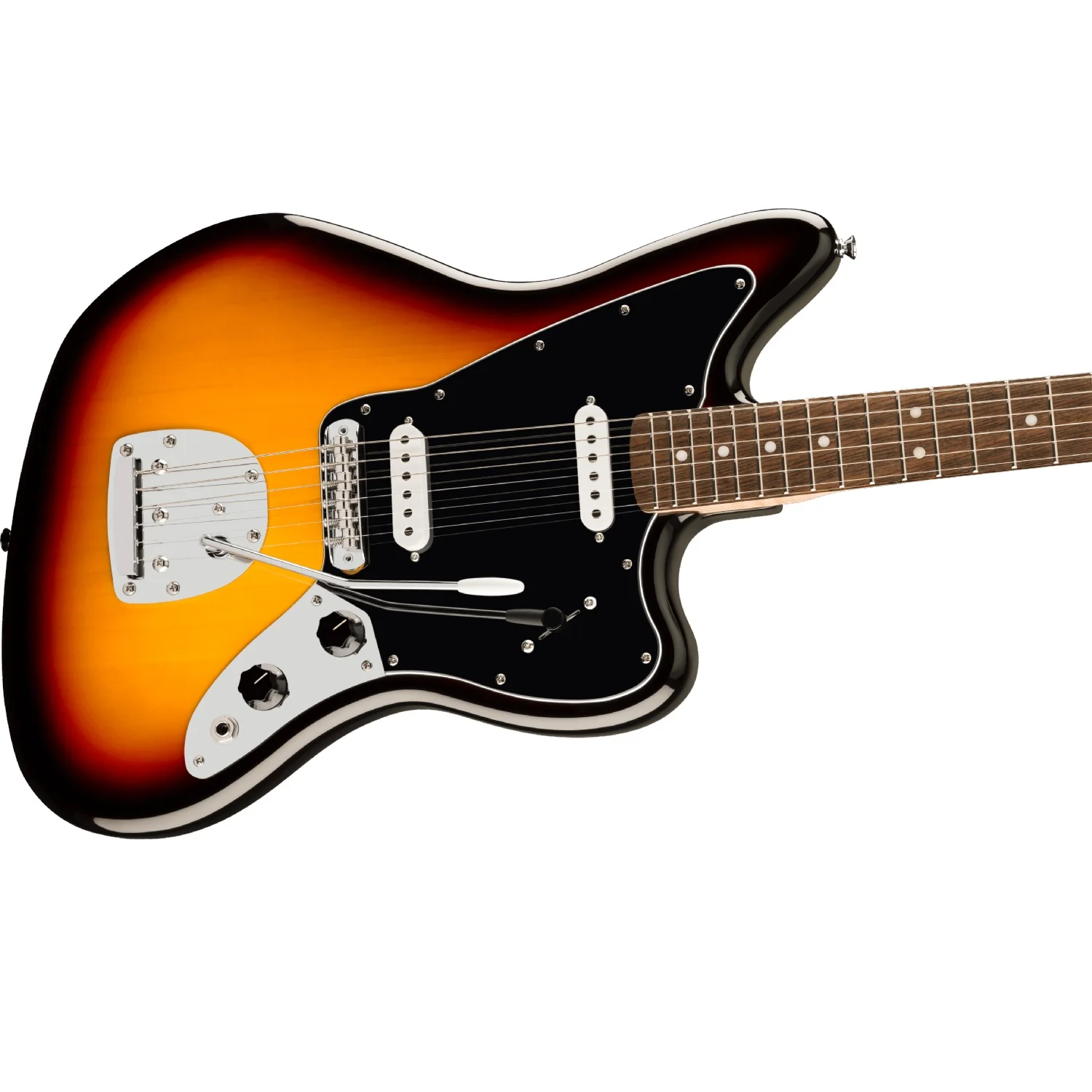

A superb gateway into the time-honored Fender family, the Squier Affinity Series Jaguar delivers legendary design and quintessential tone for today’s aspiring guitar hero. This model features several player-friendly refinements such as a thin and lightweight body, a slim and comfortable “C”-shaped neck with short 24“ scale length, a vintage-style tremolo and floating bridge for superior tremolo action and sealed die-cast tuning machines with split shafts for smooth, accurate tuning and easy restringing. Loaded with two Squier single-coil pickups with 3-way switching for genre-defying sonic variety, this model is ready to accompany any player at any stage.

Features

• Thin and lightweight body

• Floating bridge and vintage-style tremolo

• Slim and comfortable “C”-shaped neck profile

• Two Squier single-coil pickups

• Sealed die-cast tuning machines with split shafts

Highlights



VINTAGE-STYLE TREMOLO WITH FLOATING BRIDGE
String-bending effects are possible with the vintage-style tremolo, and the floating bridge features barrel saddles for solid string stability.







SQUIER SINGLE-COIL PICKUPS
Voiced in-house at Fender, these Squier single-coil pickups produce crisp, articulate tone for a wide variety of styles.

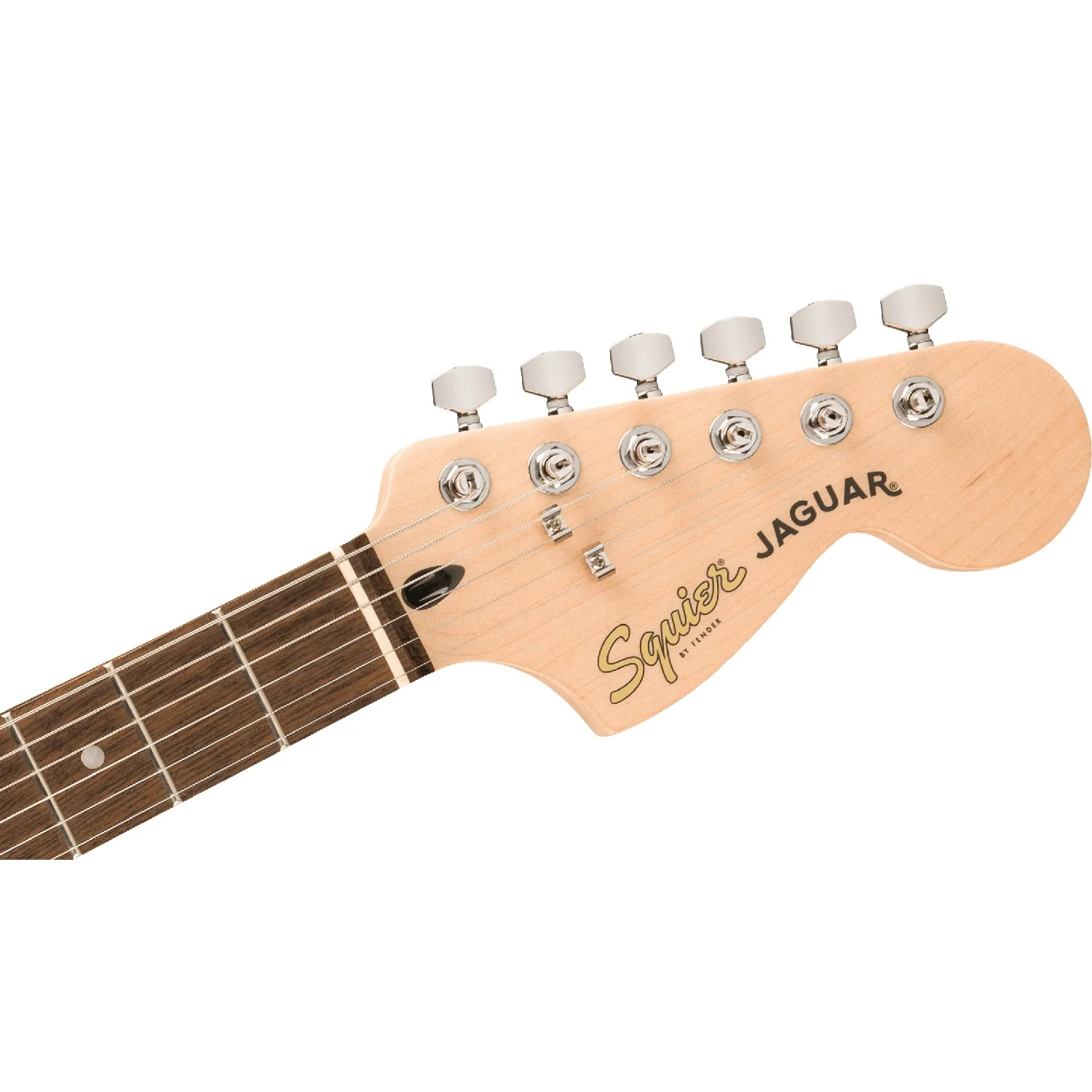

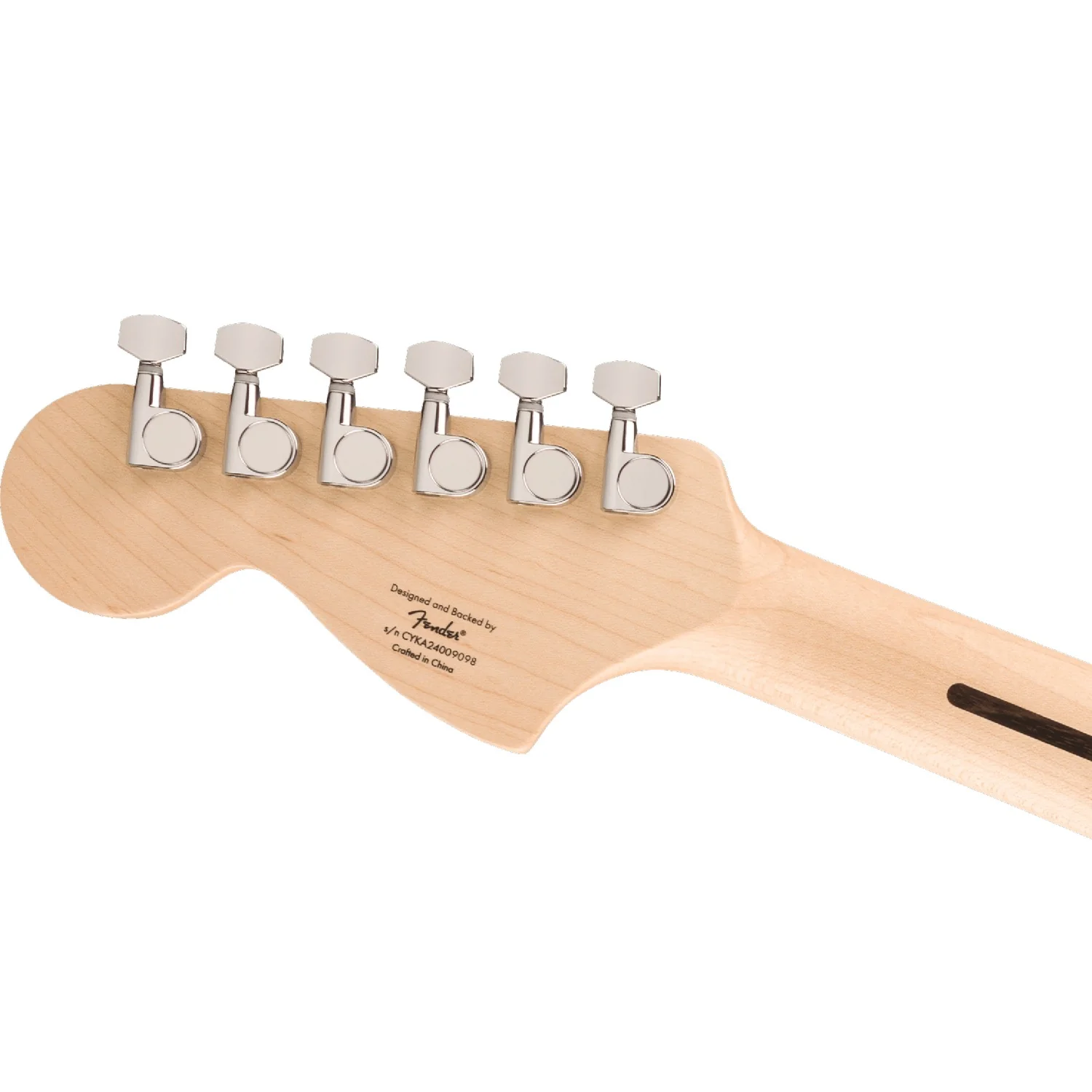

SEALED DIE-CAST TUNING MACHINES WITH SPLIT SHAFTS
Sealed die-cast tuning machines have a smooth action for accurate tuning, and the split shafts make changing strings a breeze.







Specifications:

Body

• Body: Poplar

• Body Finish: Gloss Polyurethane

• Body Shape: Jaguar

• Body Material: Poplar

Neck

• Neck Material: Maple

• Neck Finish: Satin Urethane with Gloss Urethane Headstock Face

• Neck Shape: "C" Shape

• Neck Construction: Bolt-On

• Fingerboard Radius: 9.5" (241 mm)

• Fingerboard Material: Indian Laurel

• Position Inlays: Pearloid Dot

• Side Dots: White

• Number of Frets: 22

• Truss Rod: Head Adjust

• String Nut: Synthetic Bone

• Nut Width: 1.65" (41.91mm)

• Nut Material: Synthetic Bone

Hardware

• Bridge: Floating Bridge and Tailpiece

• Pickguard: 3-Ply Black

• Pickup Covers: White

• Control Knobs: Black Plastic

• Switch Tip: White

• Hardware Finish: Chrome

• Tuning Machines: Sealed Die-Cast with Split Shafts

• String Trees: Dual-Wing

• Strings: Nickel Plated Steel (.009-.042 Gauges)

• Tremolo Arm: Pop-In

• Neck Plate: 4-Bolt Squier

• Strap Buttons: Standard

Electronics

• Bridge Pickup: Ceramic Single-Coil

• Neck Pickup: Ceramic Single-Coil

• Pickup Configuration: SS

• Controls: Master Volume, Master Tone

• Switching: 3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup

Measurements

• Dimensions: 4.20x15.50x46.00 IN

• Shipping Weight: 9.50 LB

• Fret Size: Medium Jumbo

• Scale Length: 24" (610 mm)

• Shipping Length: 46.00 IN

• Shipping Height: 4.20 IN

• Shipping Width: 15.50 IN
