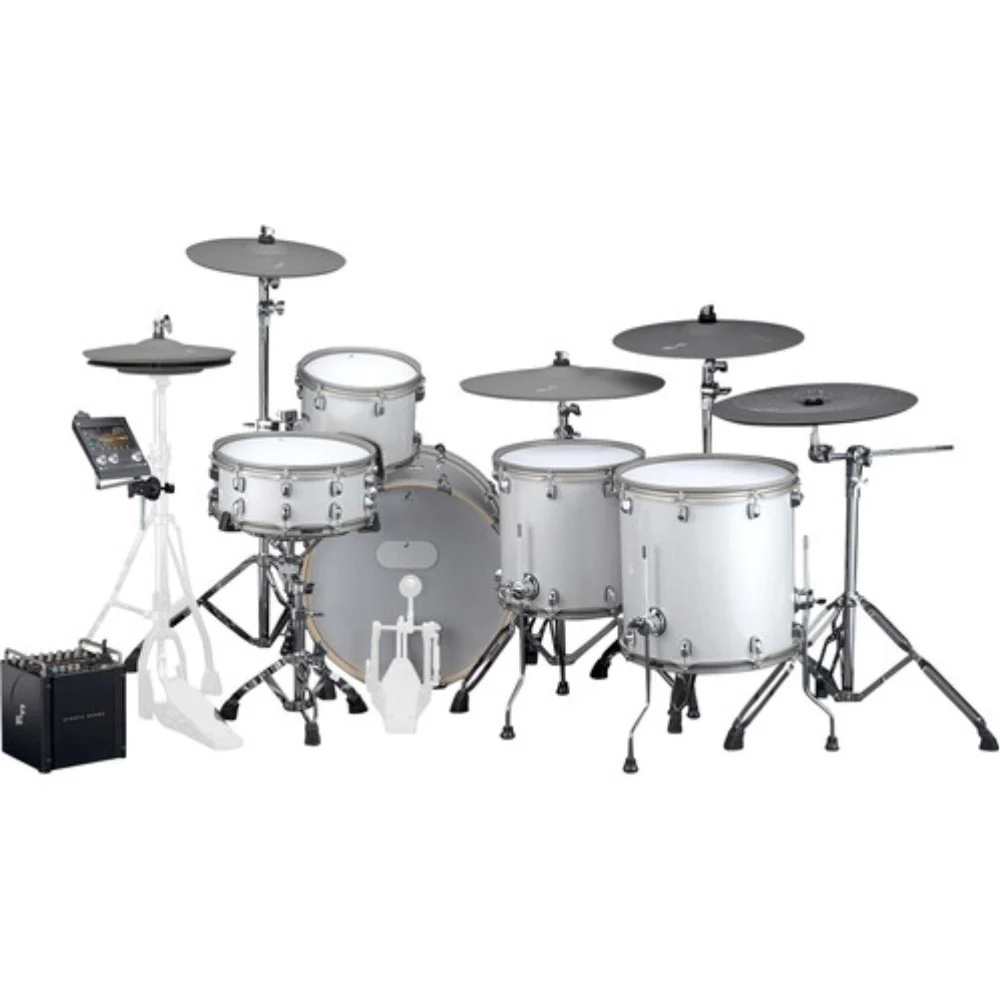

EFNOTE Pro 703 Power Electronic Drum Kit Overview:

Enhance the Stage
EFNOTE PRO is designed to digitize your drum riser, then elevates your stage.

By simply connecting up to 12 balanced XLR outputs to your stage snake or sound-board, you will be sending and receiving the highest quality drum sounds on the market with total consistency and perfect isolation.

No More Acrylic Panel
There is no need to isolate your drummer from the choir, acoustic instruments, your audience or congregation. Your drummer is now free to connect and engage with everyone!

EFNOTE PRO has eliminated mic bleed and feedback problems on-stage, creating the ideal FOH mixing environment with clarity, balance and control.

Stage-Box Reliability
EFNOTE PRO has eliminated the need to change mics or mic placement, tuning, head replacement and maintenance at every show.

Just assign its 12-ch balanced outputs, using stereo or mono sends, such as kick, snare, toms, cymbals, click and external sampling pad.

Each channel is equipped with HPF, 2-band EQ, individual compressors for Bus 1-6, and ground lift switches.

Remote Control
EFNOTE Tools App provides faster and more reliable rehearsals.

The FOH engineer can change the settings of the output sent to the console without affecting the drummer's monitor sound.

The drummer can also adjust the front sound while playing back the recorded data.

Flexibility for All Music
EFNOTE PRO supports 7 shells and 8 cymbals. All pads are individually wired, so players can adapt to any musical environment.

All sound settings can be quickly saved and loaded, for multiple players and set-lists at any time.

In addition, with 12-ch of multitrack USB Audio and 16-ch USB MIDI running simultaneously, a drummer, producer or mixer have quick access to editing, in order to meet artist’s budget requirements.

Design

Innovative Two-Piece Design

• The two-piece sound module provides both operability and expandability required by professionals

• Low-profile and compact control surface with touch-screen full-color LCD

• Floor-standing base unit with robust enclosure and reliable cable connections

Discrete Foot Stage Light

• A foot light is equipped on the bottom of the control surface to help with setup and adjustment of the stage box
• Great for dark stages

• Adjustable brightness

Beautiful Kit Images Inspire

• Kit themes that highlight the musicality of each kit

• Simple interface design for professionals

• High-definition and high-brightness screen

Perfect Customizing

• Mix and match the expansion packs and optional components to create your ideal set

• Beautiful white sparkle shell finish

• Consistent pad design

• Supports EFNOTE 3/3X/5/5X/7/7X pads

Sound

• Contains Legendary Drum Sets

• The delicate resonance of aged shells are newly captured, recorded by EFNOTE
  Raw and organic, NOT synthetic and electronic

• Includes maple, birch, acrylic, steel, aluminum, brass, titanium shells, even a towel-muted sound

Diverse Cymbal Collection

• Our mint selection, from bright and crisp modern sounds to dark and soft vintage sounds

• Contains modern trash/effect/stacked cymbal sounds

IX (Instrument Expansion)

• New sounds that can be loaded into EFNOTE PRO (drum sounds only)

• Continuously published on the IX page

Overlay Tone (Layering)

• Elements such as tambourines and EDM kicks can be easily layered over each drum sound

• Attack Elements for reinforcing the attack

• Percussion sounds

• eKick, eSnare and eClap sounds

High-Powered Headphone Amp

• 1x 1/4" jack + 1x 1/8" jack for headphones (can be used simultaneously)

• Dedicated 2x headphone amp circuit for enough loudness

• High quality DAC and audio circuit

Playability

7 Shells and 8 Cymbals

• Build a custom kit for any stage

• 5x 2-zone input for toms

• 6x 3-zone (including 3-zone hi-hat), 2x 2-zone input for cymbals

• Traditional individual trigger connections (TRS), for professional reliability

ELISE Sensing Processor 2.0

• We’ve evolved, delivering improved sensitivity for capturing your most delicate touch

• The new algorithm for even more natural dynamics

Full Drum Pad Lineup

• Birch wood shells and 2-ply mesh drum heads

• Multi-sensor for hot-spotless and high-resolution sound

• 20” and 16” kick drums

• 14” and 12” snare drums

• 8”, 10”, 11” rack toms

• 12”, 13”, 15” floor toms

“World's First” Cymbal Pads

• Tru-Motion 14” hi-hat cymbal

• 8” to 20” full size cymbal lineup, the first of their kind

• New 18” China cymbal and 17” effect cymbal with stackable/suspendable STAK mount

Connectivity

12-ch Buses to the Console

• 12-ch buses, and 12x XLR balanced bus output

• Dedicated bus compression for Bus 1 to 6

• HPF and 2-band EQs for Bus 1 to 12

• Stereo-Link for two adjacent buses

• Ground lift switches

XLR Inputs from the Console

• 2-ch Monitor In (XLR balanced) for monitoring return from the console

• 2-ch Line In (TS unbalanced) for an additional sampling/percussion pad

• Ground lift switch for Monitor In

USB 12-ch Multi-Track Recording

• Simultaneous recording of 12-ch multi-track Audio and multi-track MIDI is available

• Confirmed with major DAWs

• 5-pin DIN MIDI Out

Remote Control

• EFNOTE Tools App available for remote control/file-management

• Save and upload kit/trigger/bus settings

• Control the bus assign/effect/mix/output settings

• Select the drum kit and preview each pad sound

Bluetooth

• Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone

• Bluetooth MIDI

Usability (Bus Management)

Centralized Volume Control

• Simply press the left knob to access the central volume management window

• One-touch switching between Main L/R and Bus Mix L/R monitoring

• One-touch mute for Monitor In

Graphical Bus Assigning
Graphical bus assignment helps you setup your intended routing correctly
All Pads can be assigned as both stereo and mono outputs
Click, Line In, Monitor In can be set to a bus individually

Bus Effect Overview
Allows viewing of each bus’s settings of effects and stereo link in one window
HPF, EQ, Comp, and Stereo-link can be selected ON/OFF at once

Personalized Mix and Pre Mix
Bus Mixer function allows you to mix the 12-ch buses and monitor them with the best balance for the drummer
Pre-mixing for small stage, with EQ and compression before sending to the console for fewer audio channels

Drum-Centric Bus Compression

• Bus Compressor (for Bus 1 to 6) helps you dial in the sound, especially for non-robust PA systems

• Designed with a focus on processing speed and accuracy

• The attack time can be set to 0 ms

Bus HPF and Bus EQ
Bus High-Pass Filter and 2-band Bus EQ (for Bus 1 to 12) allow flexible sound correction according to the PA environment

Bus Gain Switches
If necessary, the signal-to-noise ratio can be improved by increasing the gain of each bus

Output Management

• Attenuator (up to -30dB) for XLR outputs

• XLR 5/6 can output Bus Mix L/R instead of Bus 5/6 for a small mixer

• XLR 1/2 can also output Main L/R instead of Bus 1/2

• Rename-able bus labels

HPF/EQ for Main L/R

• High-pass filter and 2-band EQ are also available even when using Main L/R for 2-mix audio output

Usability (Operation)

Swipe-Able Kit/Inst Change

• Easily change kits/instruments by simply swiping the screen

• Kit switching can be selected between two methods: swipe and touch

Quick Tuning and Muffling

• Even while playing, you can easily adjust the tuning and muffling

• Cymbal tuning (pitch) and muffling (sustain) can also be changed

Overviewing Pad Levels

• Pad levels are displayed in decibels (dB) for proper adjustment

One-Touch Recording/Playback

• Easily record grooves and fills, when inspired

• Record your beats and play them back to check the sound out in front

• You can save/load the recorded drum-play data to a USB flash drive

Set-List for the Show

• Set-list feature enables you to configure kit order with tempo for each song

• Each color of button and its description can be customized

Flexible Metronome (Click)

• Tempo setting in 0.1 increments

• 7 types of click sounds

• Store your favorite click setting and recall it quickly

Global Pan

• Facilitates panning for all sound kits, coinciding with changing the drum setup

• Control over your stereo image

• Panning can also be set for each sound kit

Assignable Knobs

• The two left knobs can be assigned to functions you need while gigging

• They can also be disabled to prevent accidental operation

Customizable Kit Theme

• Editable user kit theme including the text color and background image

• Enhances visibility and musicality

Intuitive Trigger Setting

• The graphical trigger setting allows you to set the correct sensitivity

• Simple and intuitive interface

Load Settings According to the Gig

• The sound and performance environment can be saved and restored for each gig, stage and player

• A full backup is also available to restore all environments

Specifications:

User Interface:

• Full Color, Capacitive Touchscreen Display

• 2x Multi-Function Knob (with Ring LED)

• 1x Value Knob (with Ring LED)

Trigger Interface:

• 3-Zone (7x): Snare, Crash 1/2/3/4(FX), Ride, Hi-Hat

• 2-Zone (7x): Tom 1/2/3/4/5, Crash 5(Splash), Crash 6(China)

• 1-Zone (1x): Kick

• ELISE 2.0 Trigger Sensing Chip

Audio / MIDI Interface

• Bus Out: 12x XLR(M) (+4dBu, Balanced, +23dBu Max), Attenuator (-6dB, -12dB, -20dB, -30dB), GND Lift Sw (1-6, 7-12)

• Line Out: 2x 1/4” TS Phone (-10dBV, Unbalanced, +14dBV Max)

• Phones Out: 1x 1/4” Stereo (320 + 320 mW @32Ω), 1x 1/8” Stereo (320 + 320 mW @32Ω)

• Monitor In: 2x XLR(F) + 1/4” TRS Combo (+4dBu, Balanced, +24dBu Max), GND Lift Sw

• Line In: 2x 1/4” TS Phone (-10dBV, Unbalanced, +10dBV Max)

• 0dBu = 0.775Vrms, 0dBV = 1.0Vrms
• USB: B Type USB 2.0 Hi-Speed

• Audio: 12ch Out (48kHz/24bit) / 2ch In (48kHz/16bit), Mac/Windows ASIO

• MIDI: In/Out

• Bluetooth: Audio Input (A2DP)

• Bluetooth MIDI In/Out (Bluetooth Low Energy/GATT)

• Transmission Frequency: 2402-2480 MHz, Maximum Transmit Power: 2.5 mW EIRP
• MIDI Out: 5-pin DIN

Other Interfaces

• Link Port: D-SUB 9-pin (use included link cable EFD-DSUB9-2 only)

• USB (Flash Drive): A Type USB 2.0 (supports flash drive only)

• USB (For Service): B Type (for service purpose only)

Drum Kits / Instruments

• Preset Drum Kits: 23 (editable)

• User Drum Kits: 100

• Instruments: Acoustic Drums/Cymbals (stereo), Percussion (stereo), Attack Elements

• Tru-Aco Sound Technology

Edit Parameters

• Level, Pan, Tuning, Muffling (for each pad)

• 2-Band EQ (for each pad)

• Overlay Tone (for each zone)

• Global Pan (for all drum kits in common)

• Changable Kit Name Color and Background Kit Image (for each user drum kit)

Click

• 4x Click Setup Memory

• Tempo (BPM): 40.0-240.0 (0.1 Step)

• Beat (Time Signature): 1/4-13/4, 2/8-13/8

Set-List

• 15x Set-List (20 slots for each list)

• Array-style 20 slot buttons

• Slot Tag Color and Slot Notes feature

• Tempo and Beat Settings for each slot

• Each set-list can be saved to a USB flash drive

Recorder

• Tracks: 15

• Resolution: 480 TPQN

Buses

• 16 Channel Audio Buses (12x Bus + Bus Mix L/R + Main L/R)

• Bus HPF and EQ (Bus 1-12), Bus Compressor (Bus 1-6)

• 12x Bus Outputs (12x XLR Analog and 12ch USB Audio)

• Bus Mixer

• Main HPF and EQ (Main L/R)

Other Features

• Inst Expansion

• Foot Light

• Ground Lift Switches (for Bus Out and Monitor In)

• Full Metal Cabinet

• Guard Handles

Dimensions / Weight

• Control Surface: 128 (W) x 172 (D) x 30 (H) mm / 700 g

• Base Unit: 206 (W) x 210 (D) x 238 (H) mm / 3,250 g

Power Supply / Current Draw

• AC Adapter (FJ-SW1202000N-EFNOTE) DC 12V / 1.5A

Accessories

• 1x Link Cable 2.0m (EFD-DSUB9-2)

• 1x AC Adapter (FJ-SW1202000N-EFNOTE)

• 10x Trigger Cable 3.0m (EFD-TRS-LL3)

• 1x Hi-Hat Cable L 3.0m (EFD-DIN6-LL3)

• Module Mount Set

• Smartphone Tray Set

• Tuning Key

• Cable Ties

• Cable Labels

• Quickstart Guide
