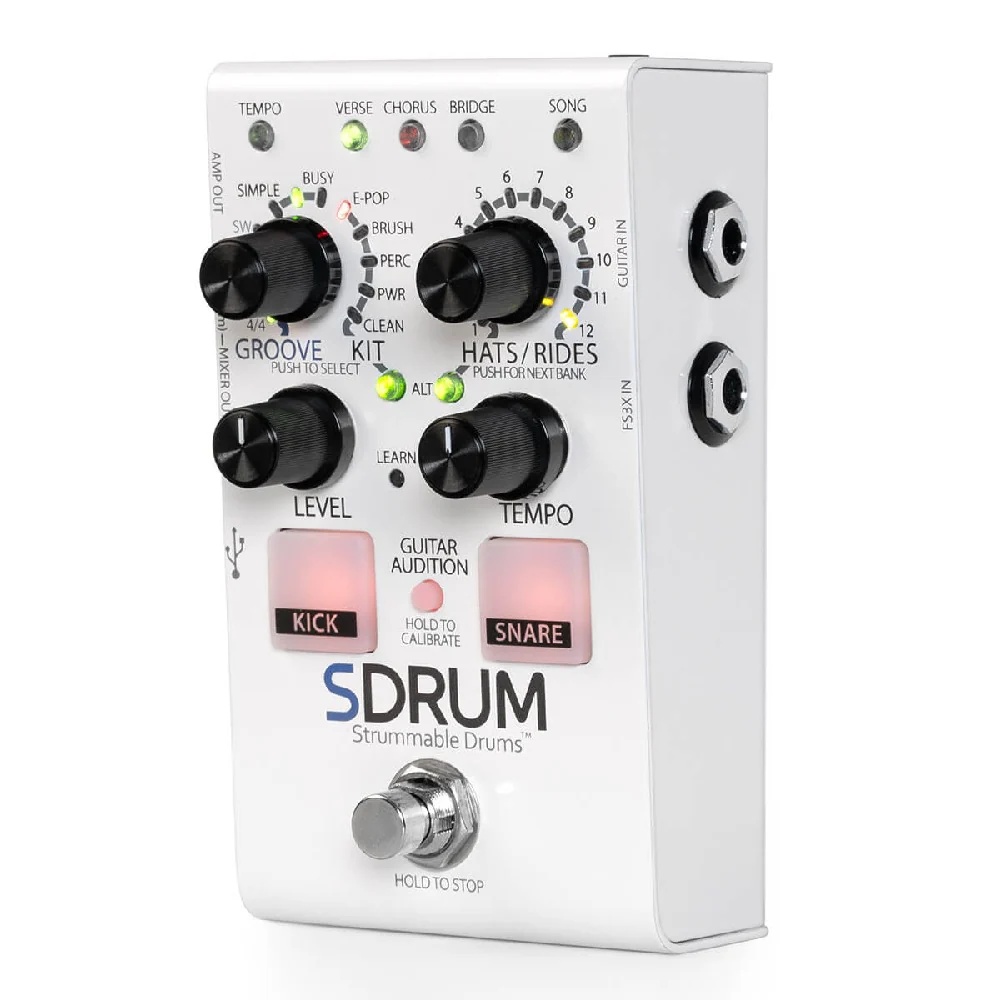

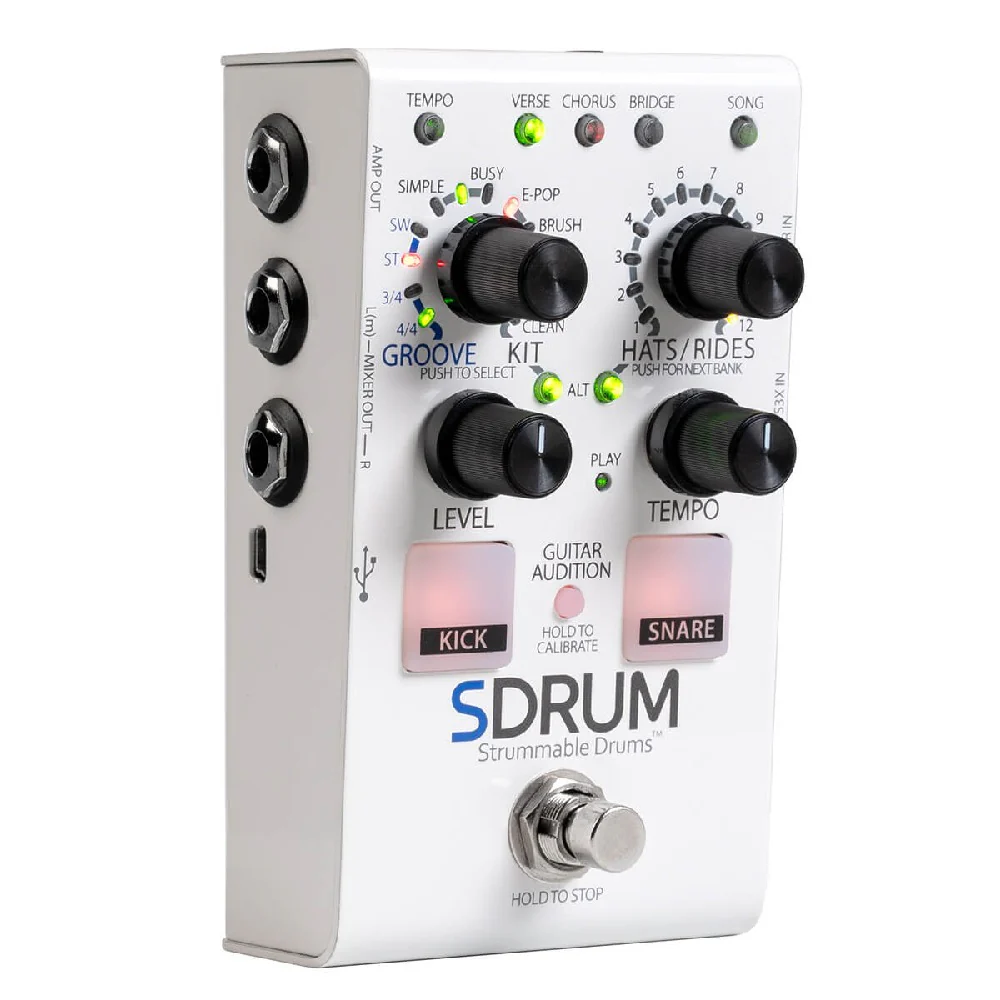

Digitech Sdrum V-04 Strummable Drum Pedal Overview:

SDRUM is the world’s first intelligent drum machine for guitarists and bassists. By simply scratching across your guitar strings, you teach the SDRUM a kick snare pattern that forms the foundation of the beat you want to hear. Based on this pattern, the SDRUM supplies a professional sounding drum beat with different embellishments and variations to perfectly complement your beat. Gone are the days of having your creative flow disrupted by searching through lists in a frustrating attempt to find the beat you want.

The SDRUM stores up to 36 different songs. Beats are played from a choice of 5 different kits covering a wide range of genres. The pedal also supports three different parts (e.g. verse/chorus/bridge) for each song that can be switched on the fly for enhancing live performances and exploring song ideas.

SDRUM is the fastest way to go from a beat idea to a working drum track.

Specifications:

• CONTROLS: Groove/Kit, Hats/Rides, Level, Tempo

• BACKLIT BUTTONS: Tempo, Verse, Chorus, Bridge, Song, Alt (Kit), Alt (Hats/Rides), Guitar Audition

• PADS: Kick, Snare

• FOOTSWITCHES: Main Footswitch

• LEDS: Learn, Play

• JACKS: Guitar In, FS3X In, Amp Out, Mixer Out L(m), Mixer Out R, JamSync Out

• OTHER: Mini USB port

Inputs

• GUITAR INPUT: Type: Unbalanced, 1/4" TS / Impedance: 1 MΩ / Max Input: +8 dBu

• FS3X INPUT: Type: 1/4" TRS (compatible with DigiTech FS3X)

Outputs

• AMP OUTPUT: Type: Unbalanced, 1/4" TS / Impedance: 1 kΩ / Frequency Response: 20 Hz–20 kHz

• MIXER L/R OUTPUTS: Type: Impedance balanced, 1/4" TRS / Impedance: 1 kΩ / Max Output: +19 dBu / Frequency Response: 20 Hz–20 kHz

• JAMSYNC OUTPUTS: Type: 1/8" TRS

Performance

• BIT DEPTH: 24-bit

• SAMPLE RATE: 44.1 kHz

• SIGNAL-TO-NOISE RATIO: ≥108 dB, A-weighted

• THD + NOISE: 0.004% @ 1 kHz

Storage

• MAXIMUM BARS: 4 bars per song part

• MAXIMUM PARTS: 3 per song

• MAXIMUM SONGS: 36

USB

• TYPE: Mini-B, USB 2.0

Physical

• DIMENSIONS: 5.25” (L) x 3” (W) x 2.45” (H) / 133.4 mm (L) x 76.2 mm (W) x 62.2 mm (H)

• UNIT WEIGHT: 1.14 lb / 0.52 kg

• SHIPPING WEIGHT: 1.92 lb / 0.87 kg

Power

• POWER REQUIREMENTS: 9 VDC external power adapter

• POWER CONSUMPTION: <5 W

• CURRENT DRAW: 500 mA

• POWER ADAPTER MODEL: PS0913DC-04 (US, JA, EU, AU, UK)

• POWER ADAPTER OUTPUT: 9 VDC 1.3 A
