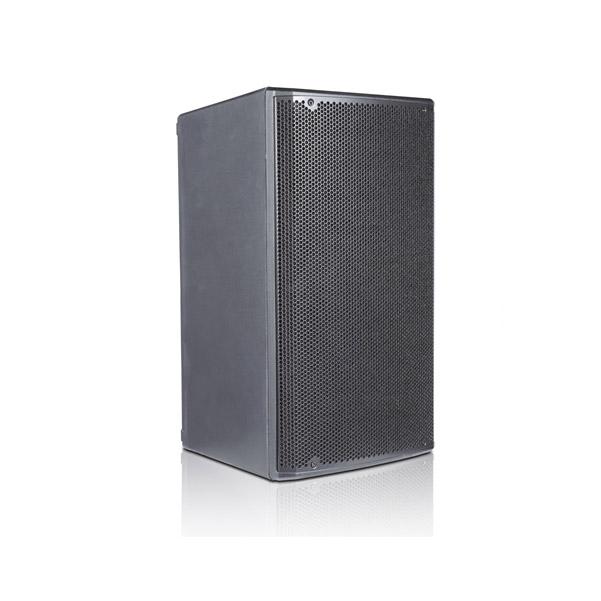

Overview:

Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications.


Specifications:

Technical Data
Speaker Type : 2-Way Active Speaker

Acoustical data
Frequency Response [-10dB] : 50 - 20.000 Hz
Frequency Response [- 3dB] : 56- 19.600 Hz
Max SPL : 130 dB
HF : 1" Exit, 1.4 v.c.
Type HF : Compression driver
Horizontal Directivity : 100° (85° up/120° down)
Vertical Directivity : 85° (+ 25°/-60°)
Horn : Asymmetrical Horn
LF : 15", 2" v.c.

Amplifier
Amp Technology : Amp SMPS Power supply dual range
Amp Class : Class D
RMS Power : 600 W
Peak Power : 1200 W

Processor
Controller : DSP 56 bit
AD/DA Converter : 24 bit/48 KHz
System Presets : Rotary Encoder (8 Presets)
CrossOver Frequency : 1800 Hz
Limiter : Peak, RMS, Thermal
Advanced DSP Functions : Linear Phase FIR Filters

Input
Signal Input : 1xCombo (XLR/Jack 6.3 mm) MIC/Line
1xCombo (XLR/Jack 6.3 mm) MIC/Inst
Signal Output : 1x XLR Male (CH1 Link/Mix OUT) Selectable

Mechanics
Housing : Polyproylene with internal frame
Grille : Full grille
Handles : 1 on left Side, 1 on Top
Rigging Points : 2XM10 on Top + 1x M10 on Back
Pole Mount : D36 mm
Angles up : Monitor use 45°
Width : 420 mm (16.54 in)
Height : 722 mm (28.43 in)
Depth : 419 mm (16.50 in)
Weight : 18.3 kg (40.34 lbs)

Features:

• 1200 W Peak power
• 600 W RMS power
• Newly designed Asymmetrical Horn
• Advanced DSP with FIR filters
• 2 input channels (mic-line/mic-instr)
• Selectable output channel (link CH1/MIX CH 1+2)
• 8 EQ presets
• Fresh full grille design
• Stage monitor use
