Overview:

A complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.

Specifications:

Technical Data
Speaker Type : 3-amped Stereo System with
two full-range tops and one subwoofer

Acoustical data
Frequency Response [-10dB]35 - 20.000 Hz
Max SPL : 132 dB
MF - HF : 8x4", v.c. 1"
Type MF - HF : Neodymium
LF : 2X12"
Directivity : 97x60°

Amplifier
Amp Technology : Digipro® G4
Amp Class : Class-D
Power Amp Peak : 2400 W
Controls : 1xOLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1XUSB port (service data)
Power Supply : Fullarange with PFC
Power connection : VDE Socket
Cooling : Convection

Processor
Controller : DSP 56 Bit
Converter AD/DA : 24 Bit/48 Hz
Limiter : Peak, RMS, Thermal
Crossover Frequency LF-MF : 160 Hz
Digital Steering : Up/Down/Far

Input
Input Channels : 1x Mic/Instrument Combo (XLR/Jack)
2xMic/Line Combo (XLR/Jack)
1XBluetooth built-in receiver
Mix Output : 1x XLR balanced output

Mechanics
Housing (Subwoofer) : Plywood with full metal grille
Housing (Tops) : Plywood with full metal grille
Pole Mount : 36 mm (M20 Thread)
Handles (subwoofer) : 1xtop
1x lateral side
Width (Top) : 110 mm (4.33 in)
Height (Top) : 460 mm (18.11in)
Depth (Top) : 160 mm (6.30 in)
Width (Subwoofer) : 360 mm (14.17 in)
Height (Subwoofer) : 680 mm (26.77 in)
Depth (Subwoofer) : 545 mm (21.46 in)
Weight (Top) : 3.3 Kg – 7.27 lbs.
Weight (Subwoofer) : 29.3 Kg – 64.59 lbs.

Features:

• Ri-Amped Active Stereo PA System
• 2400 W Power
• Latest Generation DigiPro G4 AMP Technology
• UserFriendly DSP Interface
• 3 Configuration Modes (Mono, Stereo or Double Column)
• On-Board 5 Channel Mixer
• Bluetooth Audio Receiver
• 3 Input Channel Modes (Mic/Instr/Line)
• Customizable Balanced Outputr Channel(Mix/Monitor/AUX)
• Ultra Wide Coverage

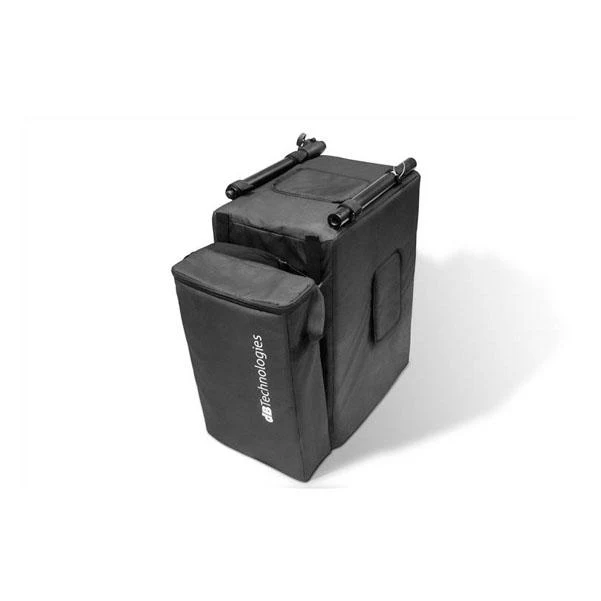

• Bag for Sub & Tops Included
