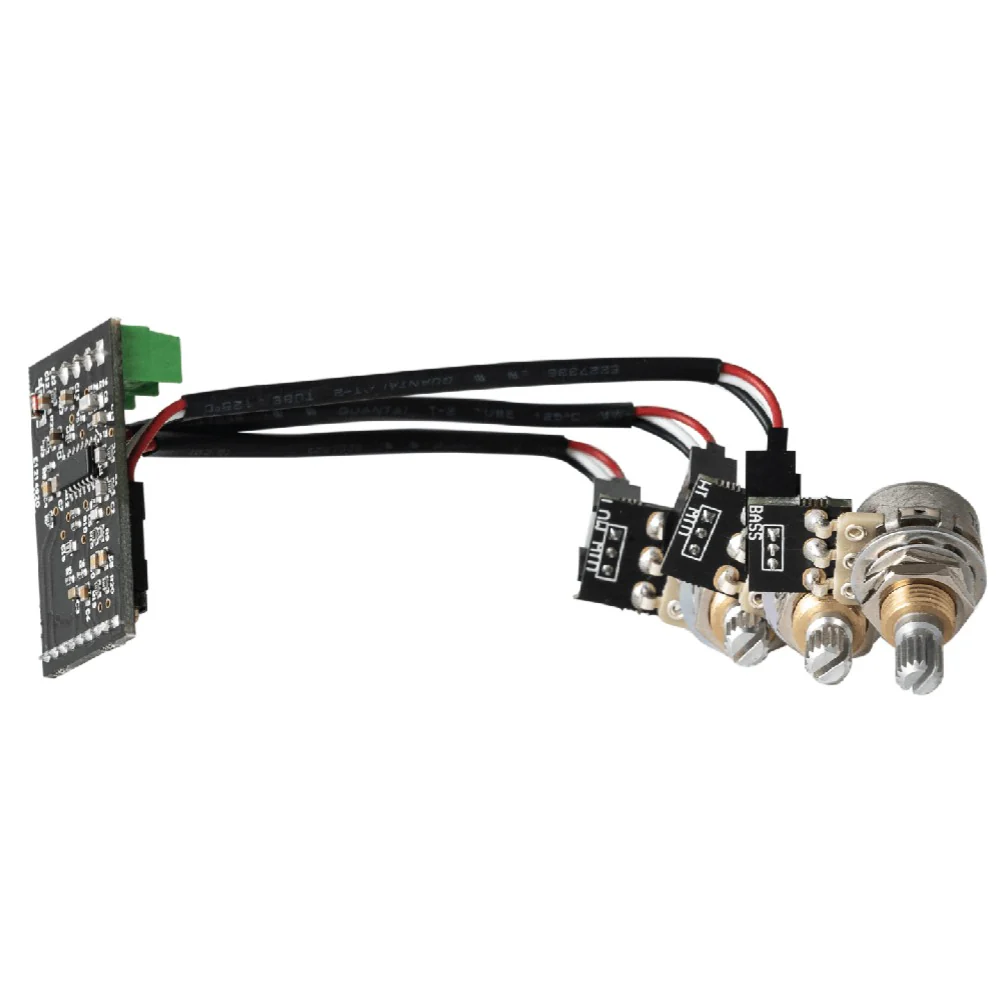

Darkglass Electronics Tone Capsule B2M2 Bass Pre Amp System Overview:

The Tone Capsule is a new, unusual take on onboard preamplifiers. It’s designed to respect your instrument’s natural character while expanding exponentially the tonal possibilities.

Control

• Bass: +-12dB @70Hz (potentiometer included).
• Mids: +-12dB @500Hz (potentiometer included).
• Hi Mids: +-12dB 2.8kHz (potentiometer included).
• Technical Specifications

  • Input Impedance: 500k

  • Output Impedance: 1k

  • Current Consumption: ~2.4mA
• 9V-18V operation

  • The Tone Capsule can function with either one or two batteries in series for 9V or 18V operation respectively (battery clips not included).
• Dimensions

  • Width: 42 mm / 1,65″

  • Length: 25 mm / 1″

  • Height: 12,5 mm / 0,5″

  • Cable length: ~10cm / 4″

  • Pots: 50 KB
