Charvel Pro-Mod DK24 HSS FR E 6 String Electric Guitar Overview:

Charvel’s Pro-Mod DK24 HSS FR E is a perfect fusion of elegance and high performance, designed for a new breed of player whose musical vision and versatility knows no boundaries.

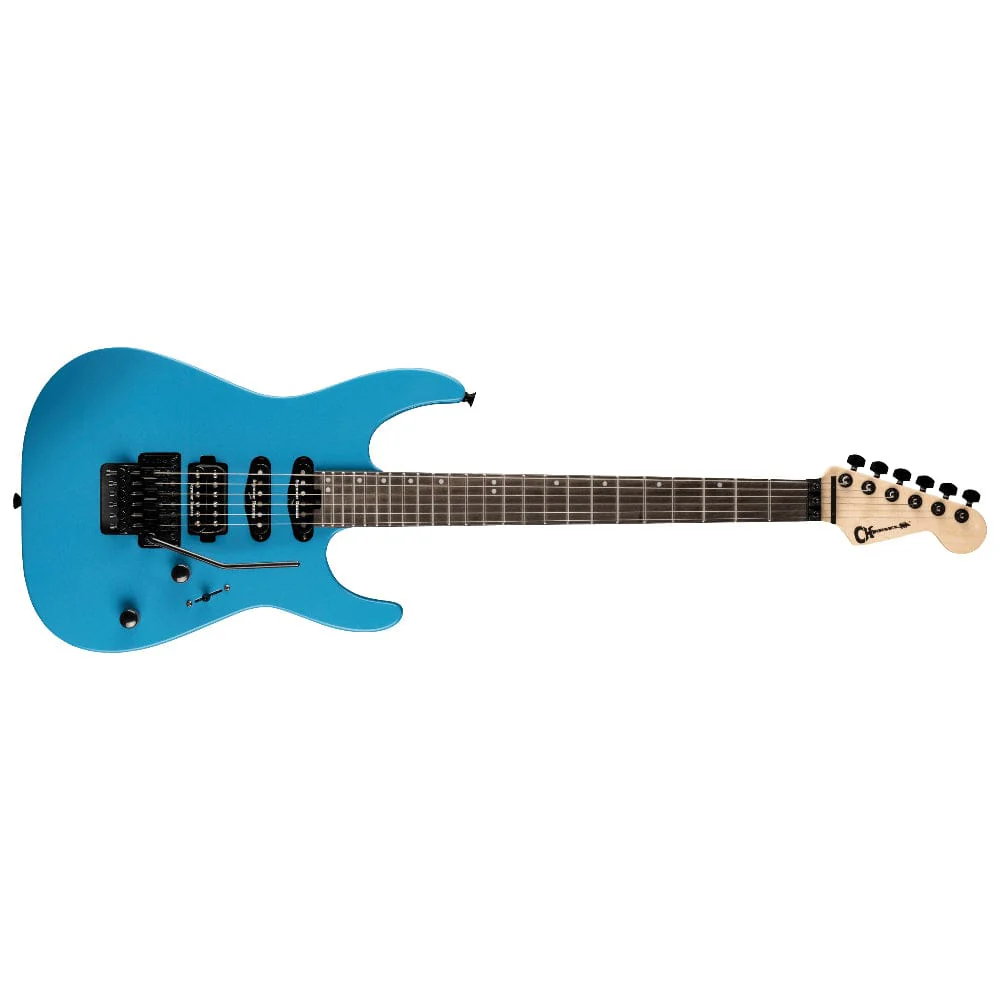

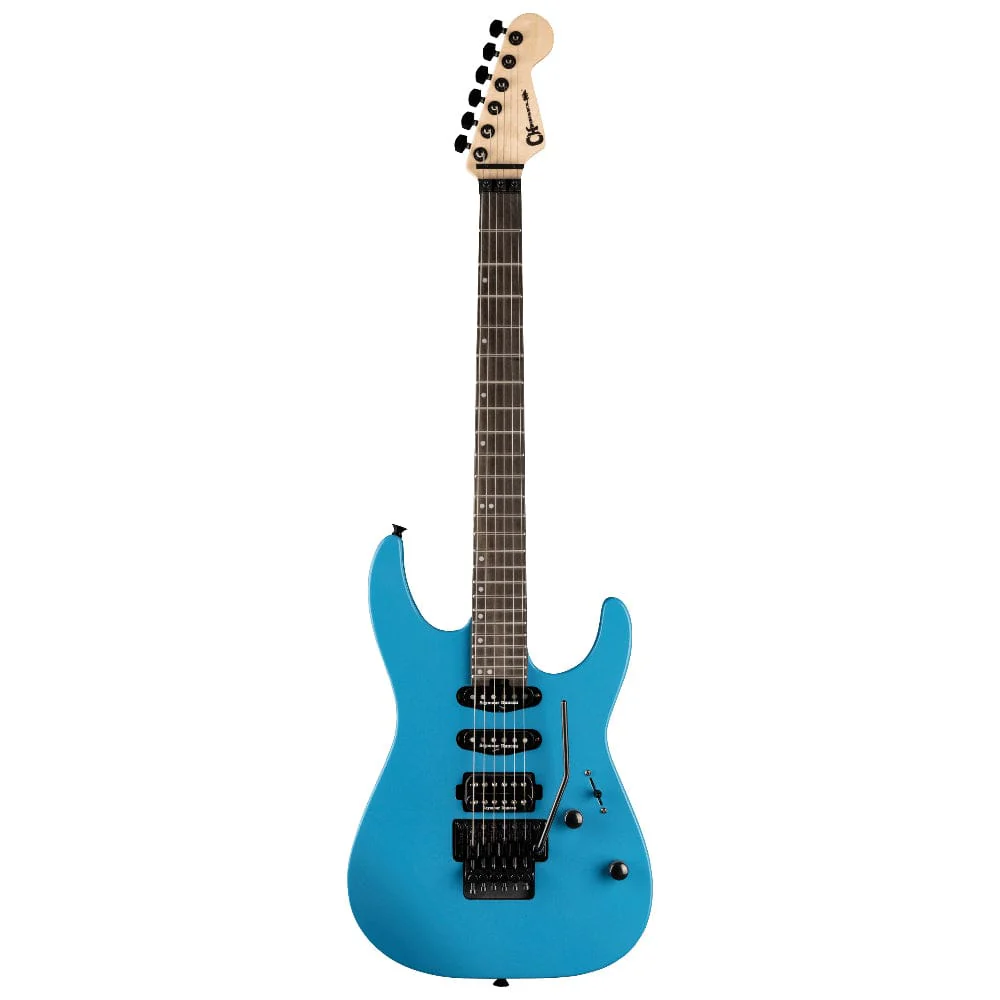

Featuring a sculpted shredder's cut heel and scalloped lower back bout for maximum playing enjoyment, the alder Dinky body is dressed in a bold Infinity Blue finish with black hardware.

The “speed” neck features a silky-smooth hand-rubbed satin urethane finish on the back for sublime playability, and a heel-mount truss rod adjustment wheel for quick and painless neck relief tweaks. Built for fast playing speeds, the 12”-16” compound radius ebony fingerboard features comfortable rolled edges, 24 jumbo frets and offset white dot inlays.

An HSS pickup configuration consisting of a Seymour Duncan Full Shred TB-10 bridge pickup, Seymour Duncan Custom Flat Strat SSL-6 single-coil middle pickup and Seymour Duncan Custom Flat Strat SSL-6 RWRP single-coil neck pickup hits with plenty of focused humbucker grit and springy vintage snap. Dial in the tonal spectrum that best suits your playing with five-way blade switching, single volume control (with 500K EVH Bourns low friction potentiometer) and no-load tone control that operates like a standard tone control from positions one through nine, removing itself from the circuit at position ten for transparent sound that lets the full natural voice of the guitar shine through.

This modernized instrument is also equipped with a recessed Floyd Rose 1000 Series double-locking tremolo bridge system for superior tuning stability and radical pitch-raising capability.

Features

• Alder Dinky Body
• Bolt-On Maple Neck with Graphite Reinforcement
• Scalloped Lower Back Bout
• Shredder's Cut Heel
• 12"-16" Compound Radius Ebony Fingerwood with Rolled Edges and 24 Jumbo frets
• Seymour Duncan Full Shred SH-10B, Seymour Duncan Custom Flat Strat SSL-6 and Seymour Duncan Flat Strat SSL-6 RWRP Pickups
• Heel-Mount Truss Rod Adjustment Wheel
• Floyd Rose 1000 Series Double Locking Tremolo Bridge System

Specifications

• Body
• Body Finish: Gloss
• Body Shape: Dinky
• Body Material: Alder
• Hardware
• Bridge: Floyd Rose 1000 Series Double-Locking Tremolo (Recessed)
• Hardware Finish: Black
• Tremolo Arm: Floyd Rose 1000 Series Locking
• Tuning Machines: Charvel-Branded Die-Cast
• Pickguard: None
• Control Knobs: Dome-Style
• Switch Tip: Black
• Neck
• Neck Material: Maple
• Neck Construction: Bolt-On with Graphite Reinforcement
• Neck Finish: Hand-Rubbed Satin Urethane
• Neck Shape: Speed Neck with Rolled Fingerboard Edges
• Neck Binding: None - Rolled Fingerboard Edges
• Scale Length: 25.5" (64.77 cm)
• Finge\n
• Fingerboard Radius: 12"-16" Compound Radius (304.8 mm to 406.4 mm)
\n
• Fingerboard Material: Ebony
\n
• Number of Frets: 24
\n
• Fret Size: Jumbo
\n
• Nut Material: Floyd Rose 1000 Series Locking
\n
• Nut Width: 1.6875" (42.86 mm)
• Position Inlays: Offset White Dot
• Side Dots: White
• Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
• String Trees: Floyd Rose Retainer Bar

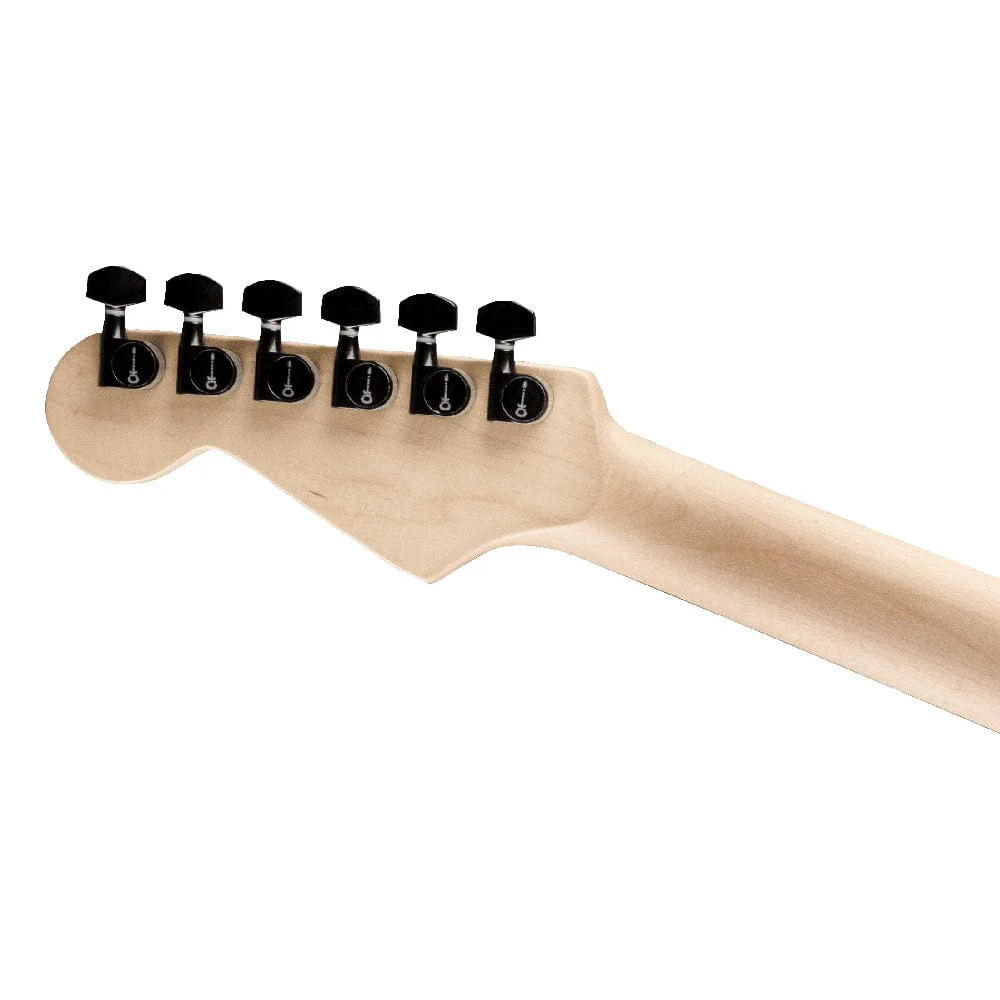

• Headstock: Licensed Fender Stratocaster
• Neck Plate: None - 4-Bolt Sculpted Heel
• Electronics
• Bridge Pickup: Seymour Duncan Full Shred TB-10
• Middle Pickup: Seymour Duncan Flat Strat SSL-6 Single-Coil
• Neck Pickup: Seymour Duncan Flat Strat SSL-6 RWRP Single-Coil
• Pickup Color: Black
• Controls: Volume (500K EVH Bourns Low Friction Pot), No-Load Tone
• Pickup Switching: 5-Position Blade: Position 1. Full Bridge Pickup, Position 2. Bridge Inner Coil and Middle Pickup, Position 3. Bridge Outer Coil and Neck Pickup, Position 4. Middle and Neck Pickup, Position 5. Full Neck Pickup
• Pickup Configuration: HSS
