Beyerdynamic TG V50D Dynamic Microphone Overview:

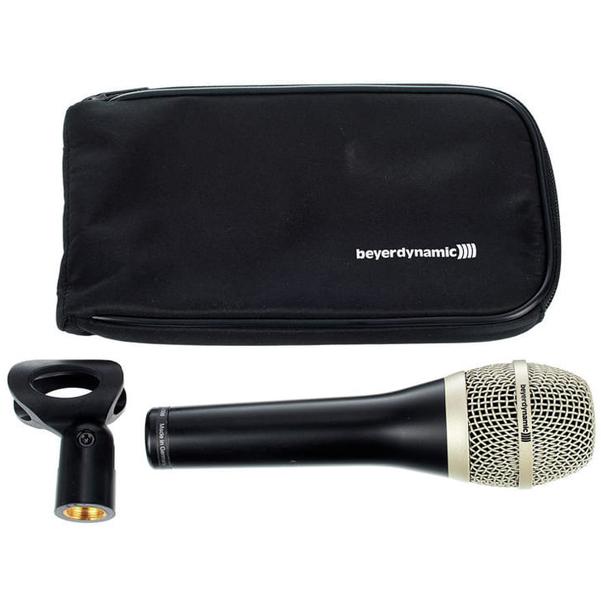

The TG V50d has been specially developed to mike up song and speech. Using the clip included in delivery, the microphone can be mounted on microphone stands with a 3/8" or 5/8" thread adapter.

Connection
The TG V50d is equipped with a 3-pin XLR-plug. The microphone can be connected to any balanced microphone input.

Specifications:

• Technical Specifications
• Transducer type : Dynamic
• Operating principle: Pressure gradient
• Polar pattern: Cardioid
• Frequency response
• Close miking: 50 - 17,000 Hz
• Distant miking (measured at 1 m): 80 - 17,000 Hz
• Open circuit voltage: 2.4 mV/Pa (-52.5 dBV) ±3 dB
• Nominal impedance: 600 Ω
• Load impedance: ≥ 2 kΩ
• Connection: 3-pin XLR connector
• Dimensions:
• Length: 167 mm
• Shaft diameter: 23/35 mm
• Head diameter: 54 mm
• Weight without cable: 270 g
