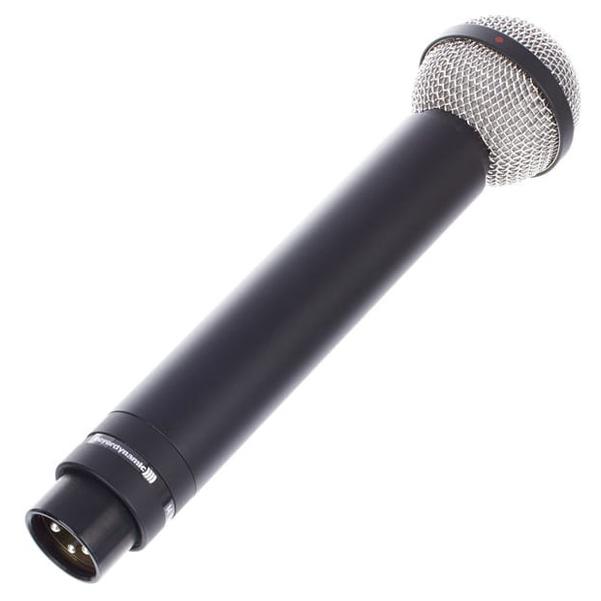

Beyerdynamic M160 Double Ribbon Dynamic Microphone Overview:

DOUBLE RIBBON MICROPHONE
for miking string instruments and guitar amps

Beyerdynamic is one of few microphone manufacturers world-wide that still produce ribbon microphones. A classic one is the M 160, a dynamic double ribbon microphone. Featuring a hypercardioid polar pattern with a noise attenuation of 25 dB at 110°, the M 160 is an outstanding microphone which is very effective for all types of remote and in-studio voice reproduction.

APPLICATION
The M 160 is ideal for miking string instruments such as violins, violas, cellos and guitars as well as for guitar amps.

DOUBLE RIBBON MICROPHONE
Two overlaying, paper-thin ribbons ensure a high output level.

DIRECTED RIBBON
The M 160 is one of the few ribbon microphones with a hypercardioid polar pattern. Most ribbon microphones are figure-eight.

COMPACT AND RUGGED CONSTRUCTION
The compact and rugged construction allows the unobtrusive use on stage.

Features:

• For miking string instruments and guitar amps
• Warm and natural sound
• Hypercardiod polar pattern
• Extended frequency response
• Excellent transparency

Specifications:

• Transducer type: Dynamic
• Operating principle: Pressure gradient
• Frequency response: 40 - 18,000 Hz
• Polar pattern: Hypercardioid
• Rear attenuation at 1 kHz: > 25 dB at 110°
• Open circuit voltage at 1 kHz (0 dB = 1 V/Pa): 1.0 mV/Pa = -60 dBV
• Nominal impedance: 200 Ω
• Load impedance: ≥ 1000 Ω
• Diaphragm: Pure aluminium
• Case/finish: Brass
• Connector: 3-pin XLR male
• Dimensions: Length: 156 mm
• Shaft diameter: 23 mm
• Head diameter: 38 mm
• Weight without cable: 156 g
