BBE 882i Sonic Maximizer Audio Enhancing Signal Processor Overview :

The all analog 882i is a dual-mono Sonic Maximizer that features our fourth generation processing engine and perfectly suited for any studio.Pa System Guitar/Bass Rig Or any application that requires the balanced connectivity

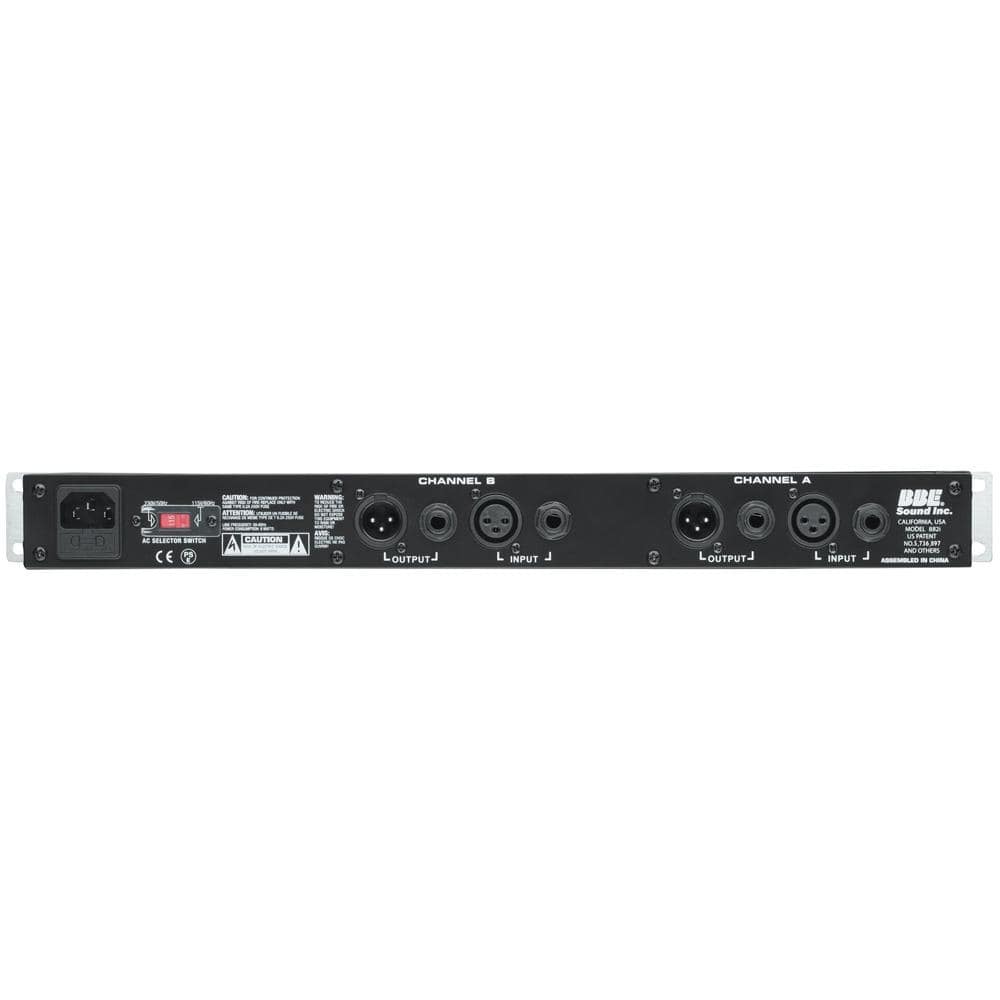

Two channel Sonic Maximizer for balanced applications. +4 dBu balanced ¼” TRS and XLR balanced ins and outs.

Applications
Broadcasting DJ Sound Reinforcement Mastering Musical Instruments Tape Duplication Recording Professional Sound Reinforcement

Features include
A full-function Sonic Maximizer, +23dB of output headroom, balanced or unbalanced I/O, 115dB signal to noise ratio and Hard-wire bypass.

+4dBu balanced line (1/4" tip-ring-sleeve and XLR inputs and outputs) +23dBu headroom Active balanced outputs Hardwire bypass Bypass switch for comparison of processed to unprocessed signal

Specifications :

• Frequency Response
• Process Mode: Program controlled Bypass Mode: 10Hz to 50kHz, +/- 0.5dBu, 0dBu input Signal to Noise Ratio: 115dB Process IN
• THD, Process mode: less than 0.025% 20-20kHz
• Bypass mode: less than 0.002% 20-20kHz
• Maximum Output: +23dBu (may vary due to control settings)
• Input Impedance: 14.7K Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
• Output Impedance: 600 Ohms, balanced 1/4" stereo phone jack or XLR jack. Pin #2 is the hot or "+" signal.
• Sensitivity: -45dBu for maximum process
• Maximum Process: +12dBu boost at 5kHz, 0dBu input
• Lo Contour: +12dBu adjustment at 50Hz, 0dBu input
• Designed and Engineered in USA

Made in China
