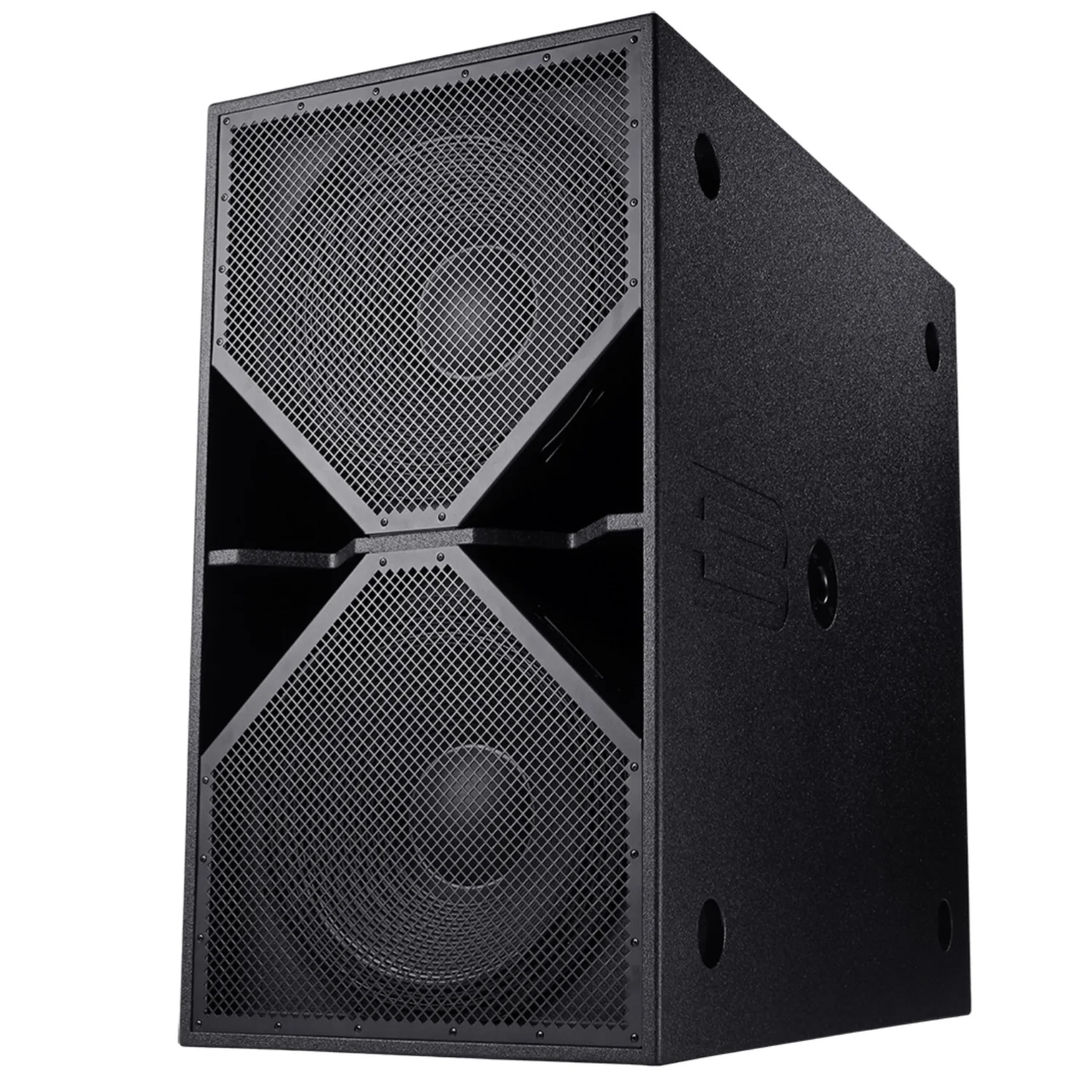

Bassboss ZV28-MK3 Double 18″ Subwoofer Overview:

So smooth, so deep, so beautiful. BASS like you've never experienced it.

Captivate Crowds
The ZV28-MK3 delivers depth that most people have never heard, and it does so seemingly effortlessly. The result is a full, rich sound that immediately resets expectations of what music can sound and feel like, both physically and emotionally.

Boundary Crushing BASS
Does your music contain deep bass that demands to be felt? Would you like to introduce audiences to new experiences of the deepest frequencies? Experiences they can’t have anywhere else? This is the sub.

Set Standards
With these, you have an incredible opportunity to impress when the music goes deep… You’ll love to see those jaws drop when the bass drops! Those jaws will drop because you’ve brought them something they have never experienced before… and they’ll want more!

How It's Done
The ZV28-MK3 Sub will bring your audience up close and personal with the boundaries of audible sound. You will reveal notes unfathomable with other subwoofers, delivered unmistakably large and full.

Power of MK3

MK3 Amp Update
There are all-new amplifiers in the MK3 series. Total power has increased, however power allocated to woofers increased substantially. The higher output voltages provide more impact. Universal input voltage compatibility of 90-250V provides more flexibility. Waterproof connections provide more peace of mind.

MK3 Enhanced DSP
The MK3 features an all-new 96kHz DSP. The pushbutton presets have doubled, from 4 to 8, and up to 100 presets can now be stored in the DSP and loaded via LAN. The comprehensive suite of processing includes meticulously tuned equalization, all necessary high-pass and low-pass filters, as well as multiple protection systems and limiters to prevent driver overload in as many ways as possible.

ControlBASS Software
ControlBASS software supports an essentially unlimited number of possible BASSBOSS-developed or customized user presets which integrate seamlessly and coherently with all other BASSBOSS products for effortlessly perfect setups. The latest in DSP programming developments can be added via easy remote updating.

Specifications:

• Loudspeaker Description: Double 18" Self-Powered Vented Direct-Radiating Extended-depth Subwoofer

• Frequency Response (±3 dB): 23 – 90Hz

• Maximum Sustained Output: 134 dB SPL 1m half-space

• Max SPL (Peak)*: 137 dB SPL 1m half-space

• Nominal Dispersion (H° x V°): 360 x 360 - Cardioid mode available with multiple cabinets

• Amplification: 5000 Watts Class D (2 x 2500W)

• Processing: Integrated comprehensive DSP. 96kHz sampling rate with 8 pushbutton presets. All presets include high pass filters, low pass filters, phase alignment, equalization and multi-stage limiting. Storage apacity for up to 100 presets

• Electrical Connector Amp: USA 3-pin grounding 120V electrical plug: NEMA 5-15; Outside USA alternate connectors provided

• Electrical Connector Mains: Standard US 3-pin grounding 120V electrical plug: NEMA 5-15 (Edison)

• Voltage Operating Range: 100-240V AC, 50-60Hz (Auto-sensing, auto switching universal supply)

• Current Draw 120V: 9A (nominal)

• Current Draw 240V: 4.5A (nominal)

• Signal Input Connector: XLR-F

• Signal Output Connector: XLR-M (direct pass-through only)

• Enclosure Type: Direct radiating vented enclosure, optimally tuned for extended low frequency response with linear output and high power handling

• Transducer Low Frequency: 2 x 18” (457mm) neodymium motor woofers with 4.5 in. (115mm) CCAW voice coils
• Cabinet Construction: CNC machined 18mm Birch plywood with extensive bracing and dado joinery. 8 steel bar handles. 2 x 35mm steel pole sockets. 12 rubber feet. 4 interlocking foot pockets. 16 X M10 threaded flypoints

• Exterior Finish: High-pressure, bonded polyurea coating. Rugged, waterproof. Textured black

• Grille: Perforated, powder-coated steel

• Dimensions (HxWxD): 22.5 in. x 42 in. x 42 in. (Height of feet 7/8")

• Net Weight: 235 lbs. (106.5 kg)

• Shipping Weight: 265 lbs. (120.2 kg)

• What's Included: Loudspeaker, manual, and power cable

• Optional Covers: Heavy-duty padded nylon transport covers for vertical or horizontal transport

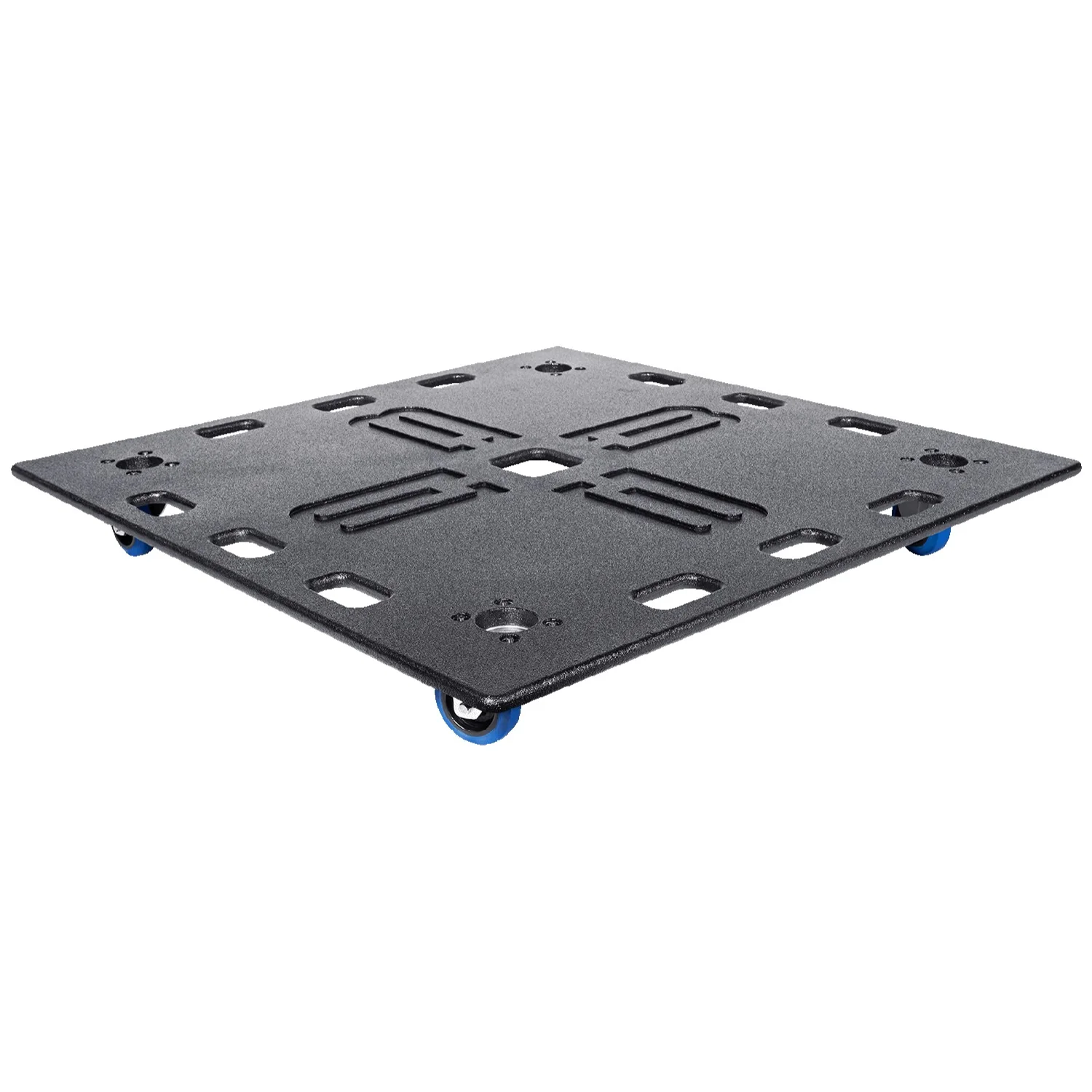

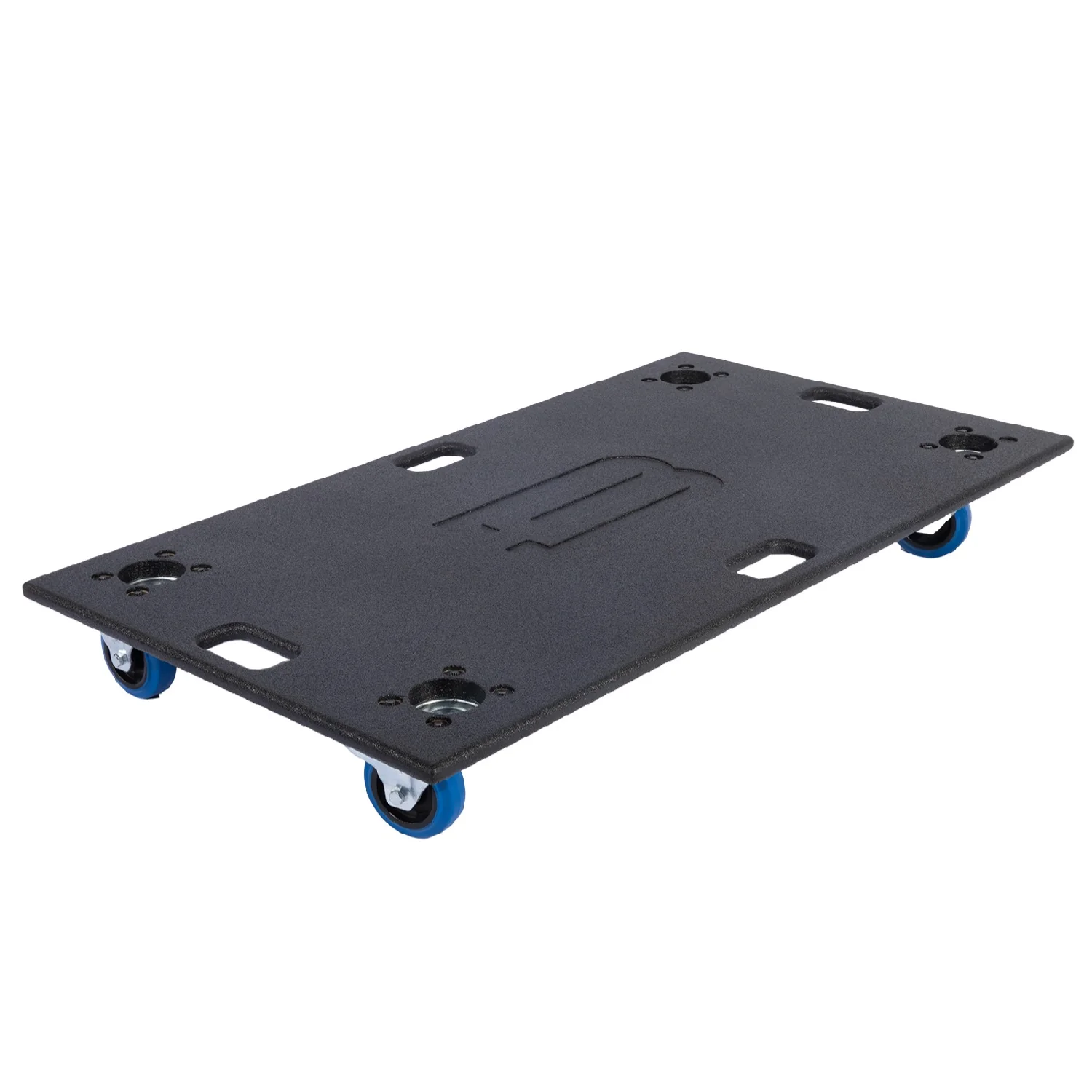

• Optional Dollies: Version V: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports 1 cabinet. <br>‍</p><p Version H: Birch plywood flat cart with 4 locking wheels and sockets to accept the cabinet feet. Transports up to 4 cabinets.

• Optional Hardware: M10 Shoulder Eye Bolts, M10 Side-Pull anchors


True Specifications

At BASSBOSS, with the MK3 line we have stopped using “Peak” and “RMS” power ratings for our amplifiers because those numbers alone are not an accurate representation of the real-world performance you can expect from our powered loudspeaker systems.‍

Peak Watts:

• Essentially a theoretical maximum that the amplifiers could output for an instantaneous moment under ideal conditions with no load.

• However, this peak power is not sustainable and has little practical relevance for how the loudspeakers will actually perform.‍

RMS (root mean square) Watts:

• A measure of continuous power output, but even this figure doesn’t account for the true efficiency of how that power is converted into acoustic output by the transducers and overall speaker design.

• The number of watts a loudspeaker “uses” is constantly fluctuating based on the impedance curve, frequency response, and heat generated in the voice coils.

• Simply looking at how many watts an amplifier can produce on a test bench doesn’t translate to its real-world sound output capability.‍

What matters most is the complete integrated loudspeaker system and how efficiently it can convert the amplifier’s power into acoustic output while maintaining flat frequency response and headroom. Two loudspeakers with the same wattage ratings could have vastly different real-world sound pressure levels and clarity.

For these reasons, we believe wattage ratings alone are not a reliable metric. Listening tests and measurements of the overall system’s output capabilities like maximum SPL and distortion are far more telling than any peak or RMS wattage number viewed in isolation.

Our goal is to provide outstanding performance through intelligent system design, not just big wattage numbers.
