• 550W continuous, 1100W peak Class D power
• 15-inch (381 mm) LF driver, 2.5-inch (63.5 mm) high-temperature voice coil
• 1-inch (25.4 mm) neodymium HF driver with precision waveguide
• Bi-amplified design with precision active crossover and EQ
• Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs and independent level controls
• Custom engineered high-efficiency class D amplifiers with passive cooling design – No fan means the speaker runs cleaner, quieter and has greater long-term reliability
• Ground-Lift switch
• Contour switch for increased EQ control
• Electronic clip, thermal and transducer overdrive protection
• Compact, lightweight, trapezoidal cabinet design for easy transport and installation
• Angled rear panel for wedge monitor applications
• Stand and pole-mountable with integral M10 suspension points
• XLR Link output
• Designed and tuned in the USA

• Output Power - 1100W peak (700 LF + 400 HF) / 550W continuous (350 LF + 200 HF)
• Low Frequency - 15-inch (382 mm) woofer, 2-inch (51 mm) voice coil
• High Frequency - 1-inch (25 mm) neodymium driver with precision waveguide
• Crossover - 2kHz
• Maximum SPL - 129 dB peak, 126 dB continuous (dB-SPL @ 1 m)
• Frequency Response - 50 - 20 kHz (+/- 3 dB)
• Frequency Range - 43 Hz - 22 kHz (-10 dB)
• Coverage - 90° H x 60° V nominal

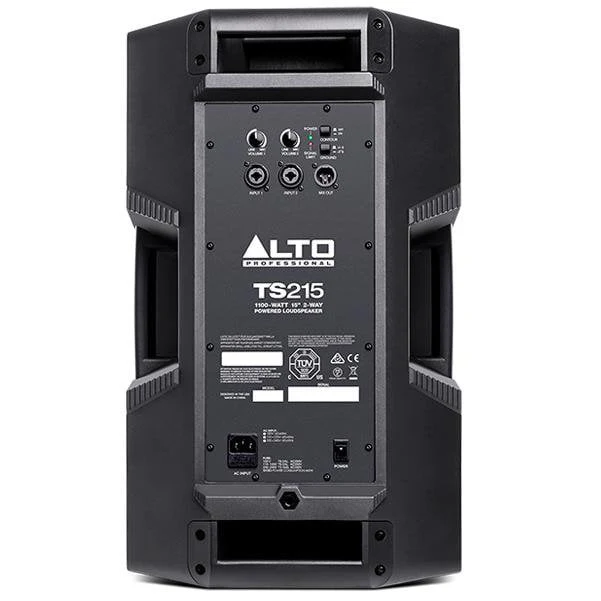

• Connectors - (2) XLR + ¼-inch combo jack mic/line inputs, (1) XLR Mix output
• Cabinet - Trapezoidal, injection-molded, polypropylene enclosure with perforated steel grille
• Controls - Volume, power on/off with LED, clip limiter with LED, ground lift
• Protection - Electronic clip, thermal and transducer overdrive protection
• Power - AC Input: 100-120/220-240 V, 50/60 Hz, Fuse: 100-120 V T6.3AL AC250V/220-240 V T3.15AL AC250V
• Dimensions (WxDxH): 15.6" x 14.1" x 25.7" / 396 x 357 x 652 mm
• Weight: 32.7 lbs. / 14.9 kg

Made in China
